Installation (ES300)

To install, reverse removal procedure using NEW IAC valve gasket. Install bolt. Reconnect vacuum hoses. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS .

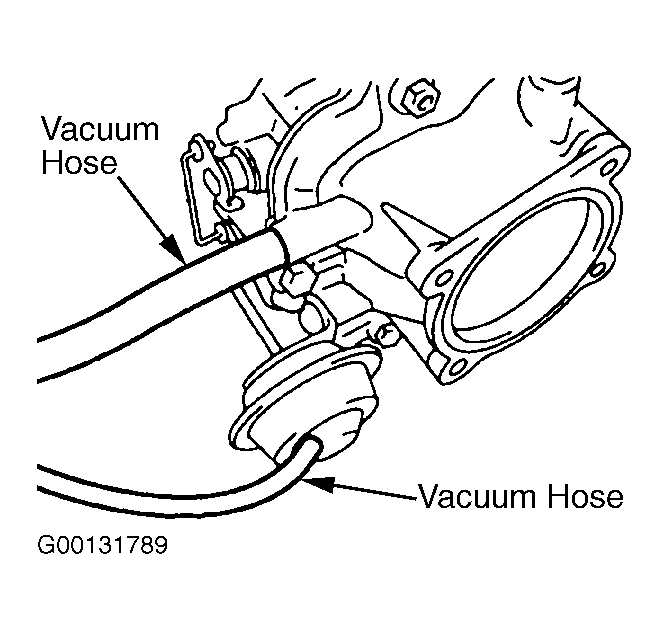

Fig 1: Identifying Intake Air Control Valve Assembly Vacuum Hoses

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

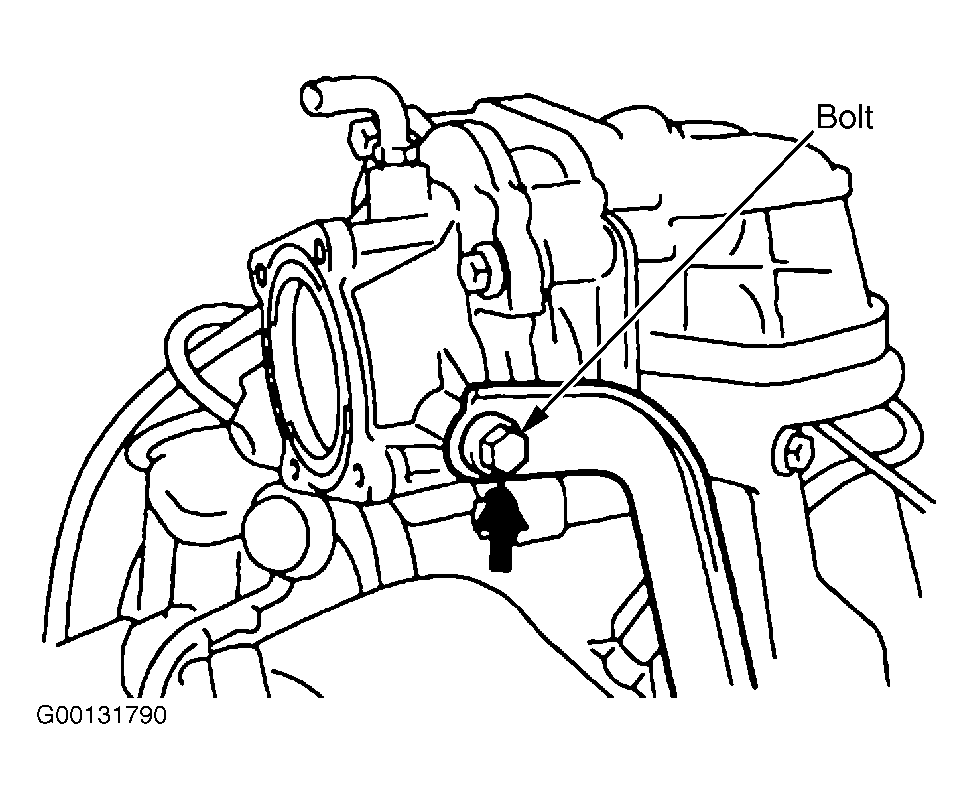

Fig 2: Removing Intake Air Control Valve Assembly Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

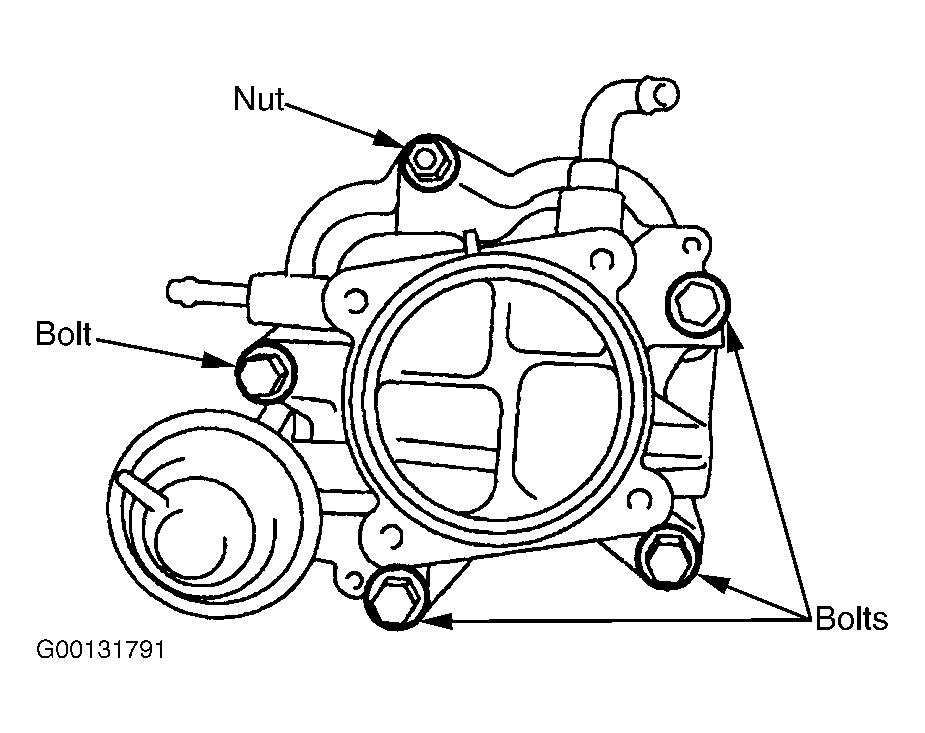

Fig 3: Identifying Intake Air Control Valve Assembly Bolts & Nut

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

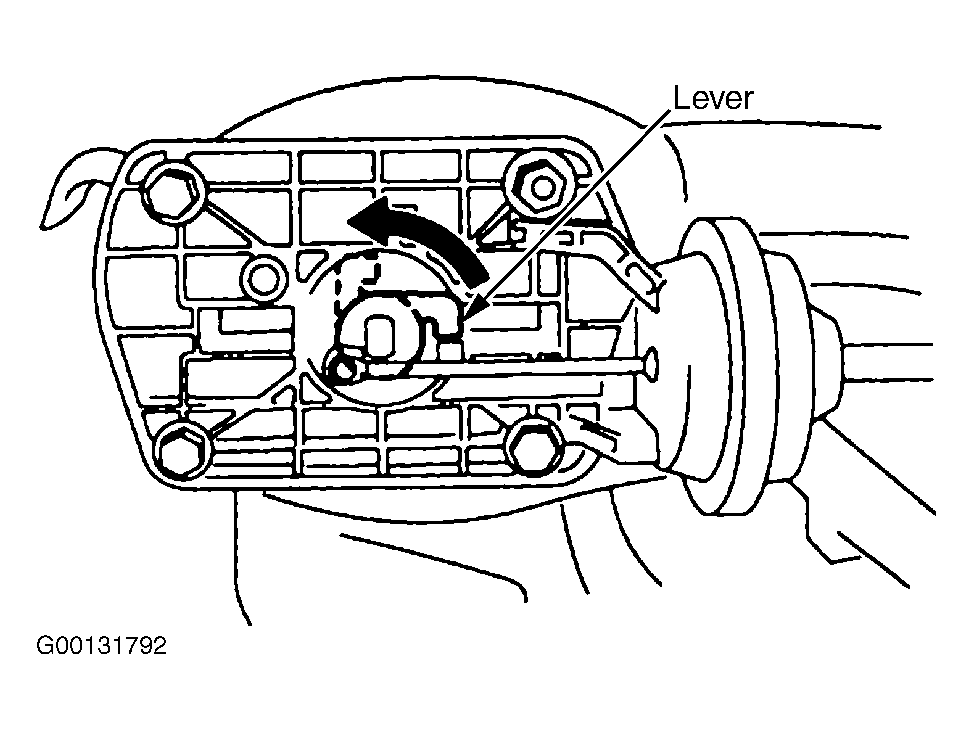

Fig 4: Rotating Lever On Intake Air Control Valve Assembly No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
