Fuel Injector ASSY: Components

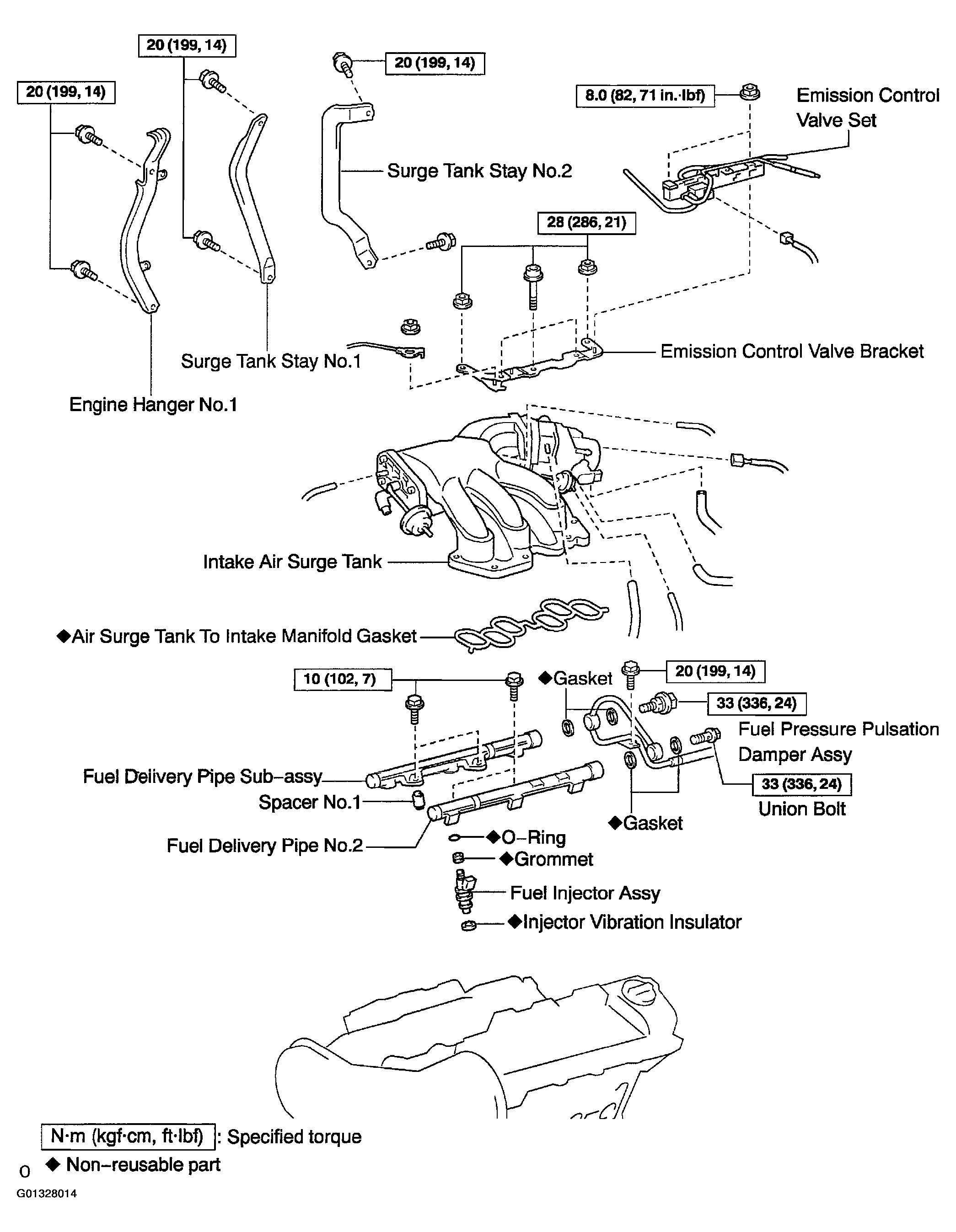

Fig 1: Identifying Components
G01328014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
