Control Module: Testing and Inspection

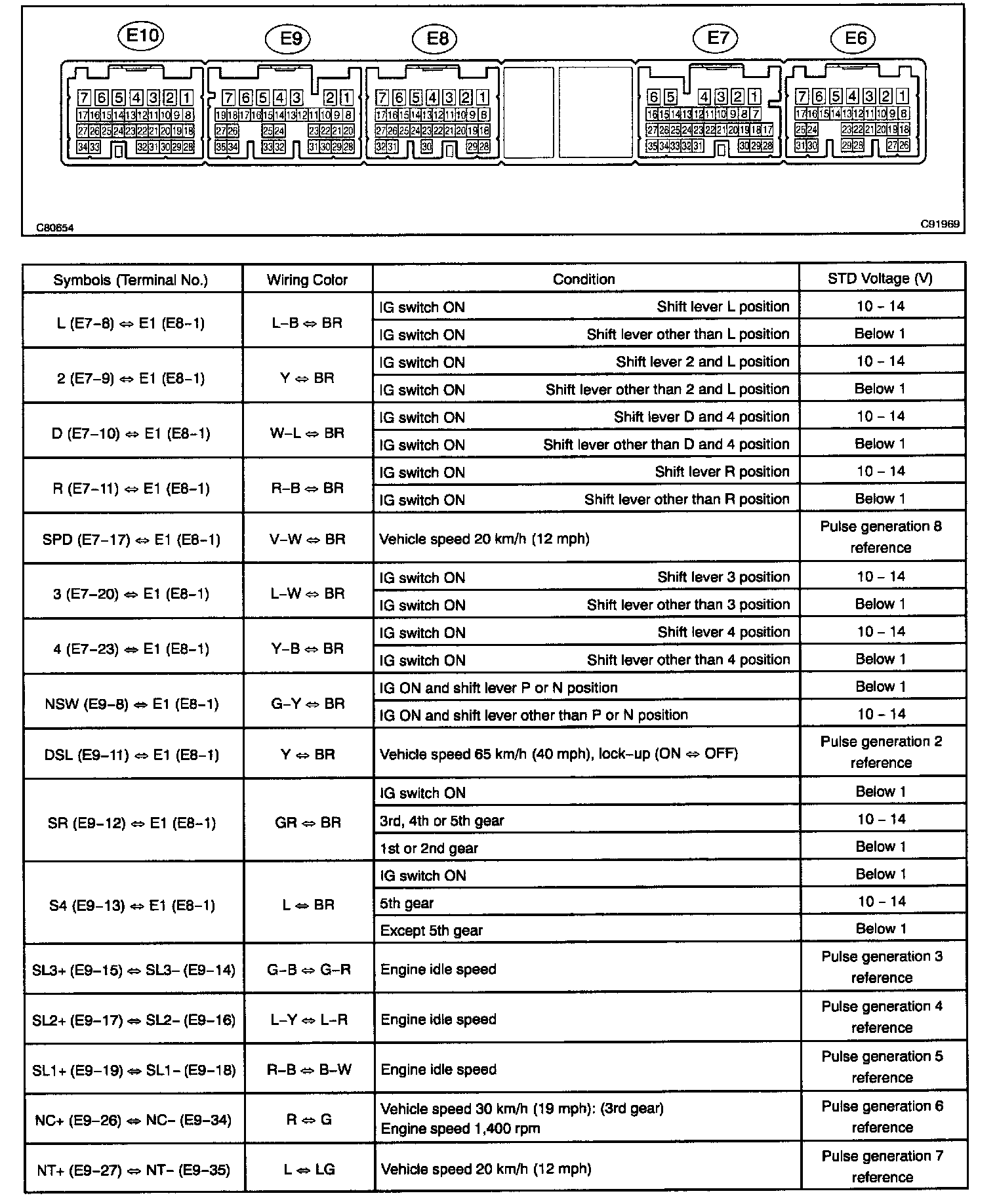

Terminals Of ECM/ Pinouts Part 1:

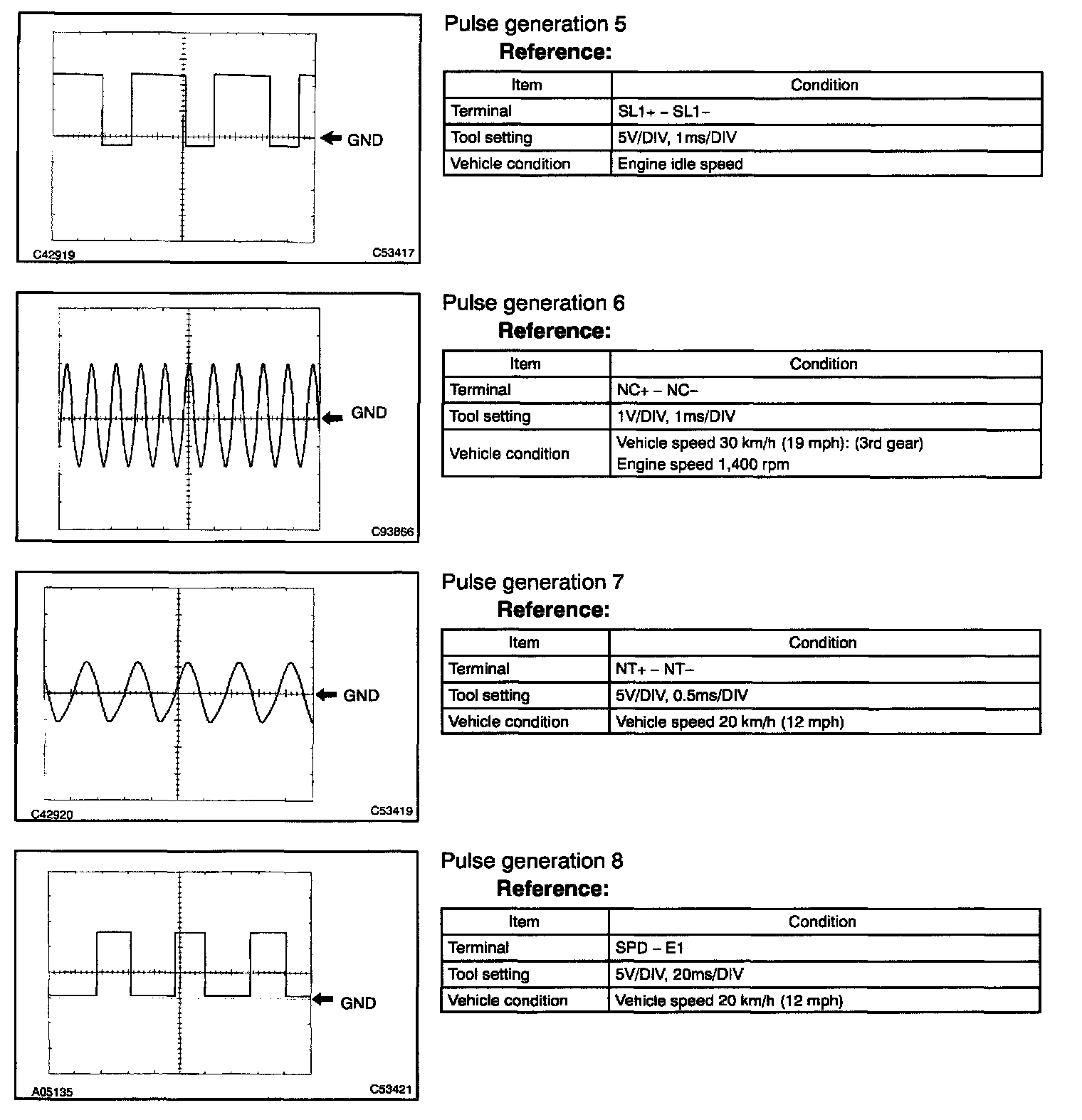

Terminals Of ECM/ Pinouts Part 2:

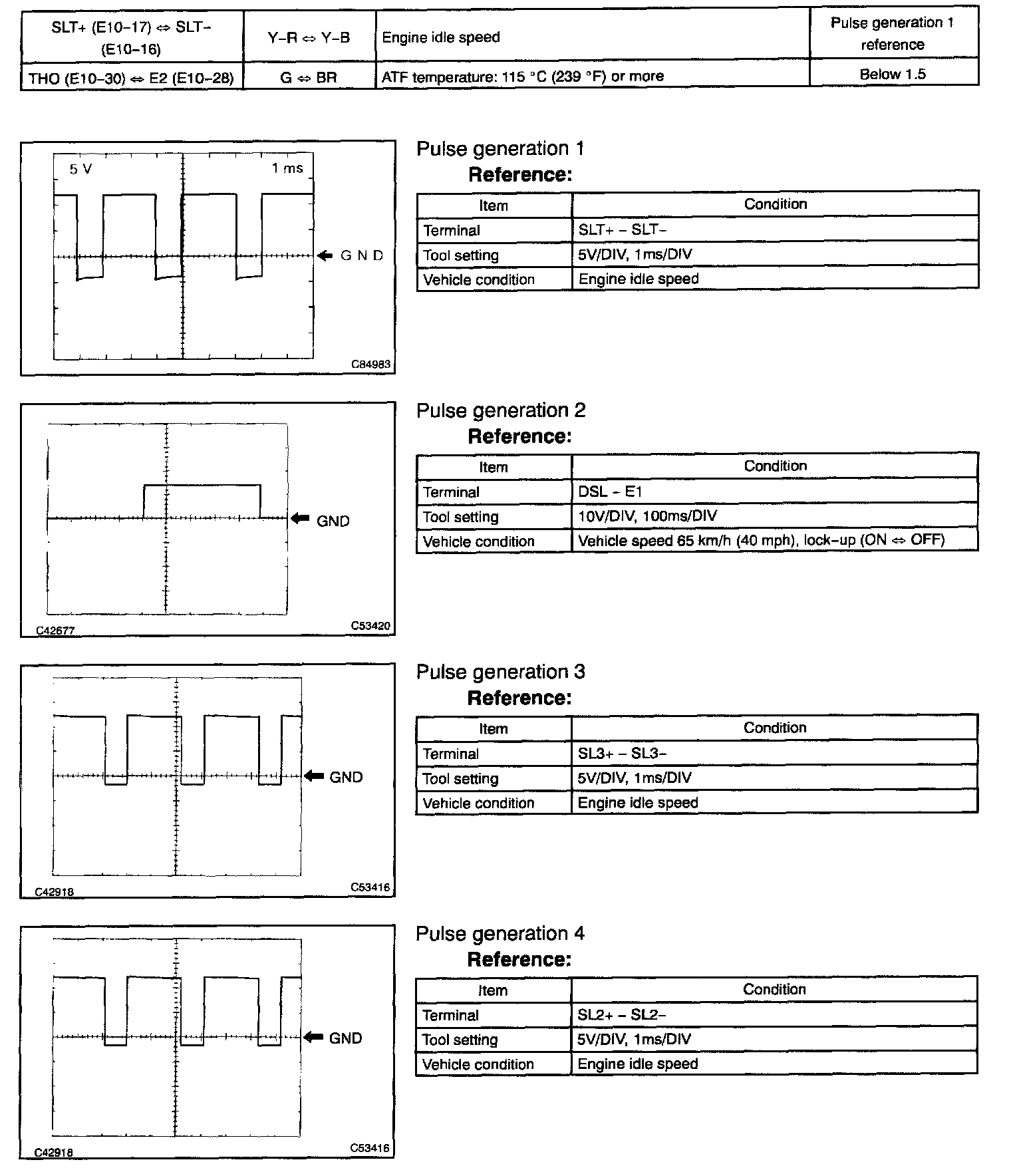

Terminals Of ECM/ Pinouts Part 3:
