Main Relay (Computer/Fuel System): Locations

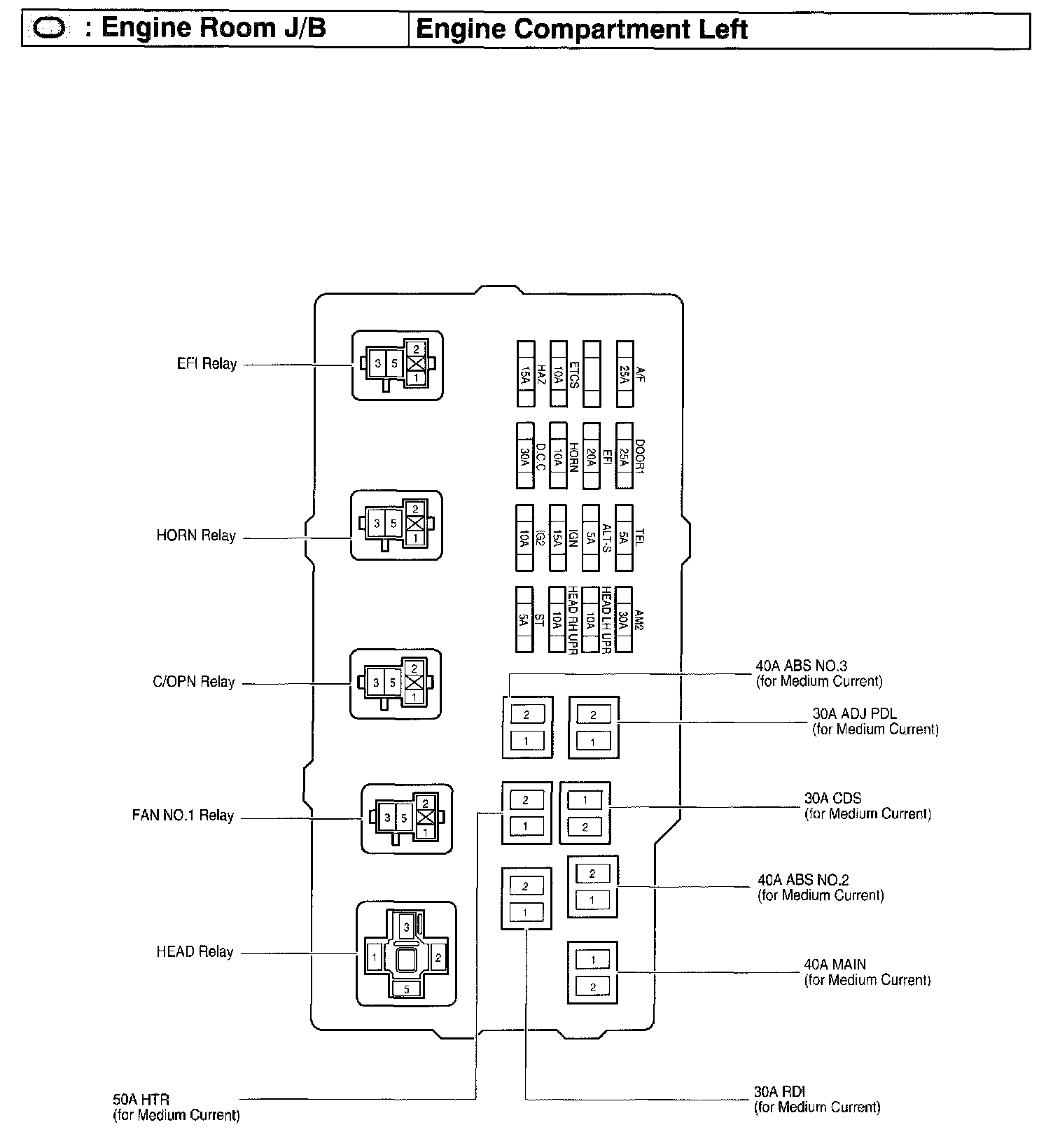

Engine Room J/B - Engine Compartment Left:

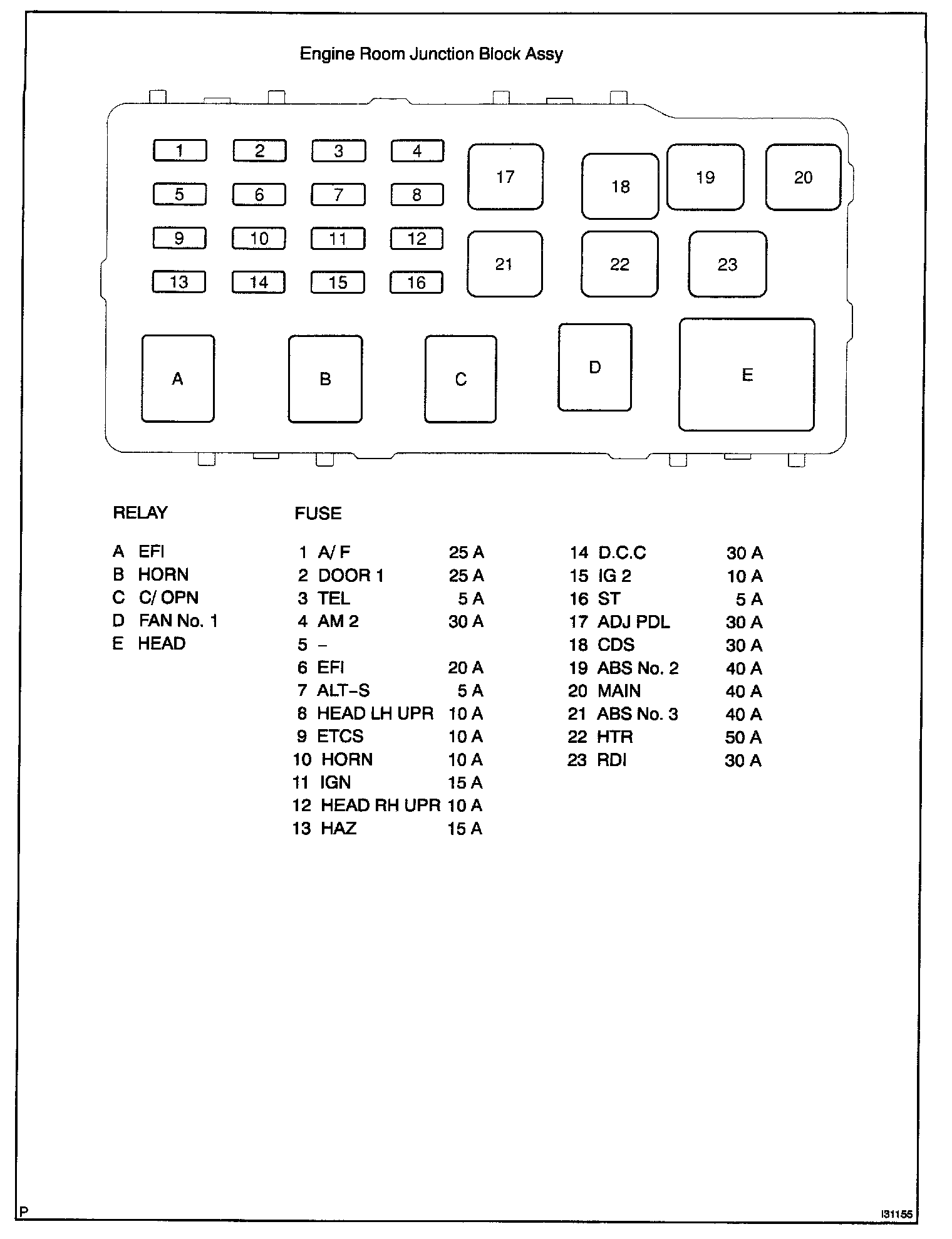

Engine Room Junction Block Assy:
