Fuse Block: Locations

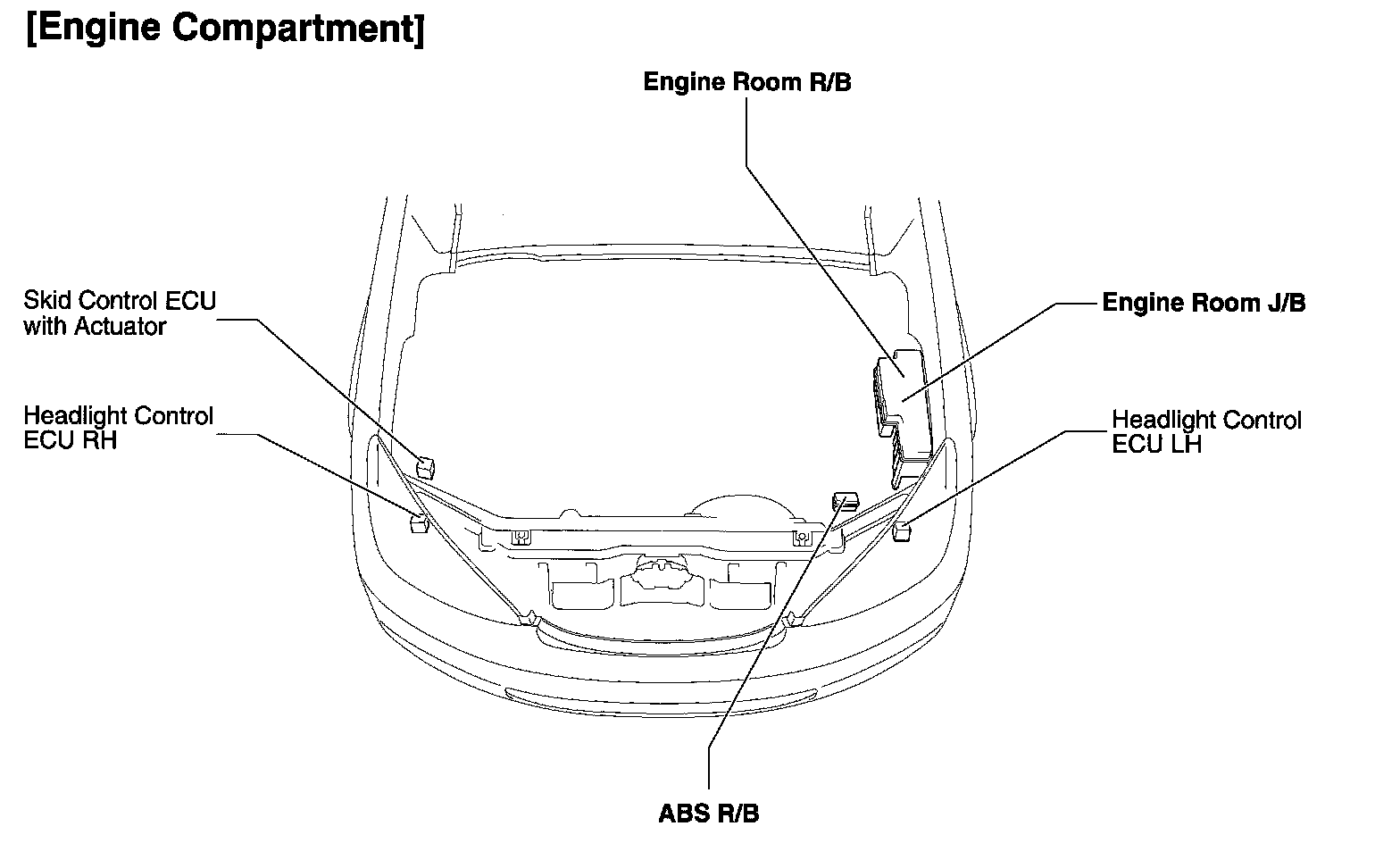

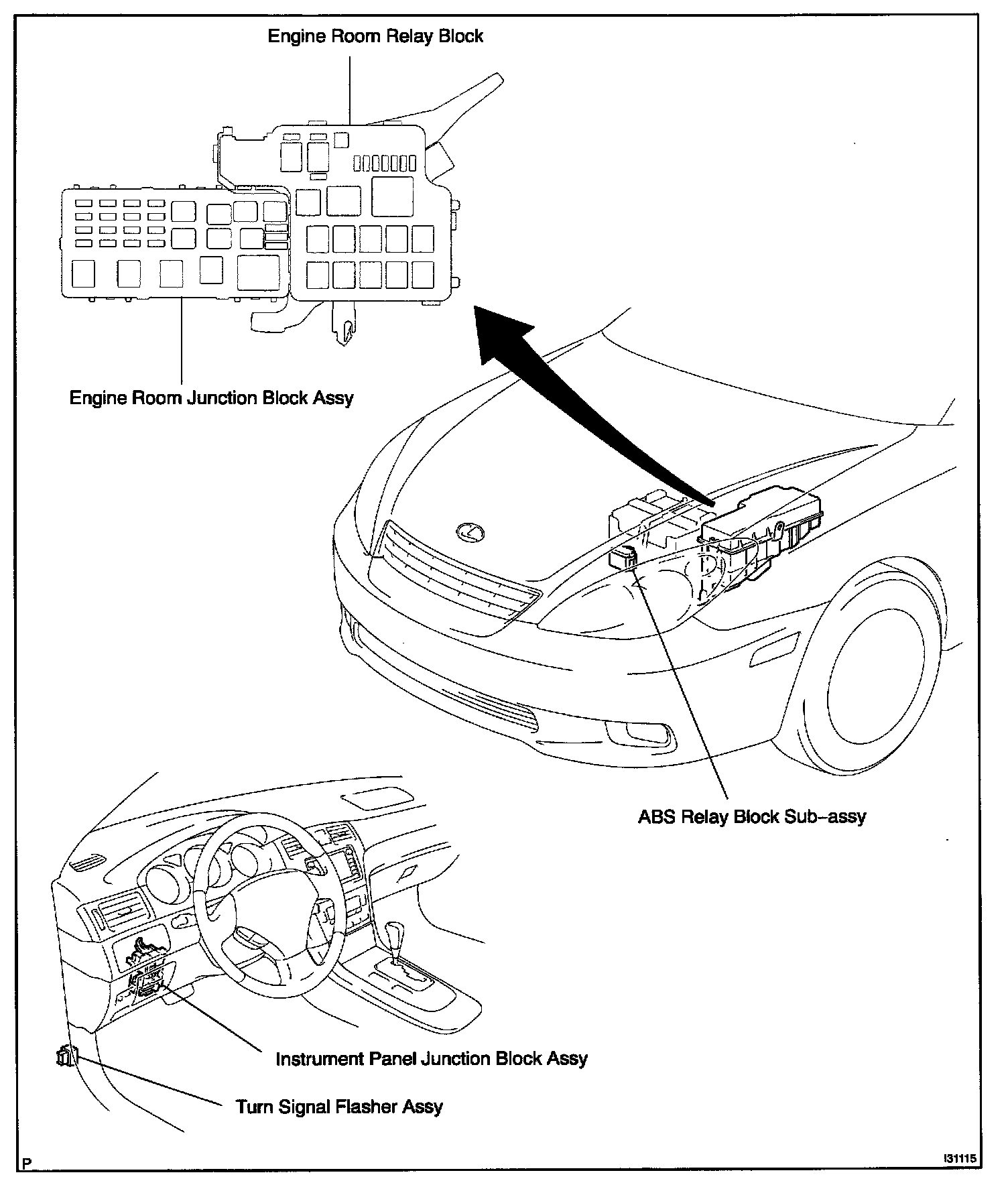

Engine Compartment:



Instrument Panel:



Body:



Mi - Wo:



Power Source:
