Refrigerant Line: Components

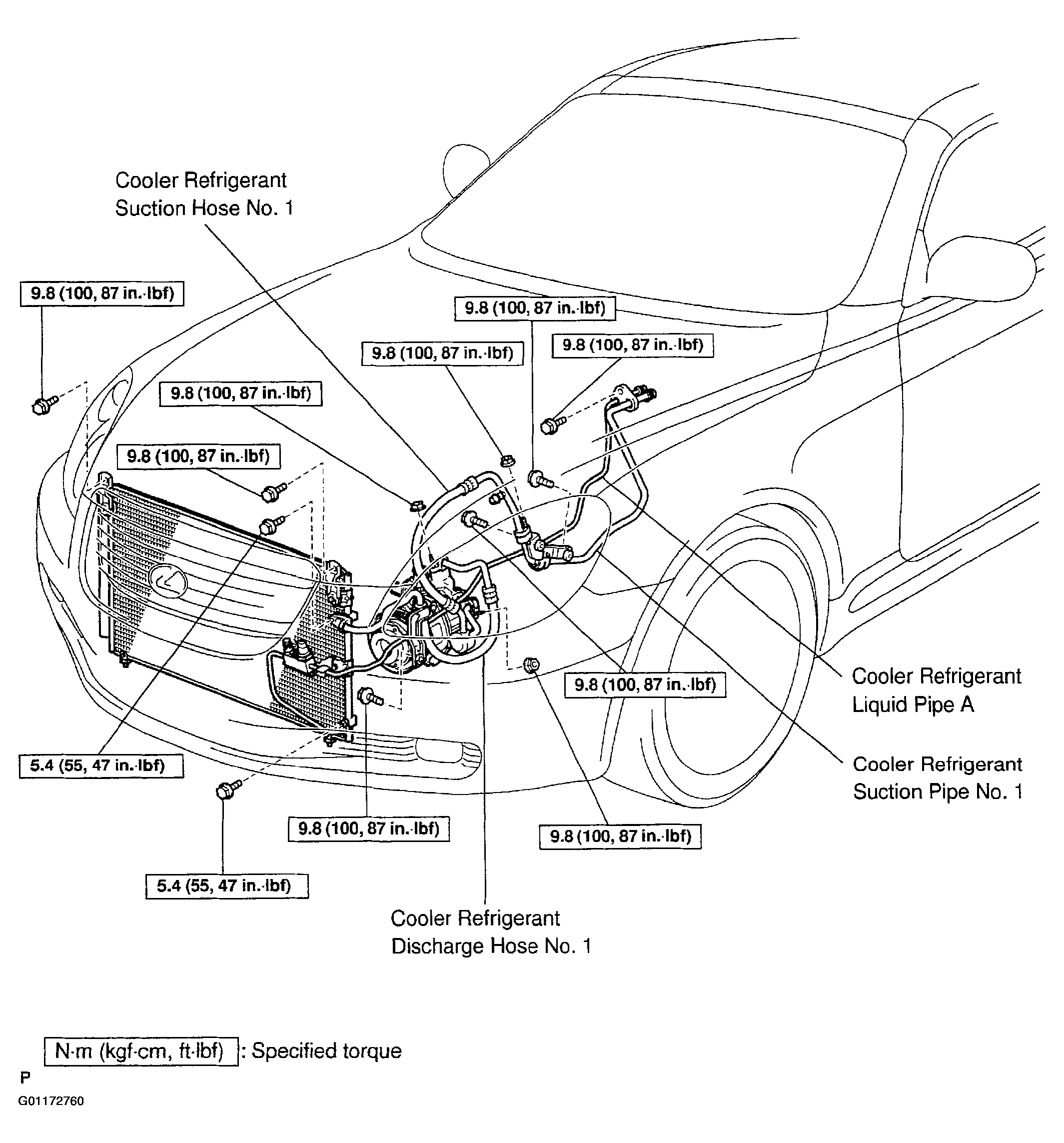

Fig 1: Removing/Installing Refrigerant Line And Related Components
G01172760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
