Front Washer Nozzle: Inspection
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

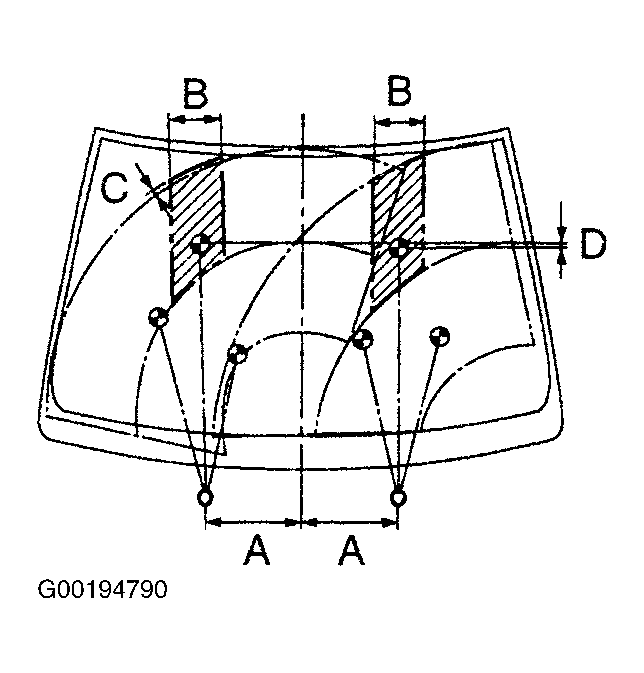

- While operating the washer, check whether the upper point where the washer fluid hits the windshield and the surge area within the range indicated by the hatched line. See Fig 1.
- A
Approximately 11.02 in. (280 mm) - B
Approximately 5.91 in. (150 mm) - C
Approximately 0.39 in. (10 mm) - D
2.36 in. (60 mm) or less
- A
- Check if the lower point where the washer fluid hits the windshield is within the range of the wiping pattern (the area of the glass which is wiped by the wiper blades).
