Headlamp Leveling Ecu ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 (See REPLACEMENT )
REMOVE SKID CONTROL ECU ASSY (See REMOVAL )
REMOVE HEADLAMP LEVELING ECU ASSY
1. Disconnect the connector.
2. Remove the bolt.
3. Remove the headlamp leveling ECU assy.

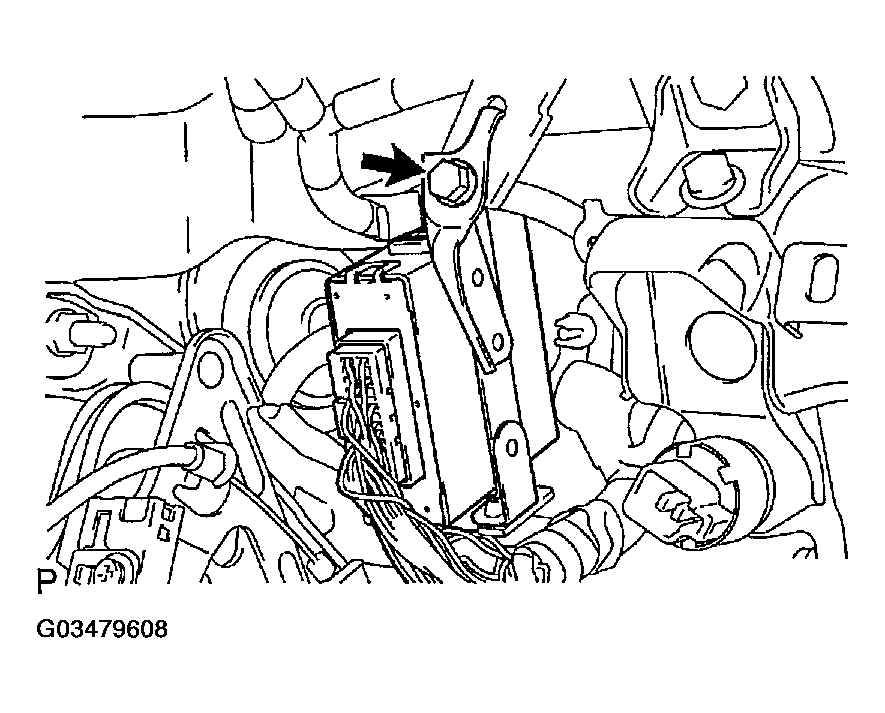

Fig 1: Removing Headlamp Leveling ECU Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
