Clearance Warning Ecu ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

  1. REMOVE REAR FLOOR FINISH PLATE (SEE  REPLACEMENT  )
  2. REMOVE ROOM PARTITION NET ASSY (SEE  REPLACEMENT  )
  3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (SEE  REPLACEMENT  )
  4. REMOVE ROPE HOOK ASSY (SEE  REPLACEMENT  )
  5. REMOVE REAR FLOOR FINISH PLATE (SEE  REPLACEMENT  )
  6. REMOVE TOOL CASE (SEE  REPLACEMENT  )
  7. REMOVE SIDE TRIM TOOL BAG COVER (SEE  REPLACEMENT  )
  8. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY LH (SEE  REPLACEMENT  )
  9. REMOVE CLEARANCE WARNING ECU ASSY
    1. Disconnect the connector.
    2. Remove the 2 nuts and clearance warning ECU assy.

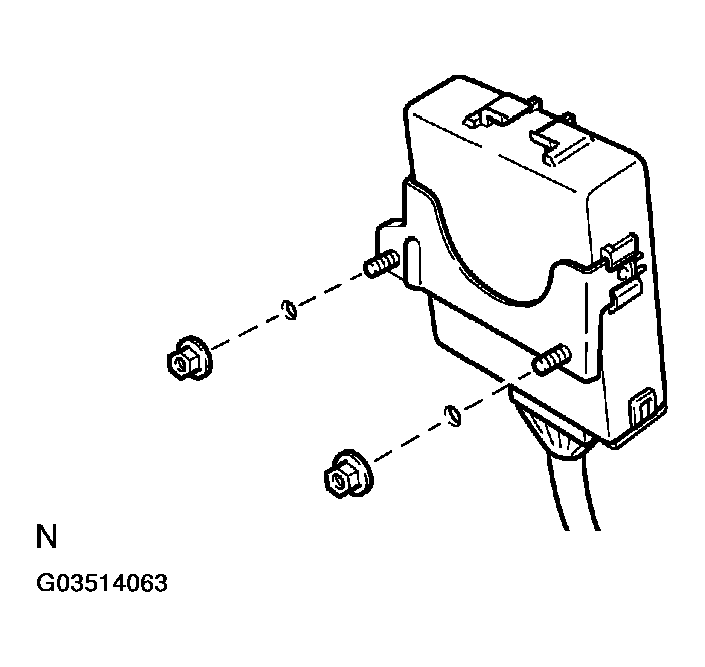

      Fig 1: Removing Nuts And Clearance Warning ECU Assy
      G03514063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
