DTC C1246/46: Master Cylinder Pressure Sensor Circuit
>>
Testing Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Testing Procedure
For wiring diagram see
Fig 1
. For testing procedure see
Fig 2
.
Fig 1: Wiring Diagram Master Cylinder Pressure Sensor Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

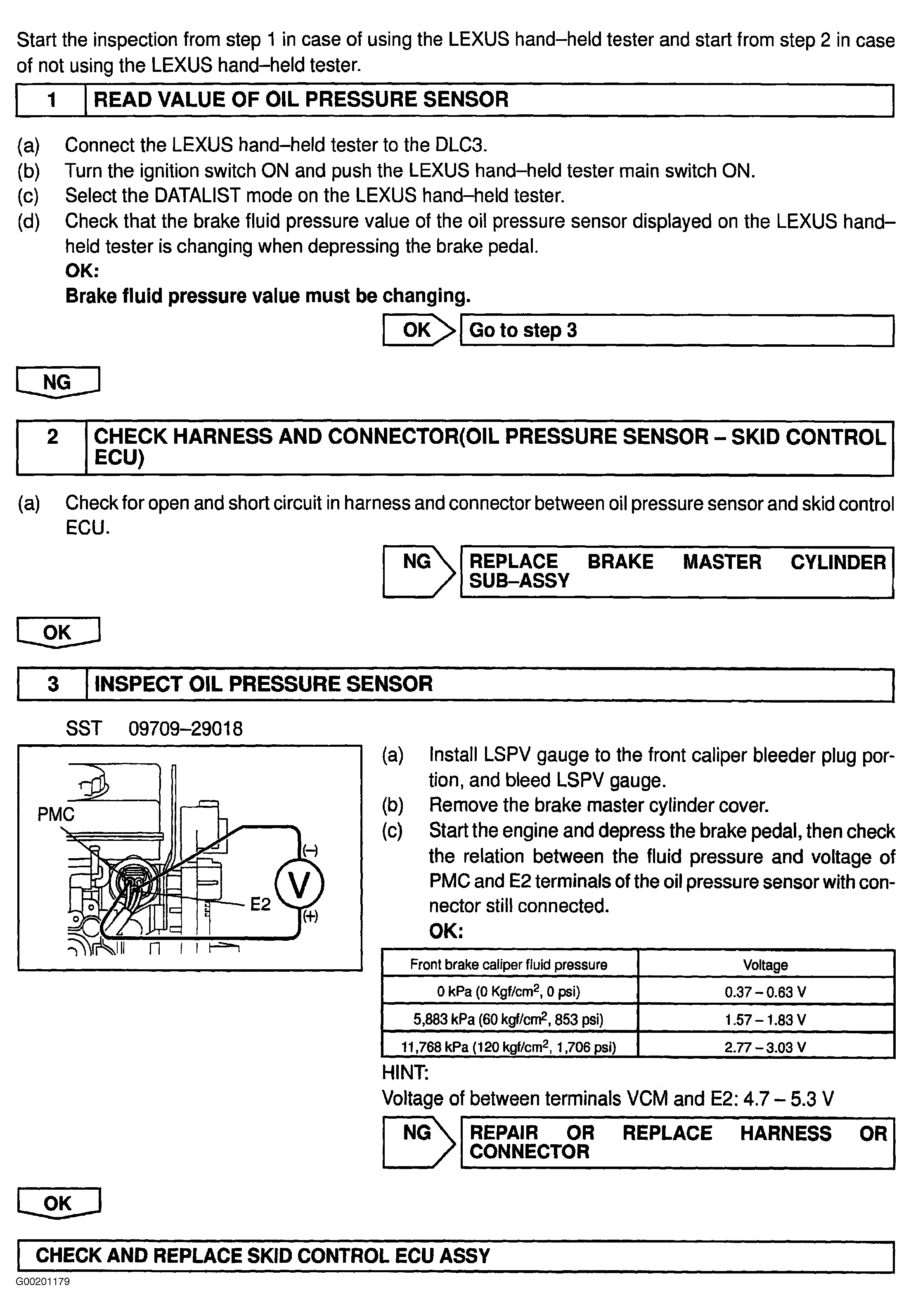

Fig 2: Testing Procedure Master Cylinder Pressure Sensor Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
