Connector Identification

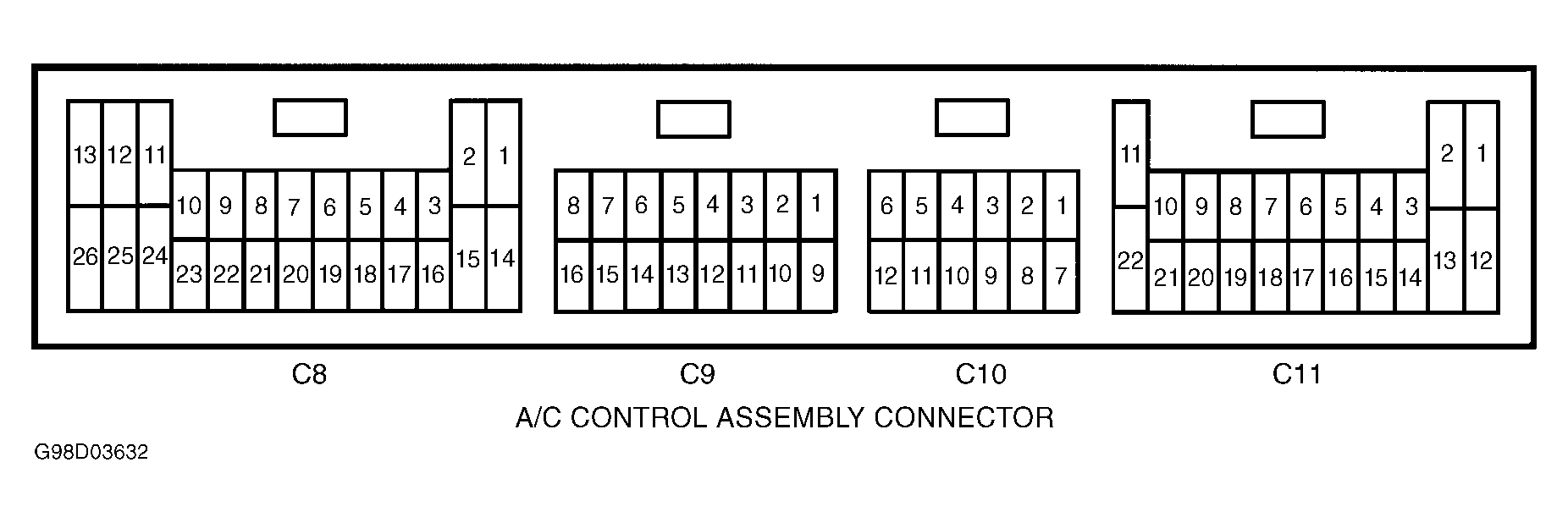

Fig 1: Identifying Center ECU (A/C Control Assembly) Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

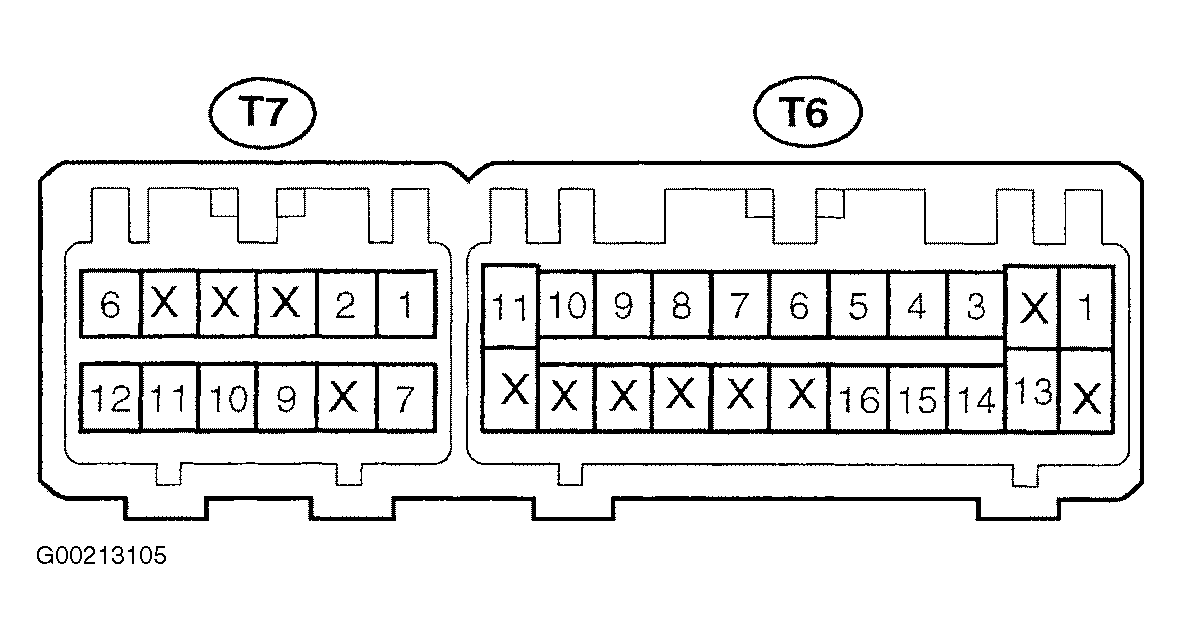

Fig 2: Identifying Door Key Lock & Unlock Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Door Unlock Detection Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Engine Hood Courtesy Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Key Unlock Warning Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Identifying Liftgate Key Lock & Unlock Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Identifying Theft Deterrent ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
