Compressor And Magnetic Clutch: Components

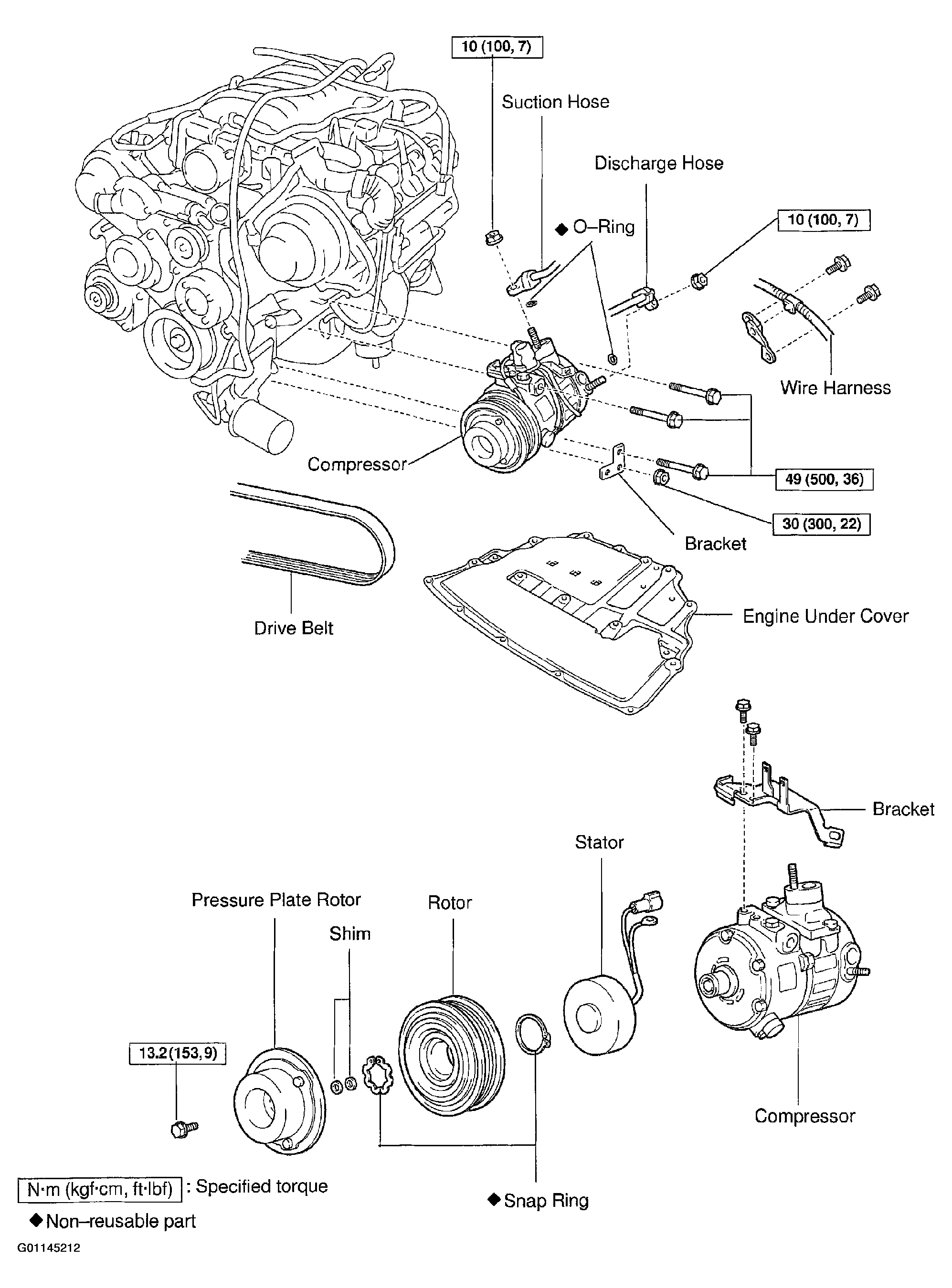

Fig 1: Identifying Compressor & Magnetic Clutch Components
G01145212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
