Air Conditioning Unit: Disassembly

Remove drain hoses.
Remove aspirator.
Remove evaporator temperature sensor.
Remove tube and accessory and expansion valve.
Remove water valve control servomotor.
Remove cool air bypass damper control servomotors.
1. Remove the 6 screws and 2 servomotors.

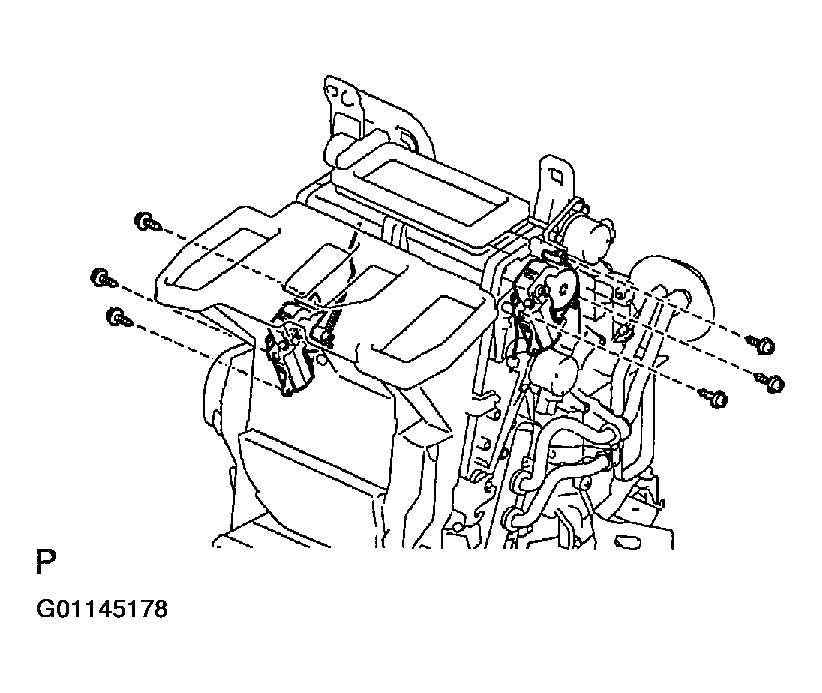

  Fig 1: Locating Screws & Servomotors For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove air mix servomotors.
1. Remove the 6 screws and 2 servomotors.

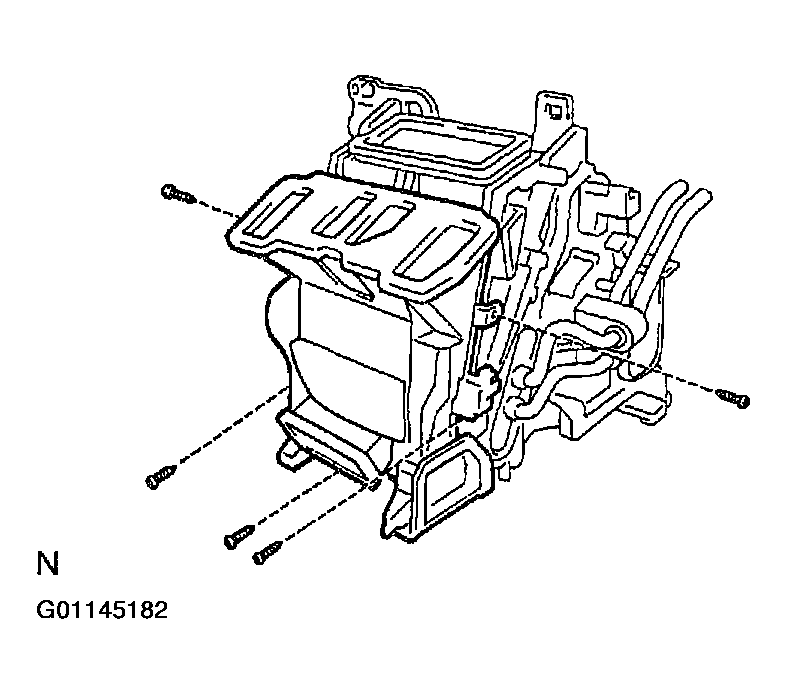

  Fig 2: Locating Screws & Servomotors For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove air outlet servomotors.
1. Driver Side:
  Remove the 6 screws, bracket and servomotor.

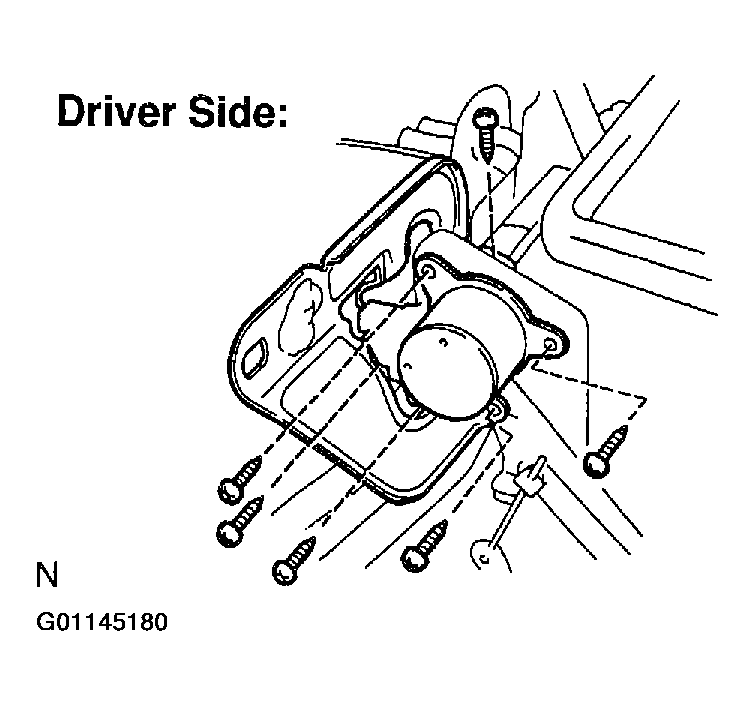

  Fig 3: Locating Screws, Bracket & Servomotor For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Passenger Side:
  Remove the 3 screws and servomotor.

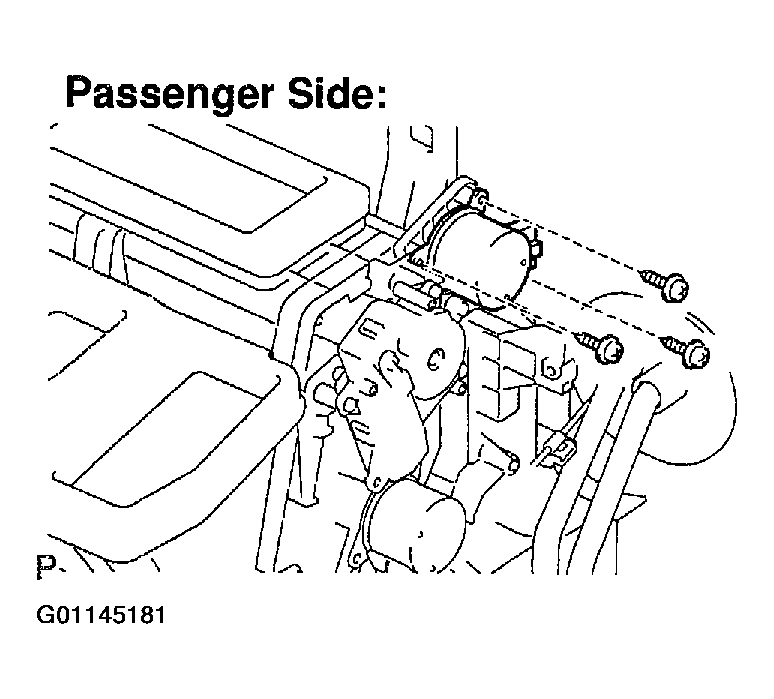

  Fig 4: Locating Screws & Servomotor For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove duct.
1. Remove the 5 screws and air vent duct.

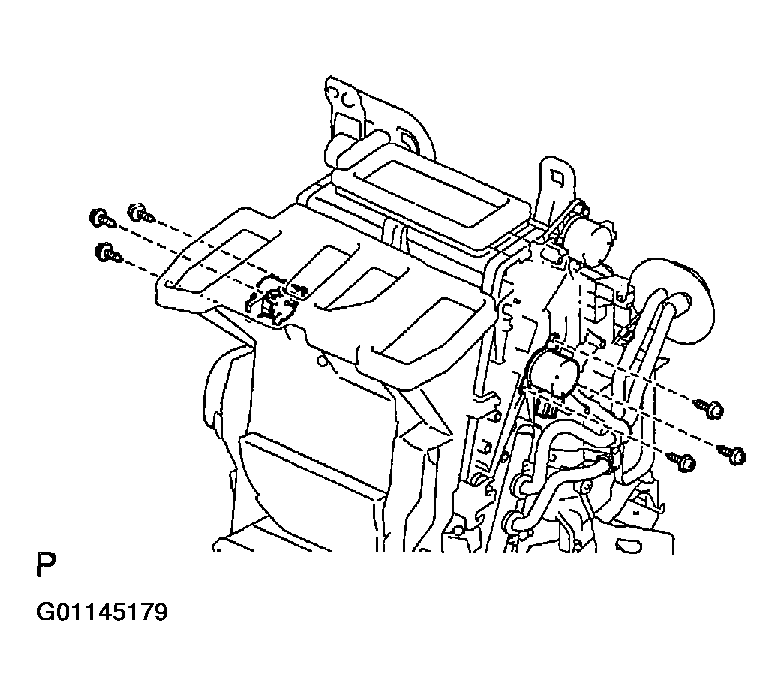

  Fig 5: Locating Screws & Air Duct For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove heater radiator.
1. Remove the screw and clamp.
2. Remove the 2 screws, 2 clamps and heater radiator pipes.

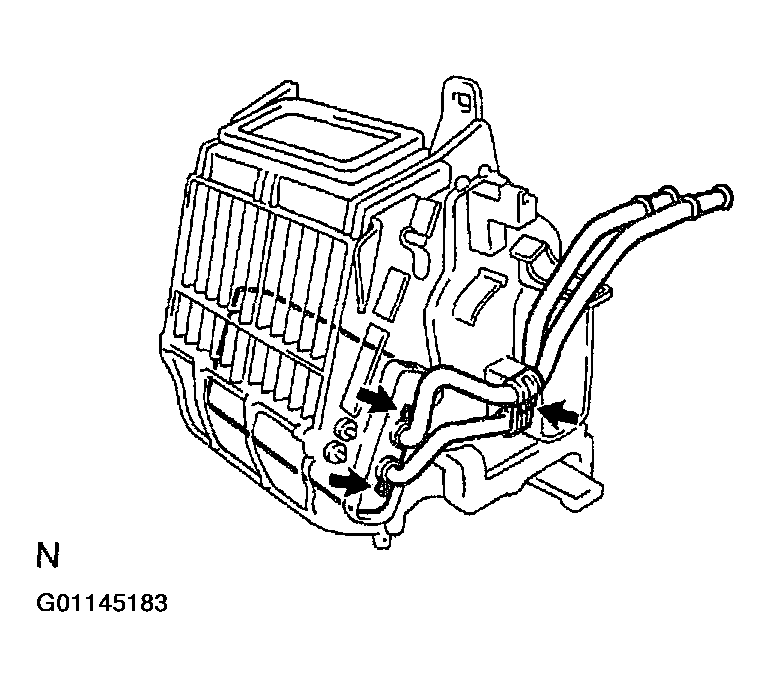

  Fig 6: Locating Screws & Clamps For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: At the time of reassembly, DO NOT reuse the 2 O-rings.
3. Pull out the heater radiator.
Remove evaporator.
1. Remove the 6 screws and evaporator cover.
2. Pull out the evaporator.

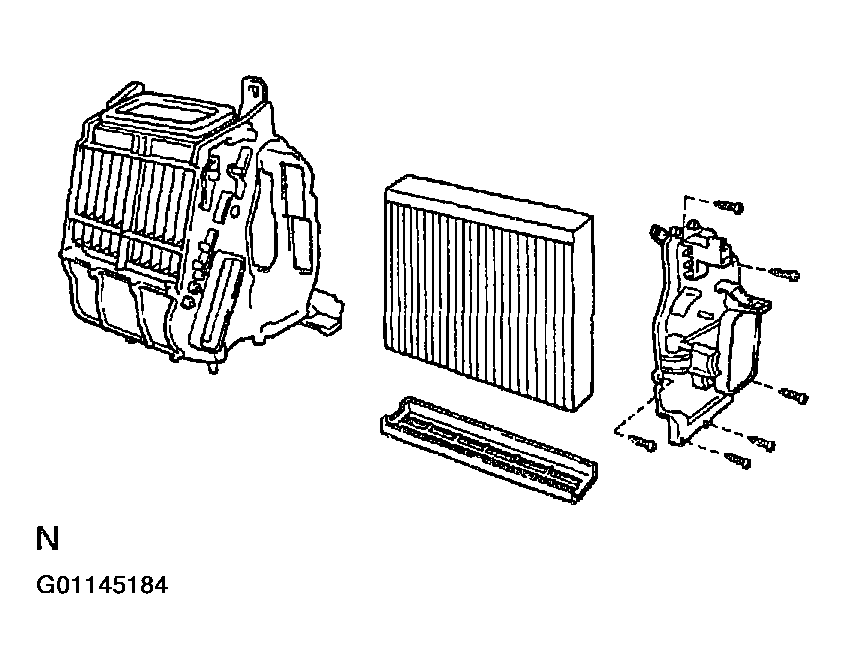

  Fig 7: Locating Screws & Evaporator Cover For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  At the time of installation, please refer to the following item:
  1. If evaporator is replaced, add compressor oil to the evaporator.

    Compressor Oil: Add 40cc (1.4 fl oz.) ND-OIL 8 or equivalent
Remove heater case.
1. Remove the 5 screws, clamp and heater case.

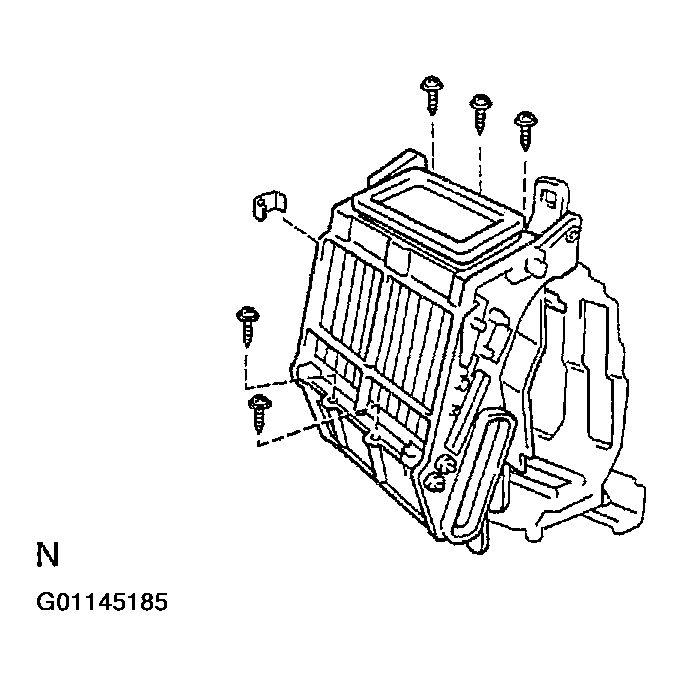

  Fig 8: Locating Screws, Clamp & Heater Case For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
