Variable Valve Timing Actuator: Service and Repair

Camshaft Timing Oil Control Valve Part 1:

Camshaft Timing Oil Control Valve Part 2:

REMOVAL

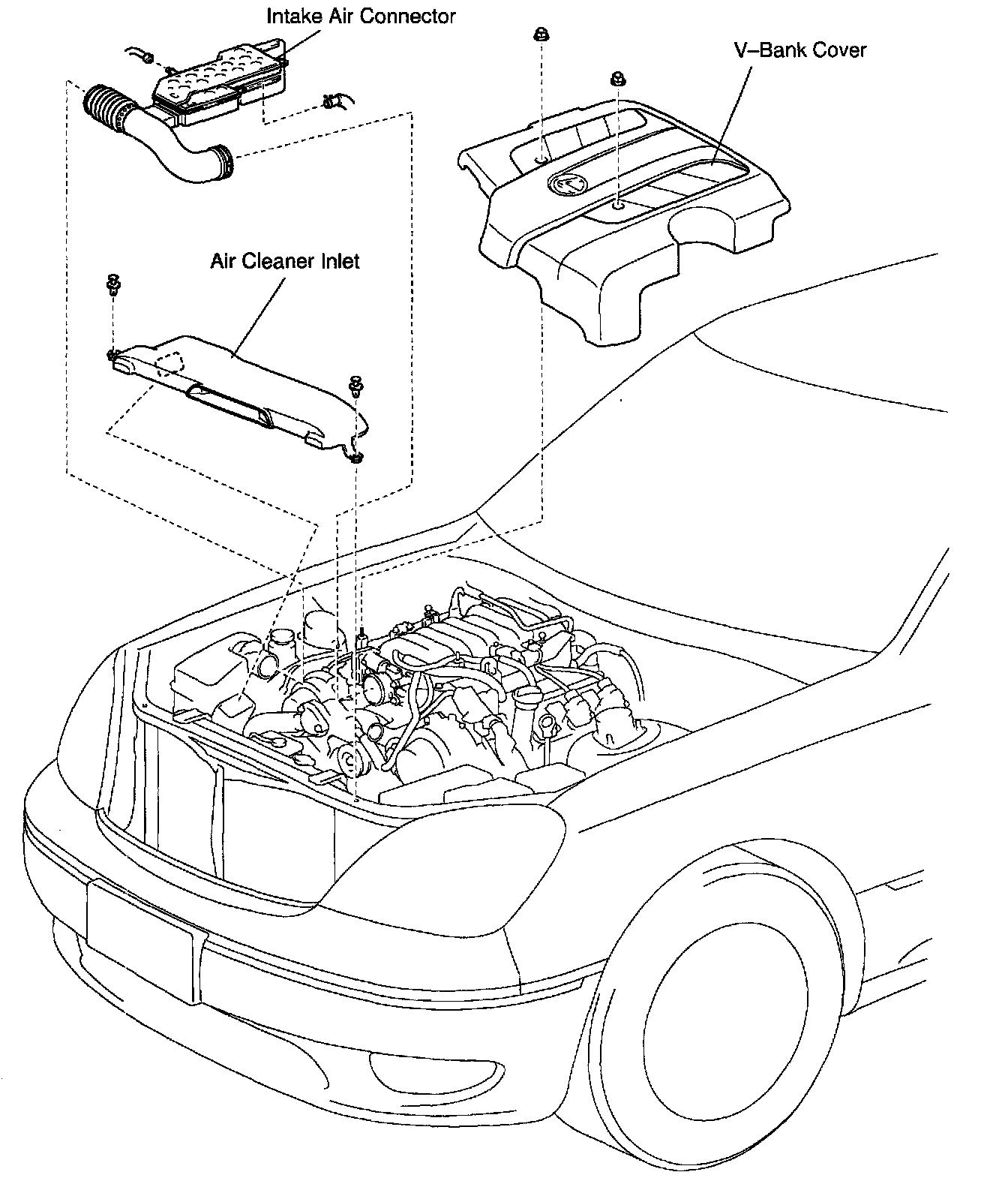

1. REMOVE V-BANK COVER
2. REMOVE AIR CLEANER INLET AND INTAKE AIR CONNECTOR
3. DISCONNECT THROTTLE BODY FROM INTAKE MANIFOLD

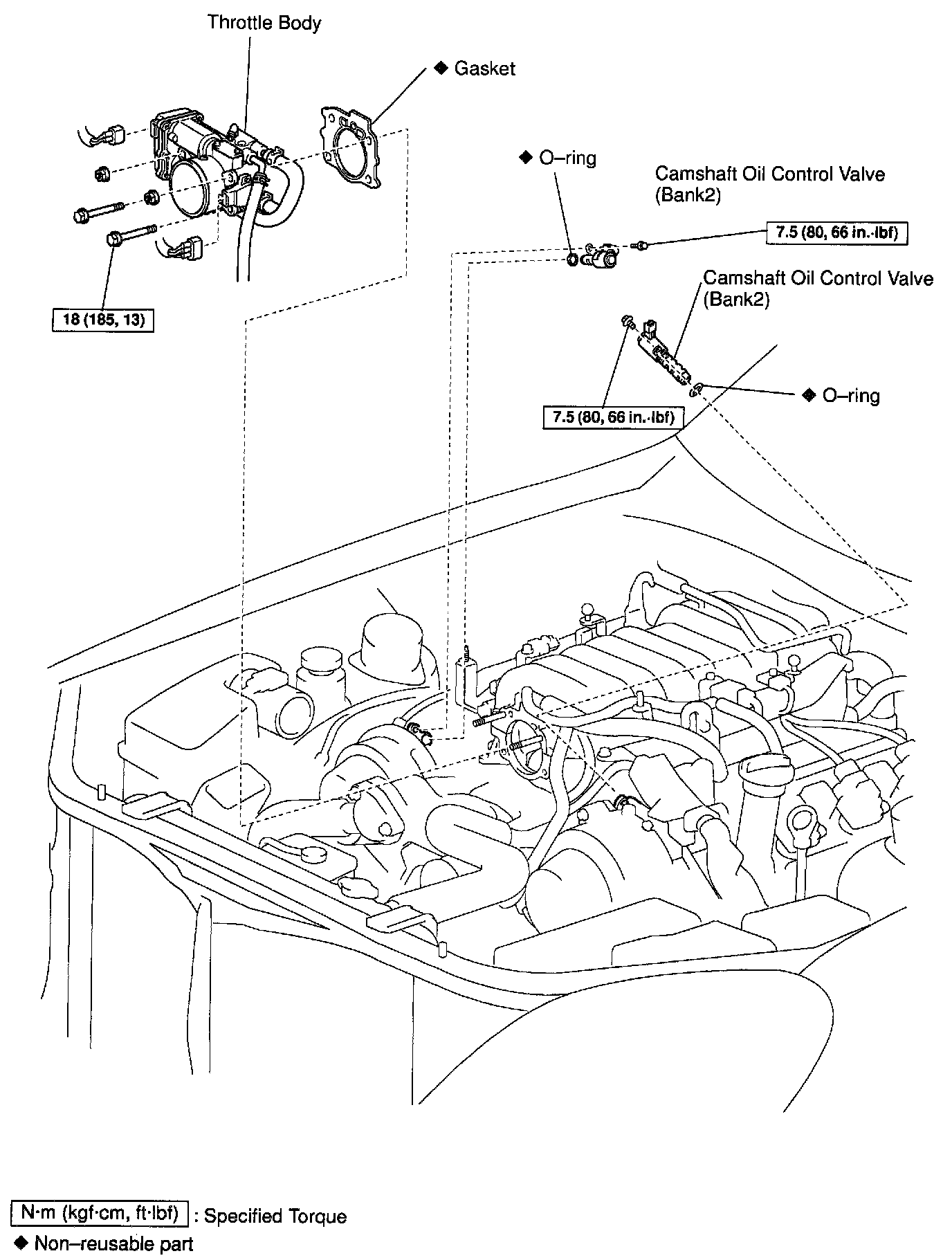

4. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE
a. Disconnect the 2 camshaft oil control valve connectors.
b. Remove the bolt, camshaft oil control valve and O-ring. Remove the 2 camshaft oil control valves.

Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

c. Remove the O-ring from the each camshaft oil control valve.

HINT:
At the time of installation, please refer to the following items.
Use a new O-rings.

INSTALLATION
Installation is in the reverse order of removal.
