Power Source

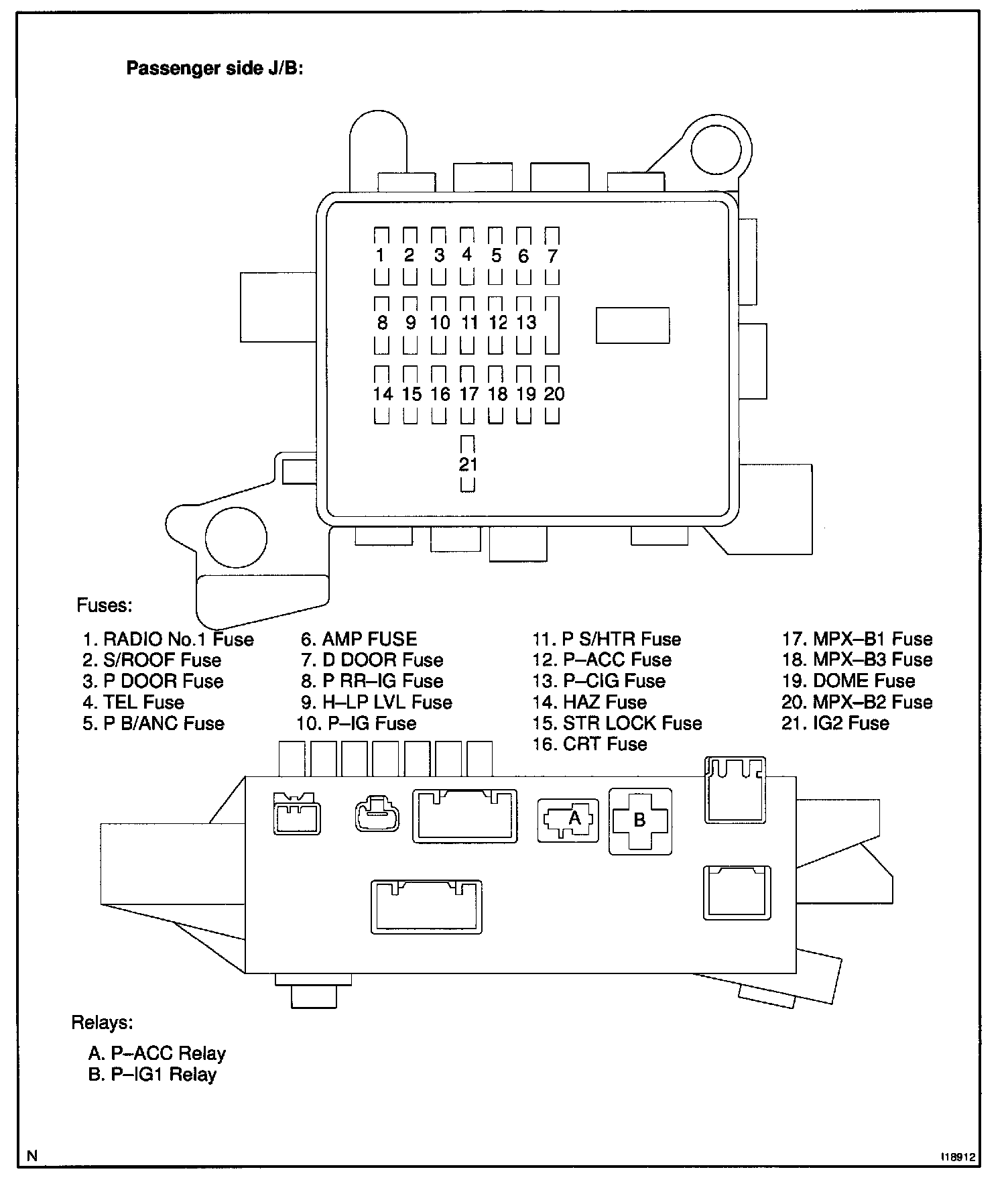

Power Source (Part 4):

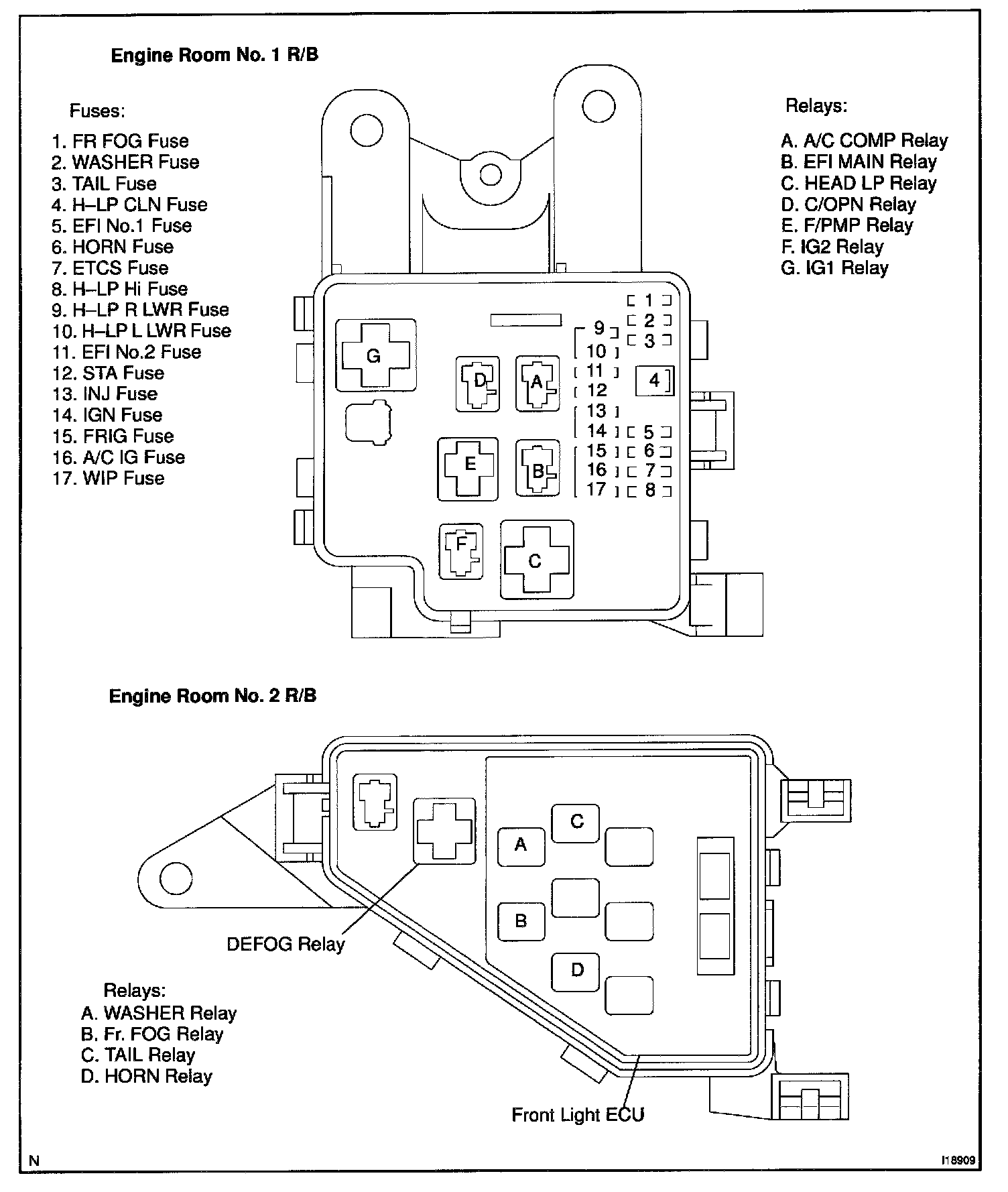

Power Source (Part 5):

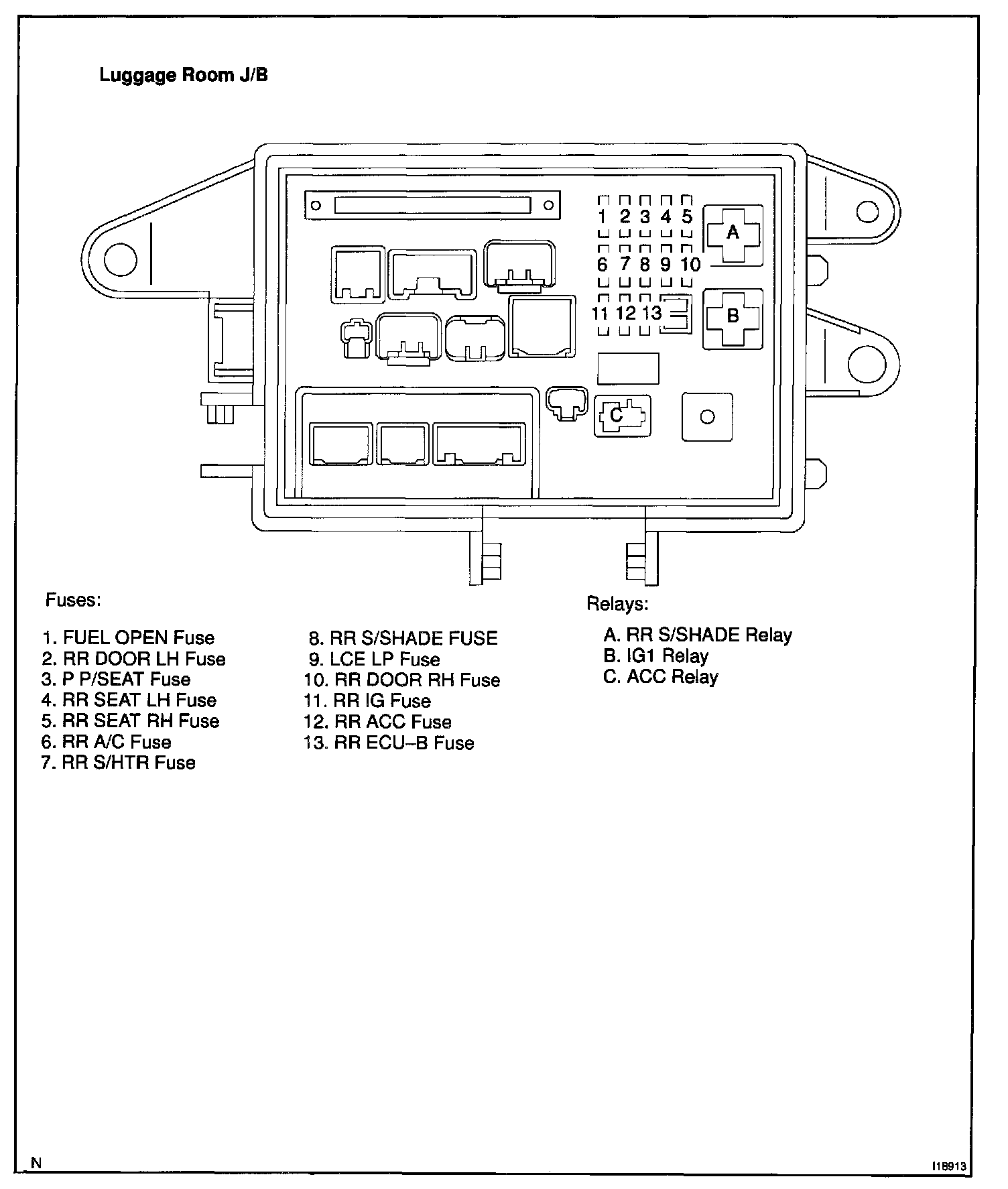

Power Source (Part 6):

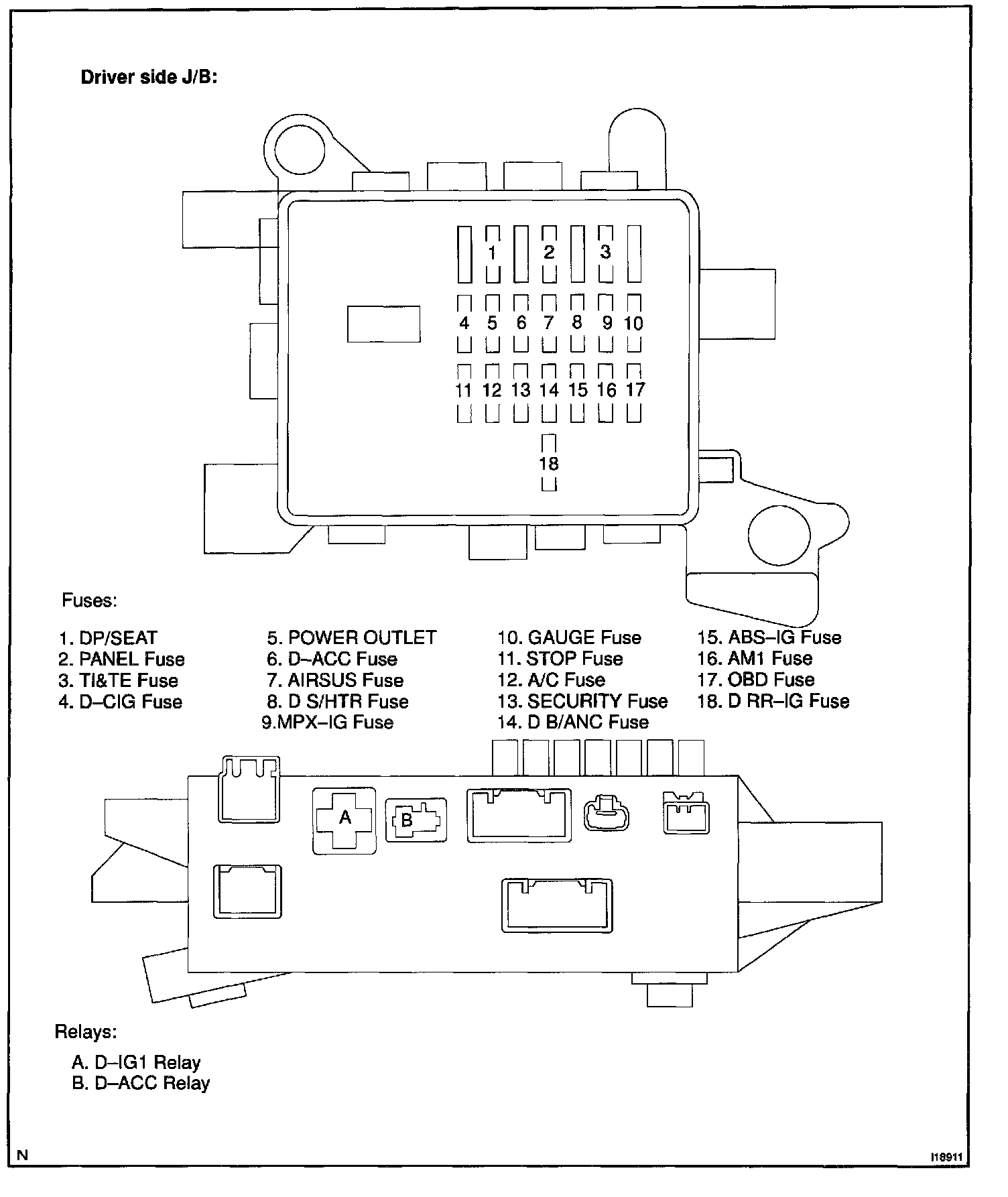

Power Source (Part 7):

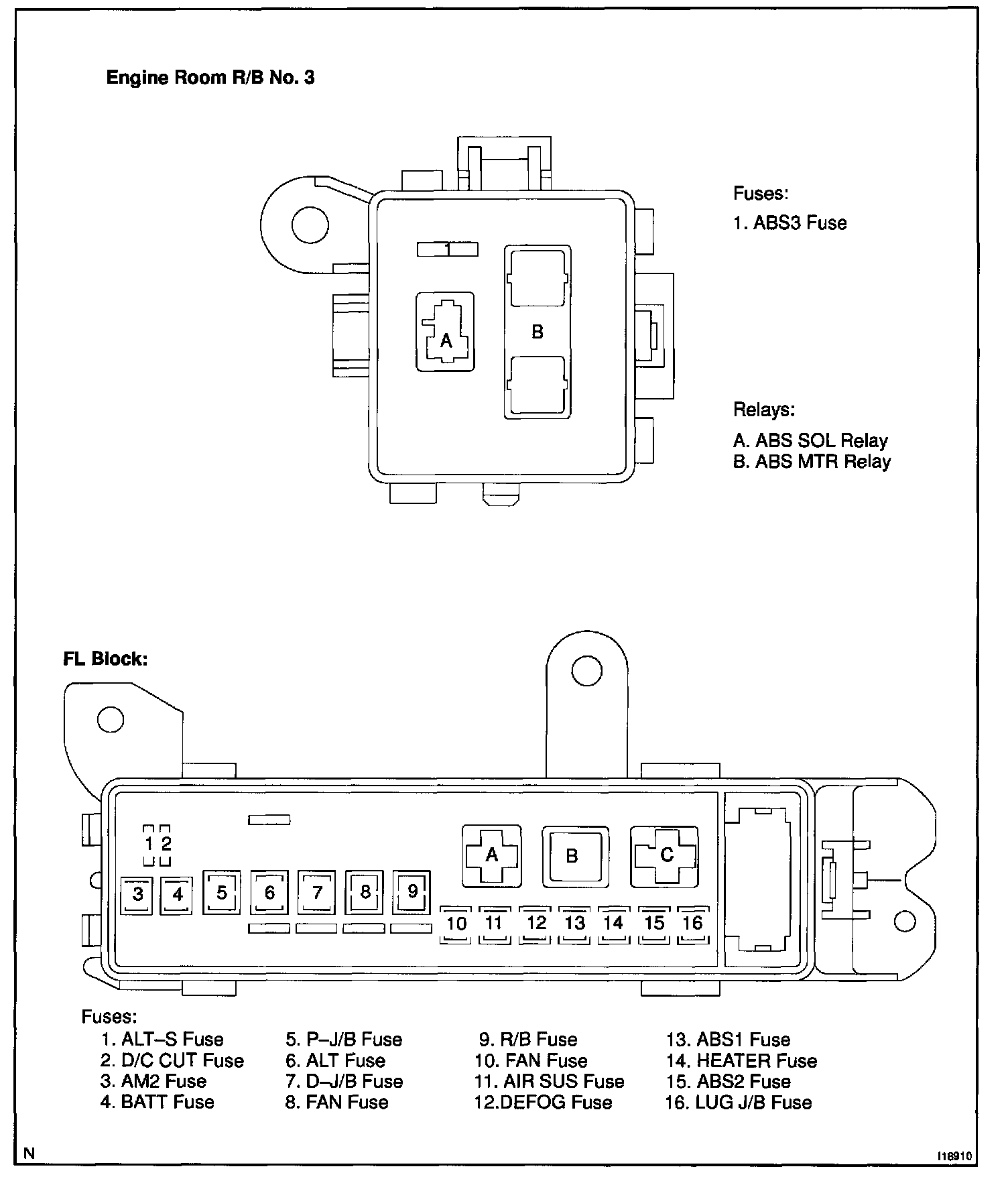

Power Source (Part 8):
