Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION

This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL voltage signals to the ECU.

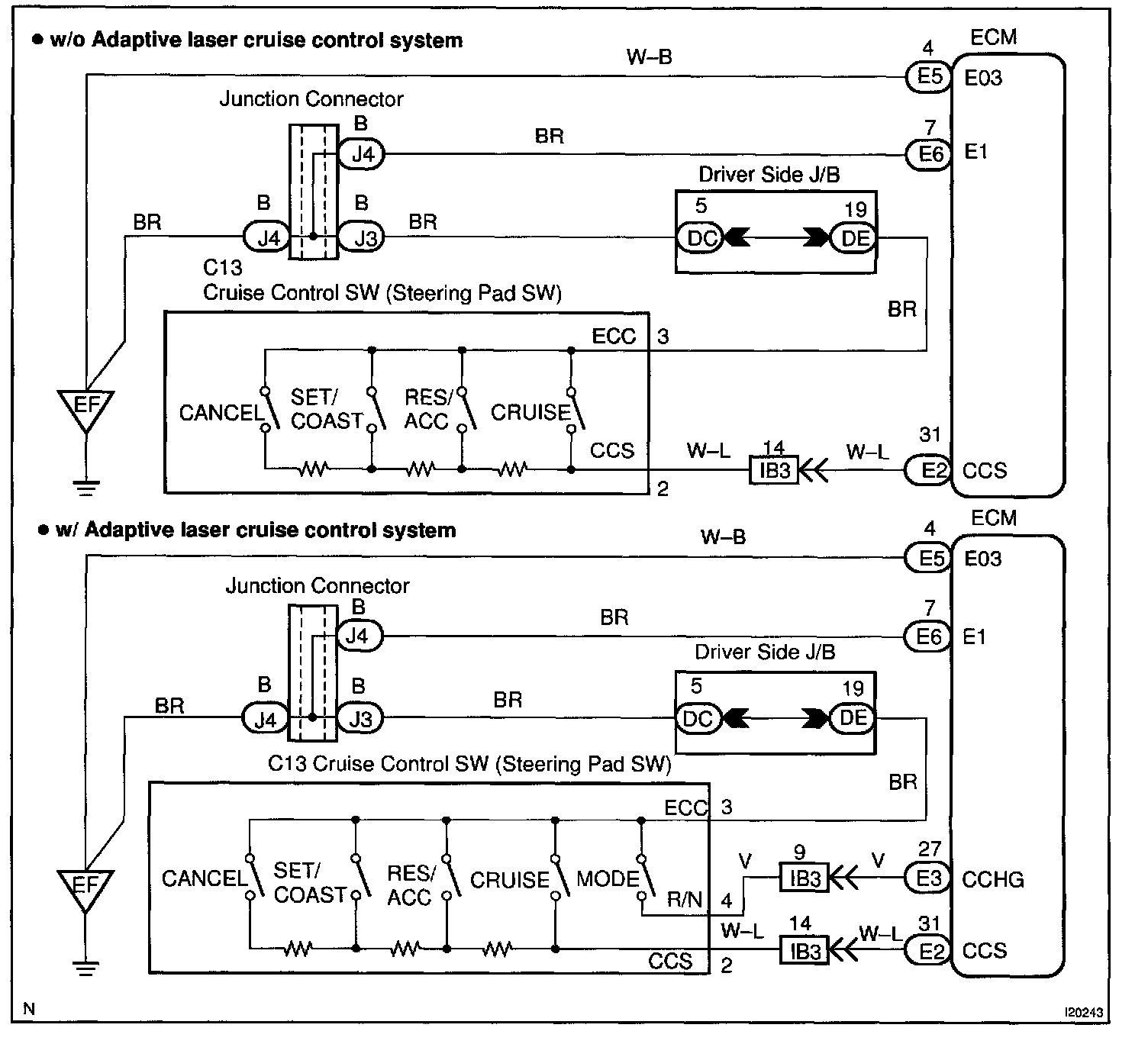

Wiring Diagram:

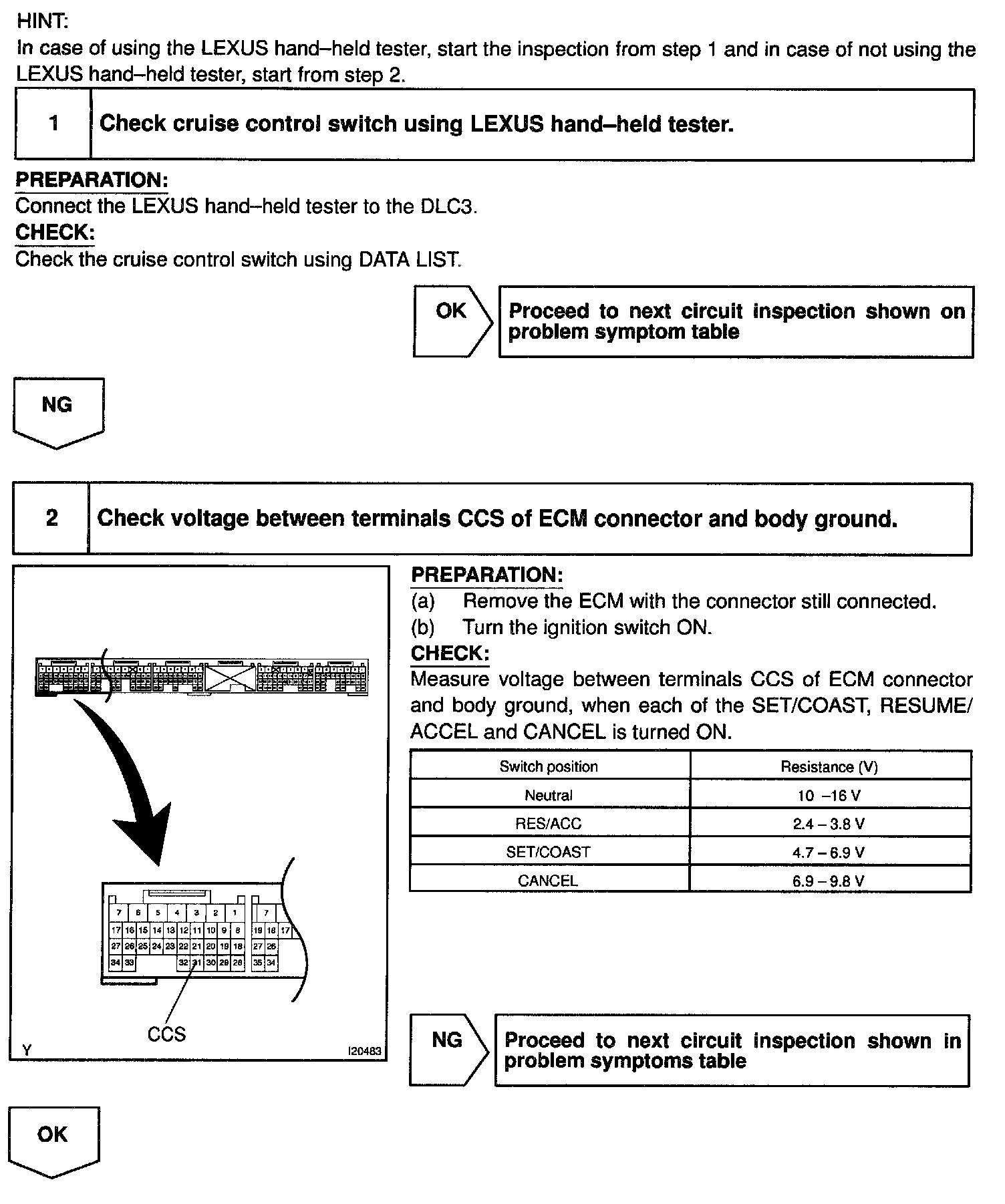

Step 1 - 2:

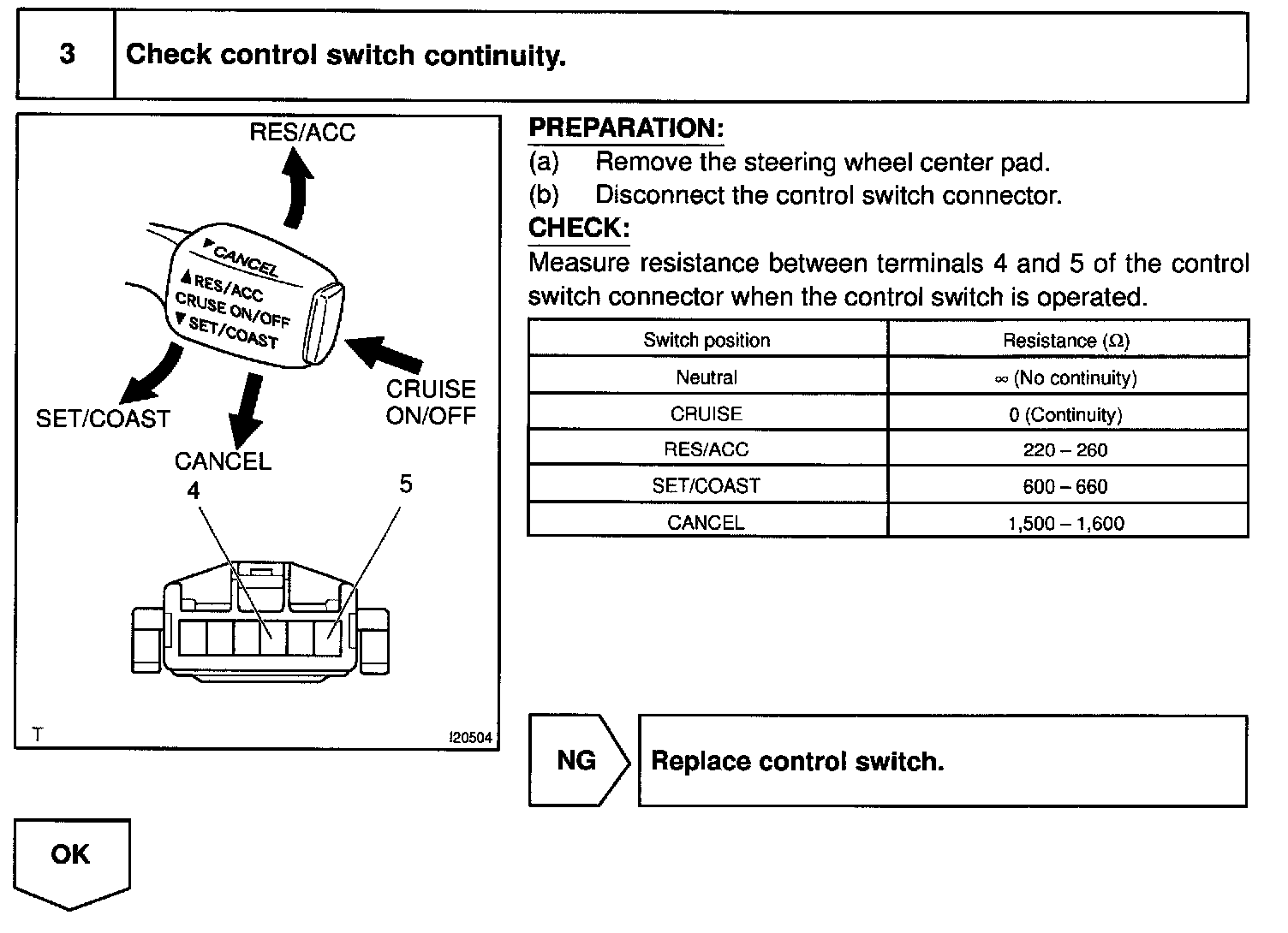

Step 3:

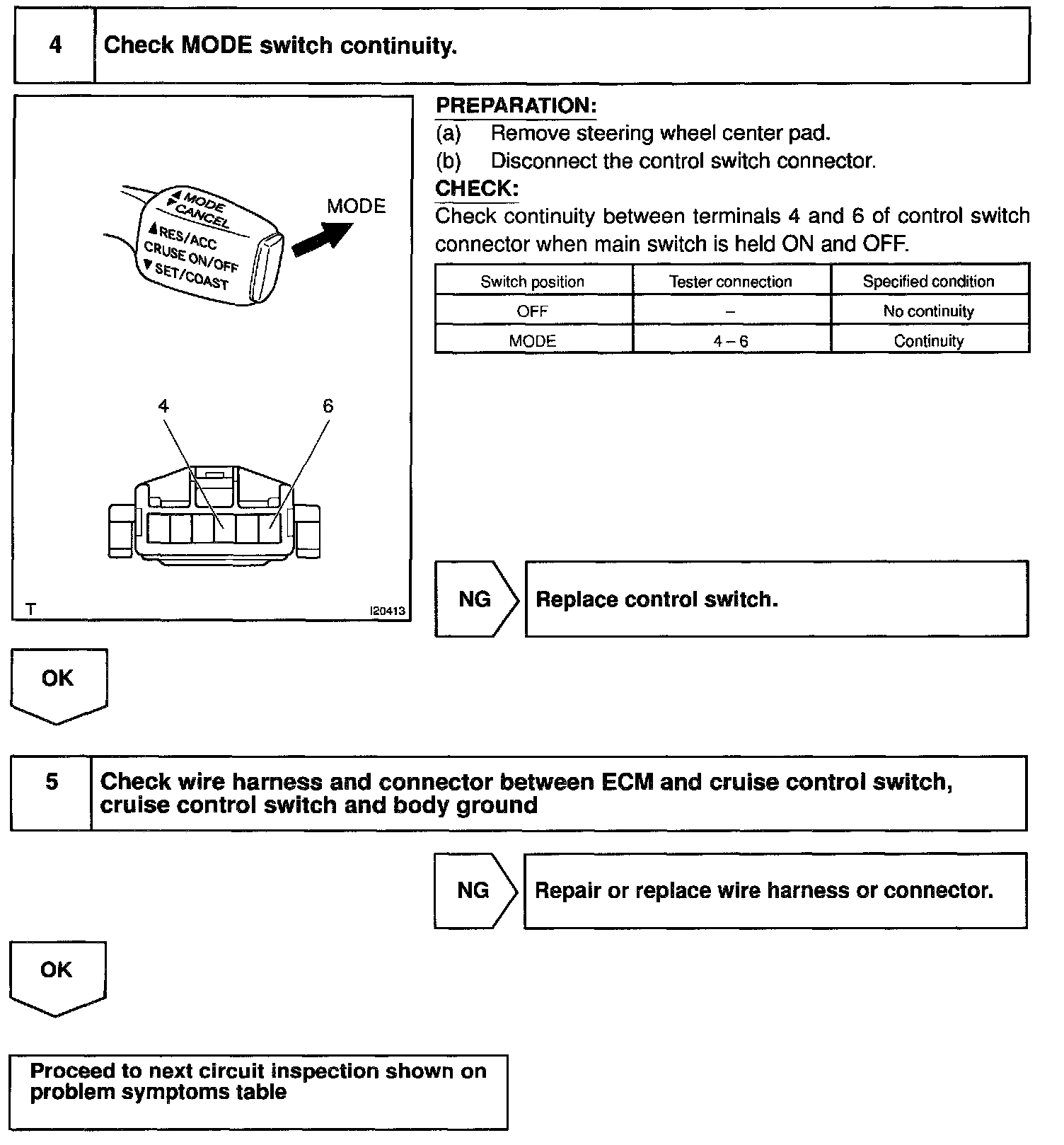

Step 4 - 5:

INSPECTION PROCEDURE
