Speedometer

CIRCUIT DESCRIPTION

The combination meter is connected to the skid control ECU with the multiplex communication circuit.

It receives the speed sensor signal from the skid control ECU to operate the speedometer.

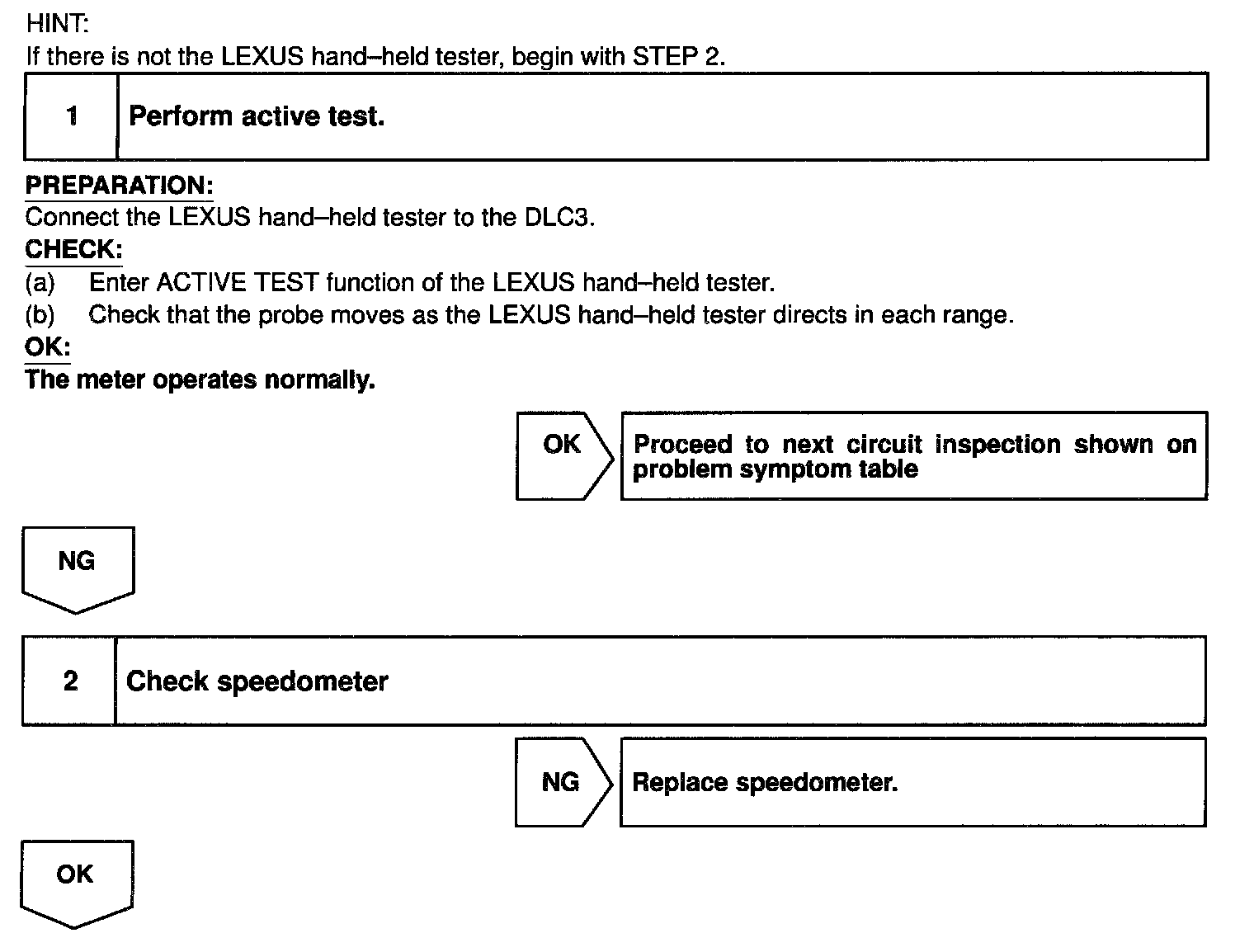

Step 1 - 2:




Step 3:




INSPECTION PROCEDURE
