Combination Meter ECU Power Source Circuit

CIRCUIT DESCRIPTION

This circuit provides power to operate the combination meter.

Step 1 - 2:




Step 3:

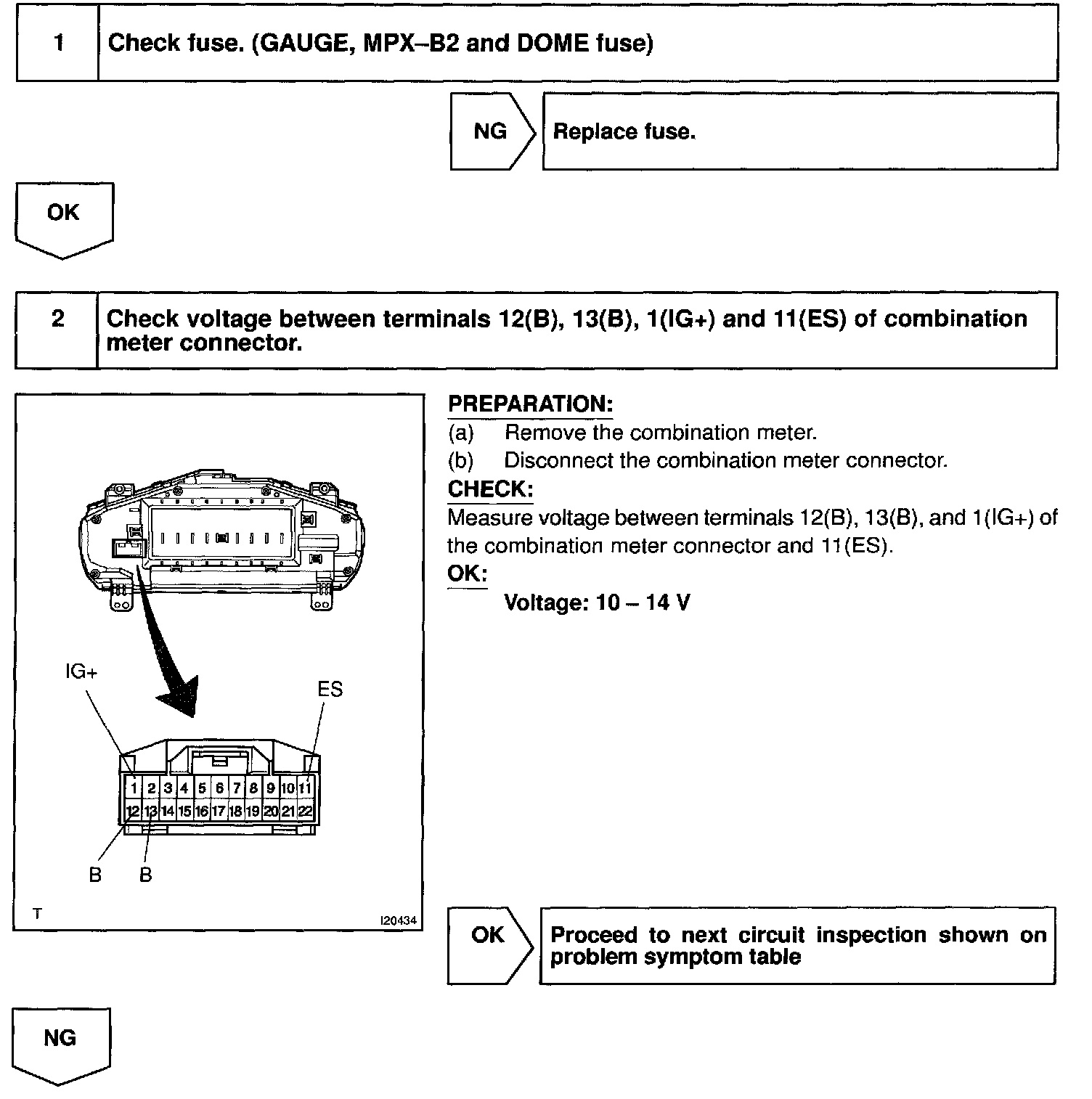

INSPECTION PROCEDURE
