Connector Code Lists

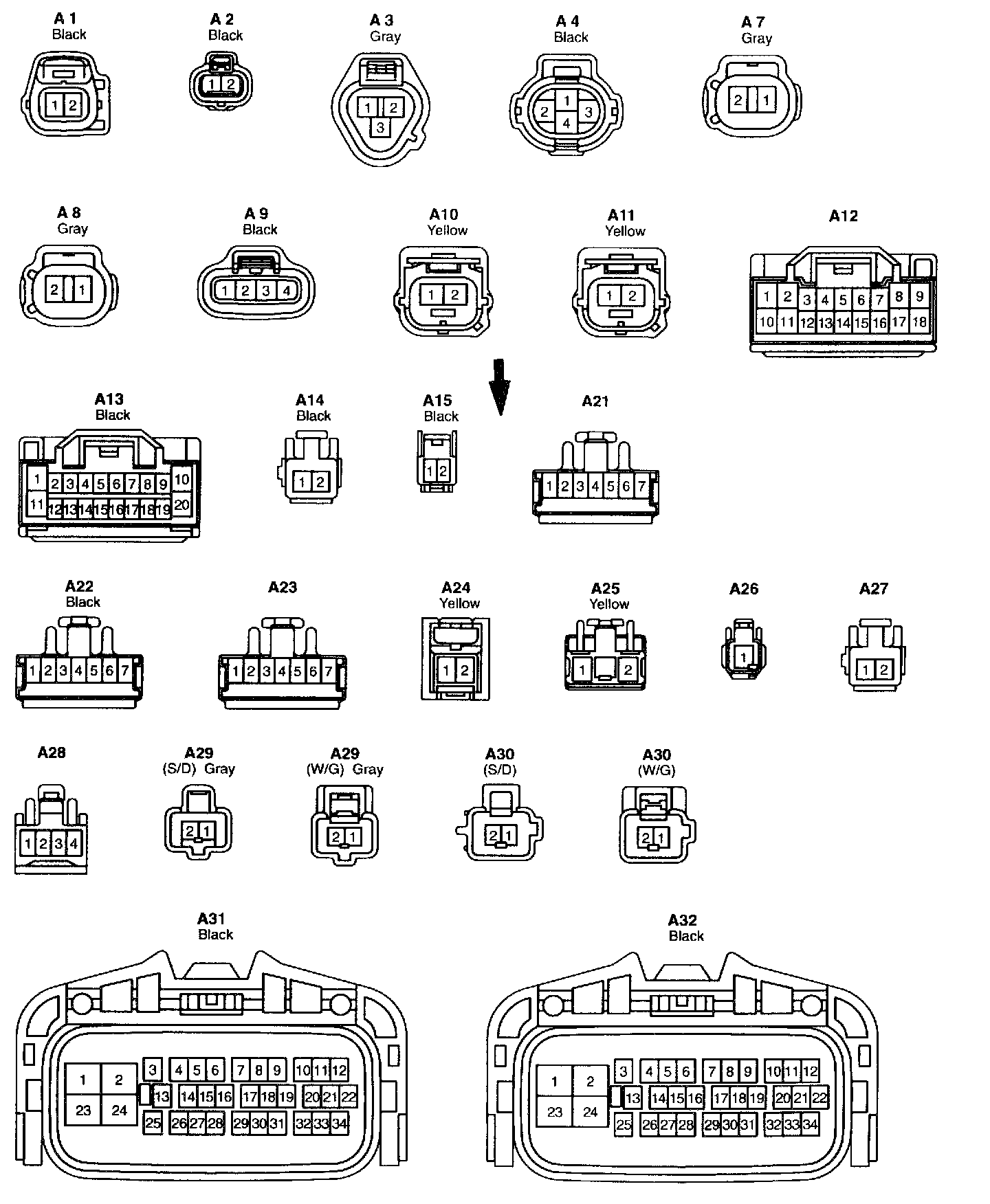

Connector Views (A1 - A32):

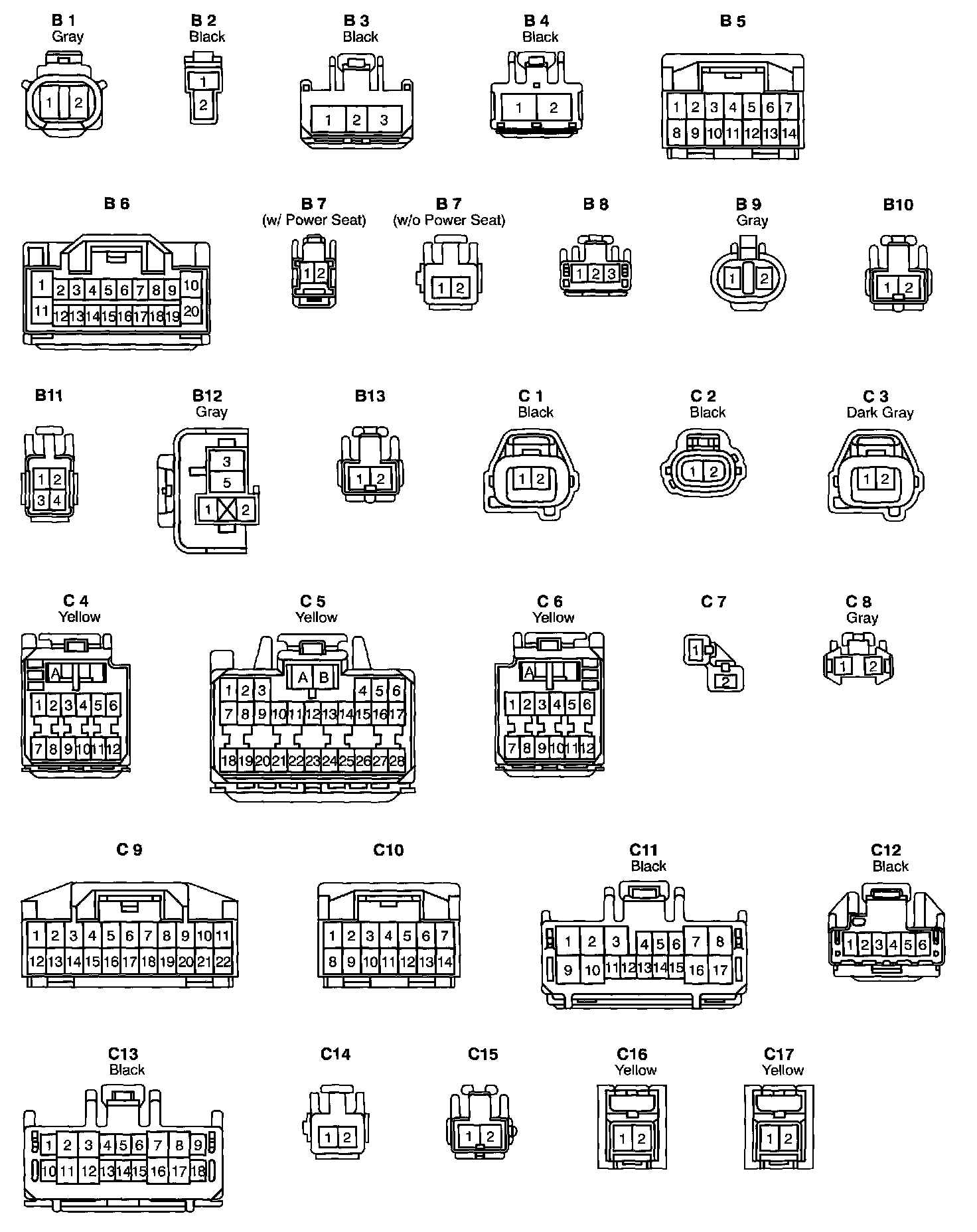

Connector Views (B1 - C17):

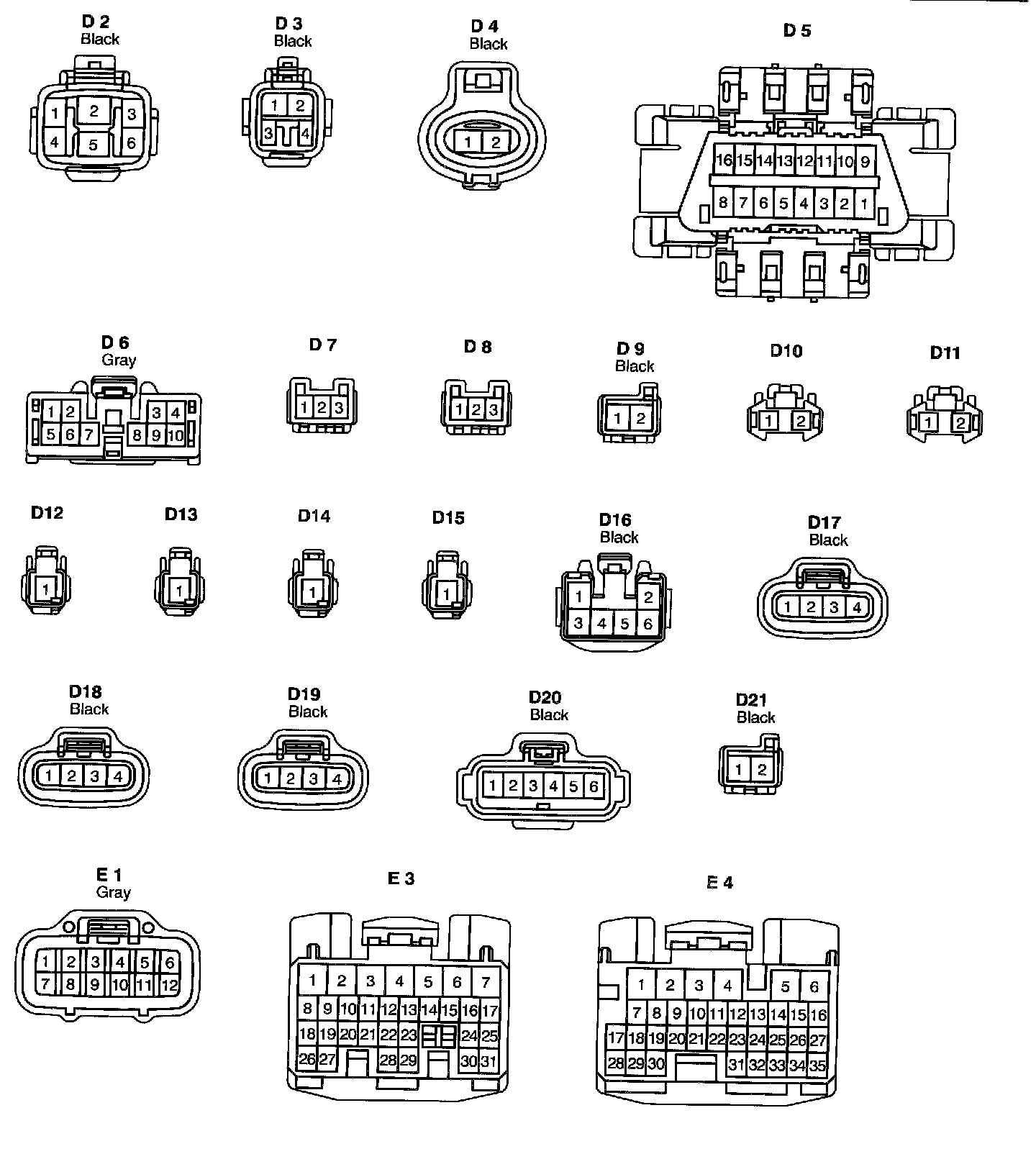

Connector Views (D2 - E4):

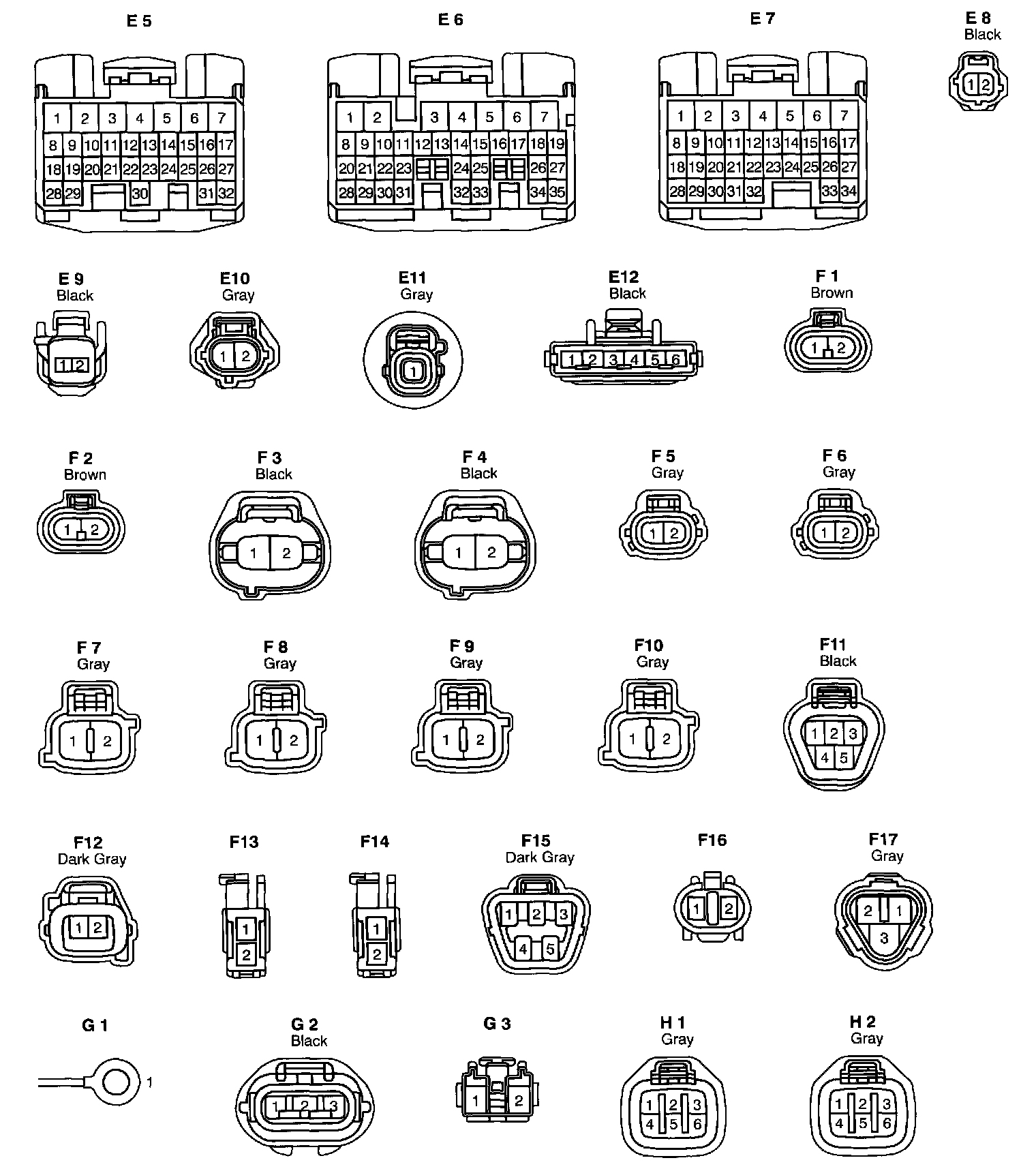

Connector Views (E5 - H2):

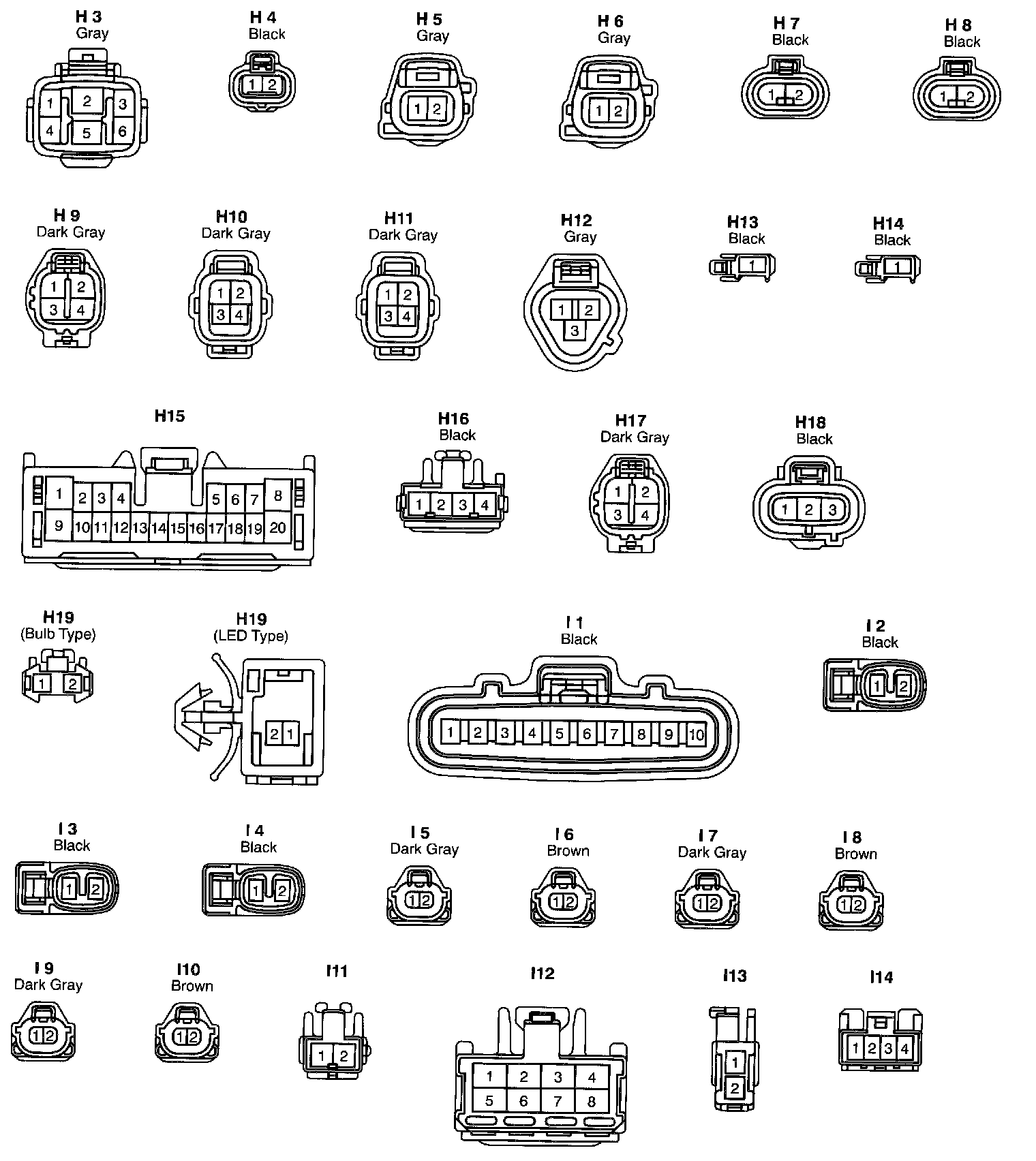

Connector Views (H3 - I14):

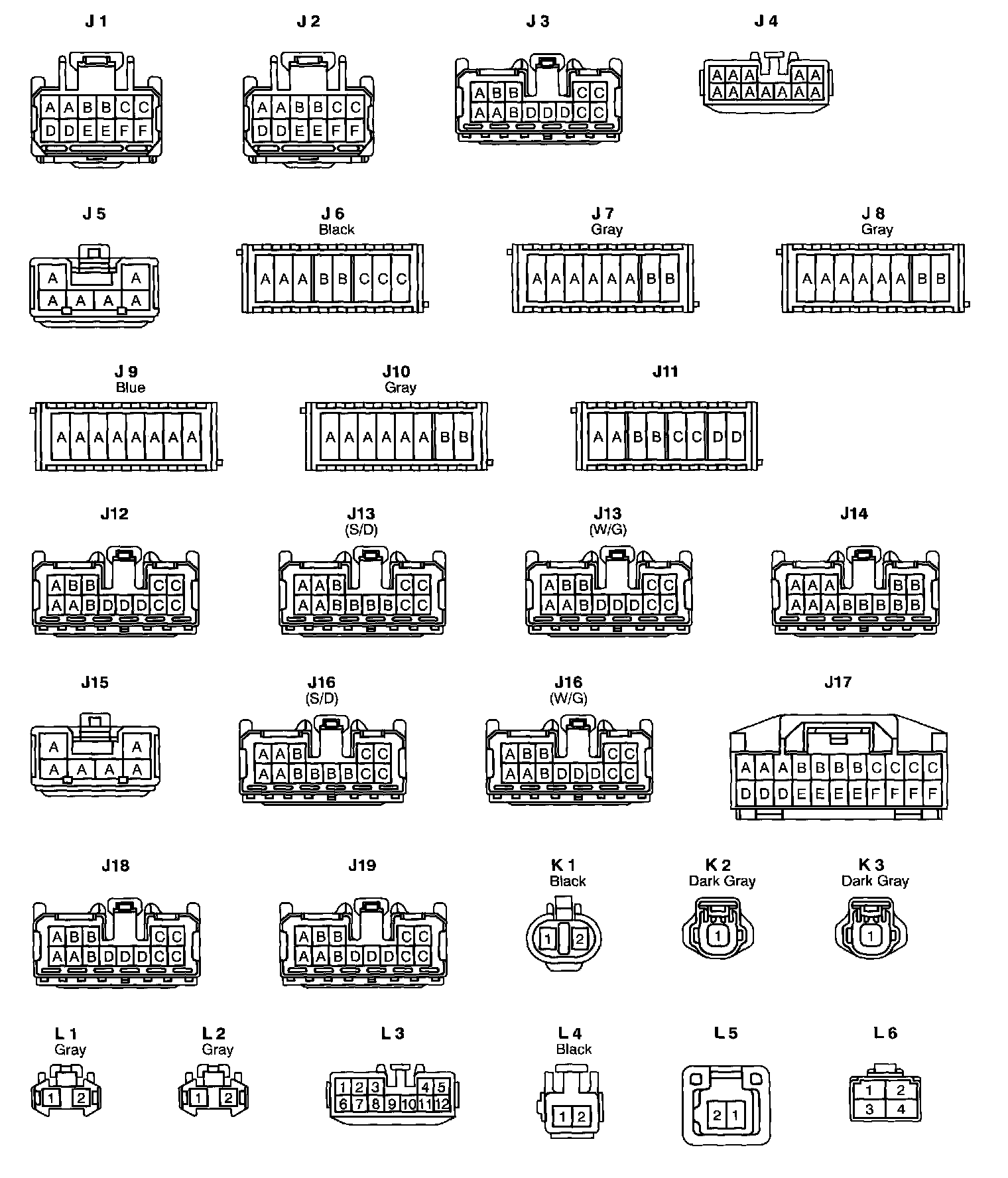

Connector Views (J1 - L6):

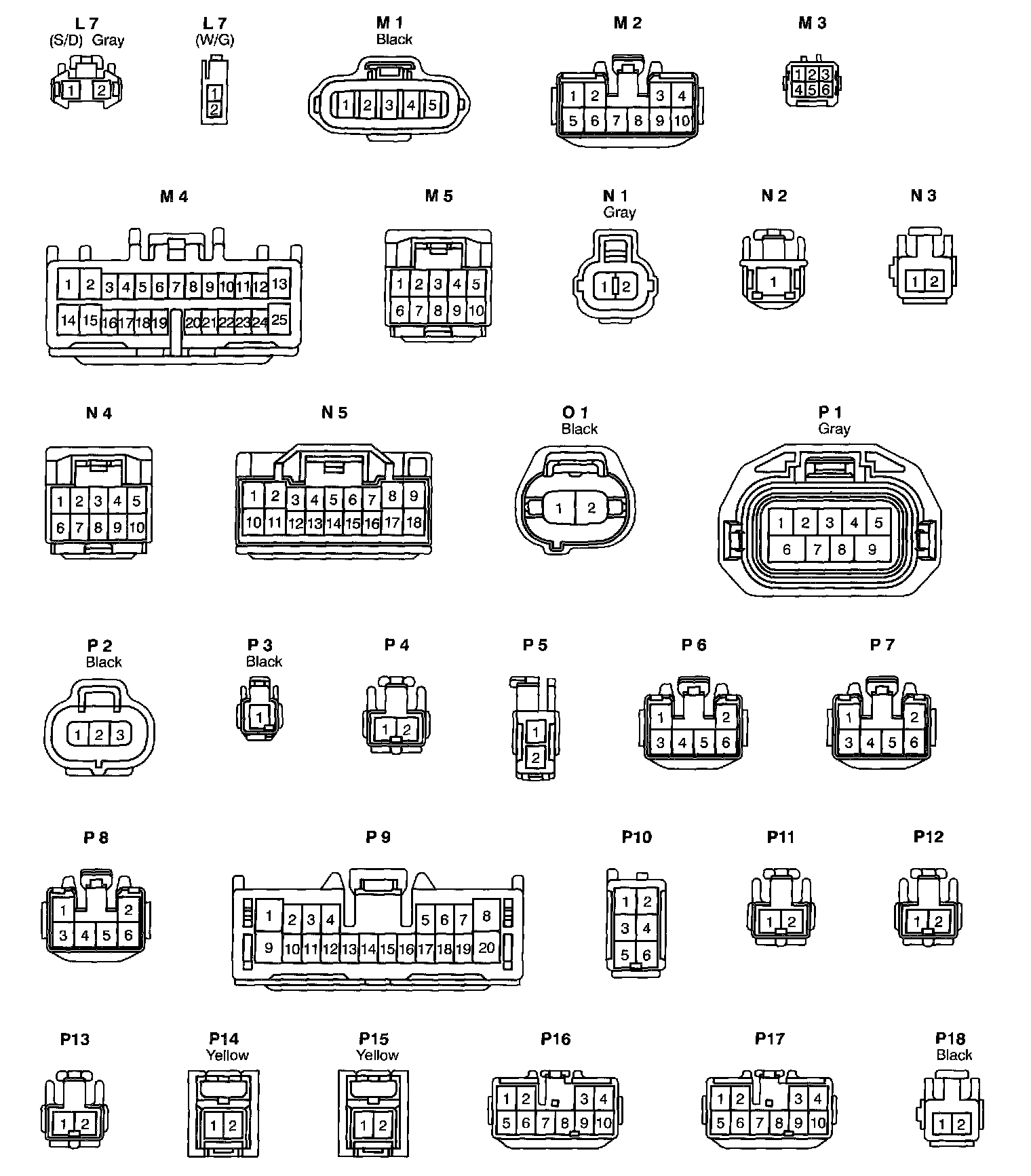

Connector Views (L7 - P18):

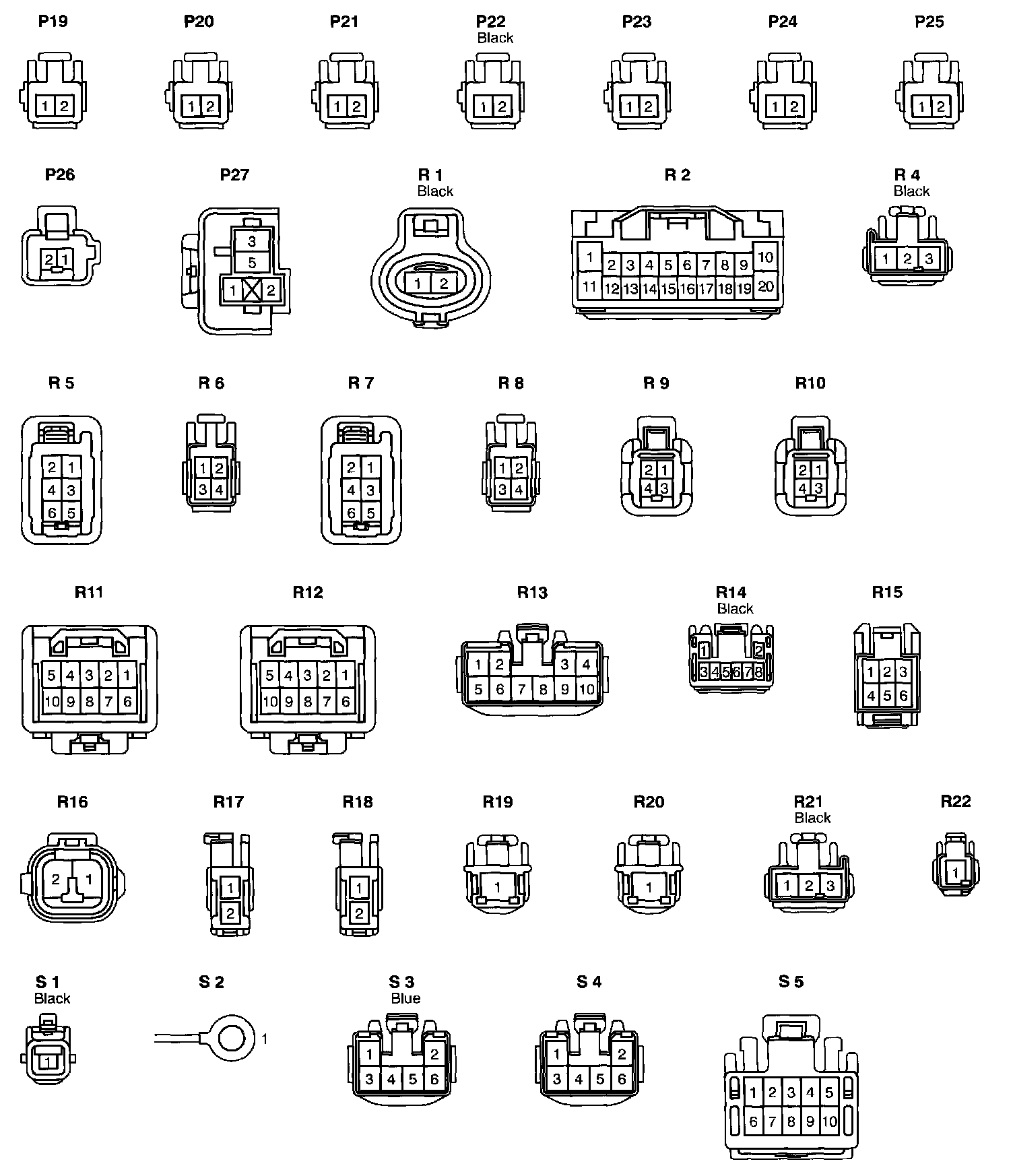

Connector Views (P19 - S5):

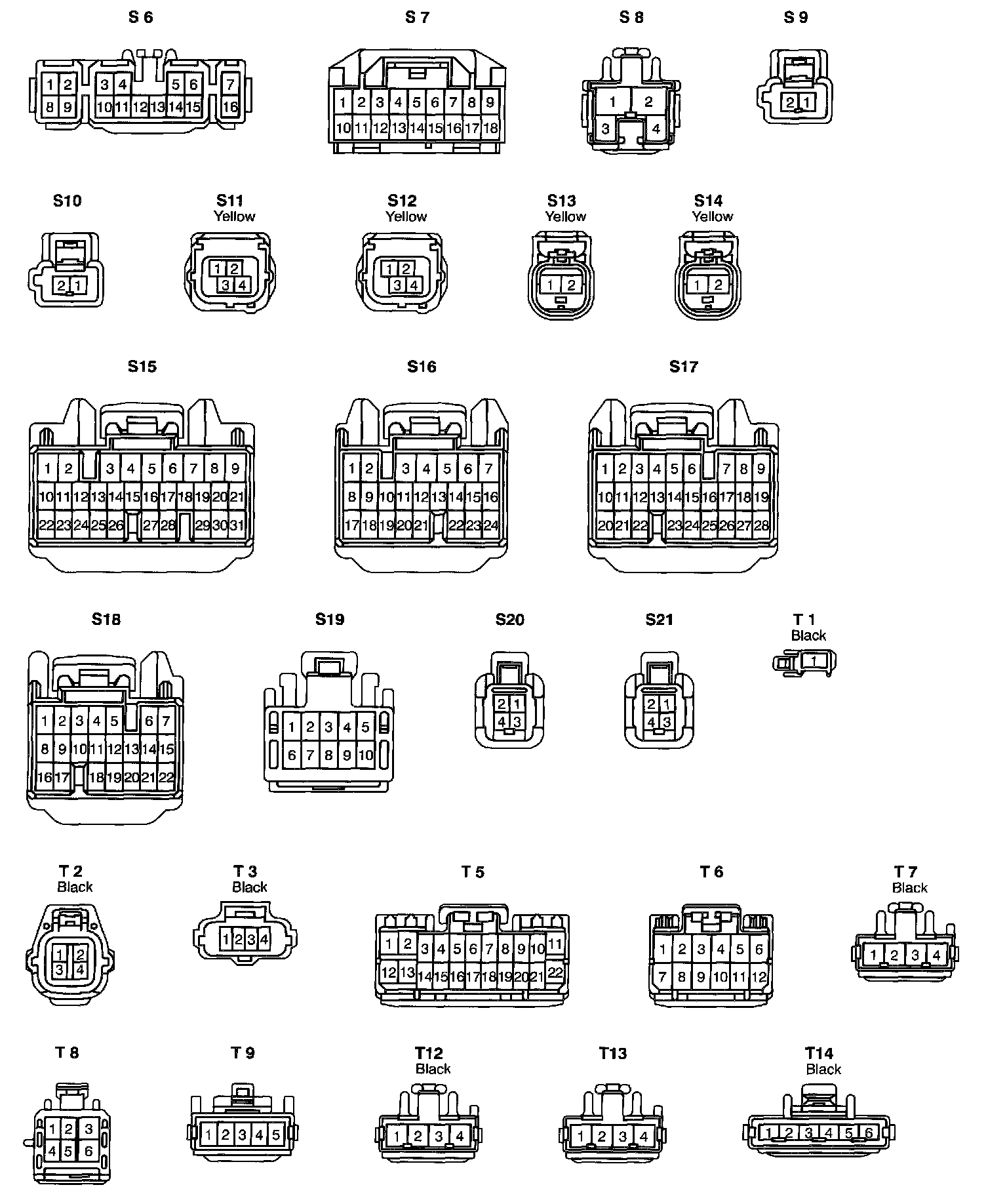

Connector Views (S6 - T14):

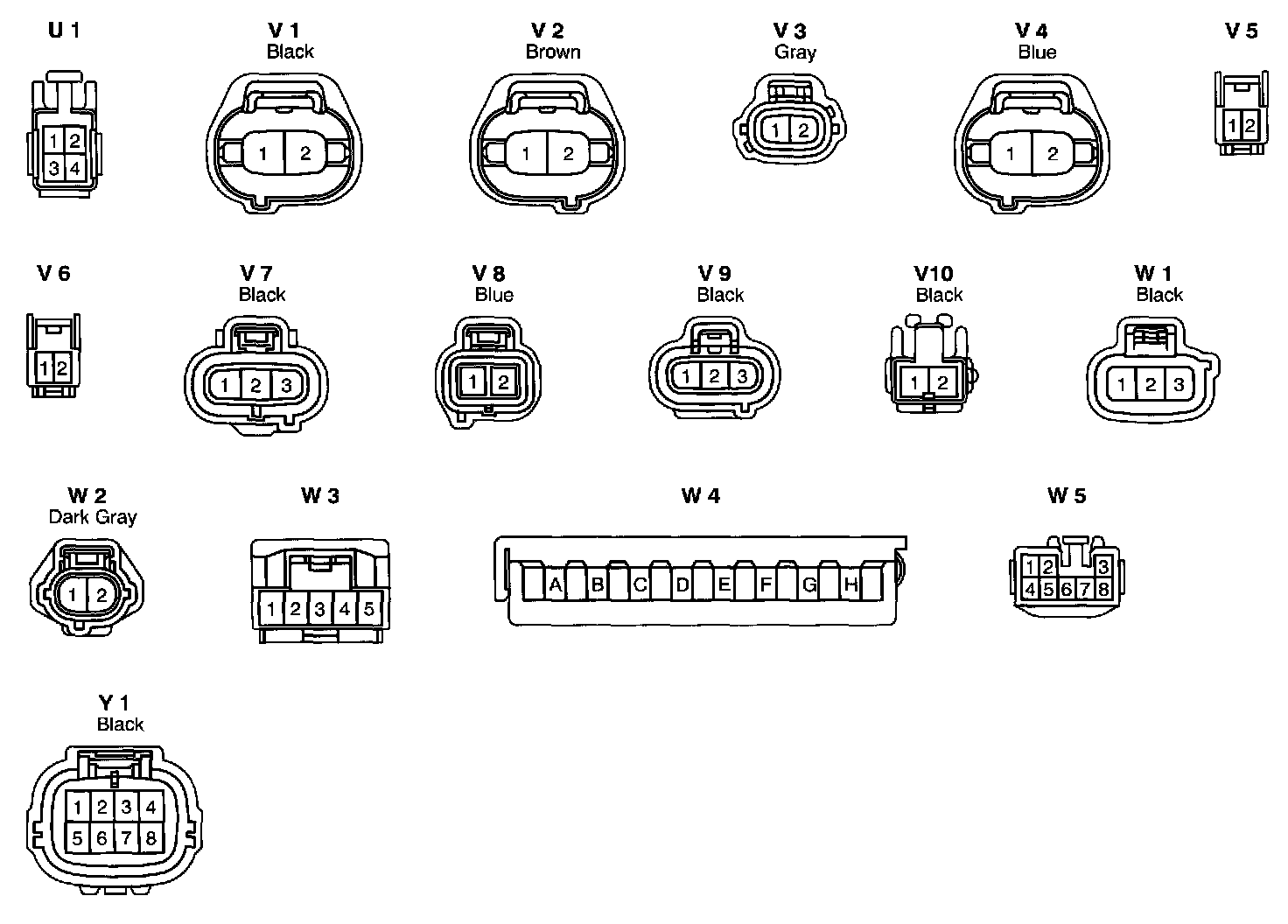

Connector Views (U1 - Y1):
