Circuit Description

For power window master switch circuit diagram, see Fig 1.

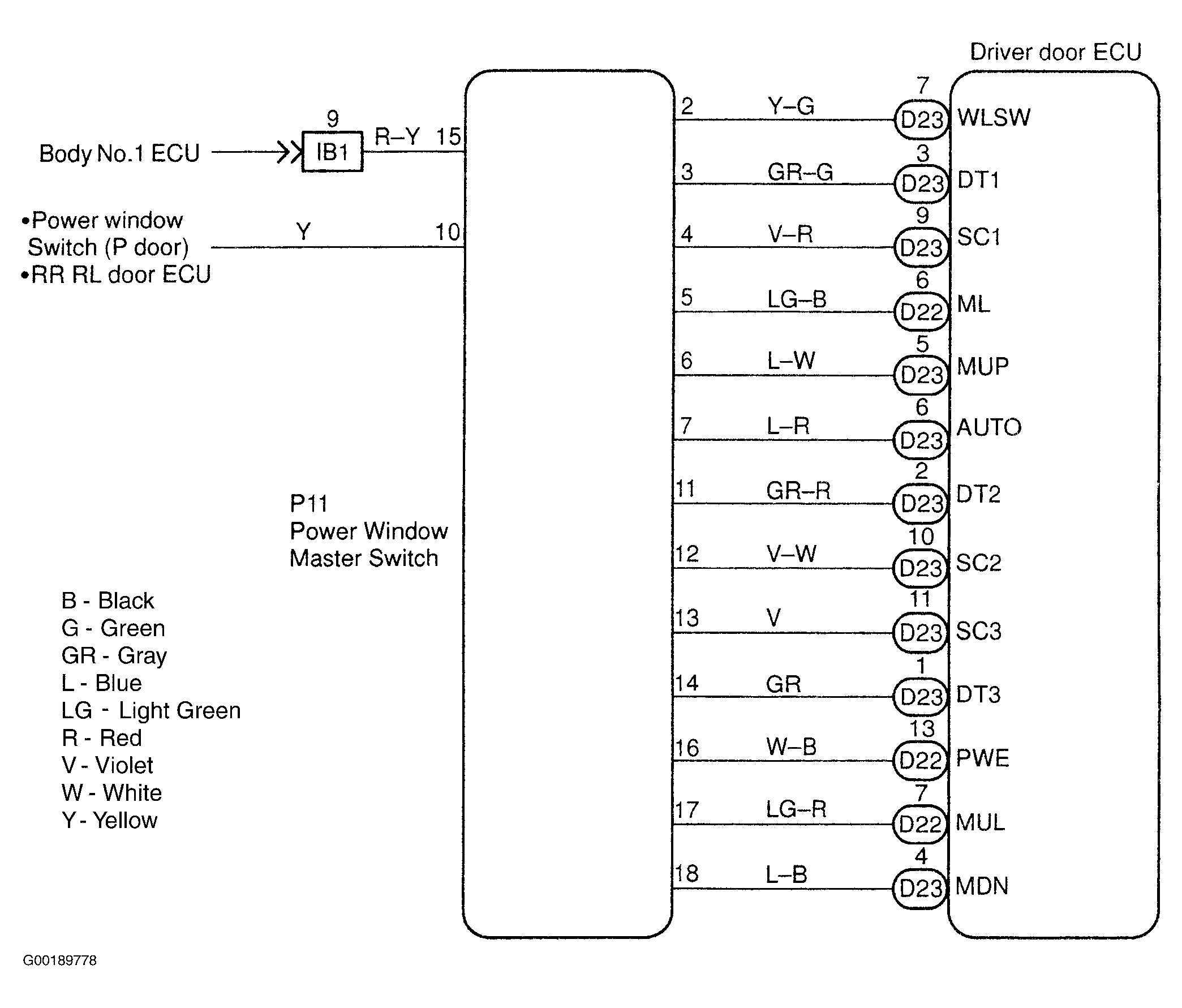

Fig 1: Identifying Power Window Master Switch Circuit
G00189778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
