Home >> Lexus >> 2002 >> ES 300 >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Alignment Specifications & Procedures >> Specifications
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Alignment Specifications & Procedures: Specifications

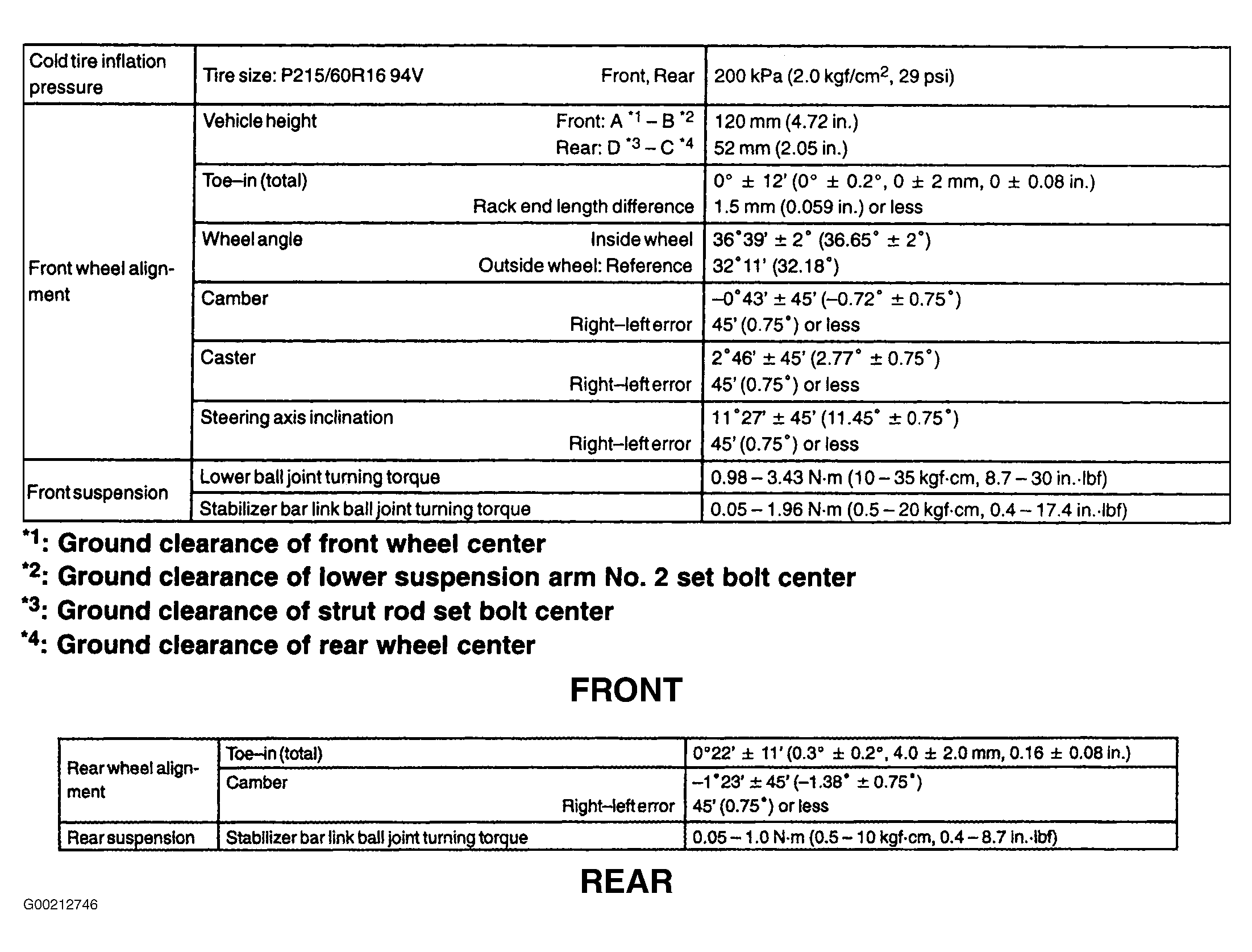

Fig 1: Wheel Alignment Specifications (ES 300)
G00212746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
