Wheel Speed Sensor (Front): Removal

  1. Remove front wheel and front fender liner.
  2. Disconnect speed sensor harness connector and clamp. See Fig 1.
  3. Remove 2 clamp bolts (A, B) holding sensor harness and clamp from body and shock absorber. See Fig 2.
  4. Remove bolt and wheel speed sensor. See Fig 3.

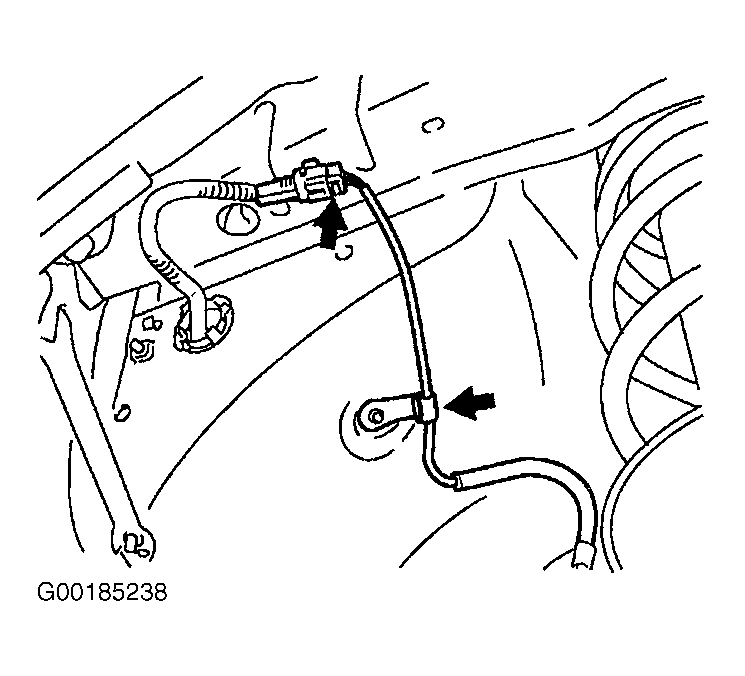

Fig 1: Disconnecting Front Speed Sensor Connector
G00185238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

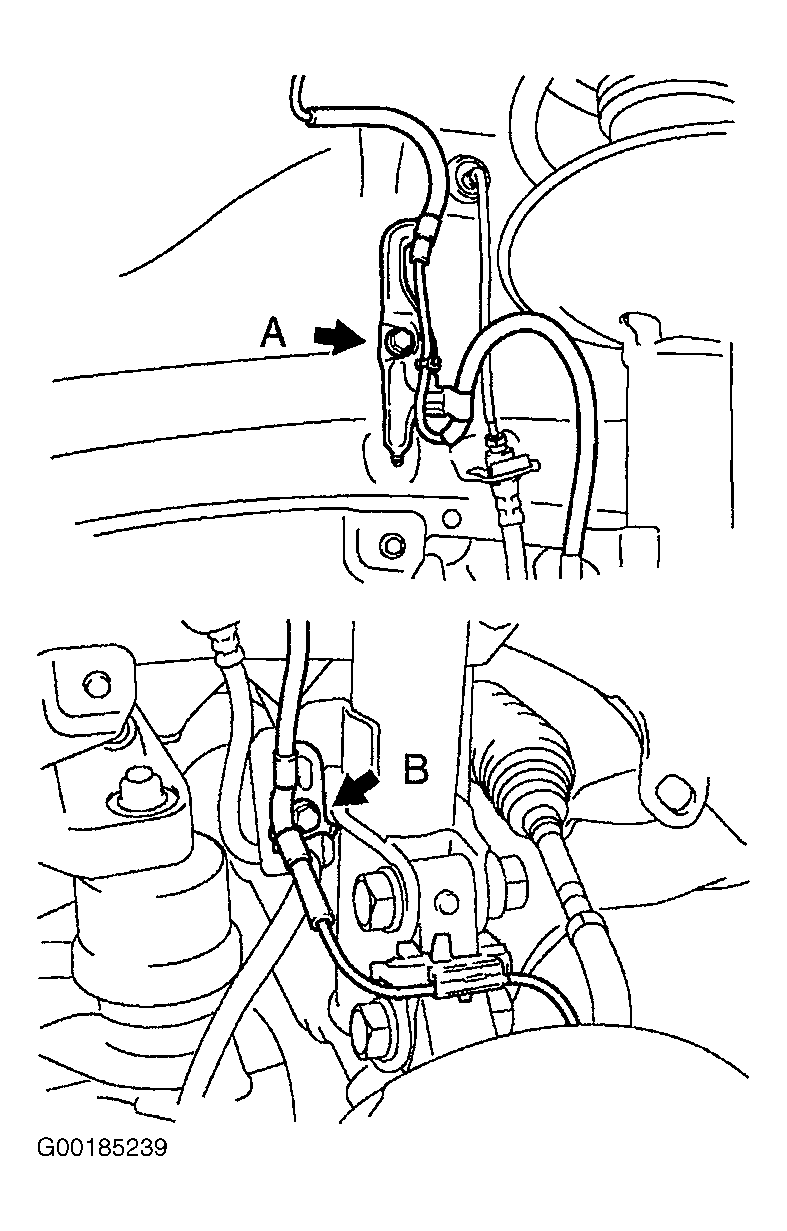

Fig 2: Locating Clamp Bolts
G00185239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

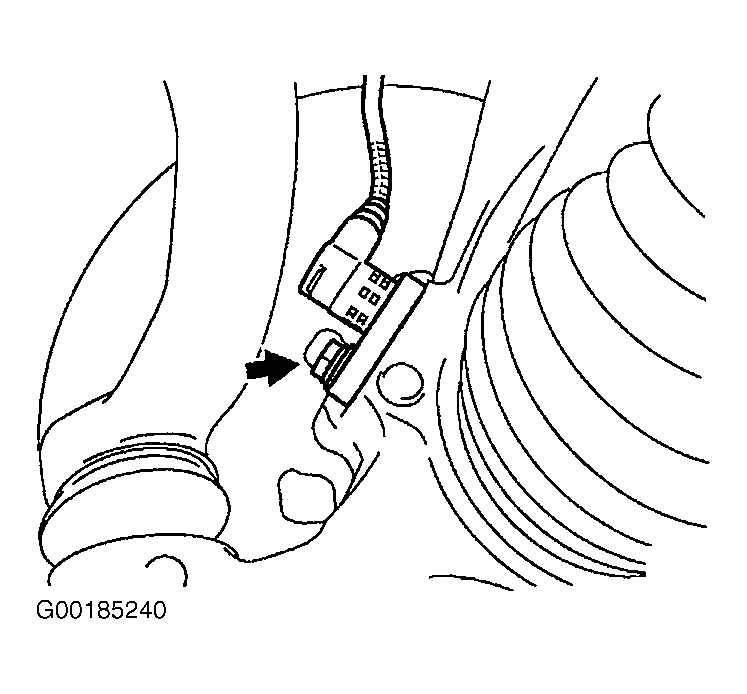

Fig 3: Removing Front Wheel Speed Sensor
G00185240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
