Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

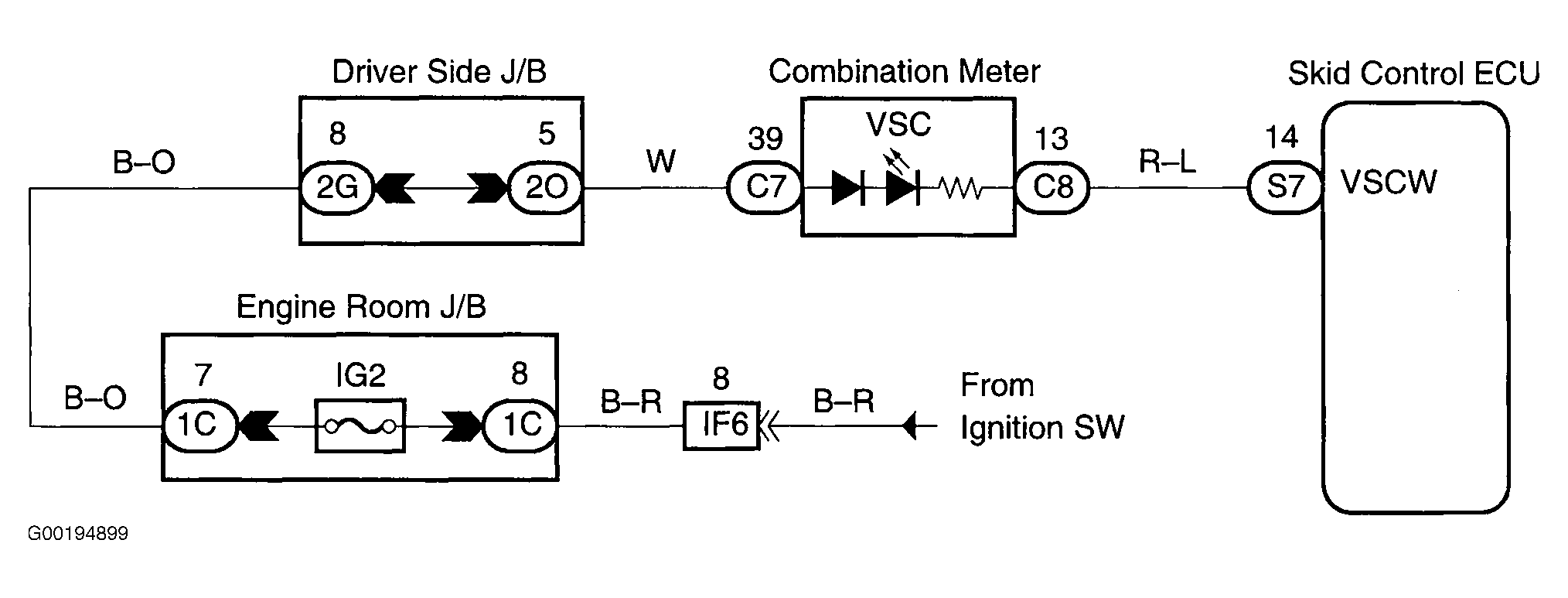

Fig 1: Wiring Diagram (VSC Warning Light Circuit)
G00194899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

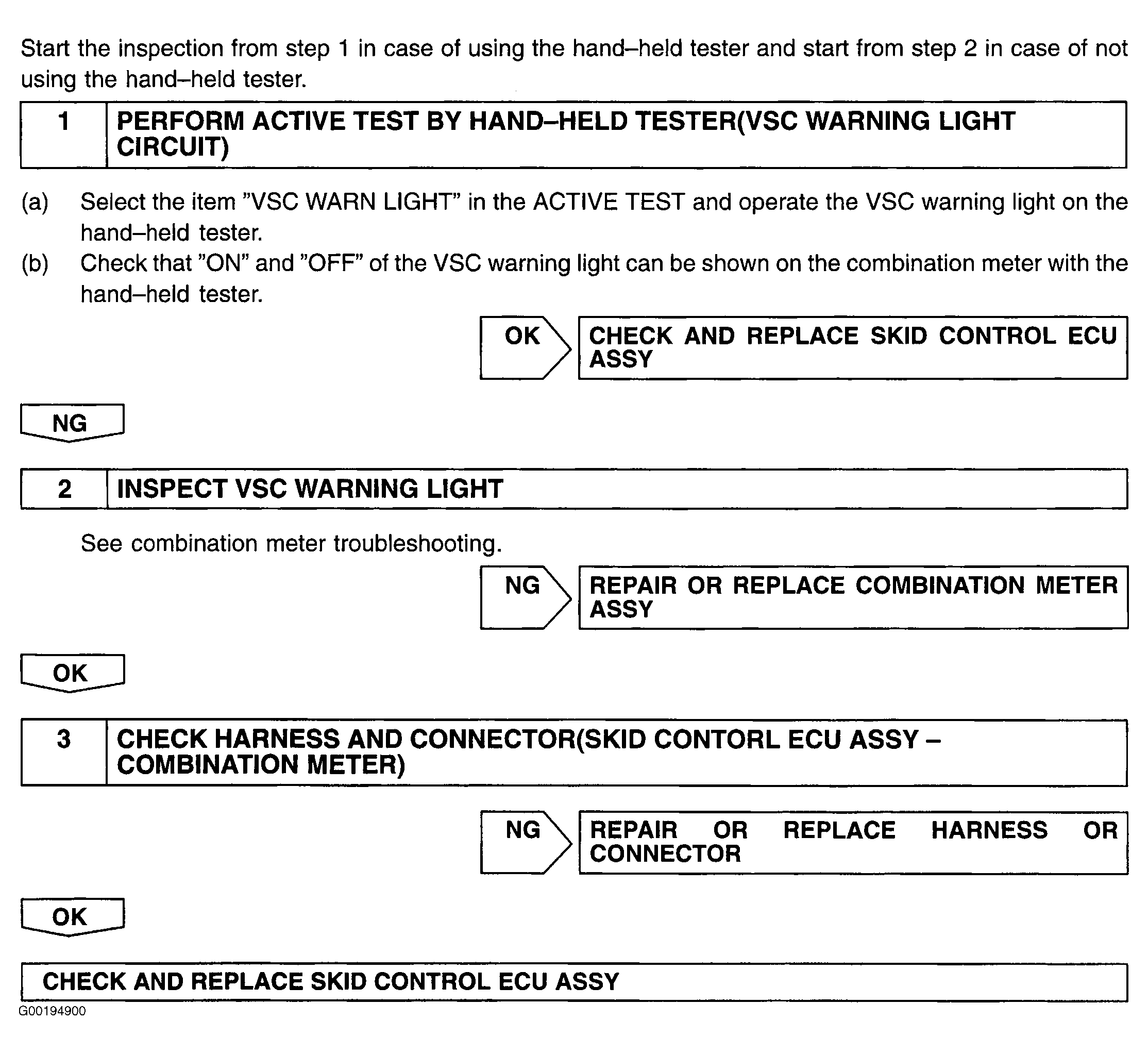

Fig 2: Testing Procedure (VSC Warning Light Circuit)
G00194900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
