Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

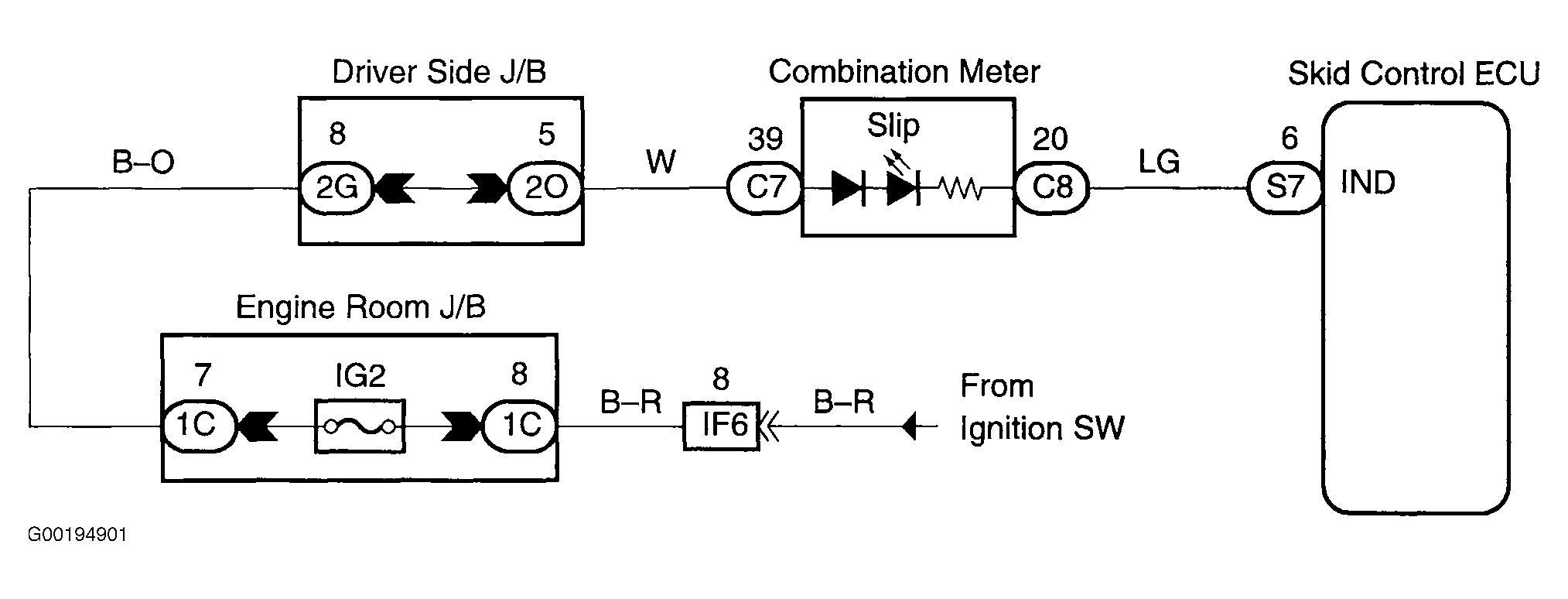

Fig 1: Wiring Diagram (SLIP Indicator Light Circuit)
G00194901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

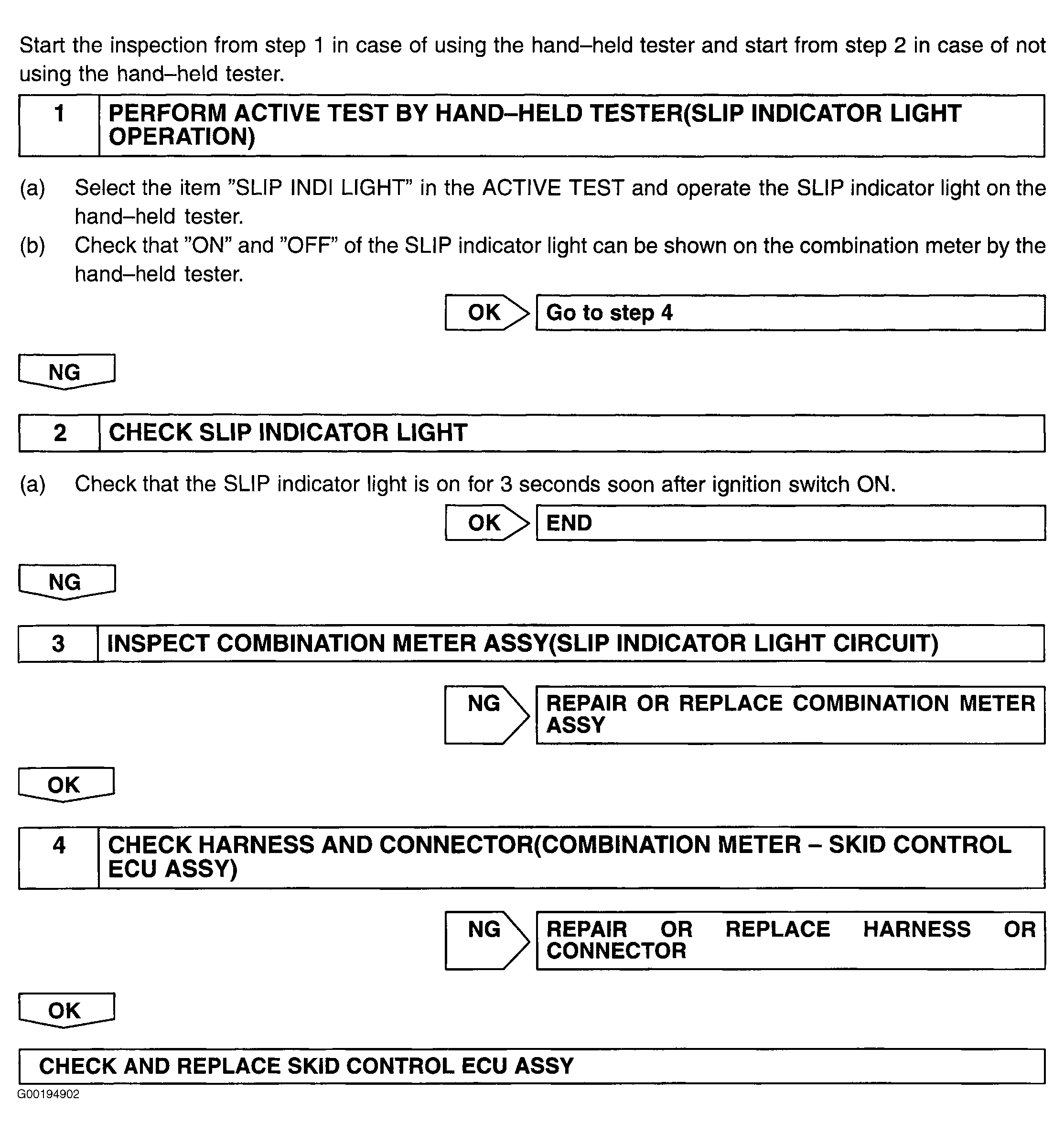

Fig 2: Testing Procedure (SLIP Indicator Light Circuit)
G00194902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
