Connector Code Lists

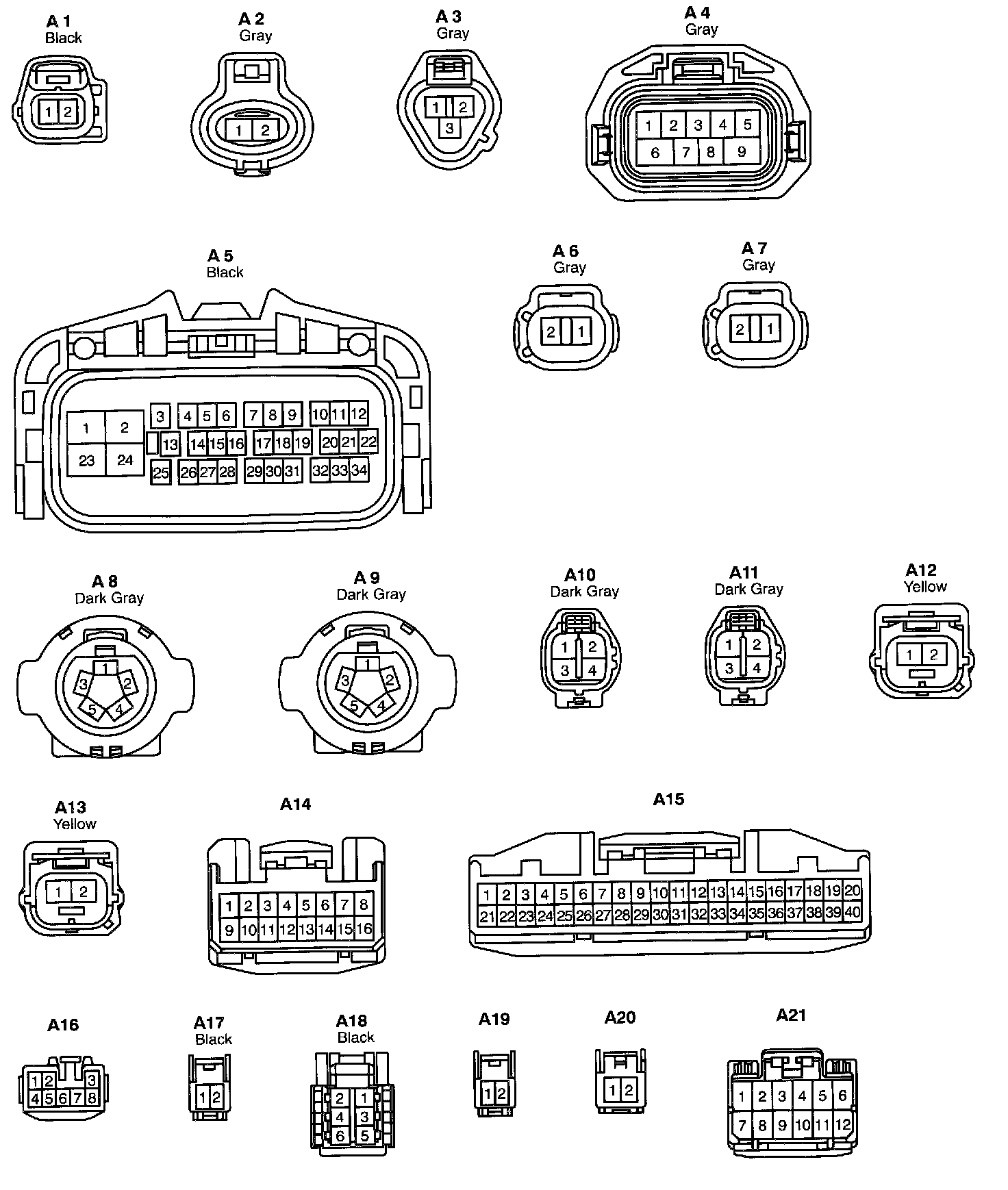

Connector Views (A1 - A21):

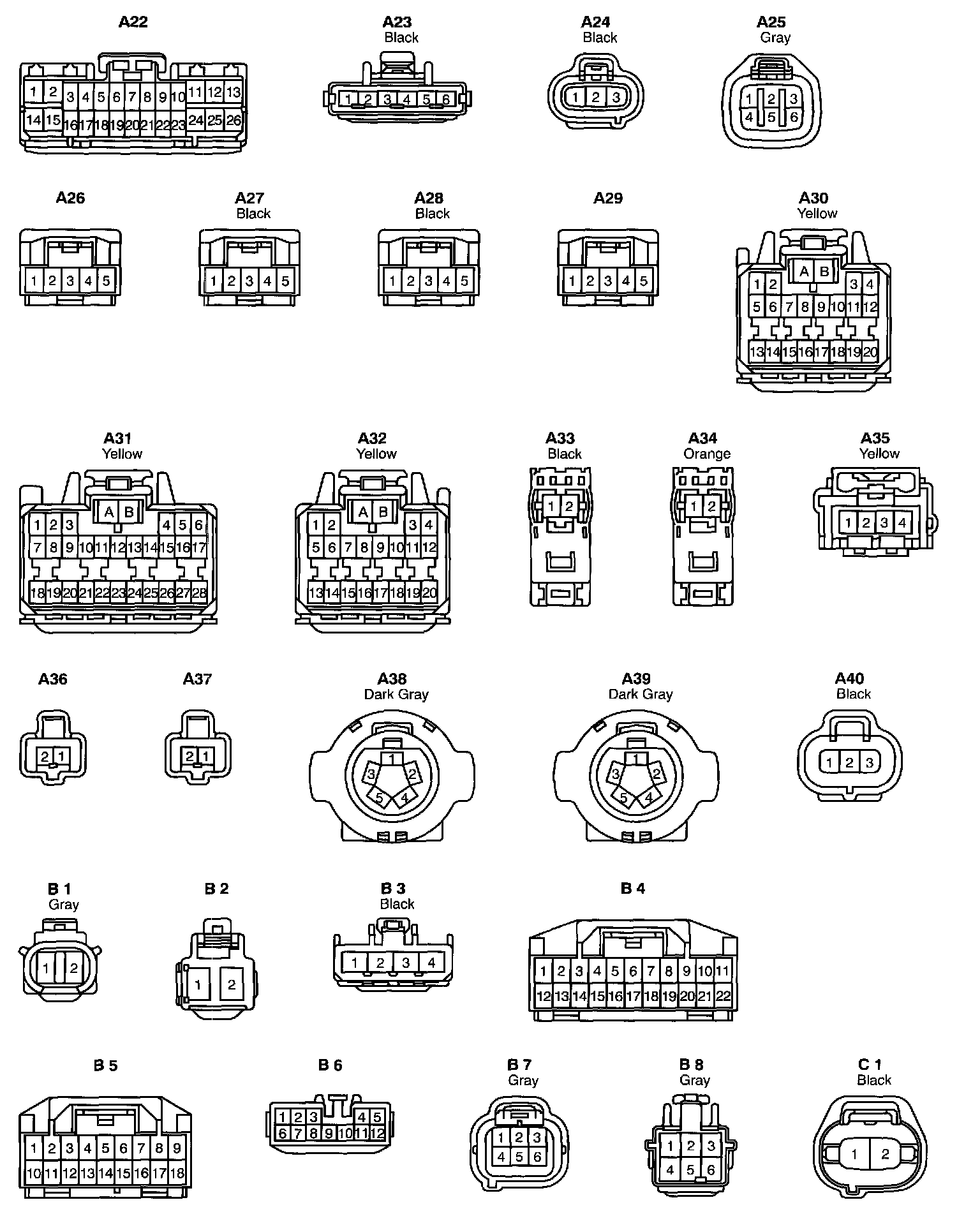

Connector Views (A22 - C1):

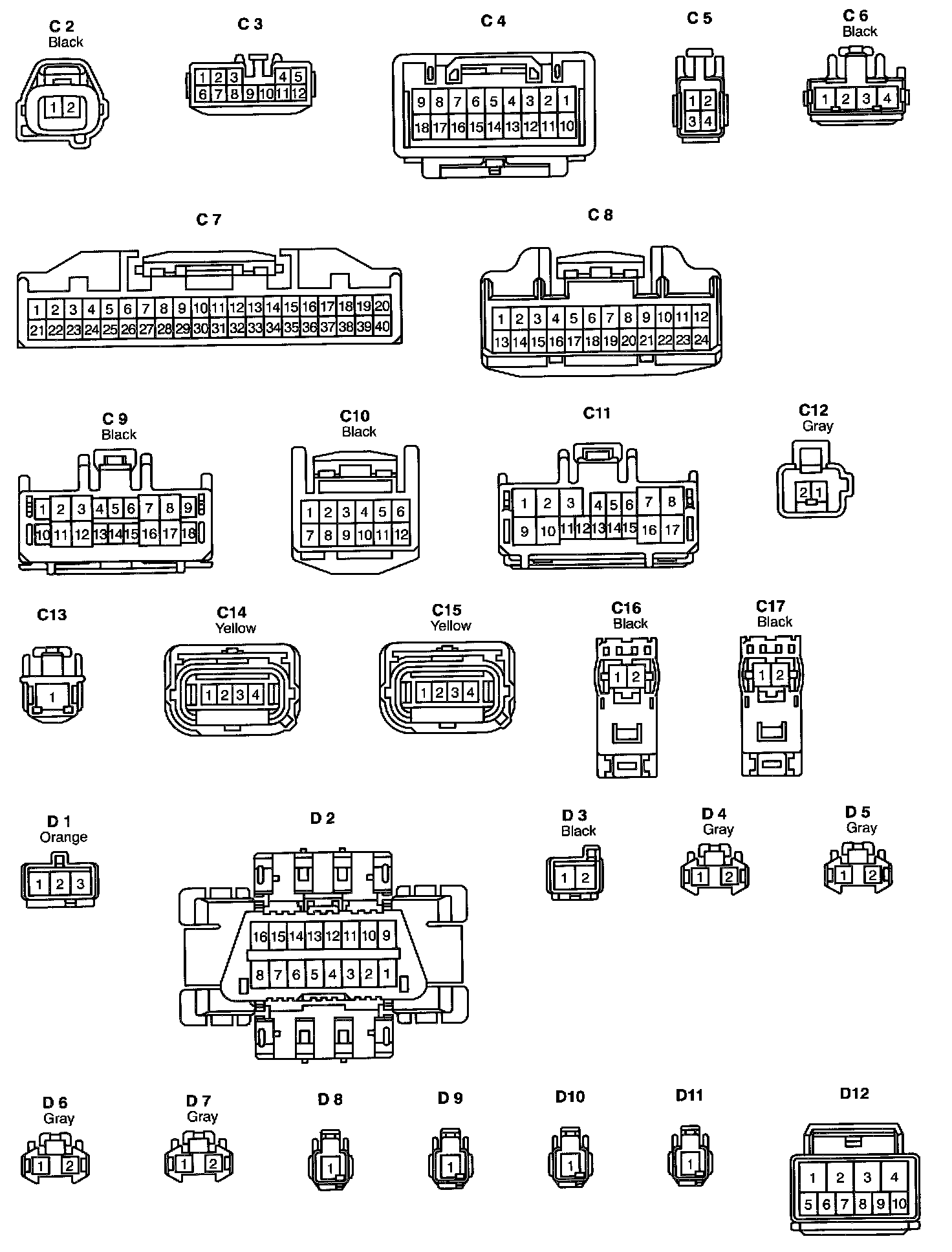

Connector Views (C2 - D12):

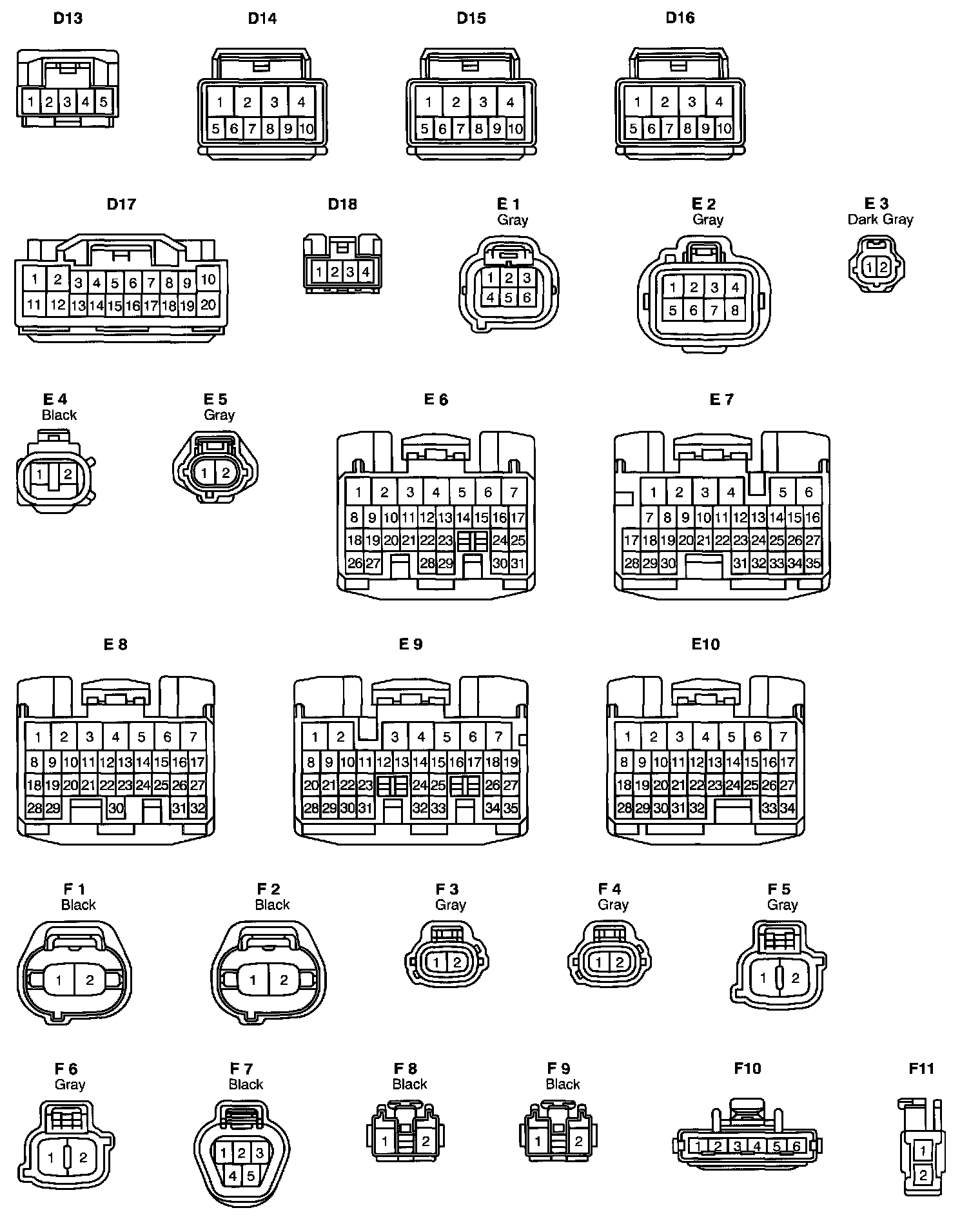

Connector Views (D13 - F11):

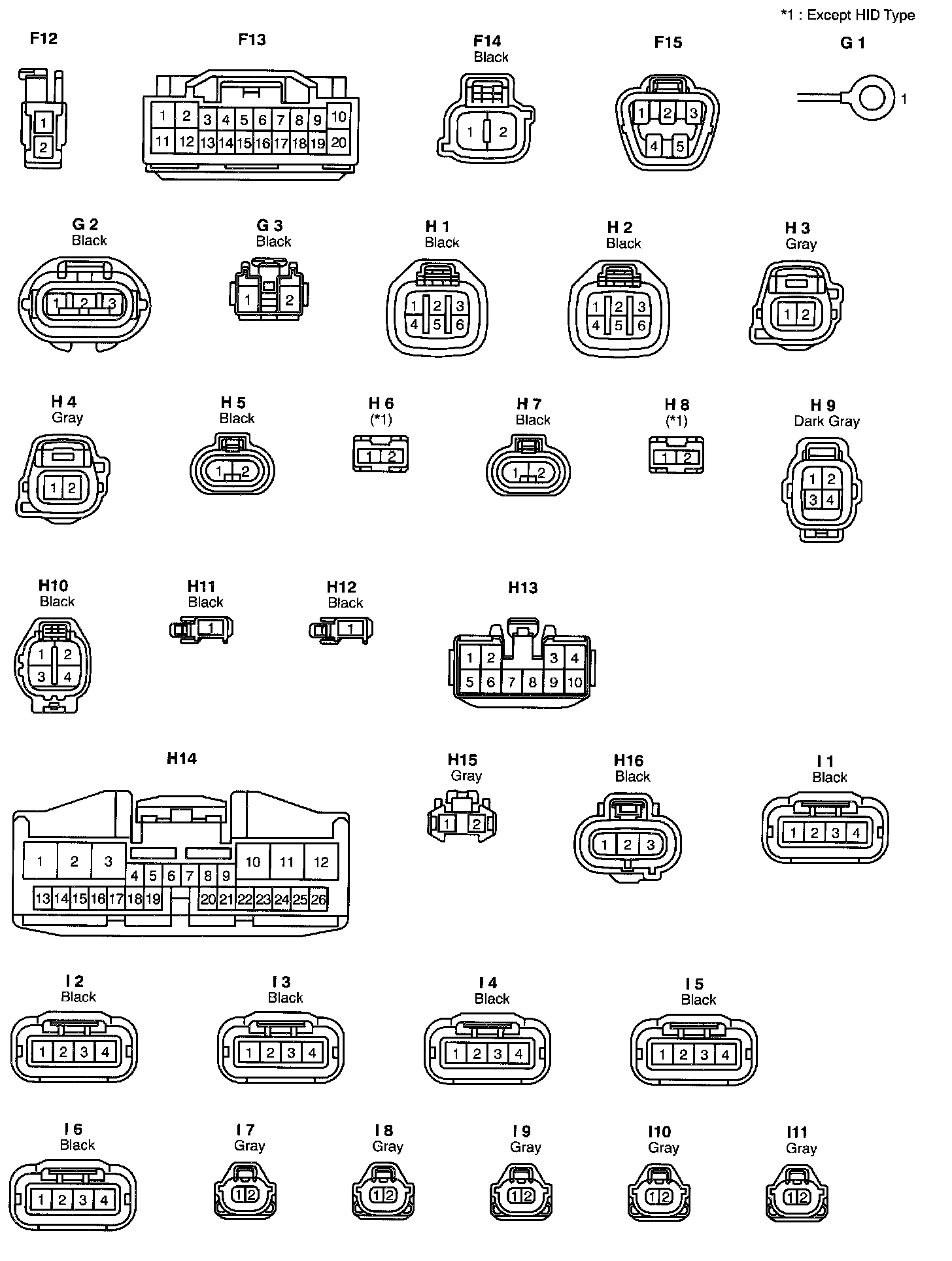

Connector Views (F12 - I11):

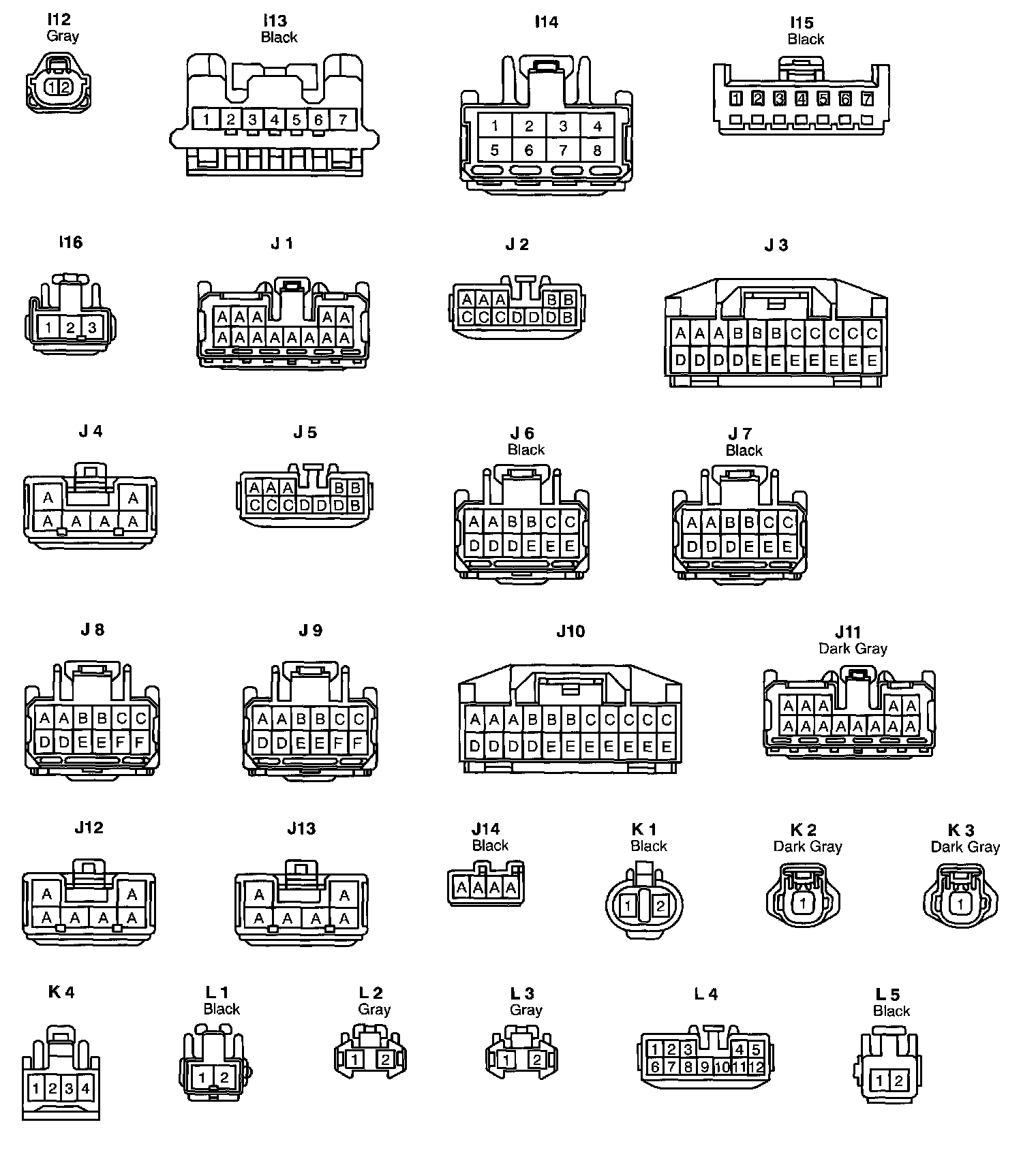

Connector Views (I12 - L5):

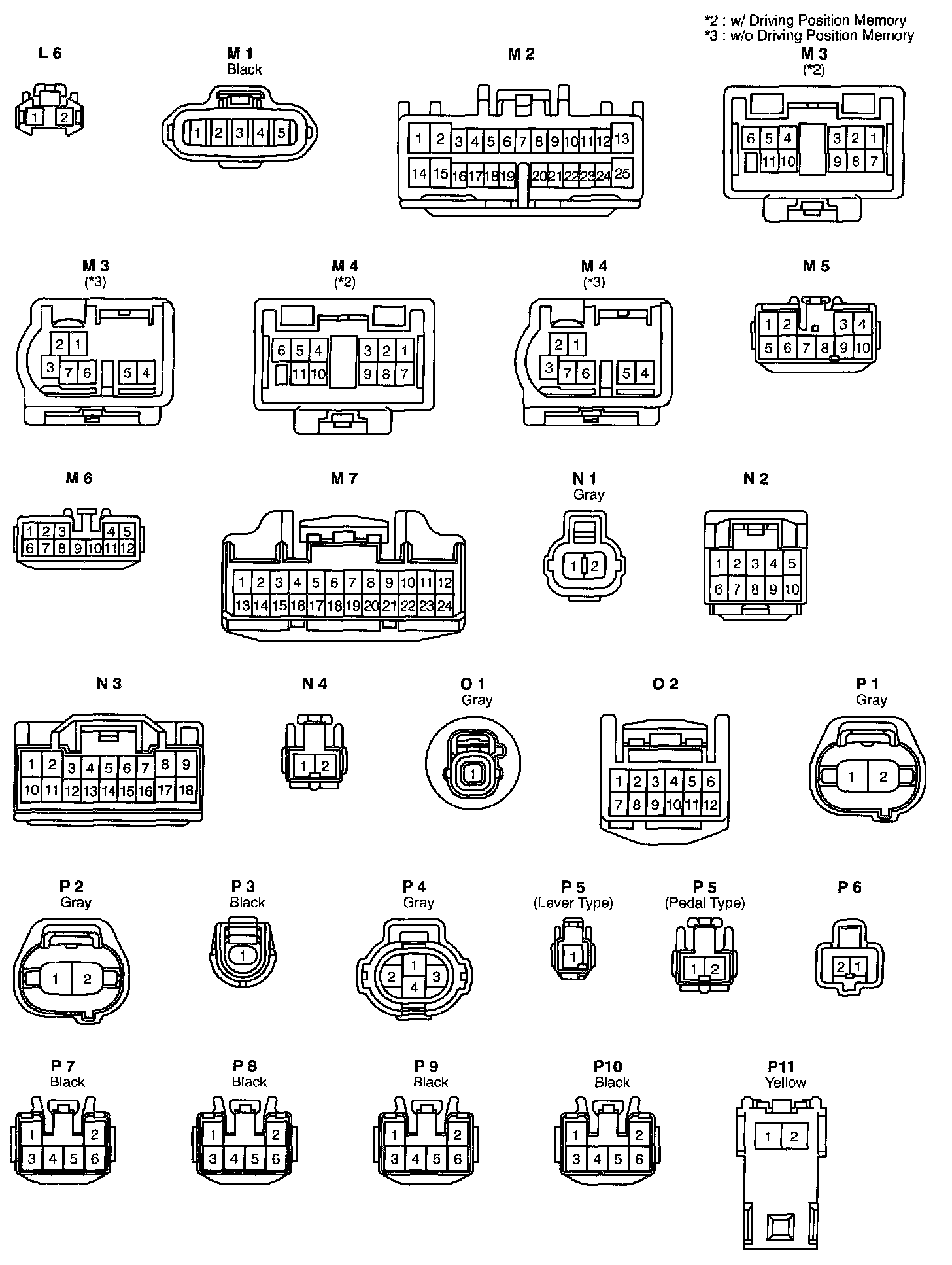

Connector Views (L6 - P11):

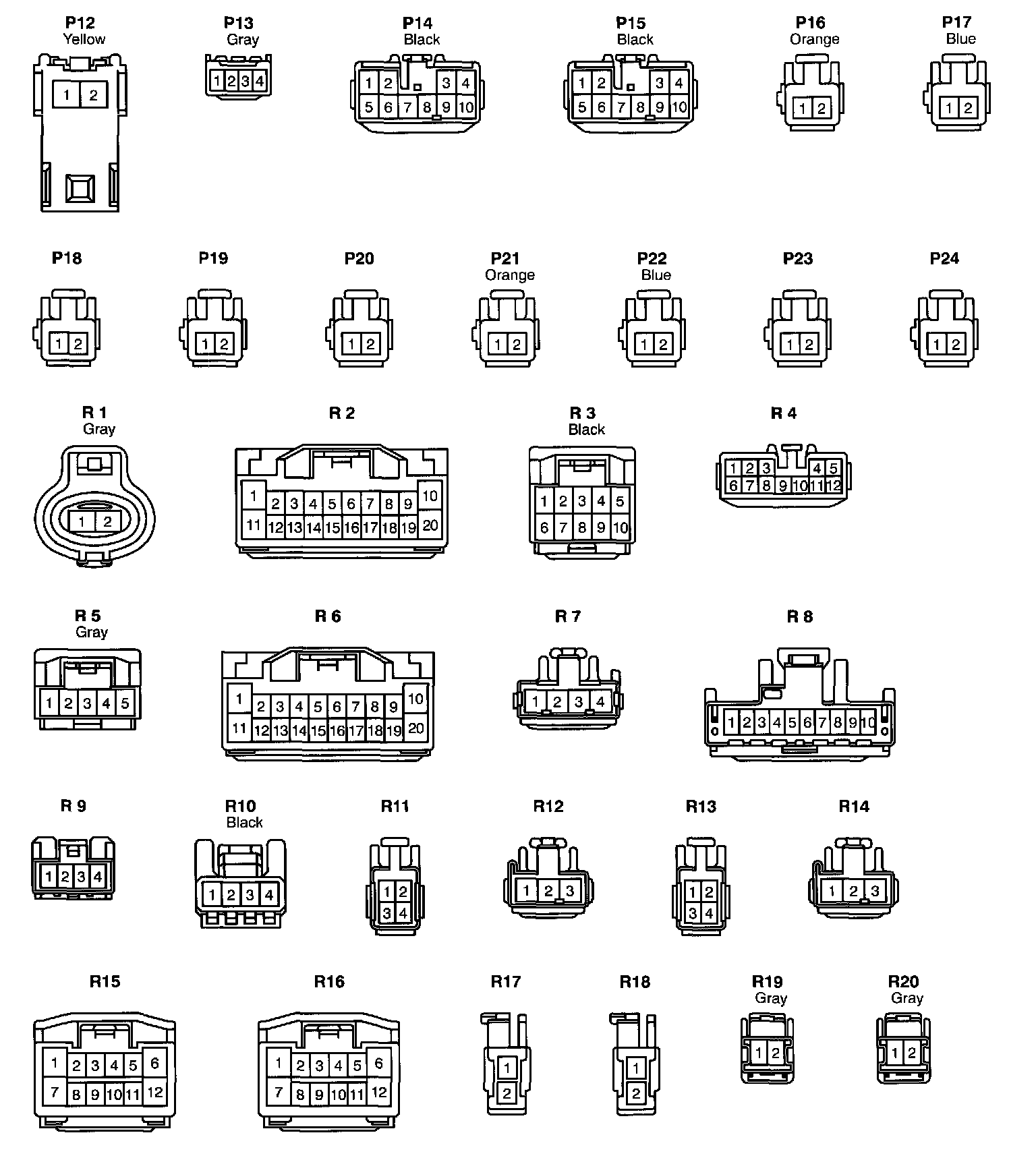

Connector Views (P12 - R20):

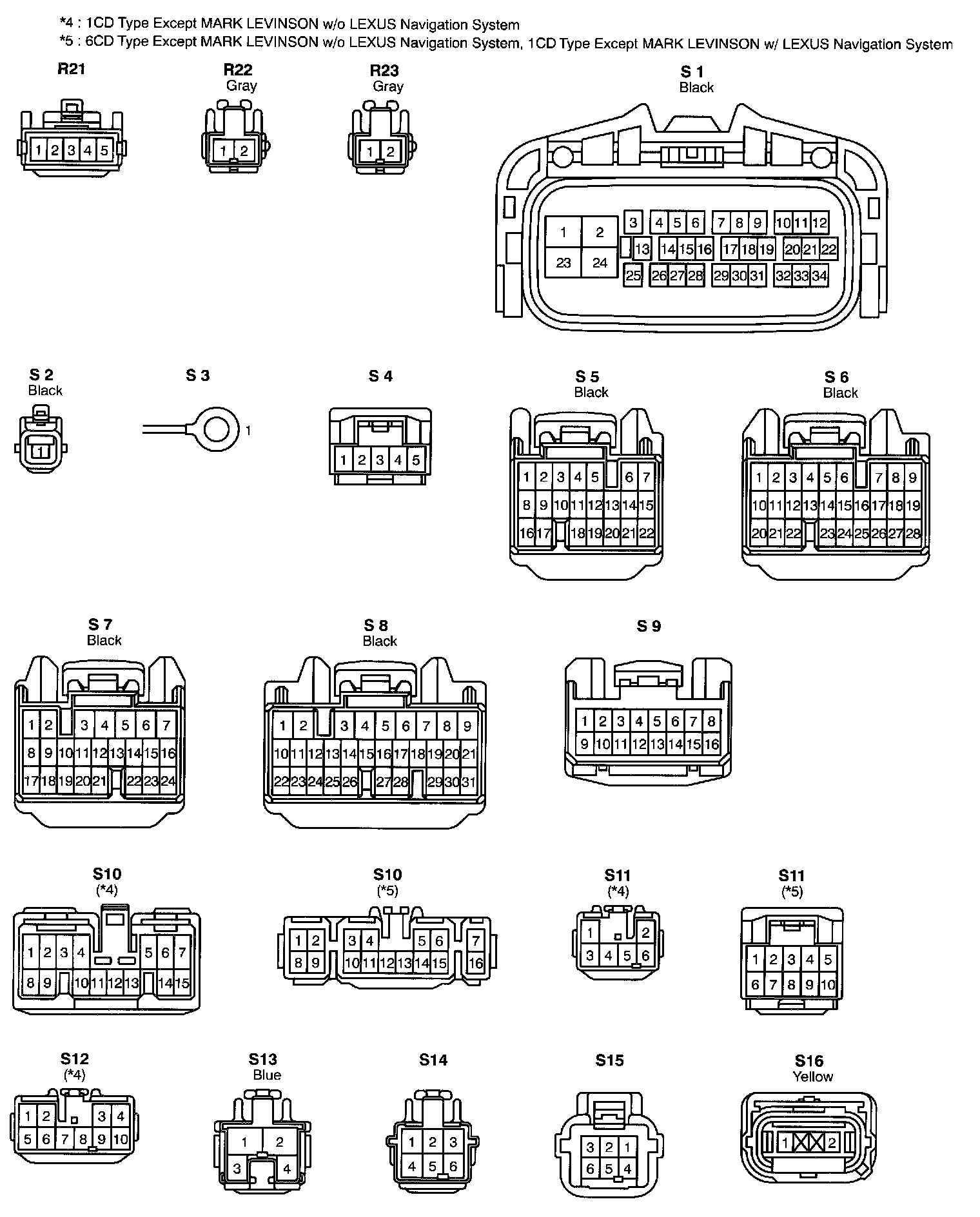

Connector Views (R21 - S16):
