Brake Actuator: Components

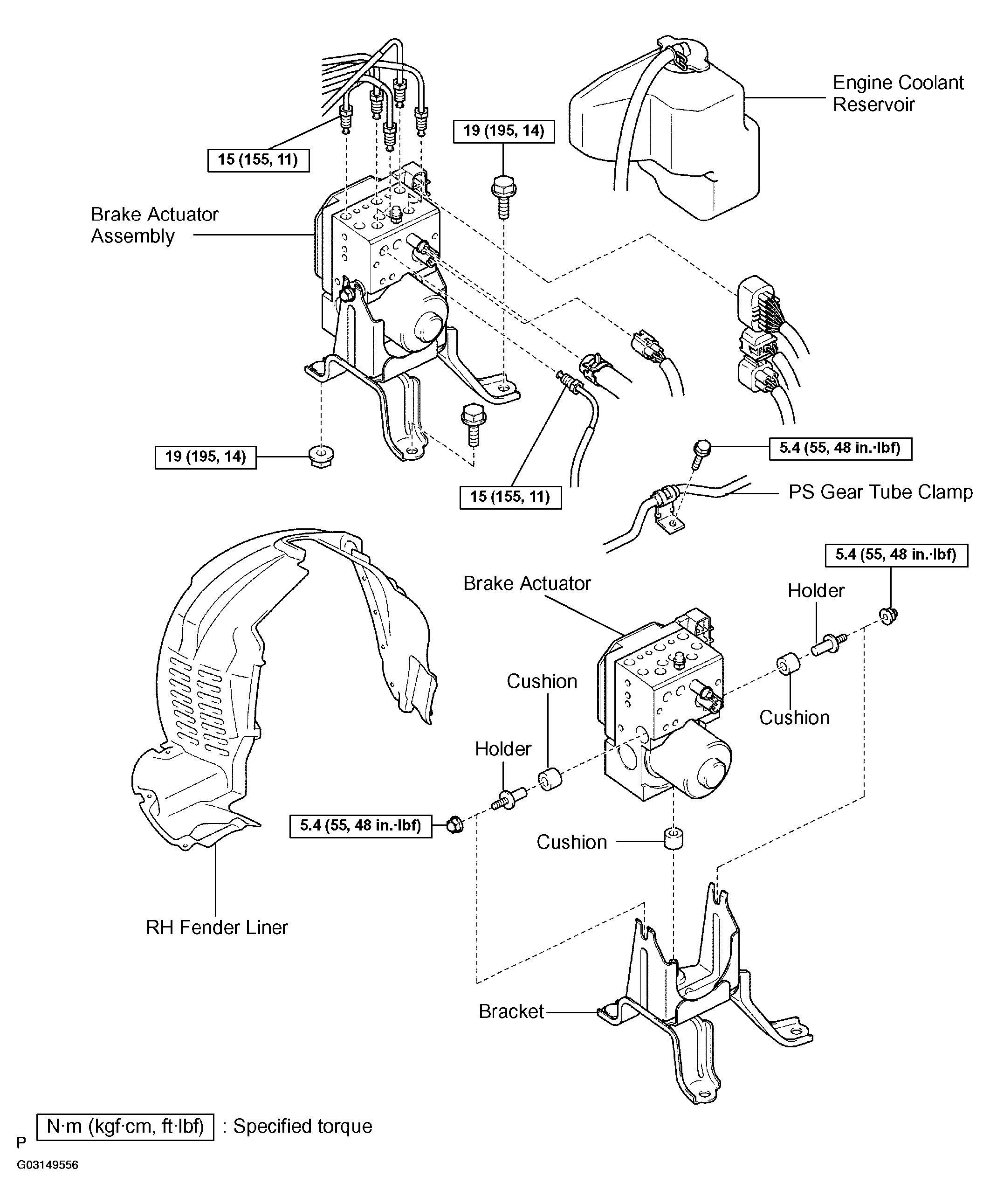

Fig 1: Identifying Components Of Brake Actuator Assembly
G03149556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
