Connector Code Lists

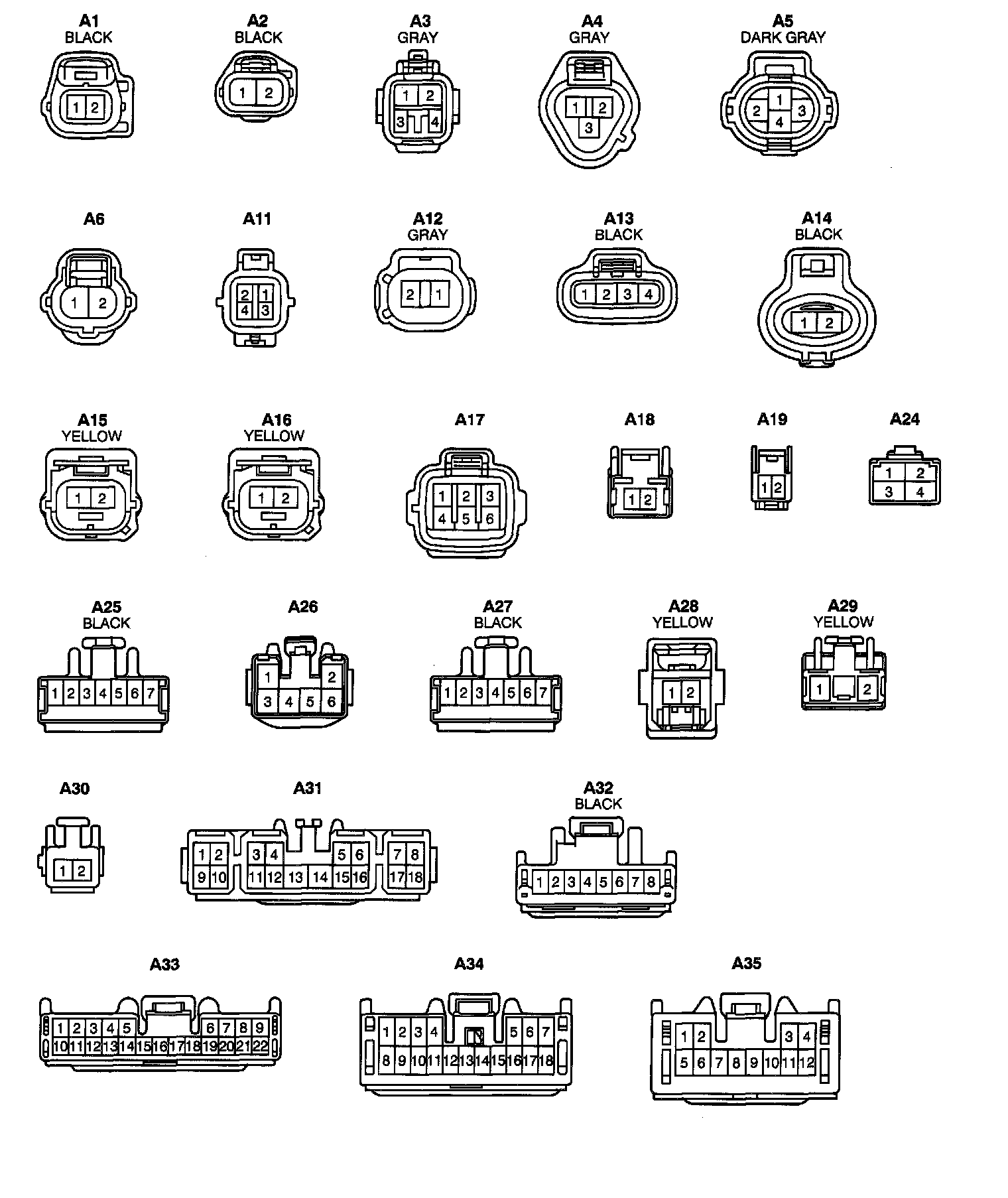

Connector Views (A1 - A35):

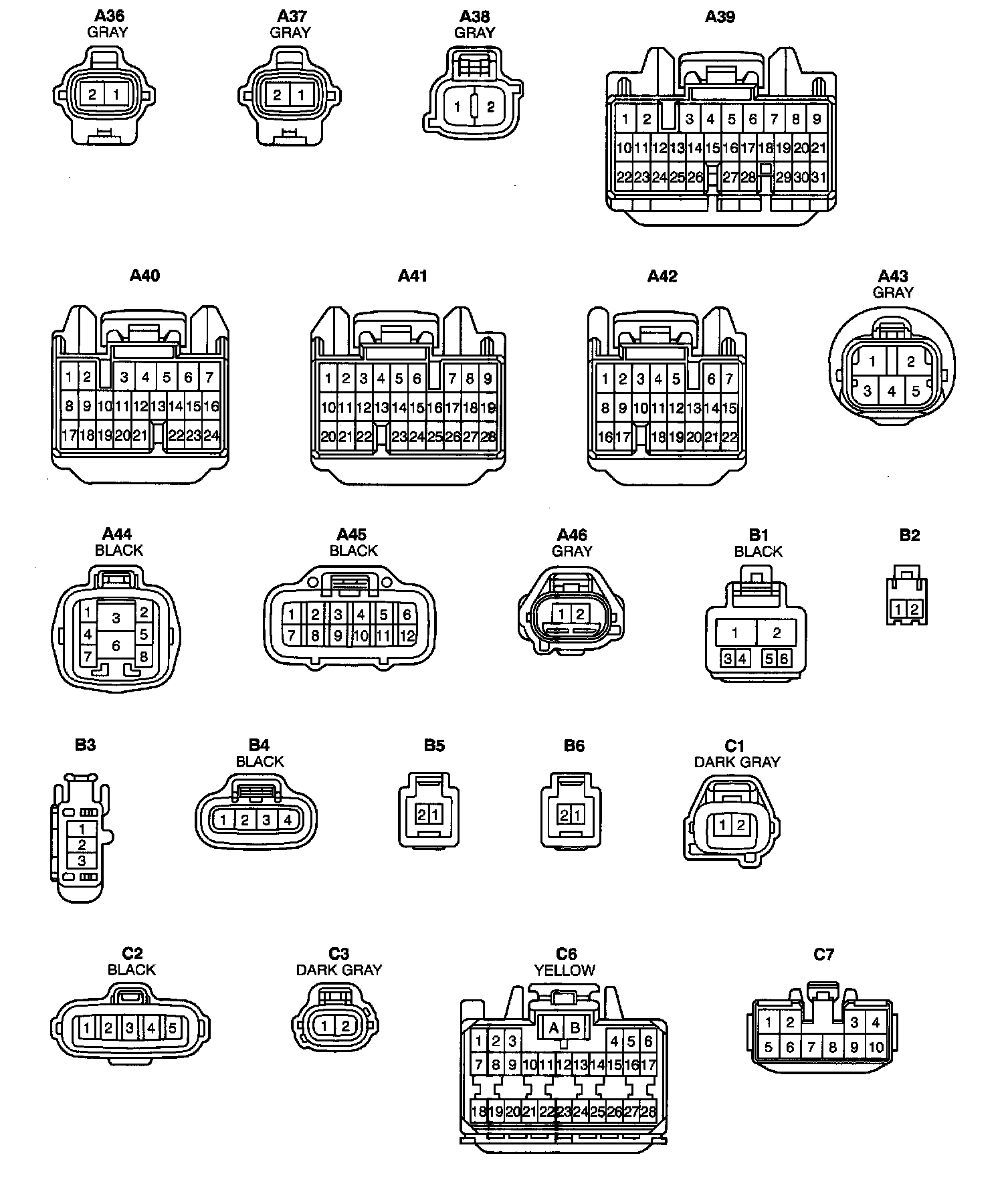

Connector Views (A36 - C7):

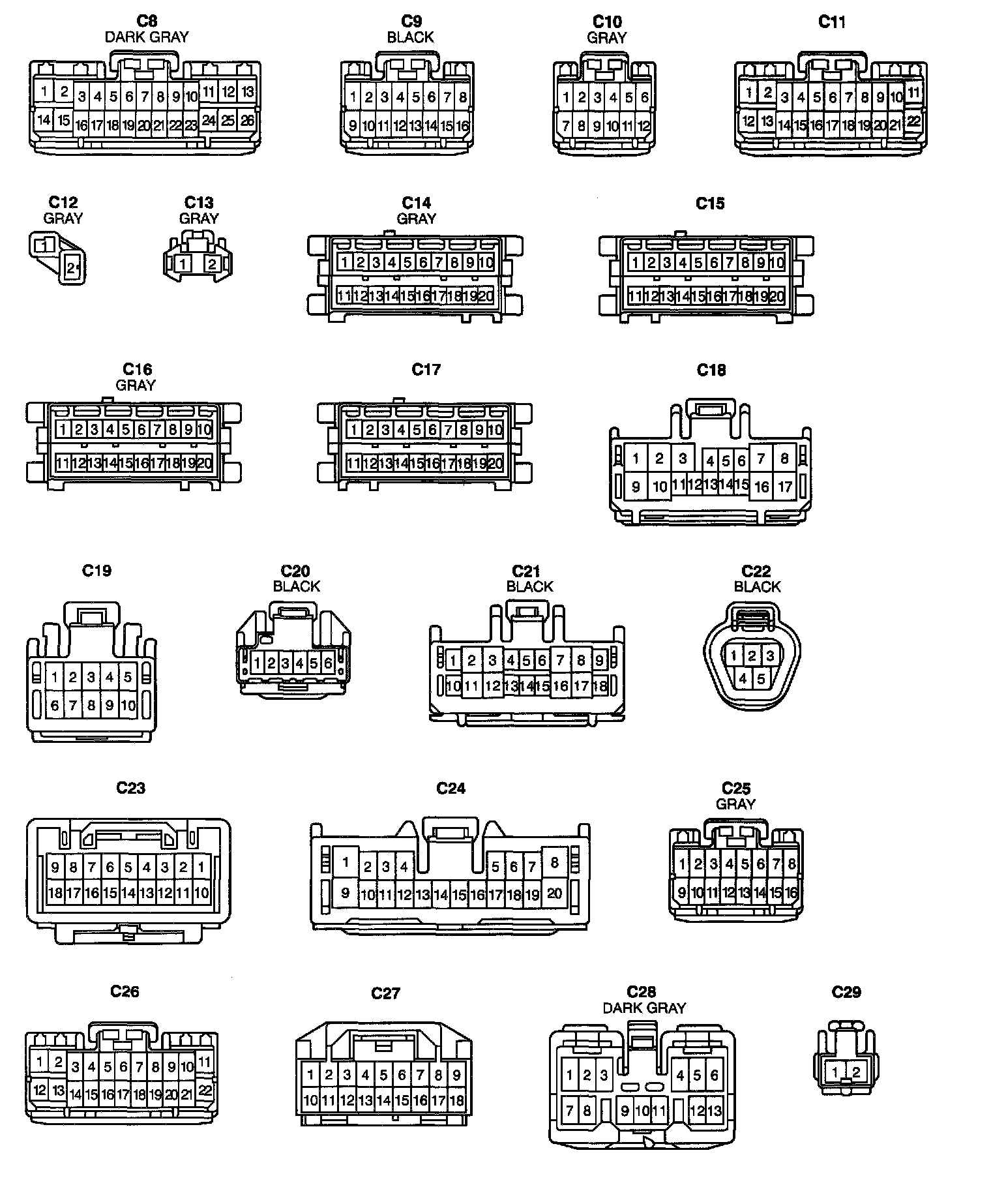

Connector Views (C8 - C29):

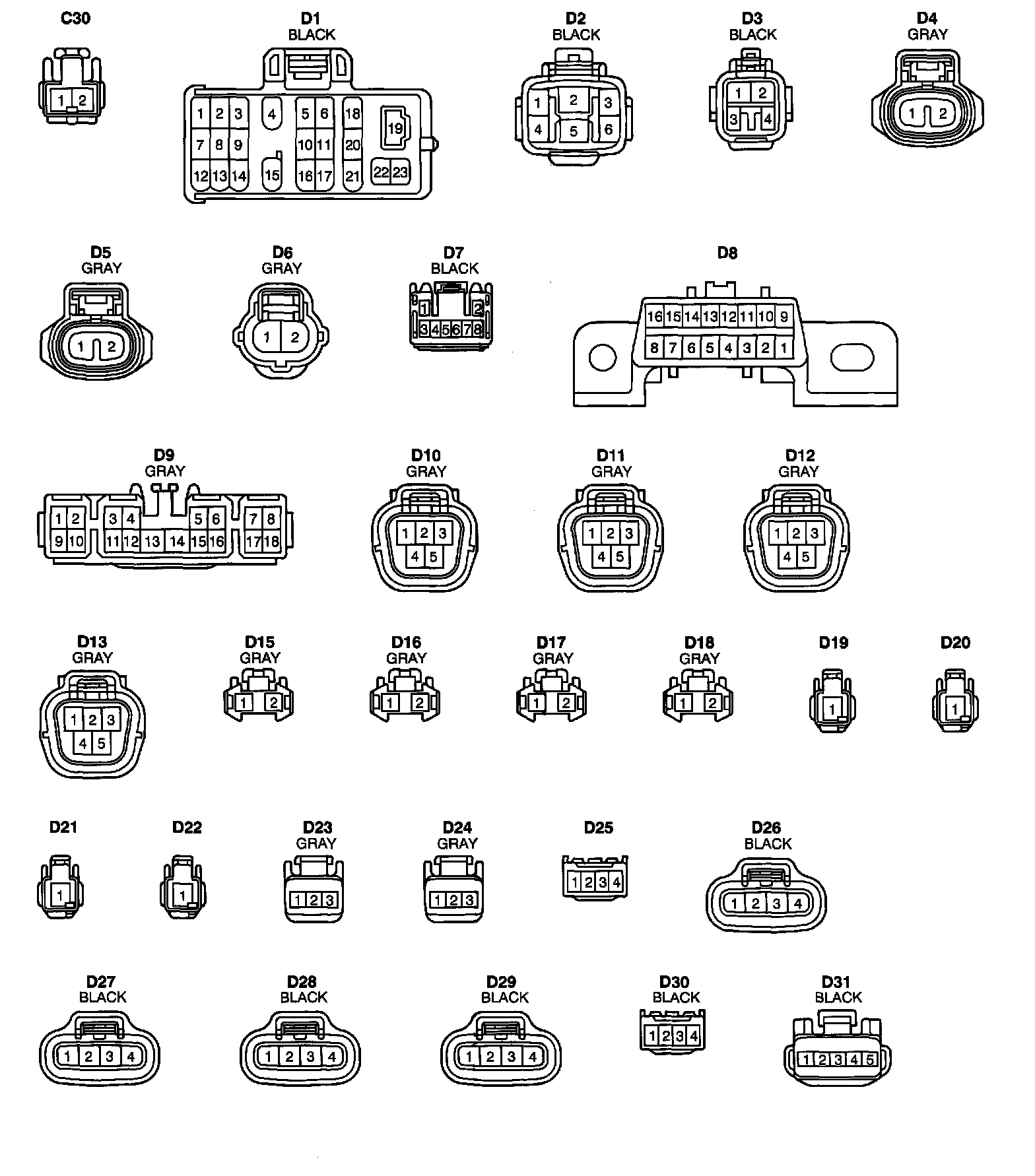

Connector Views (C30 - D31):

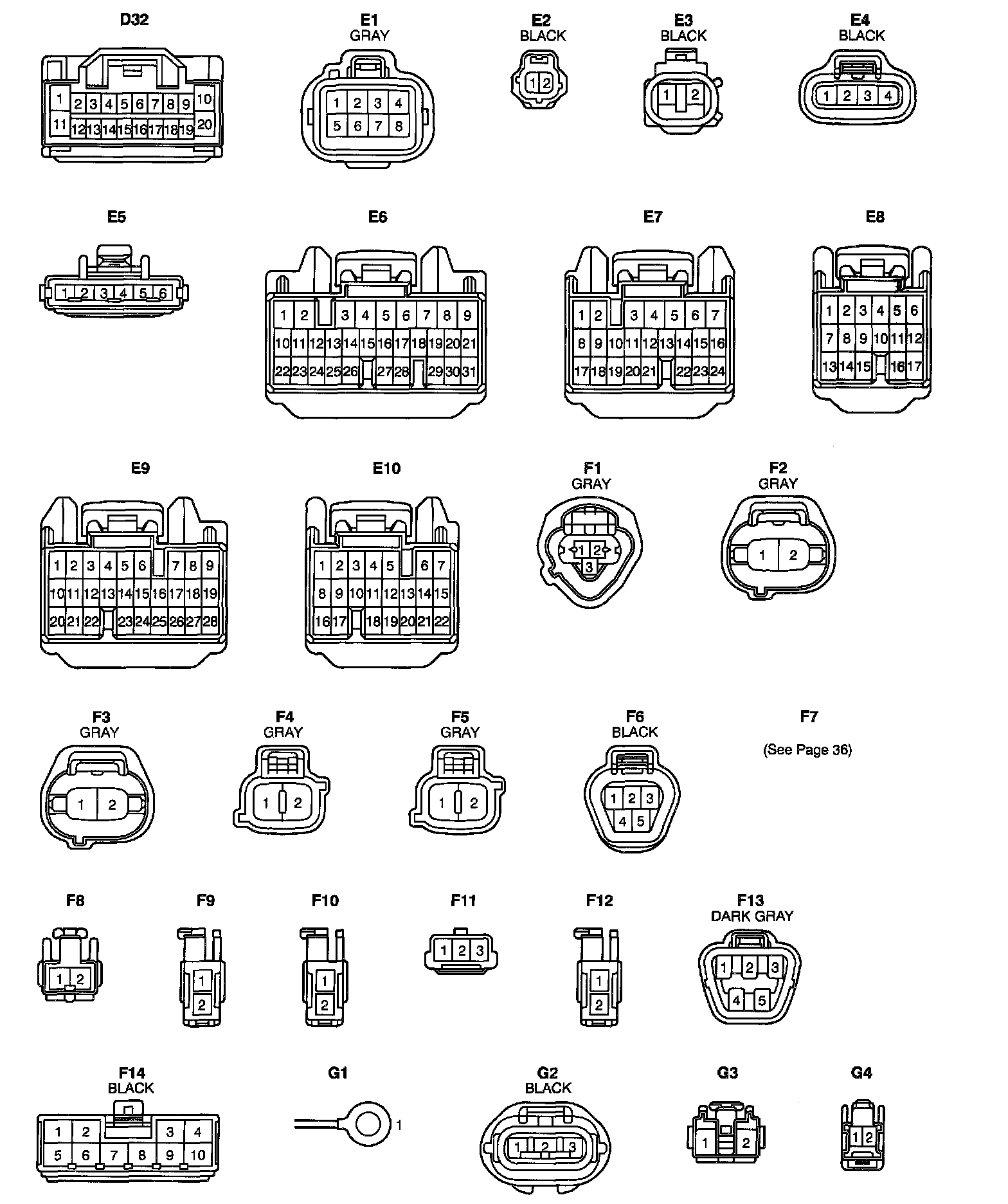

Connector Views (D32 - G4):

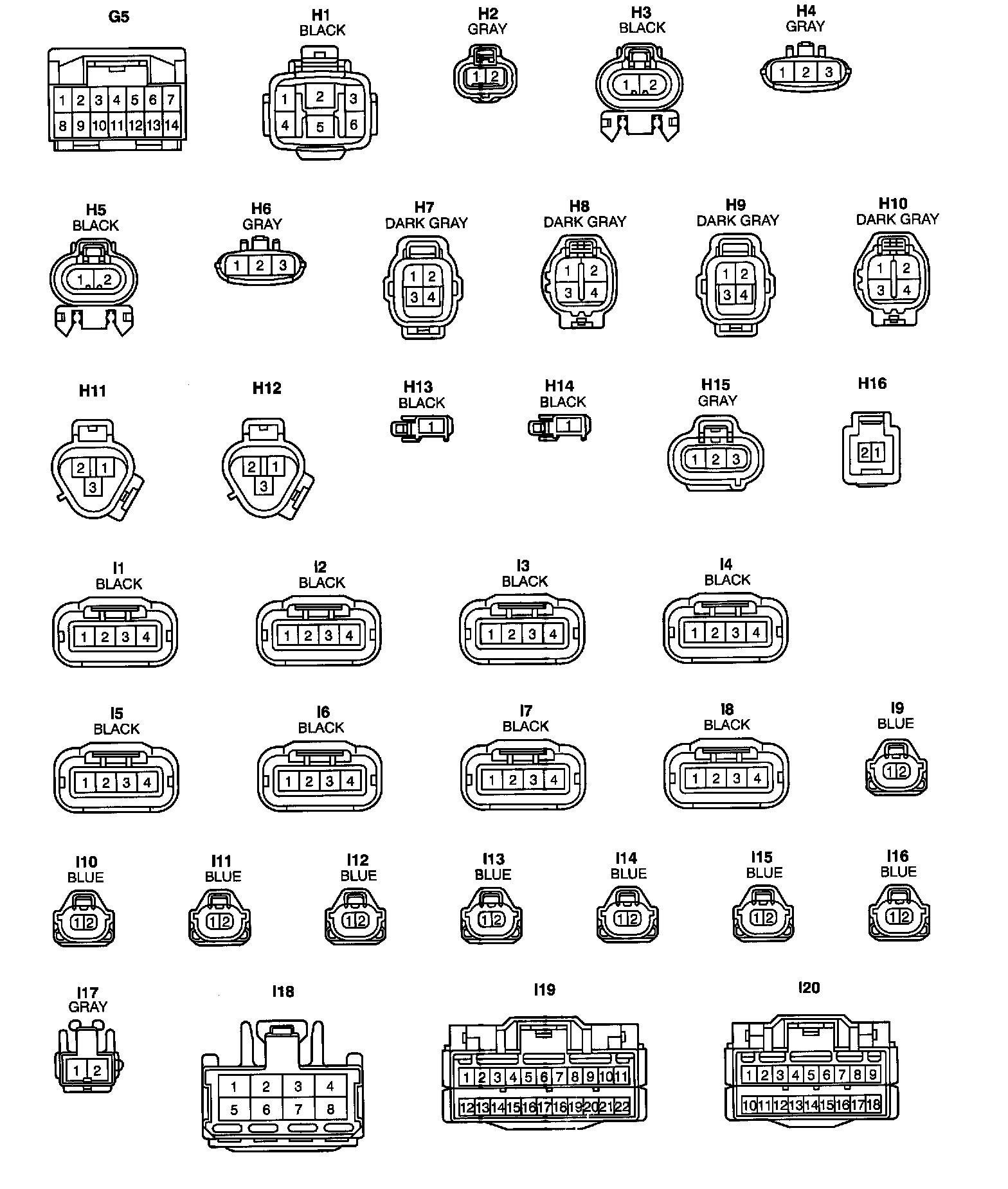

Connector Views (G5 - I20):

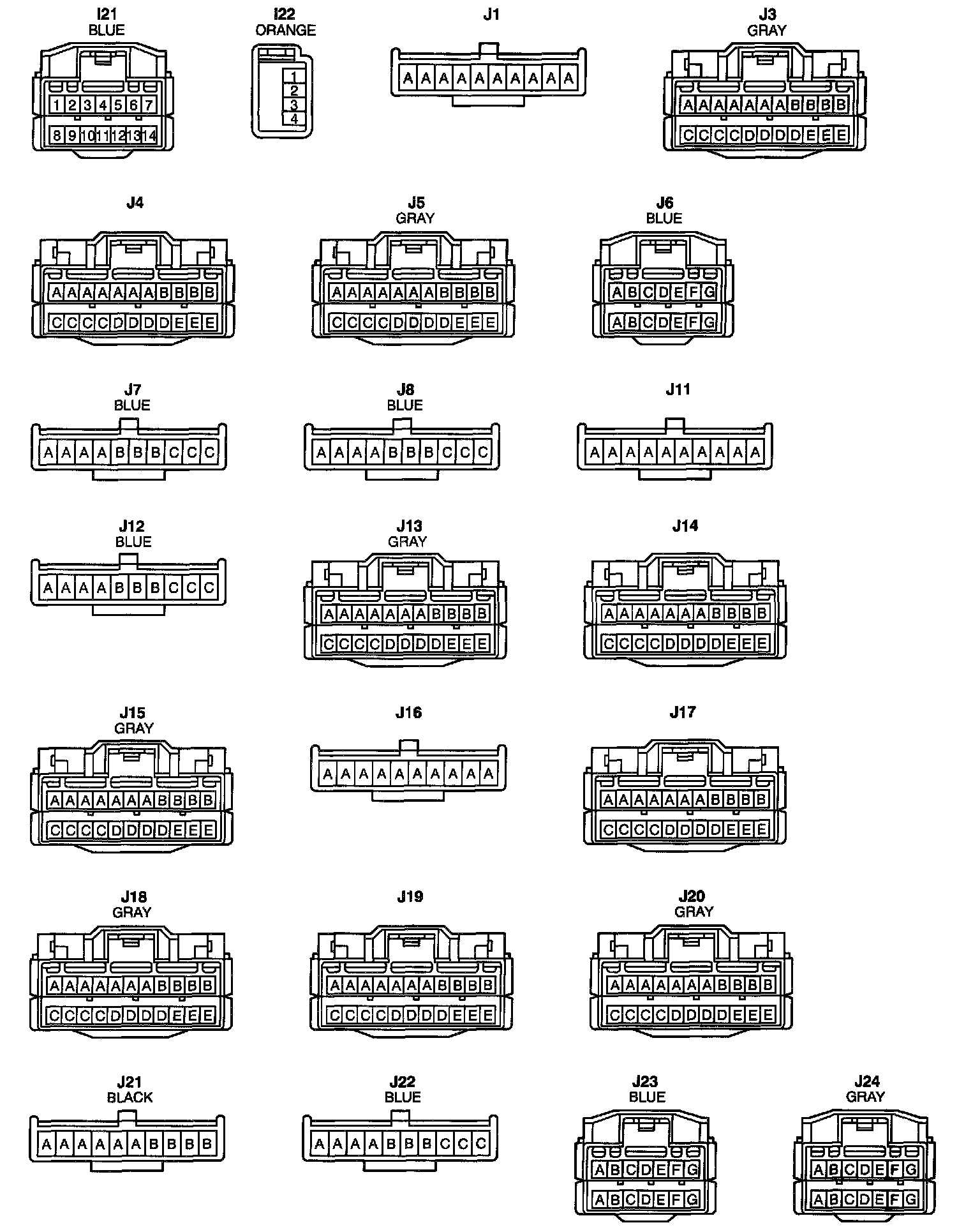

Connector Views (I21 - J24):

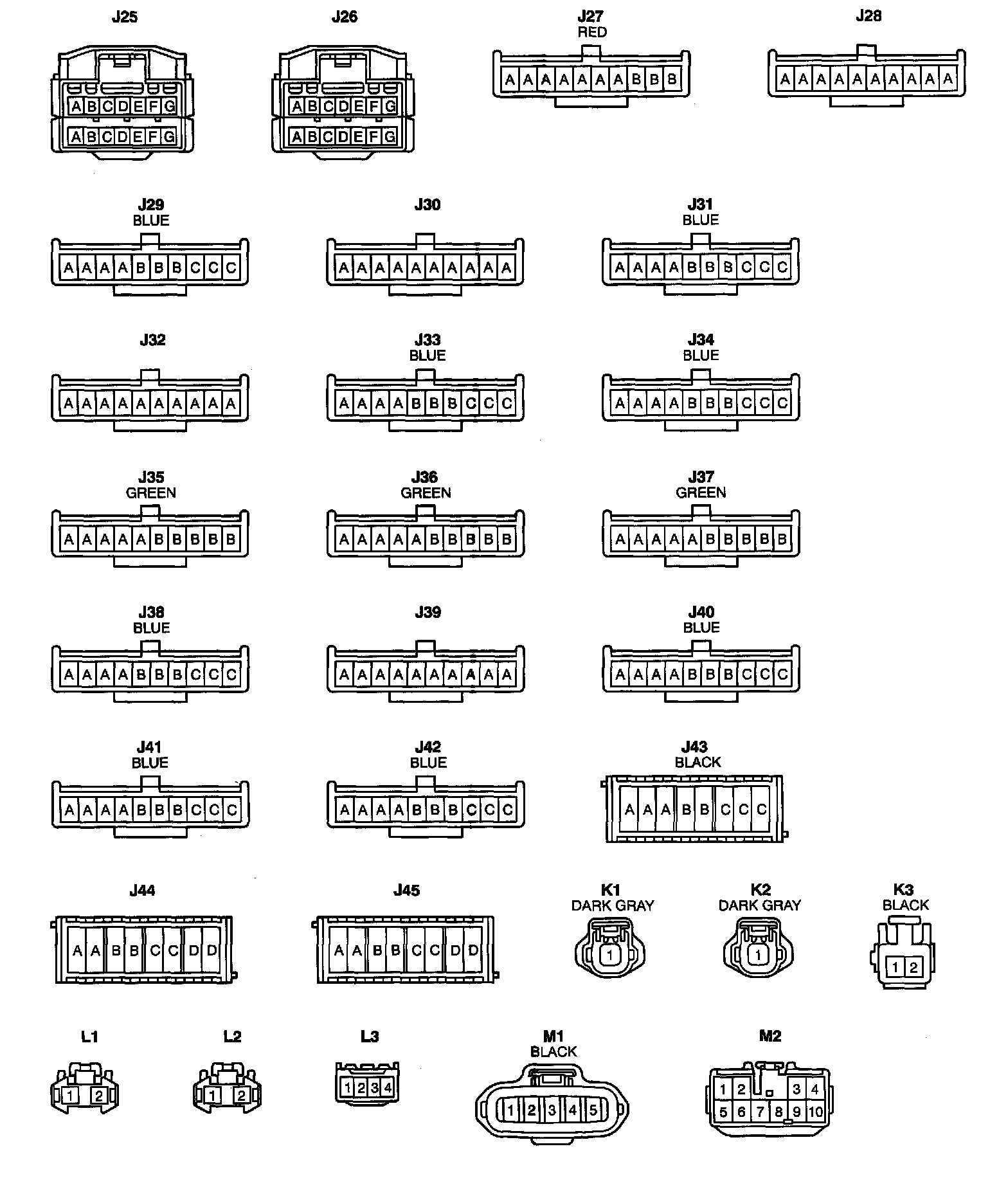

Connector Views (J25 - M2):

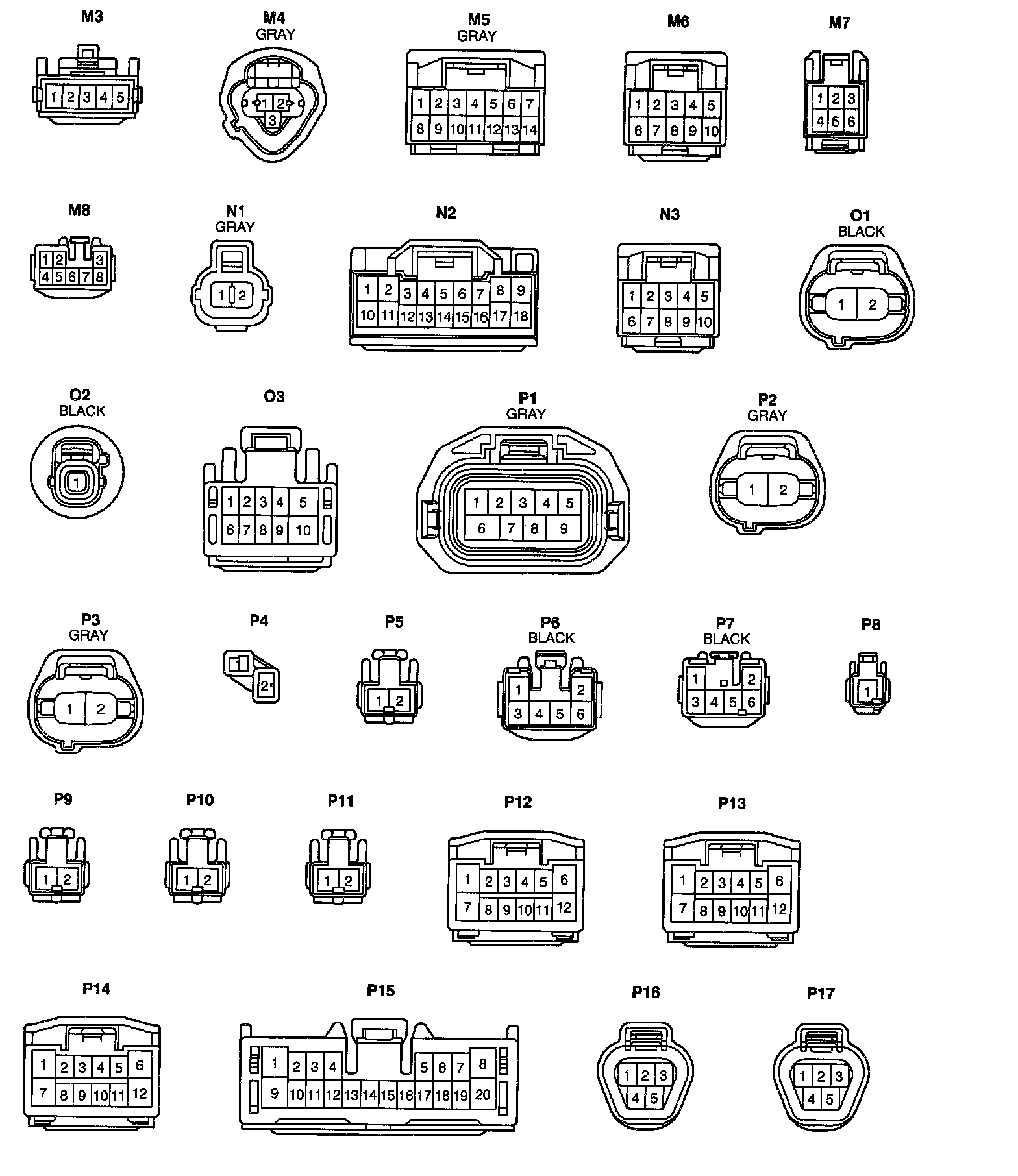

Connector Views (M3 - P17):

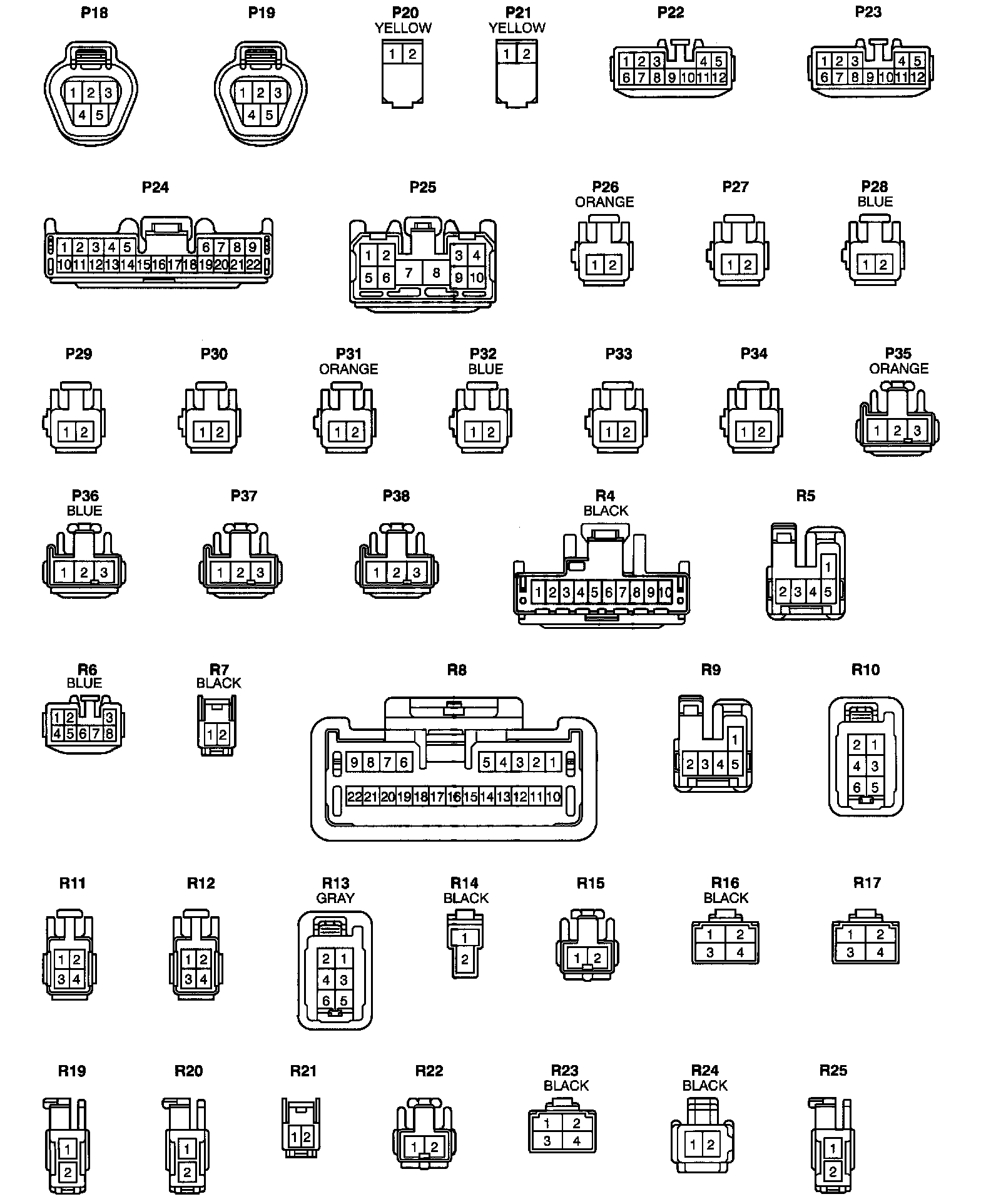

Connector Views (P18 - R25):

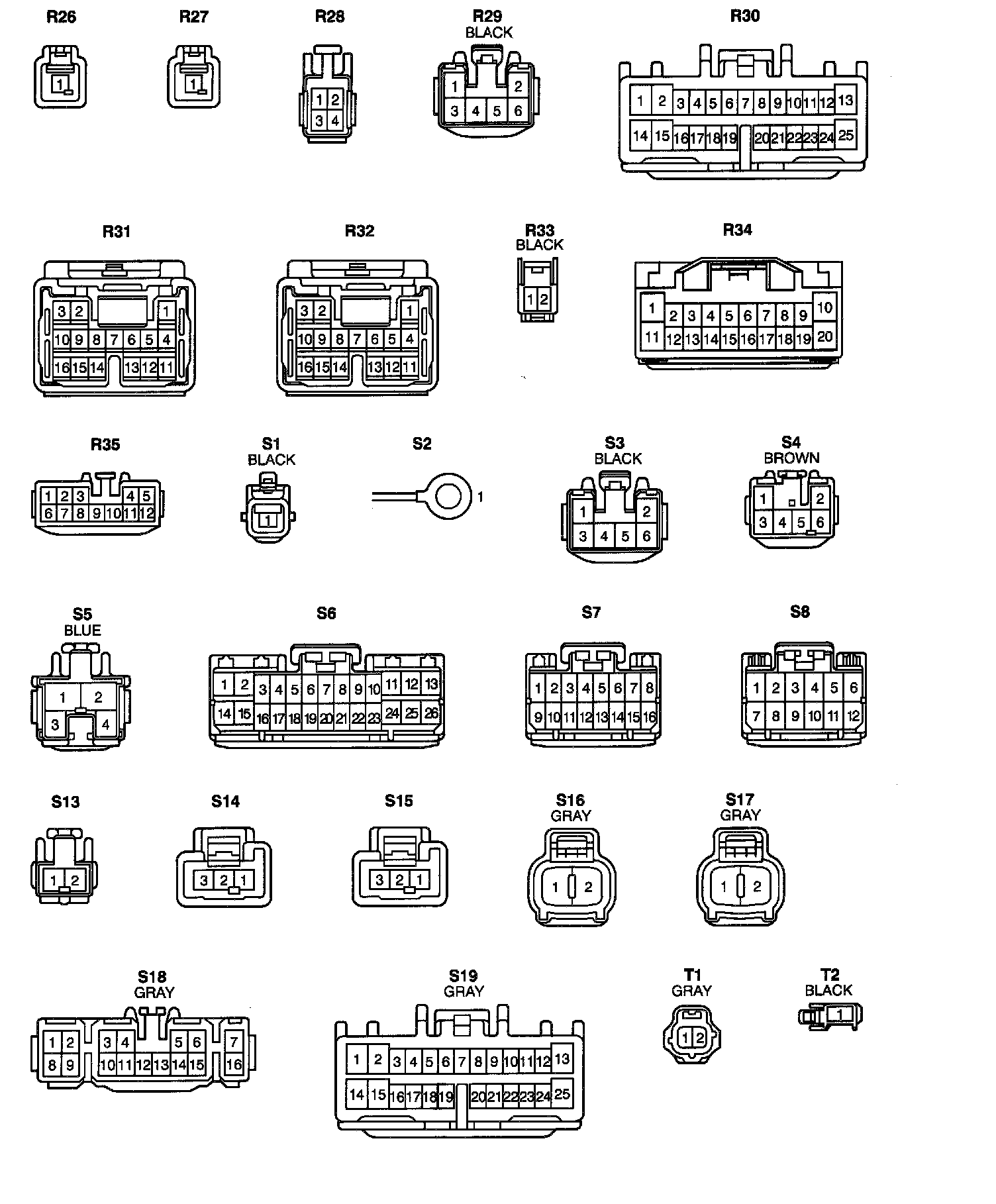

Connector Views (R26 - T2):

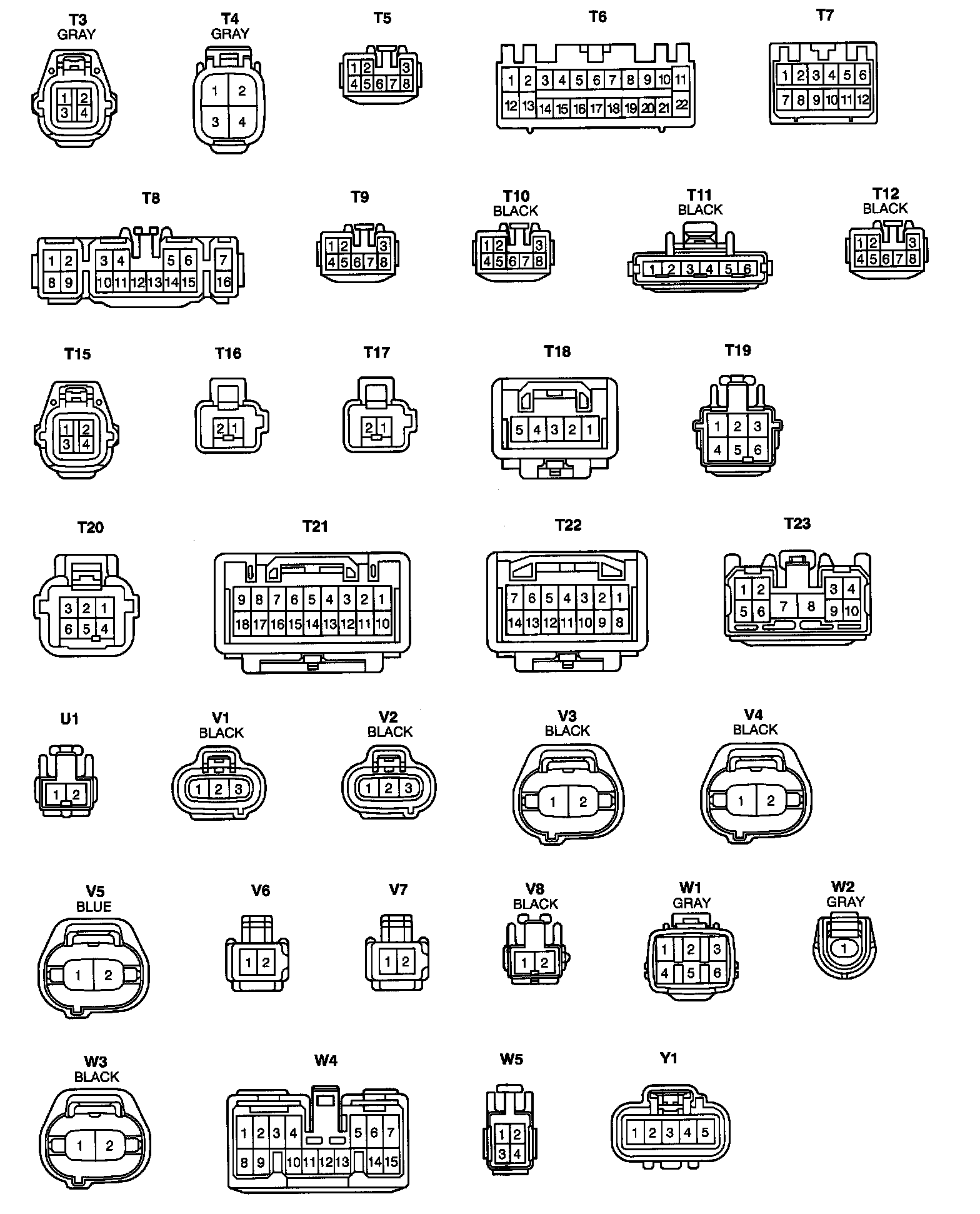

Connector Views (T3 - Y1):
