Rear Suspension (RX300)

  1. Measure distance between wheel disc and corner of toe-adjusting cam. See Fig 1. Ensure difference of left and right side is .12" (3.0 mm) or less. If adjustment is necessary, loosen adjusting cam lock bolt and rotate adjuster cam as necessary.

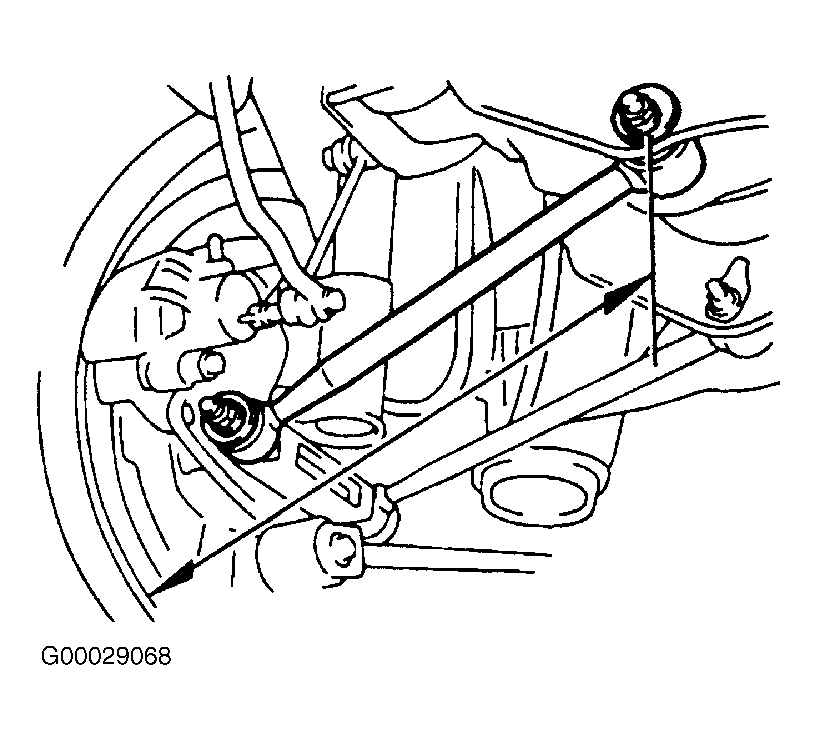

    Fig 1: Measuring Points For Toe-in (RX300)
    G00029068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
