Cooling System (Mechanical): Radiator: Components

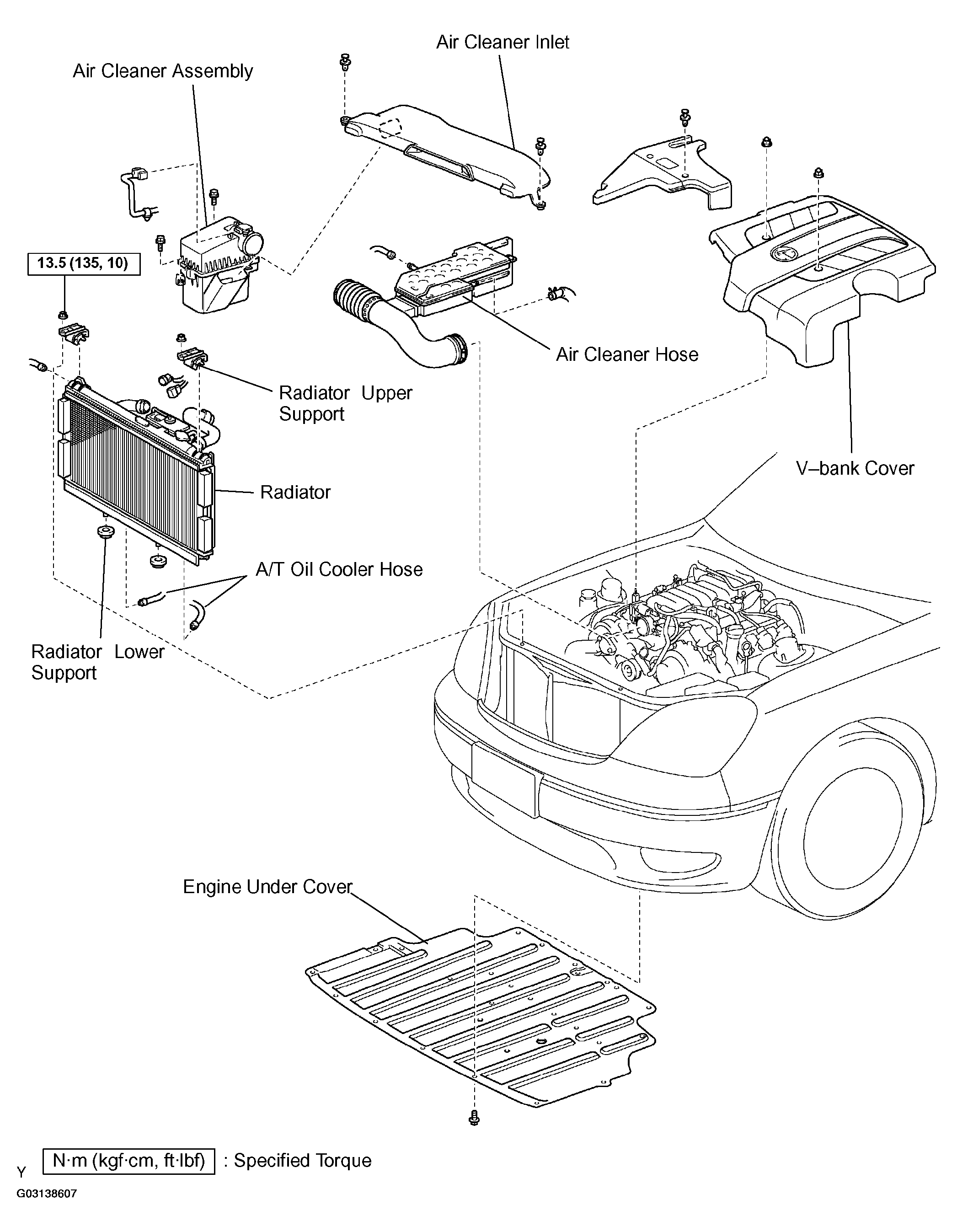

Fig 1: Identifying Cooling System Components
G03138607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

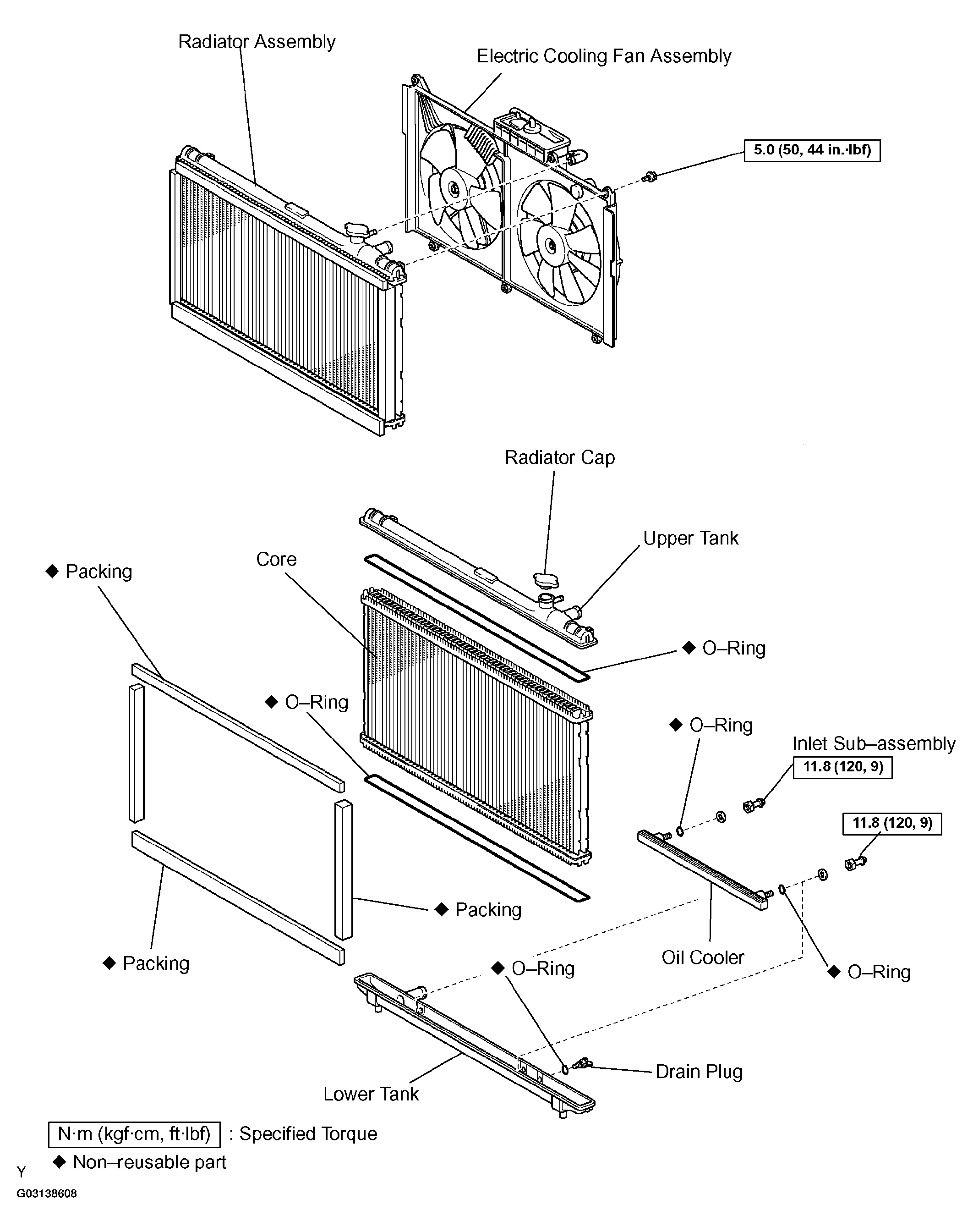

Fig 2: Identifying Radiator Assembly And Components
G03138608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
