Terminals Of Ecu

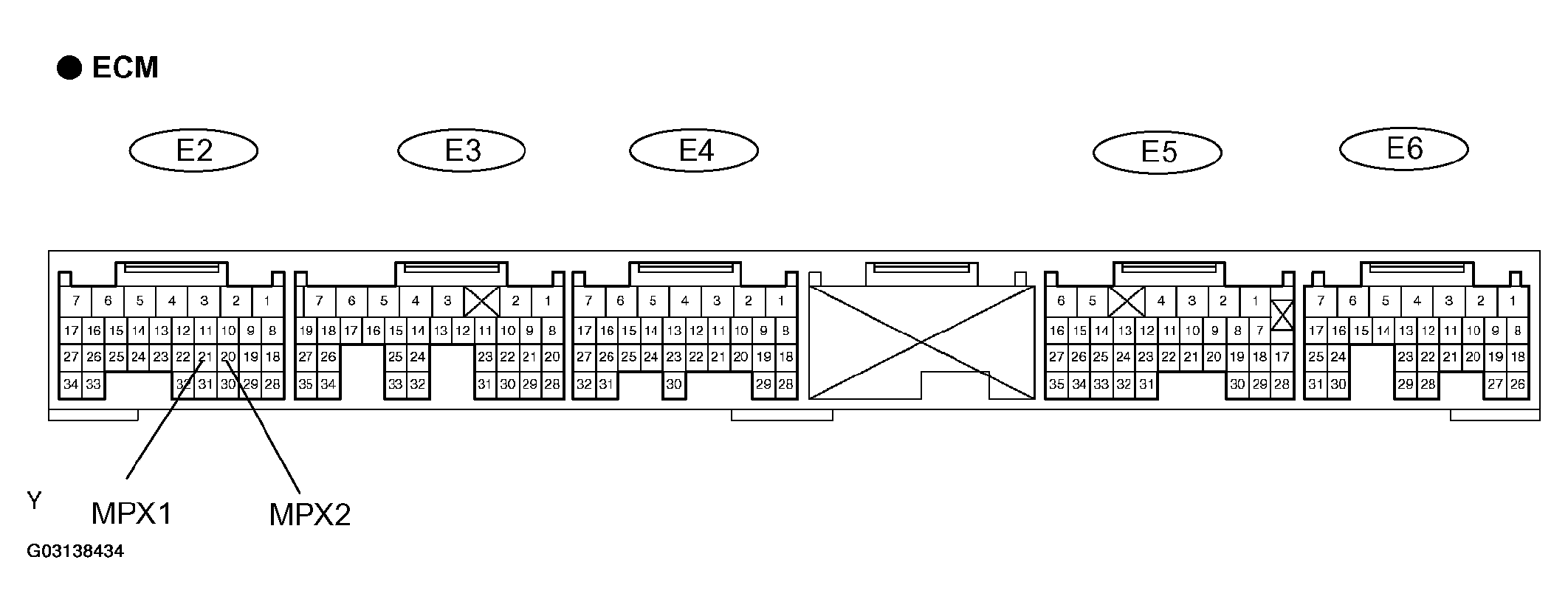

Fig 1: Identifying ECM Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Transponder Key ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

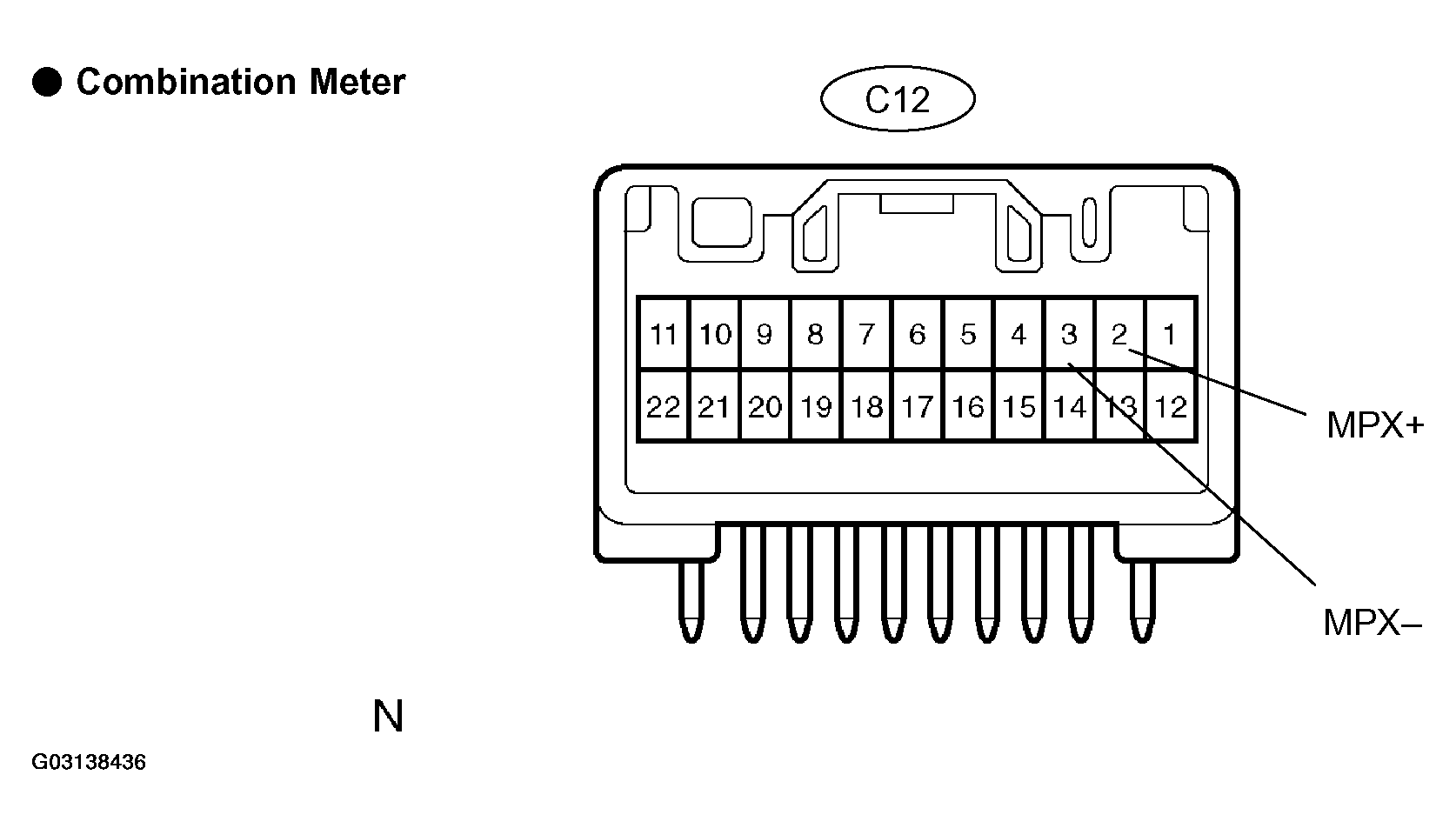

Fig 3: Identifying Combination Meter Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Moon Roof Control ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

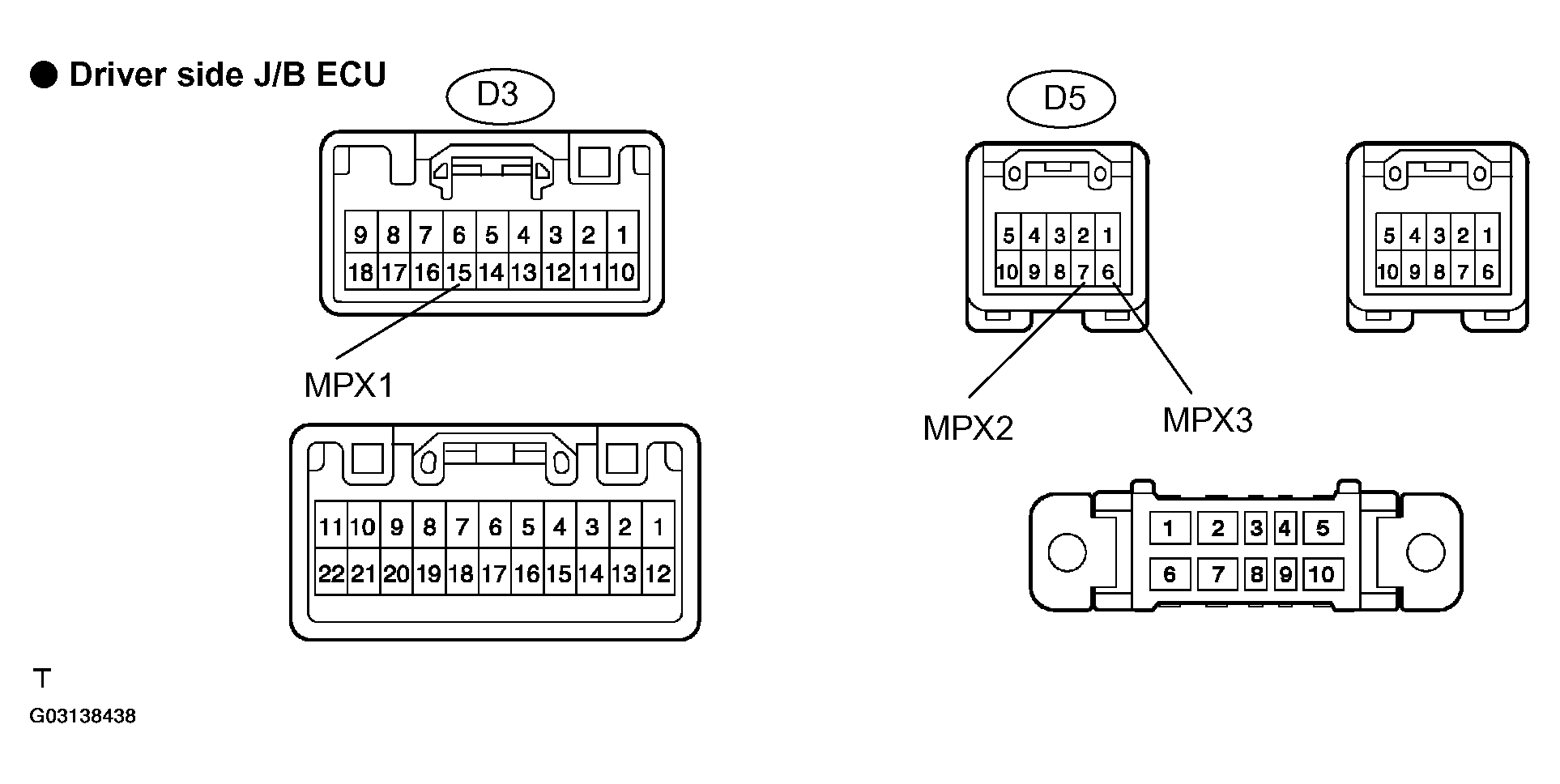

Fig 5: Identifying Driver Side J/B ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

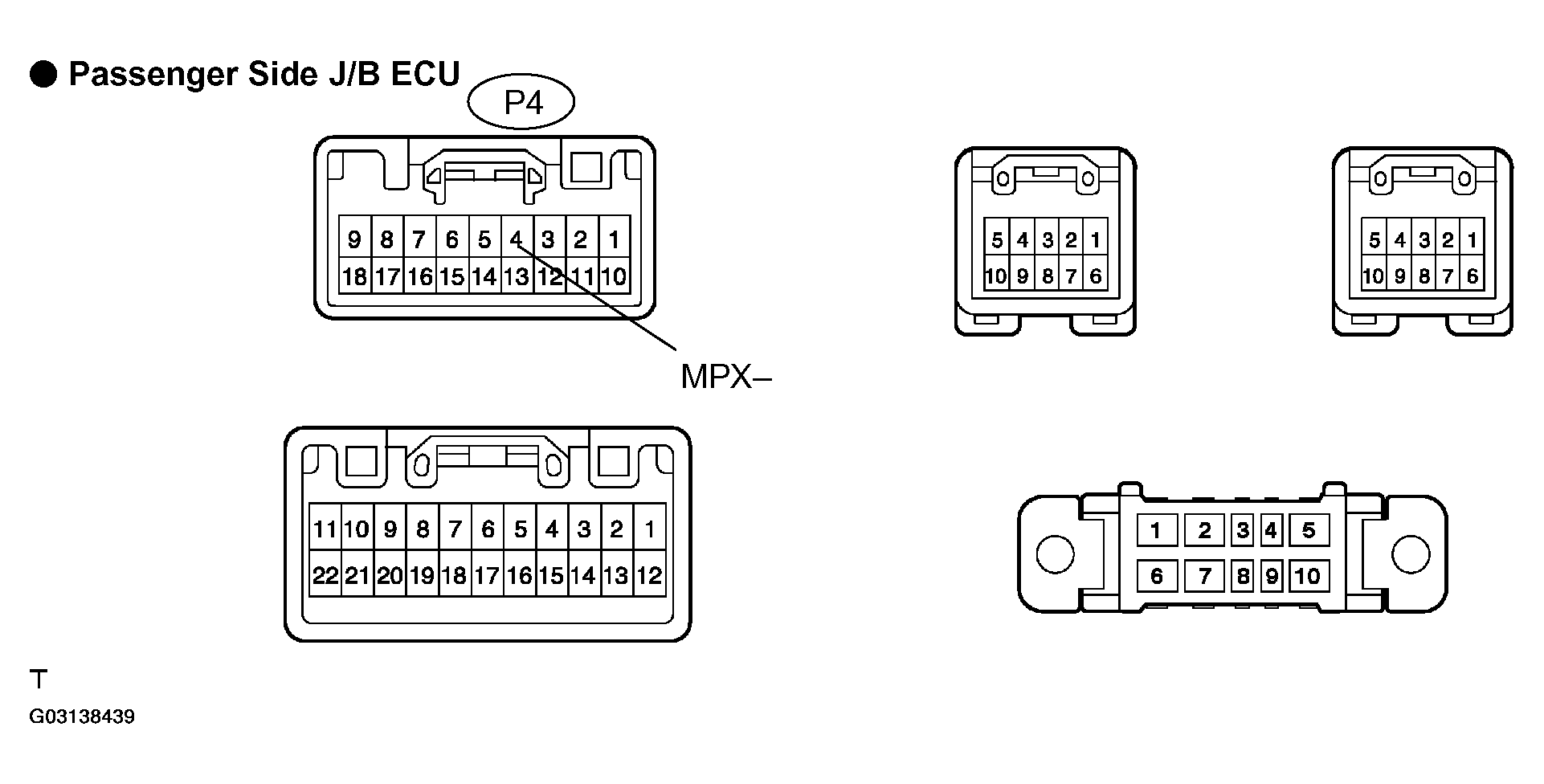

Fig 6: Identifying Passenger Side J/B ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

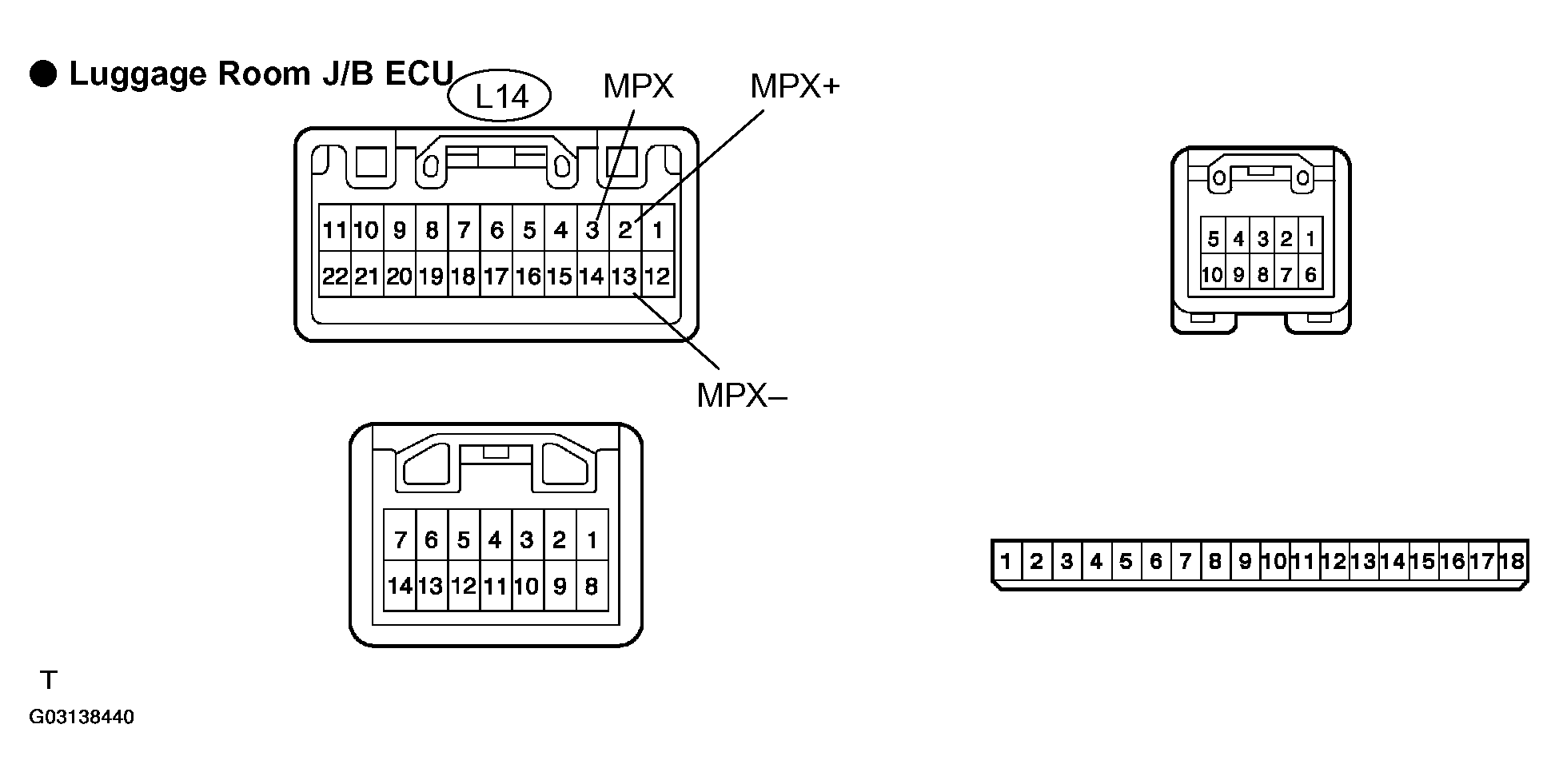

Fig 7: Identifying Luggage Roof J/B ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

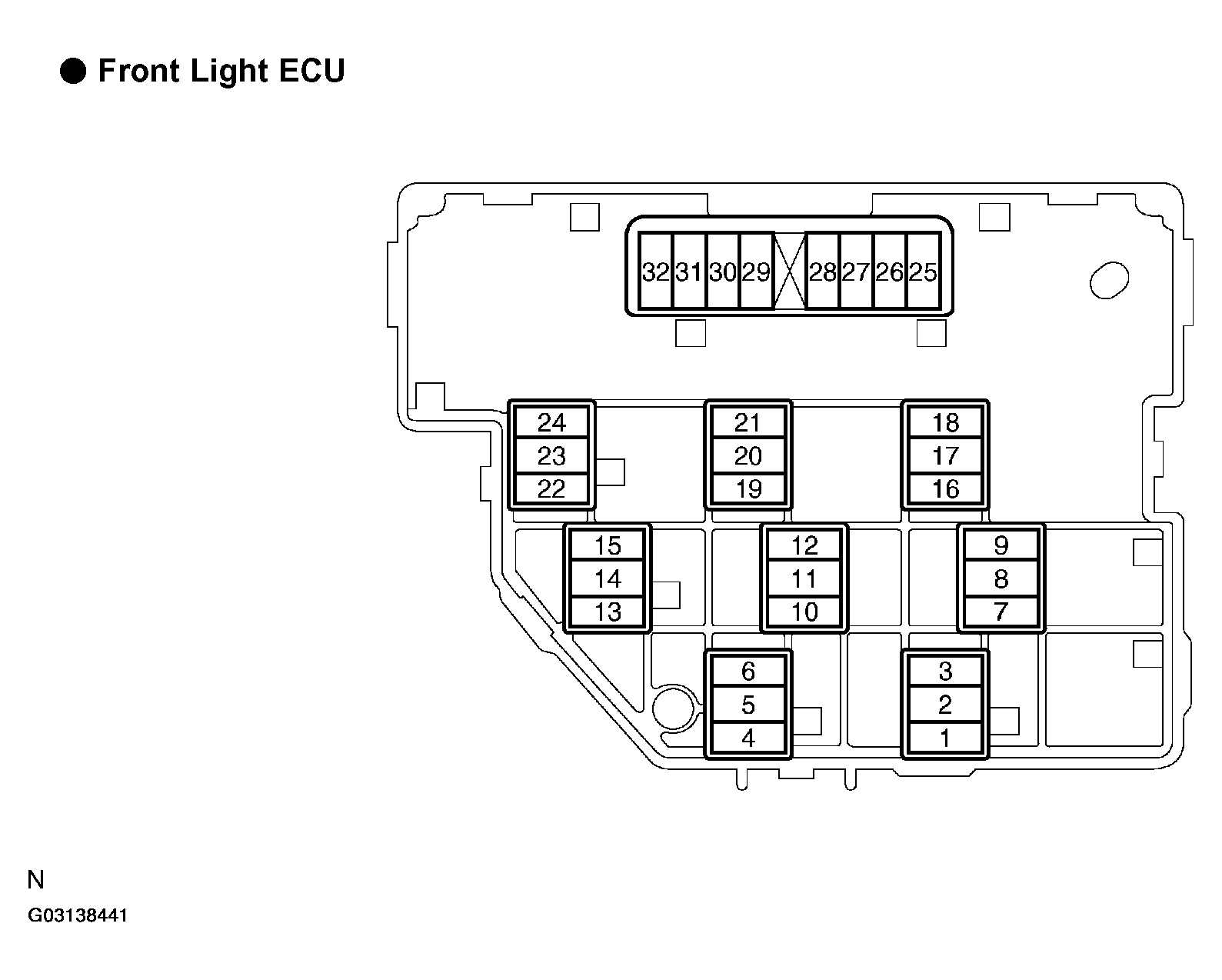

Fig 8: Identifying Front Light ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

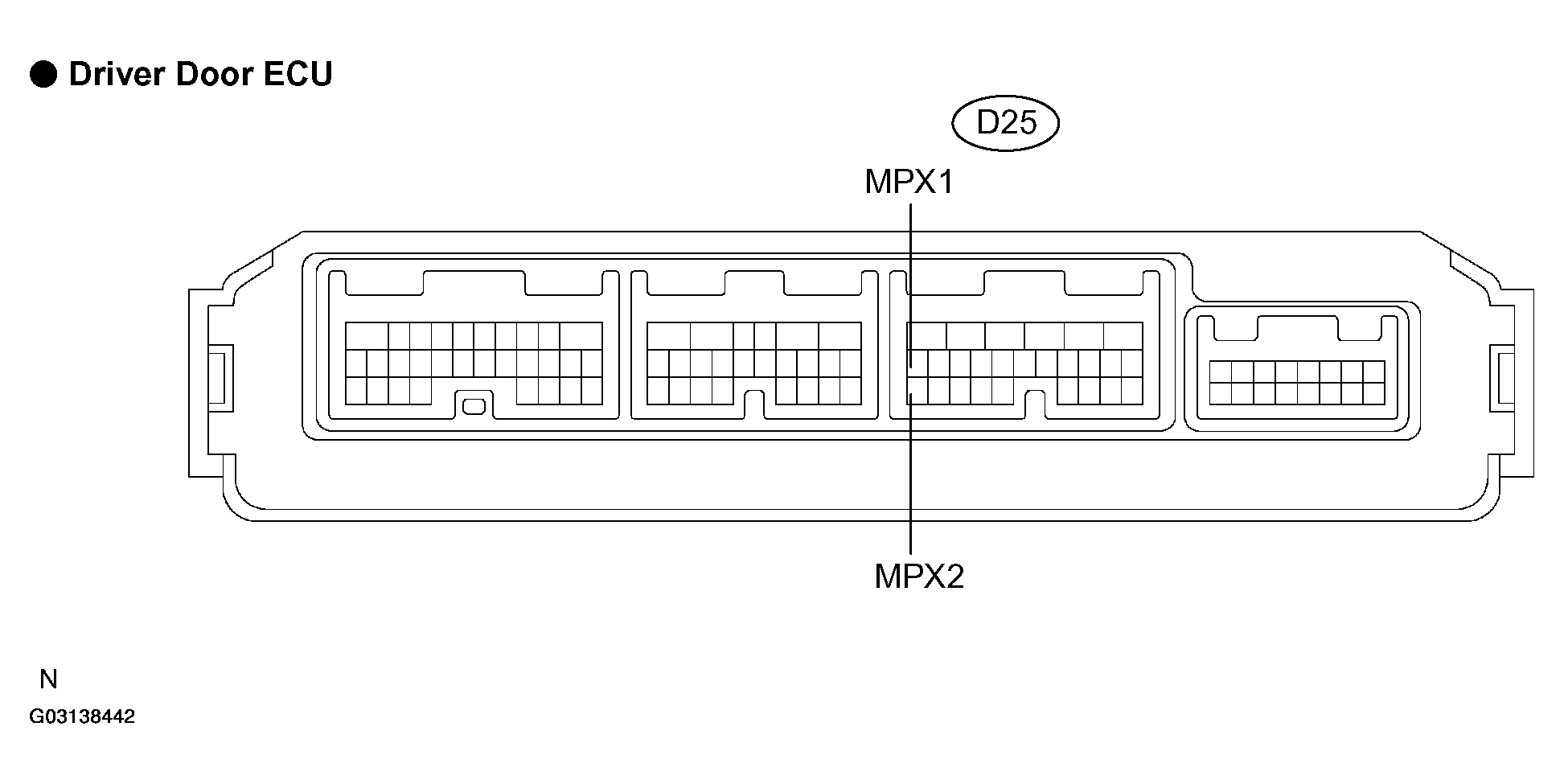

Fig 9: Identifying Driver Door ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

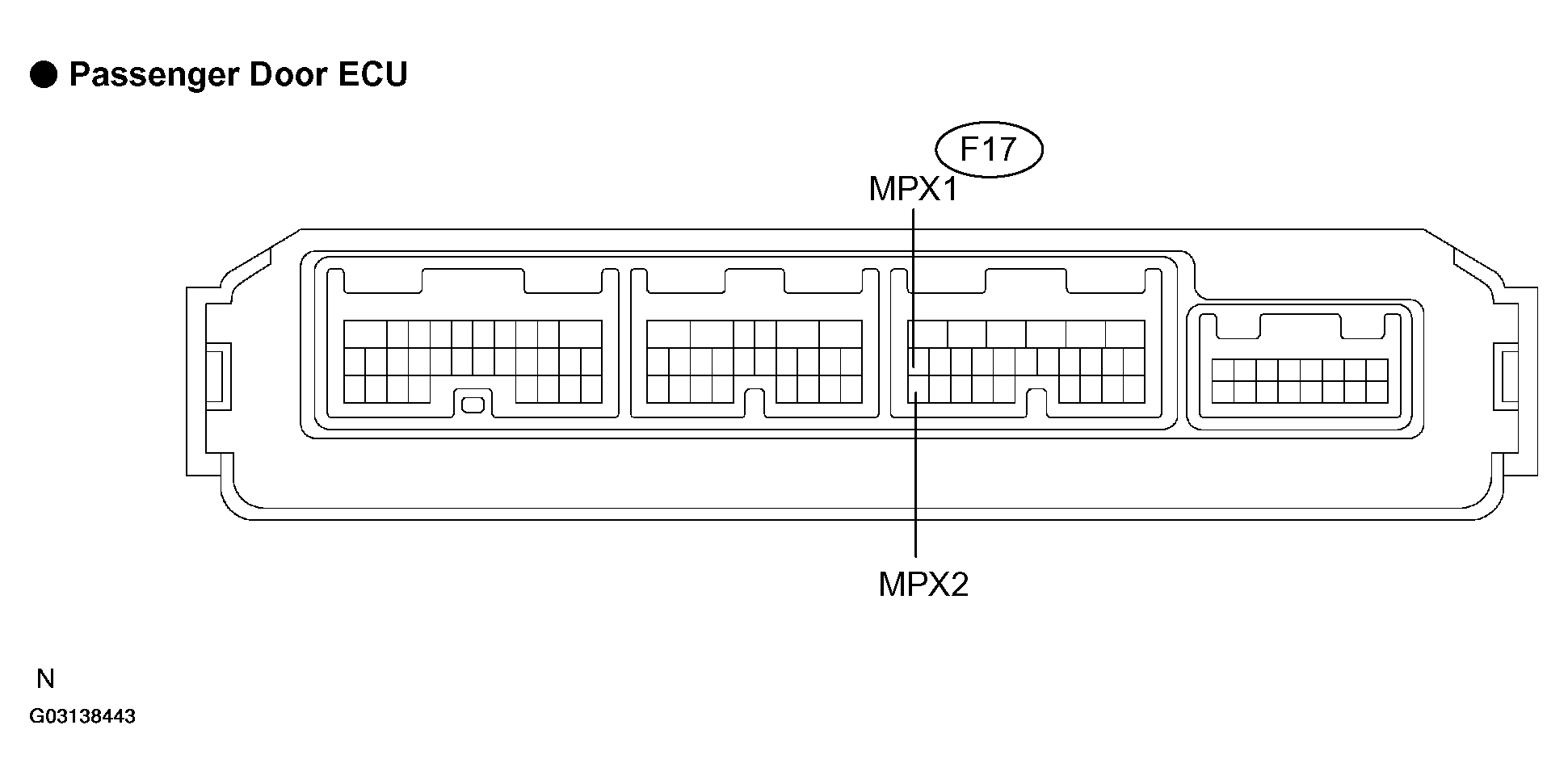

Fig 10: Identifying Passenger Door ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

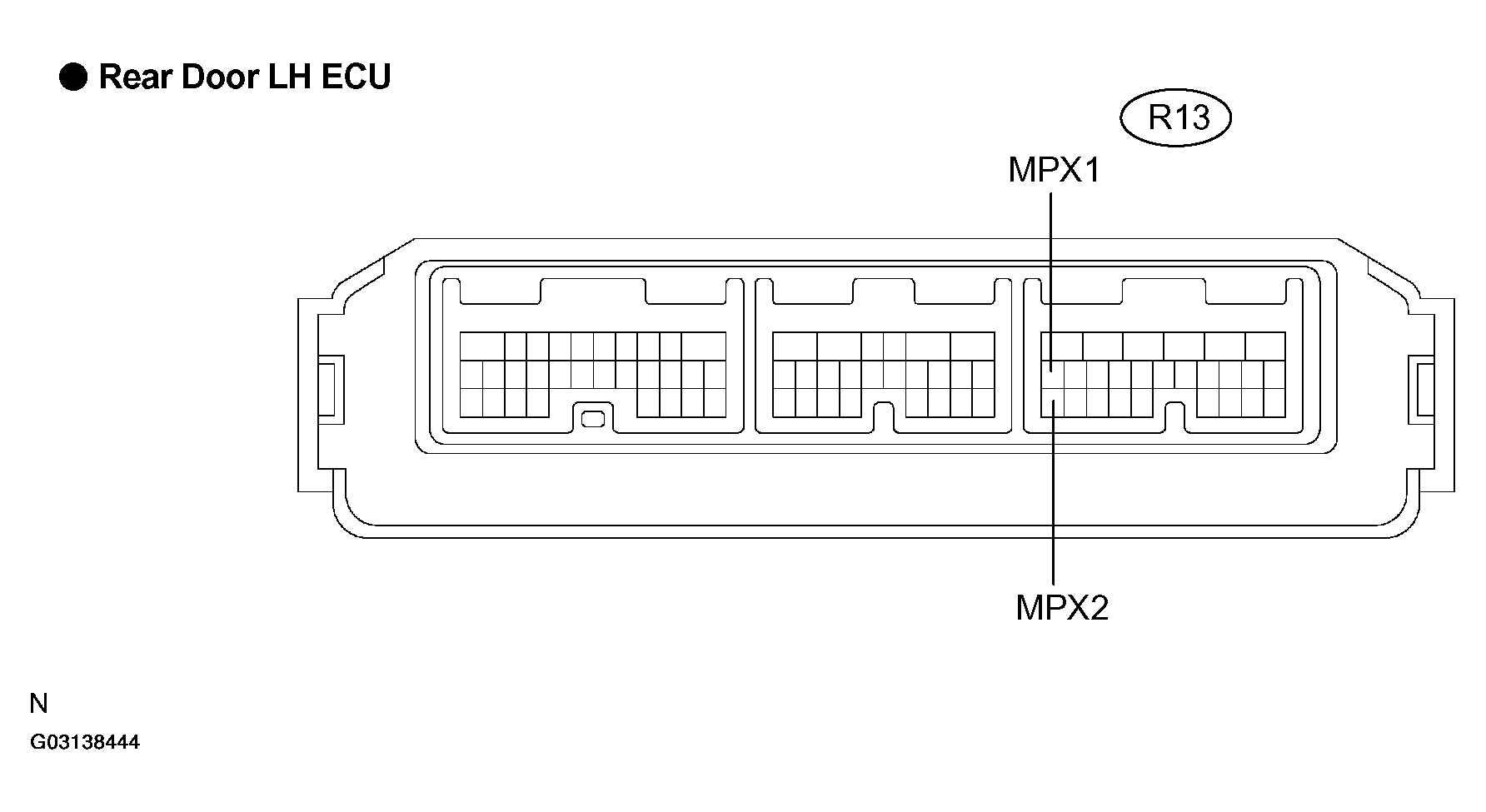

Fig 11: Identifying Rear Door LH ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

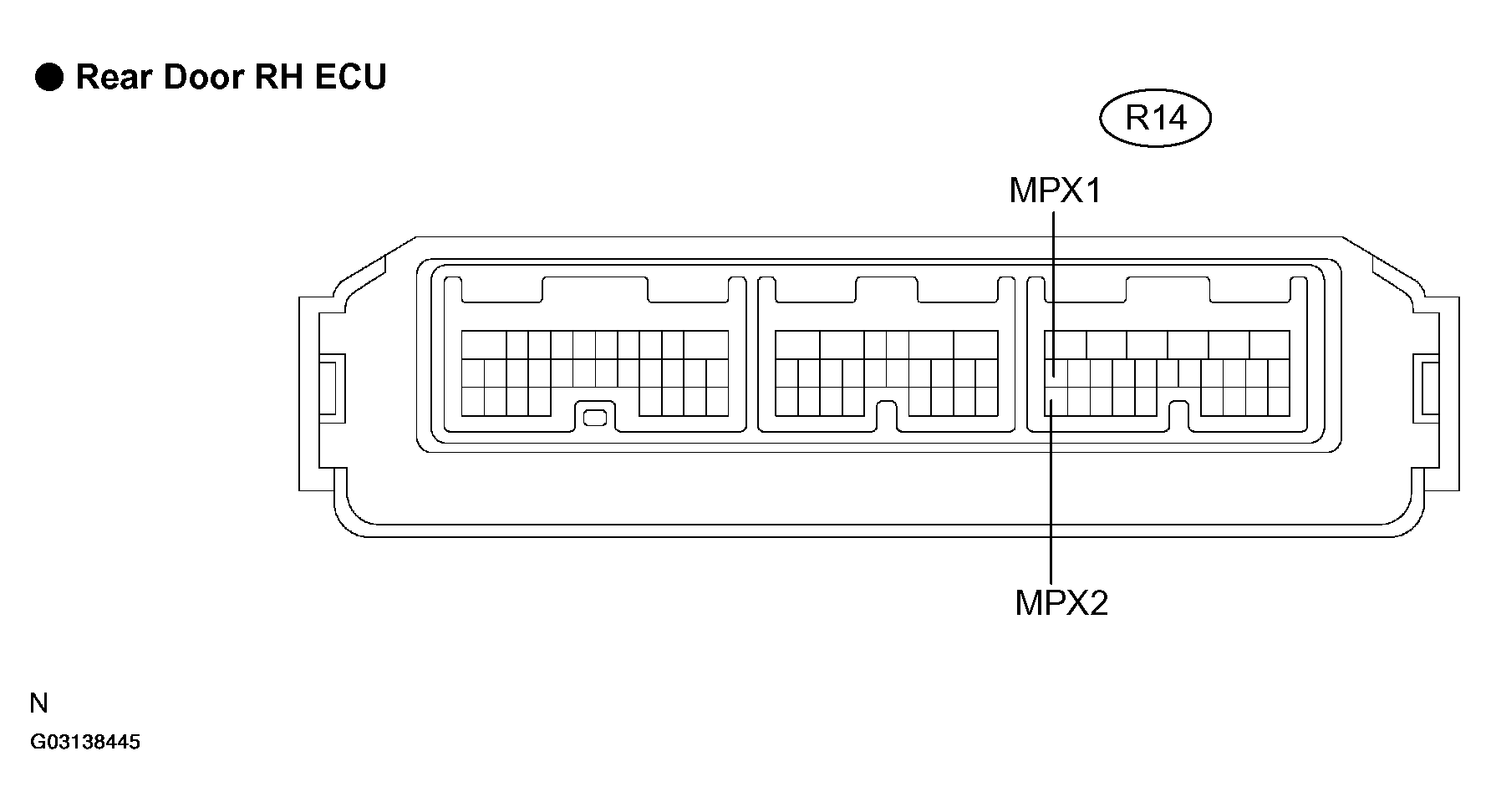

Fig 12: Identifying Rear Door RH ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

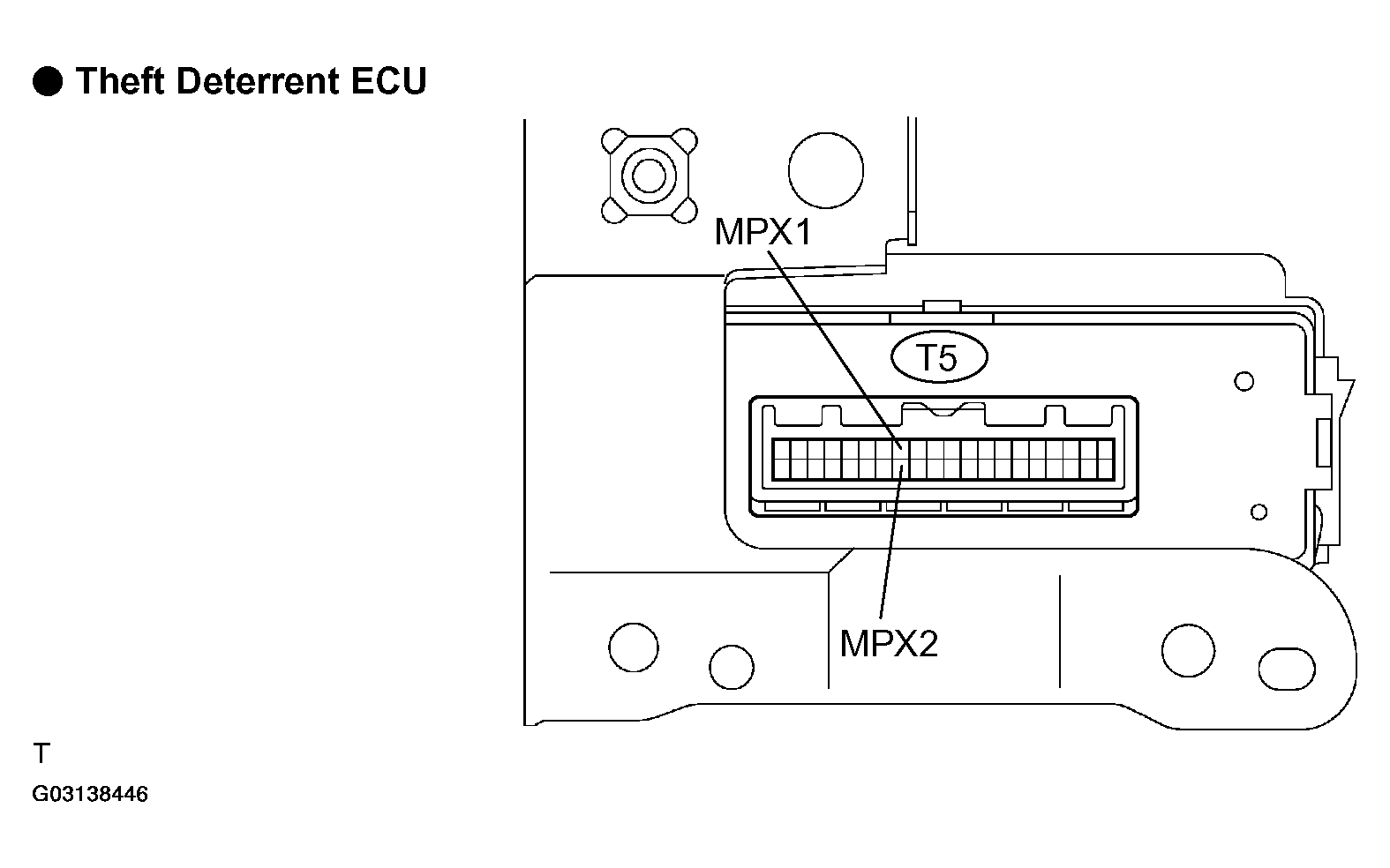

Fig 13: Identifying Theft Deterrent ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

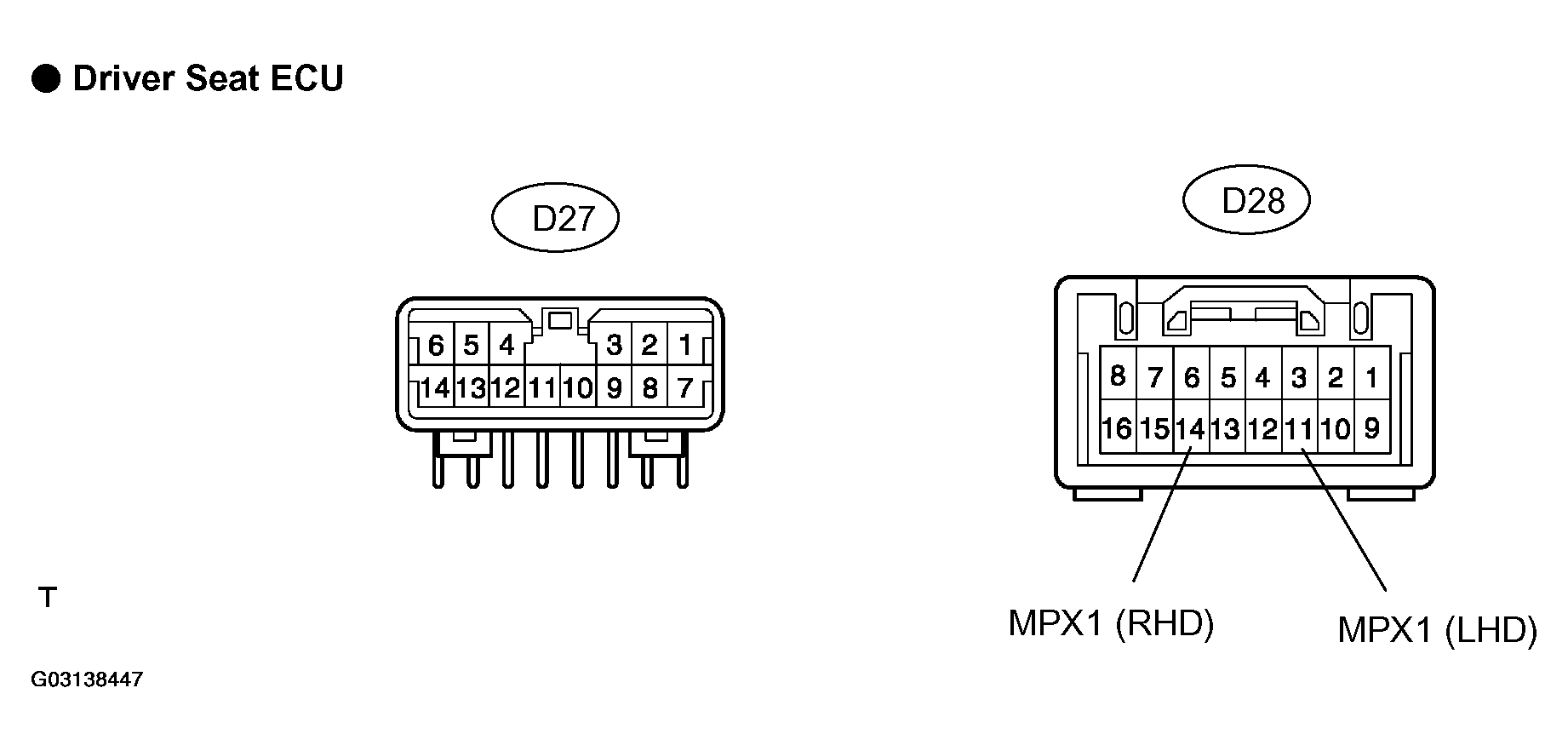

Fig 14: Identifying Driver Seat ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

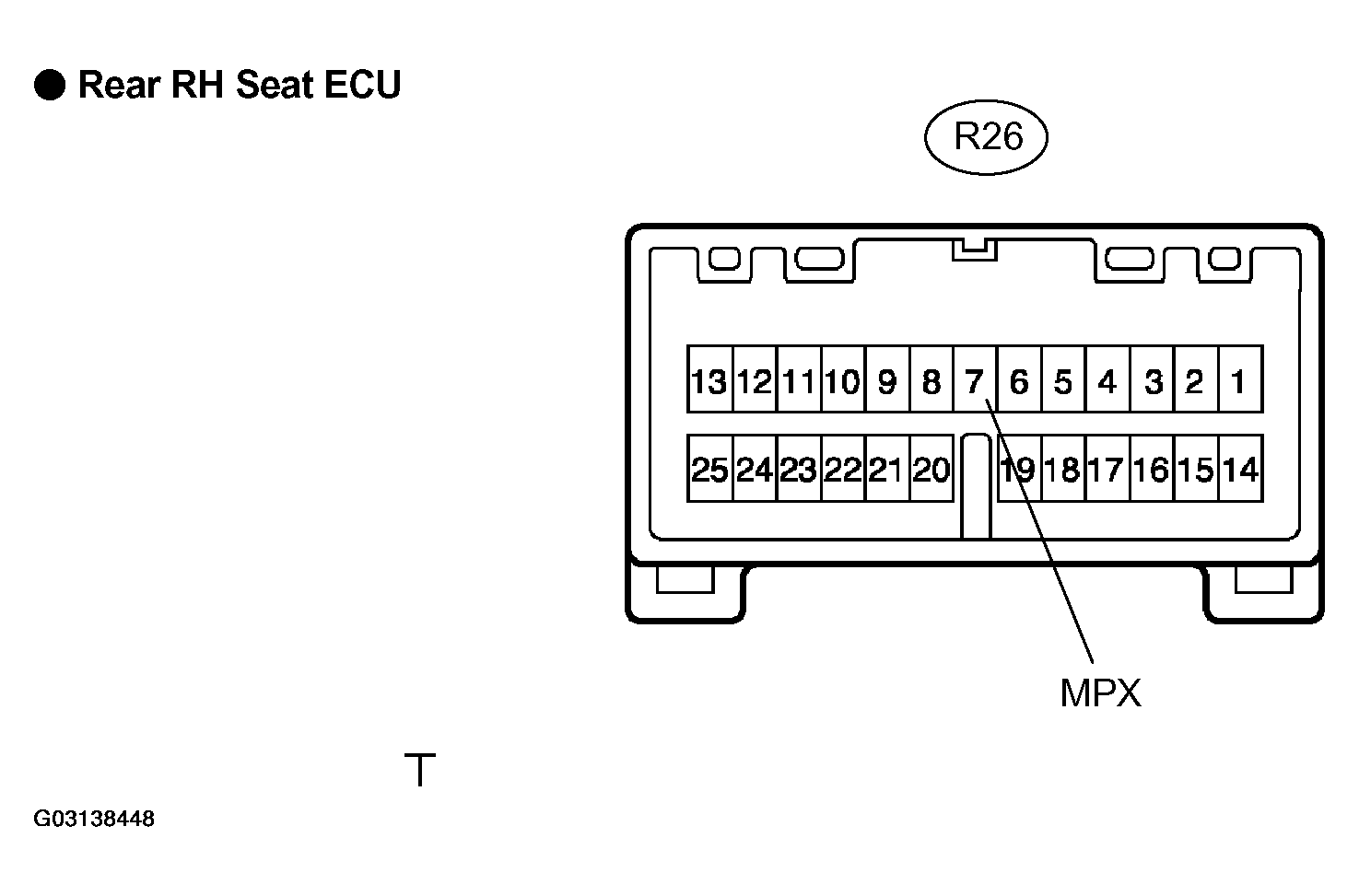

Fig 15: Identifying Rear RH Seat ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

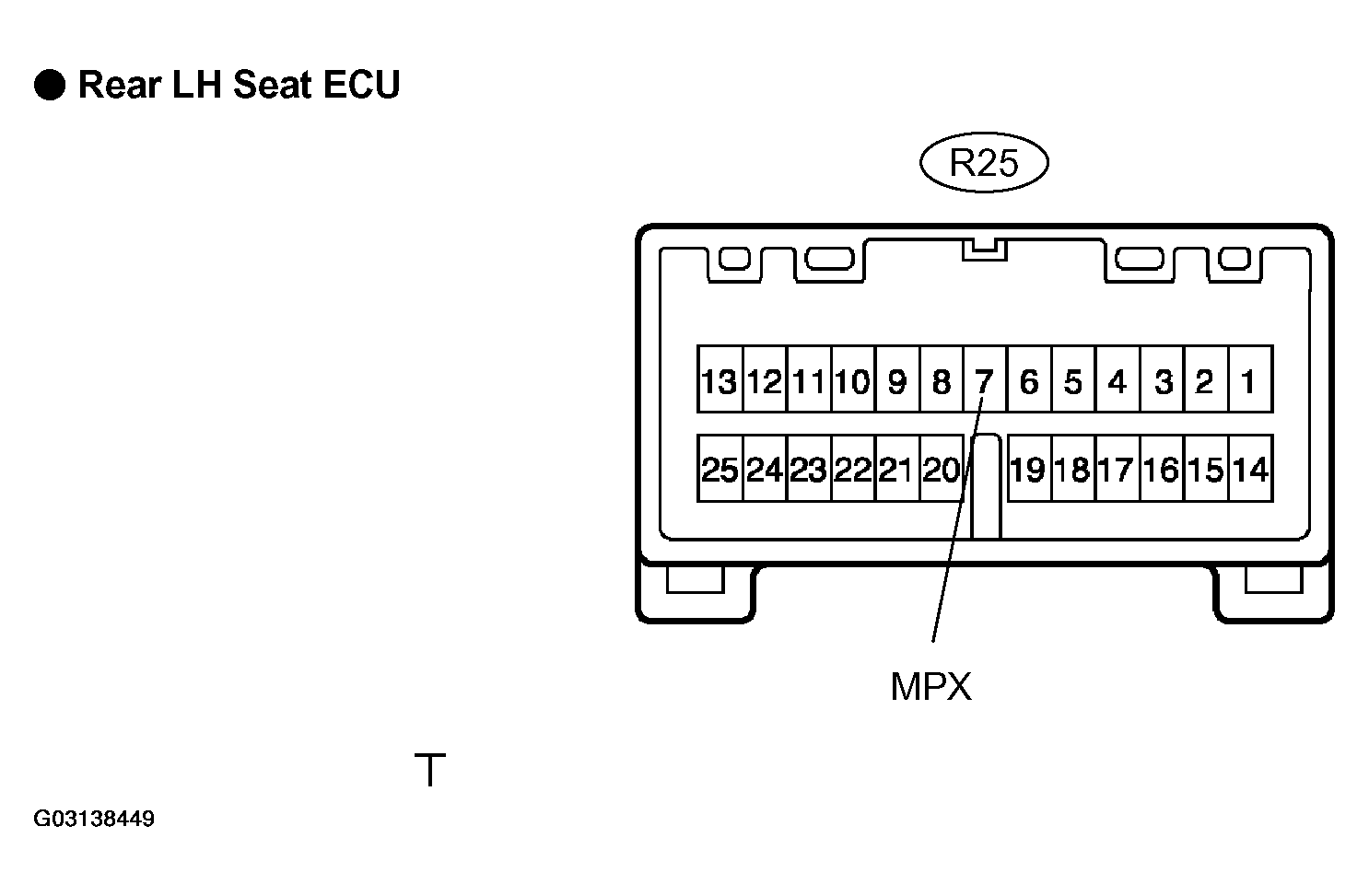

Fig 16: Identifying Rear LH Seat ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

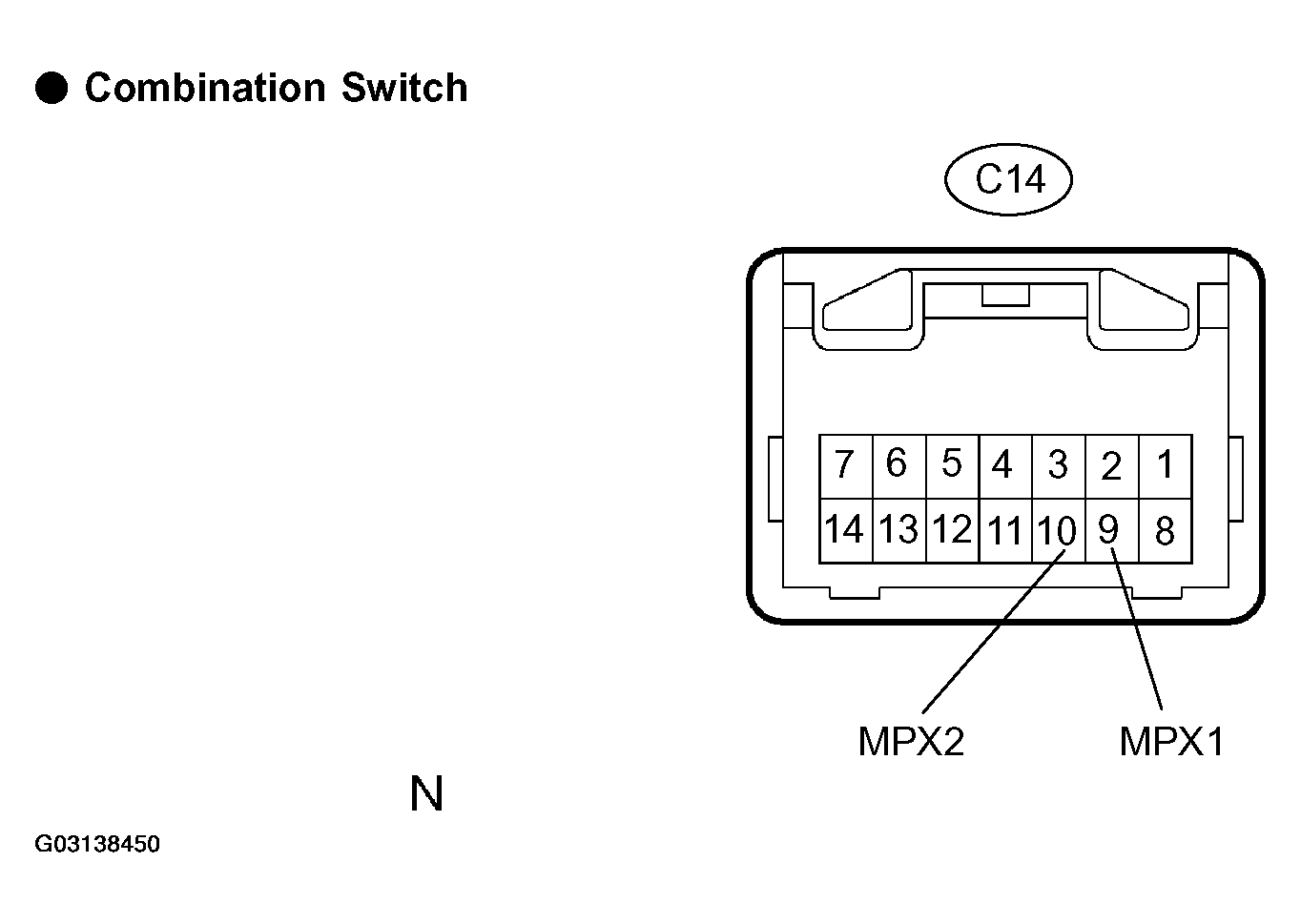

Fig 17: Identifying Combination Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

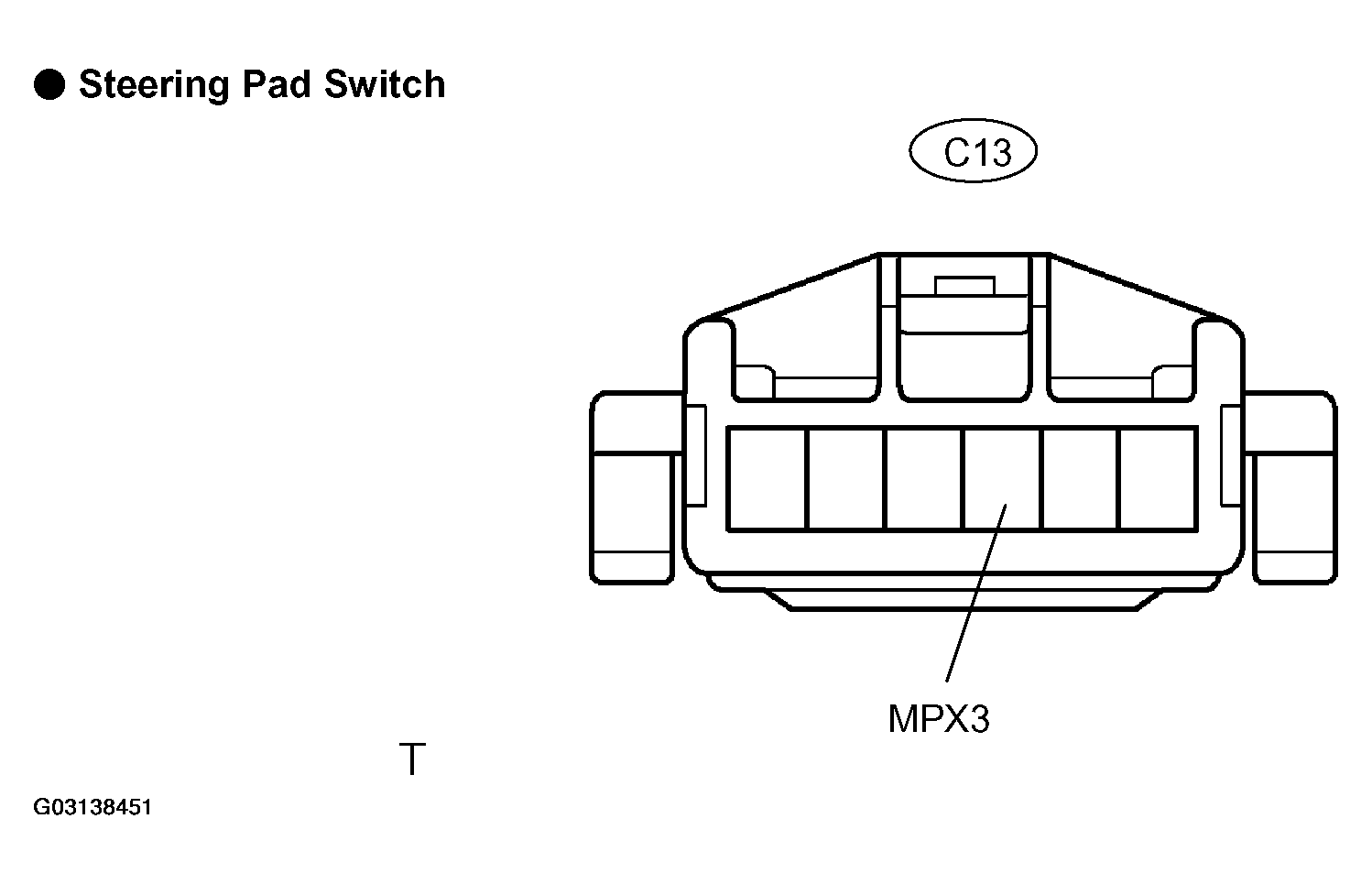

Fig 18: Identifying Steering Pad Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

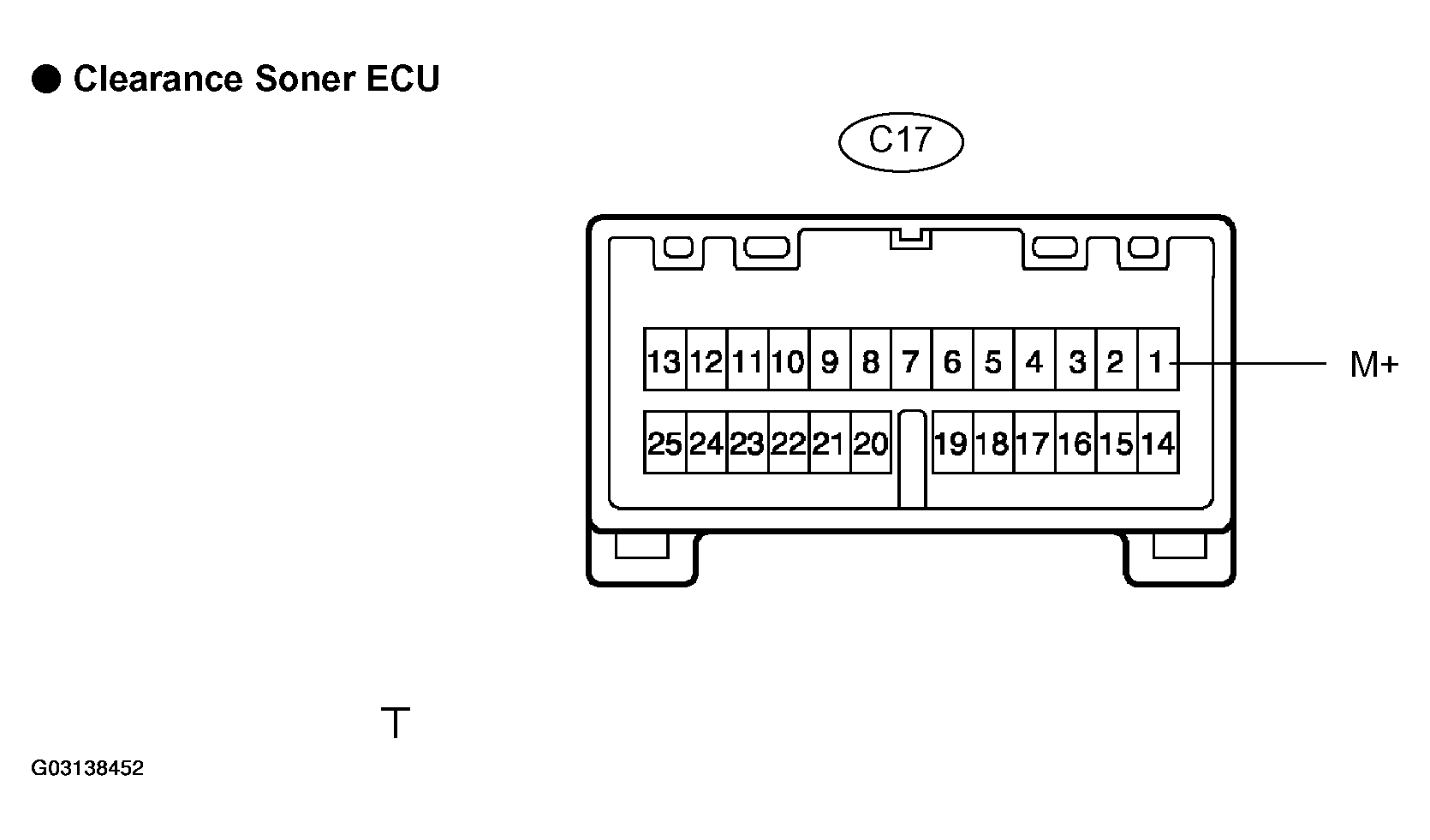

Fig 19: Identifying Clearance Sensor ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Identifying Rain Sensor Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

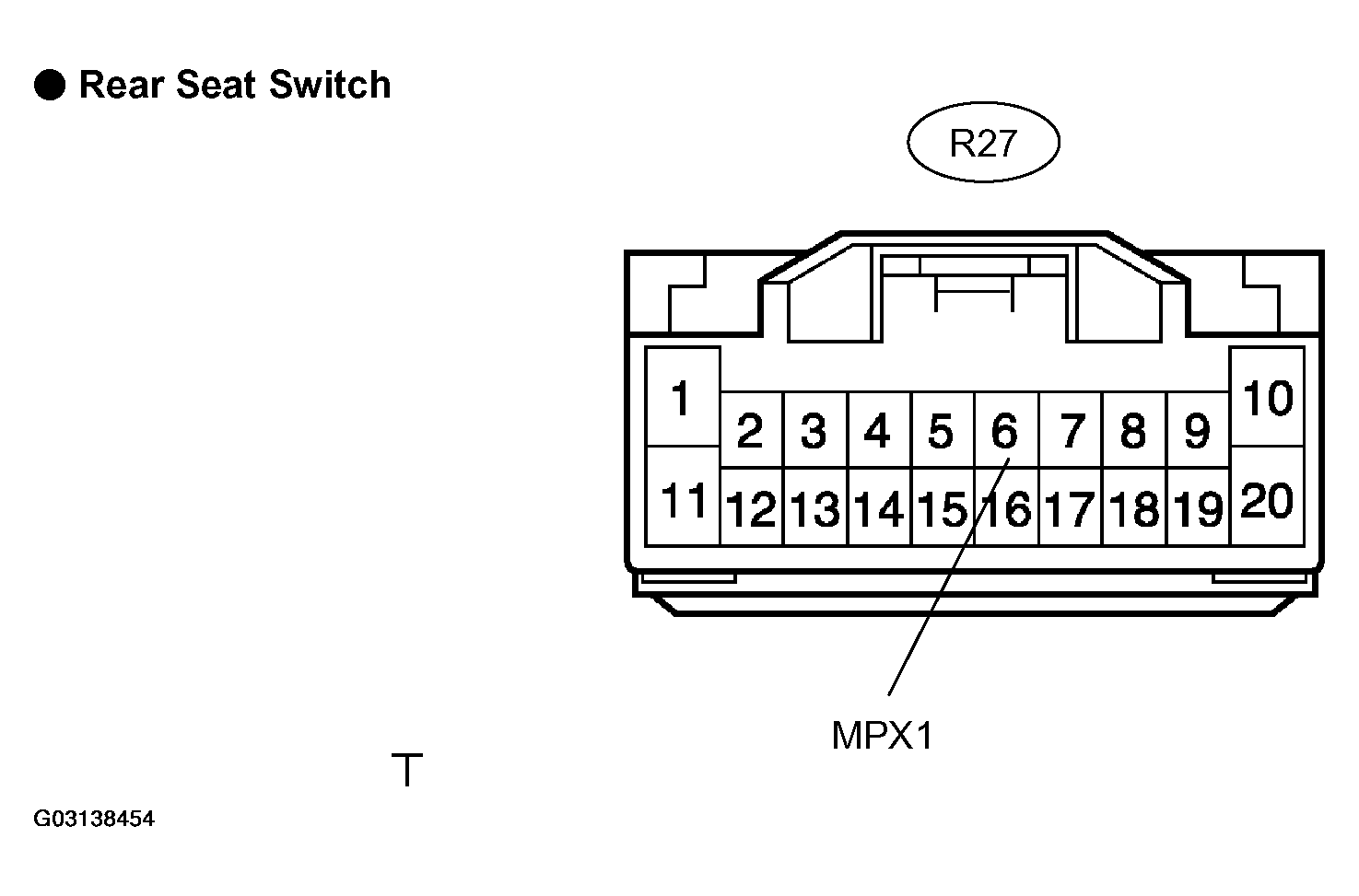

Fig 21: Identifying Rear Seat Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

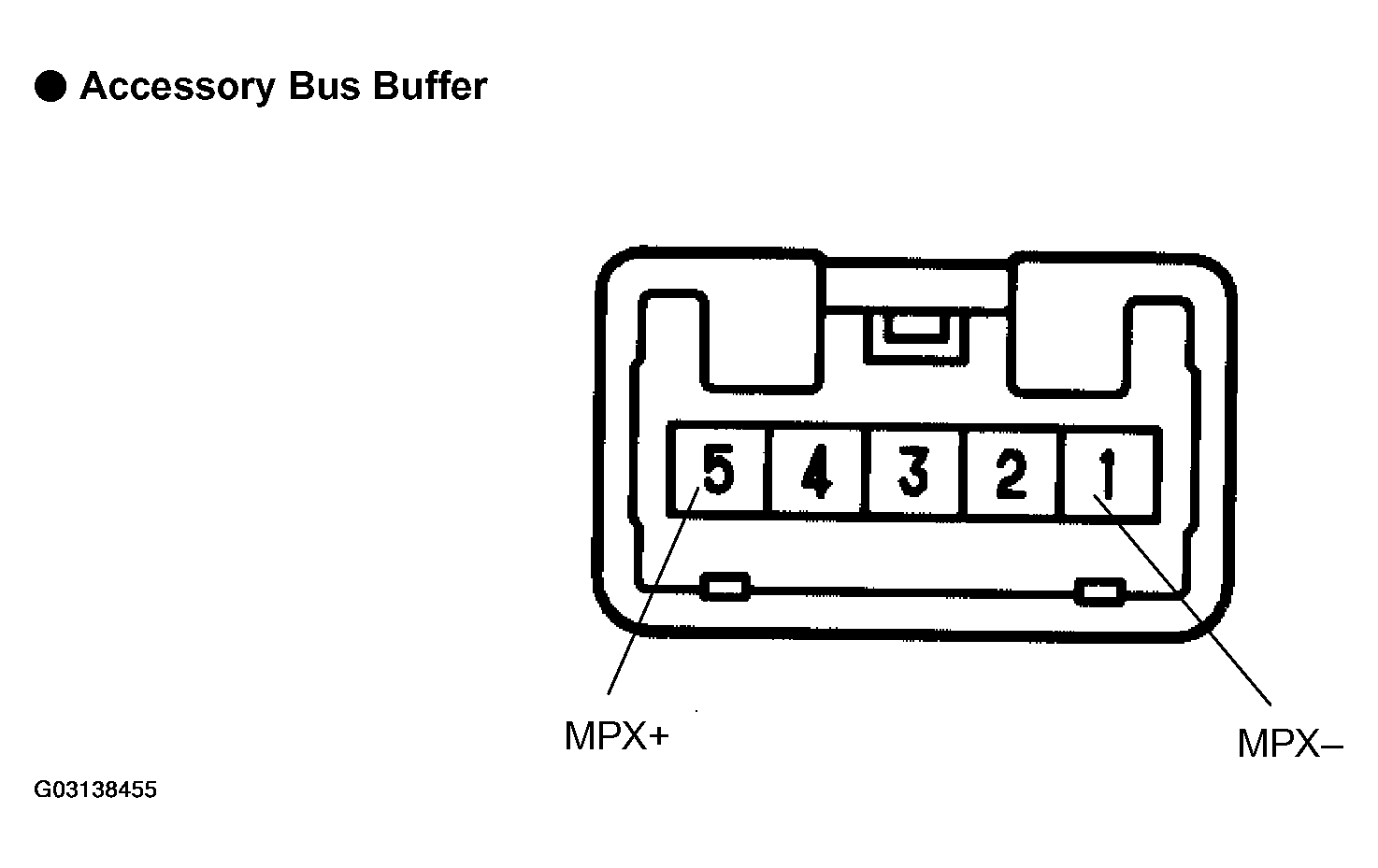

Fig 22: Identifying Accessory Bus Buffer Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

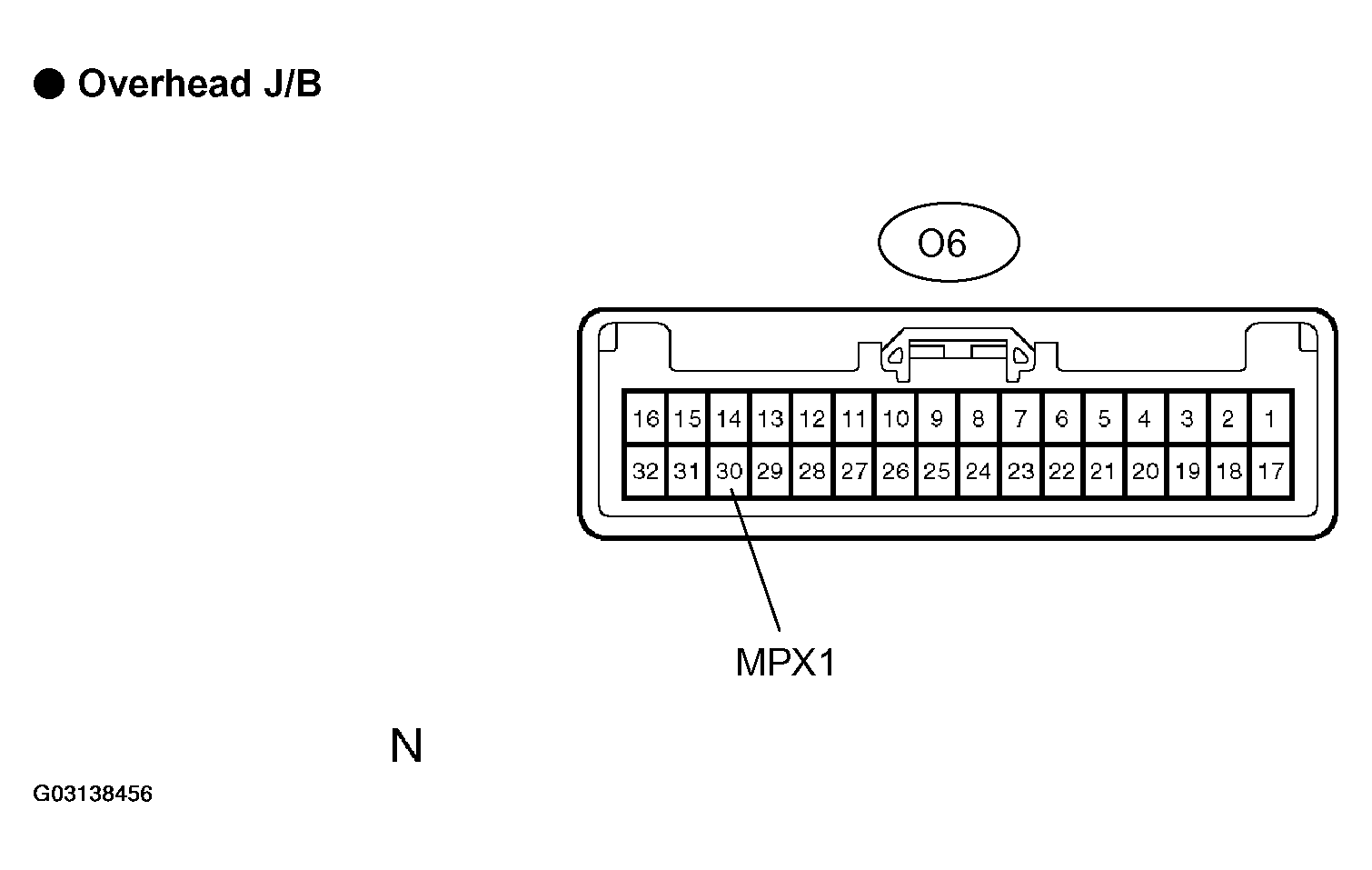

Fig 23: Identifying Overhead J/B Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

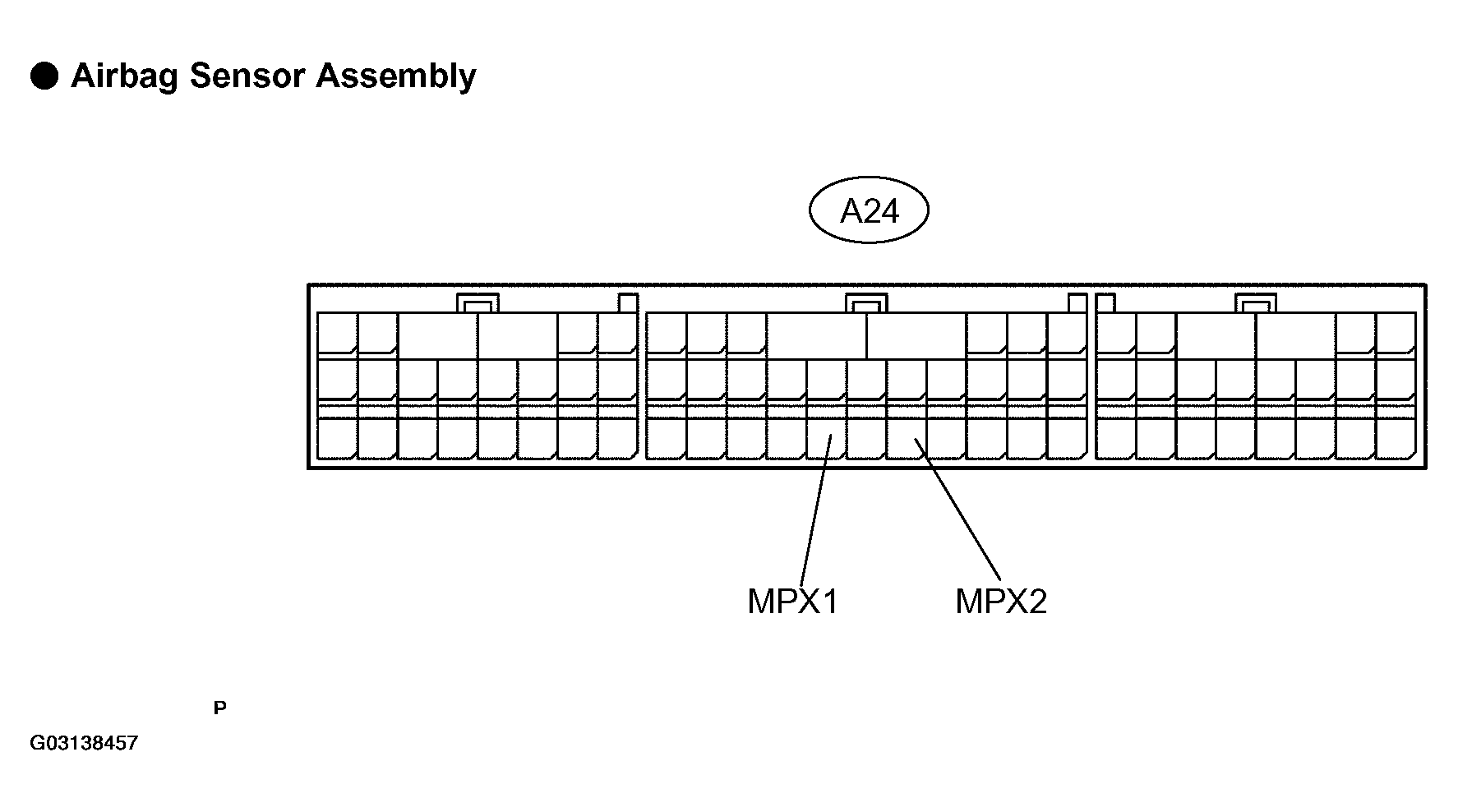

Fig 24: Identifying Airbag Sensor Assembly Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

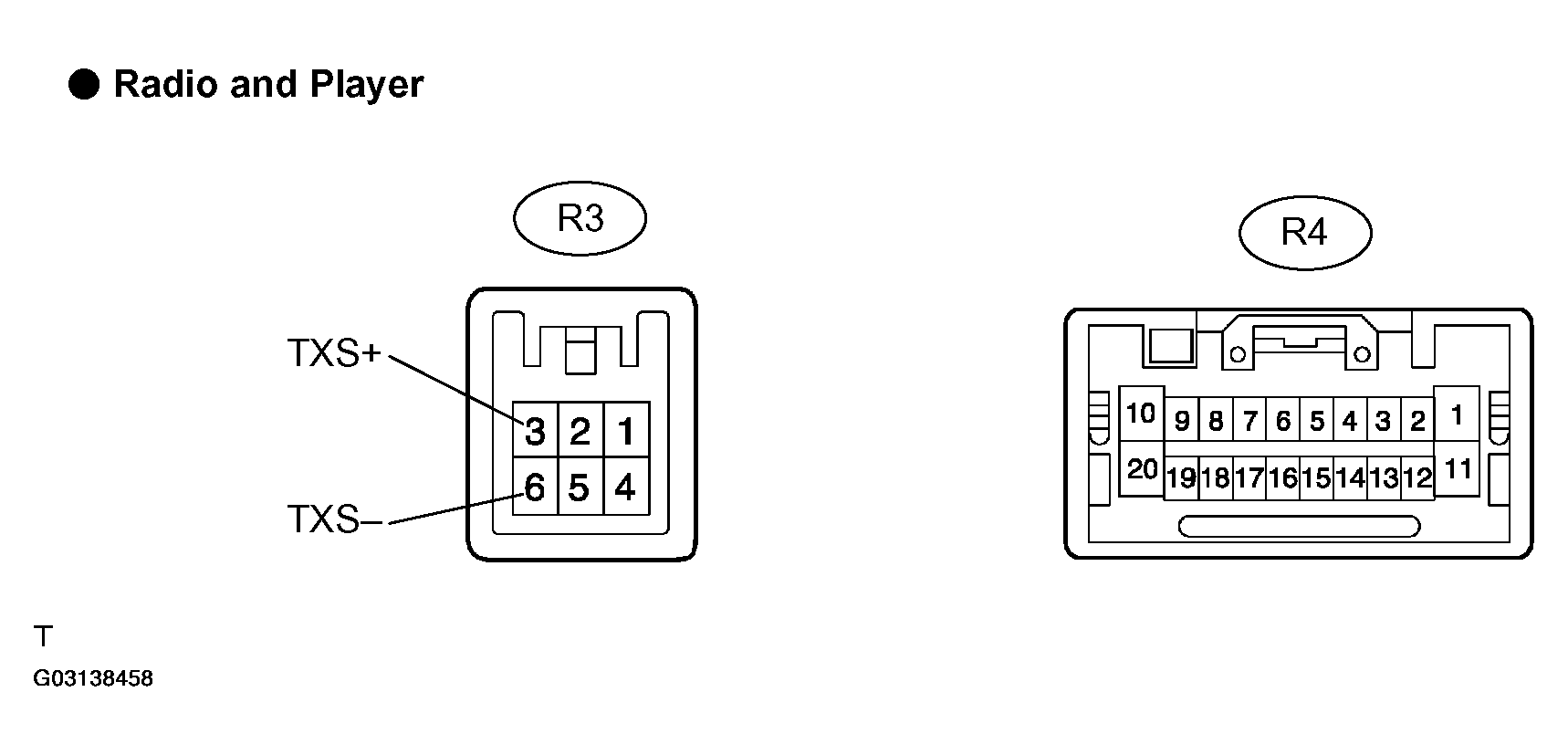

Fig 25: Identifying Radio And Player Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

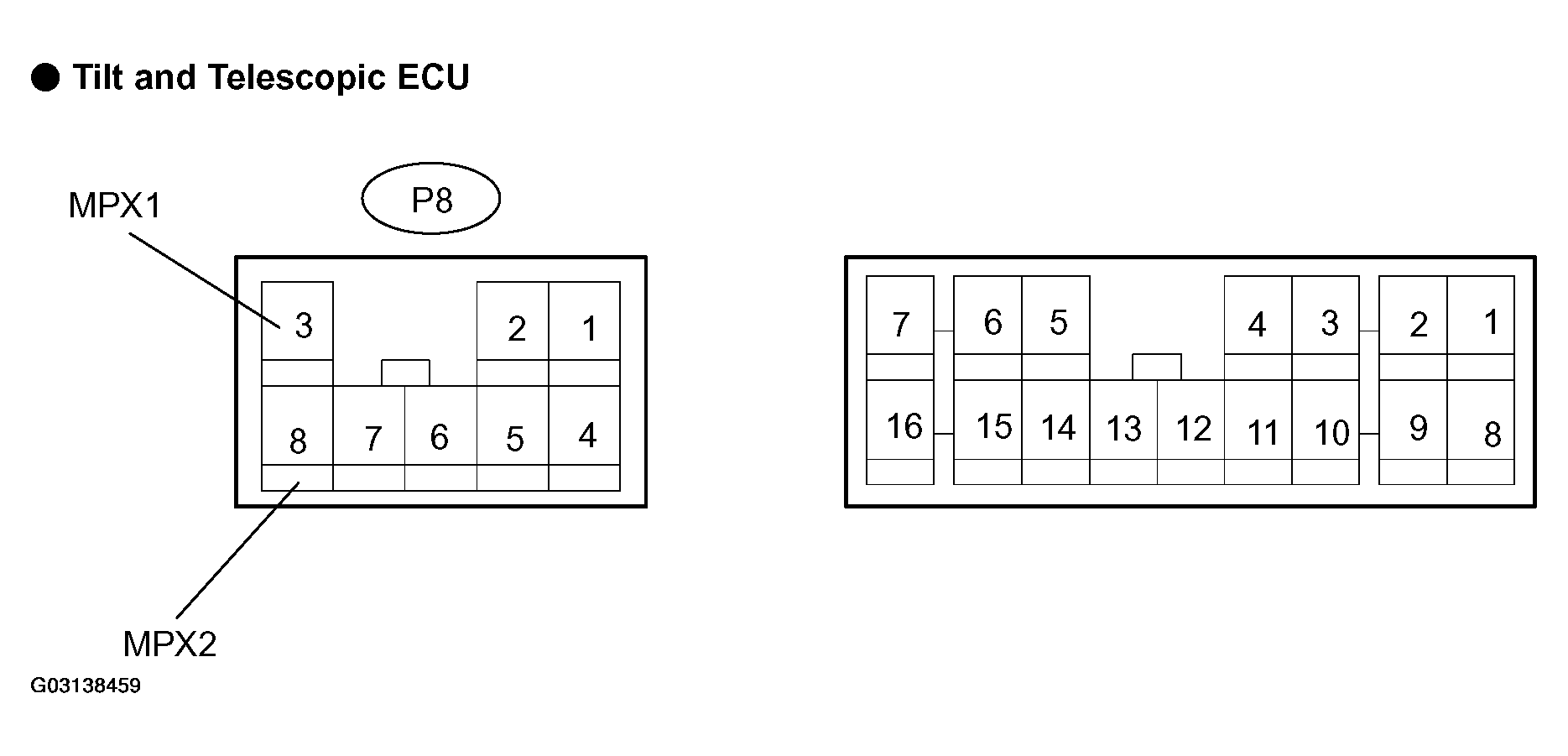

Fig 26: Identifying Tilt And Telescopic ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

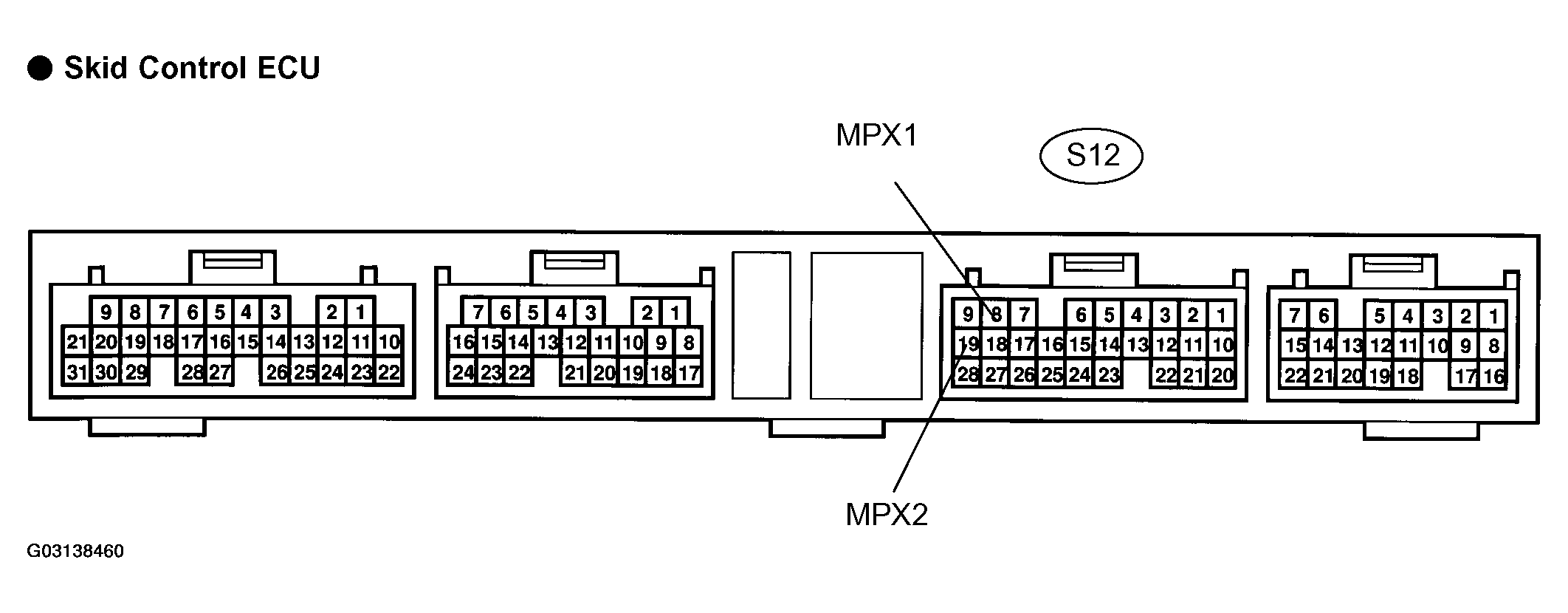

Fig 27: Identifying Skid Control ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

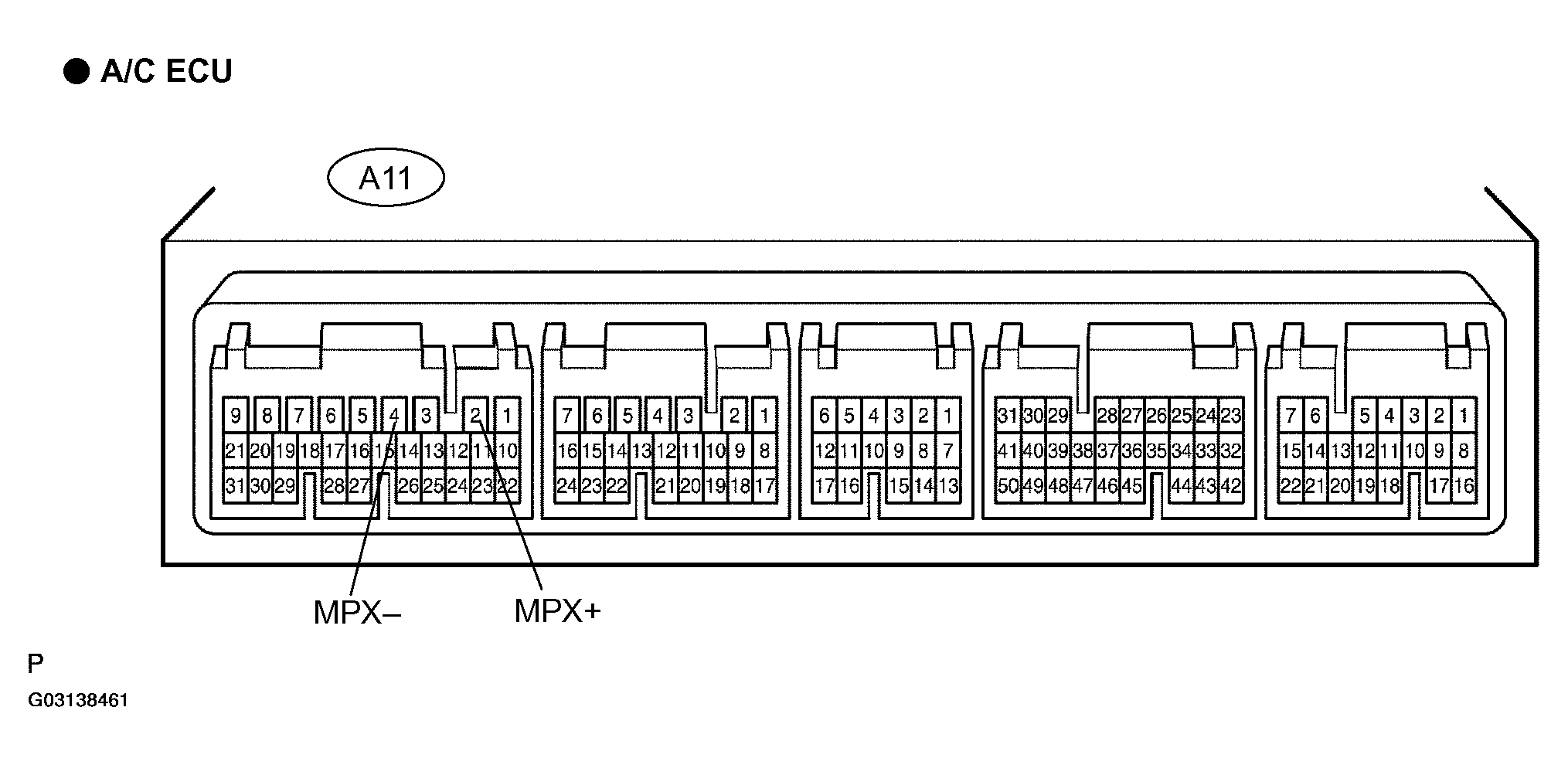

Fig 28: Identifying A/C ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

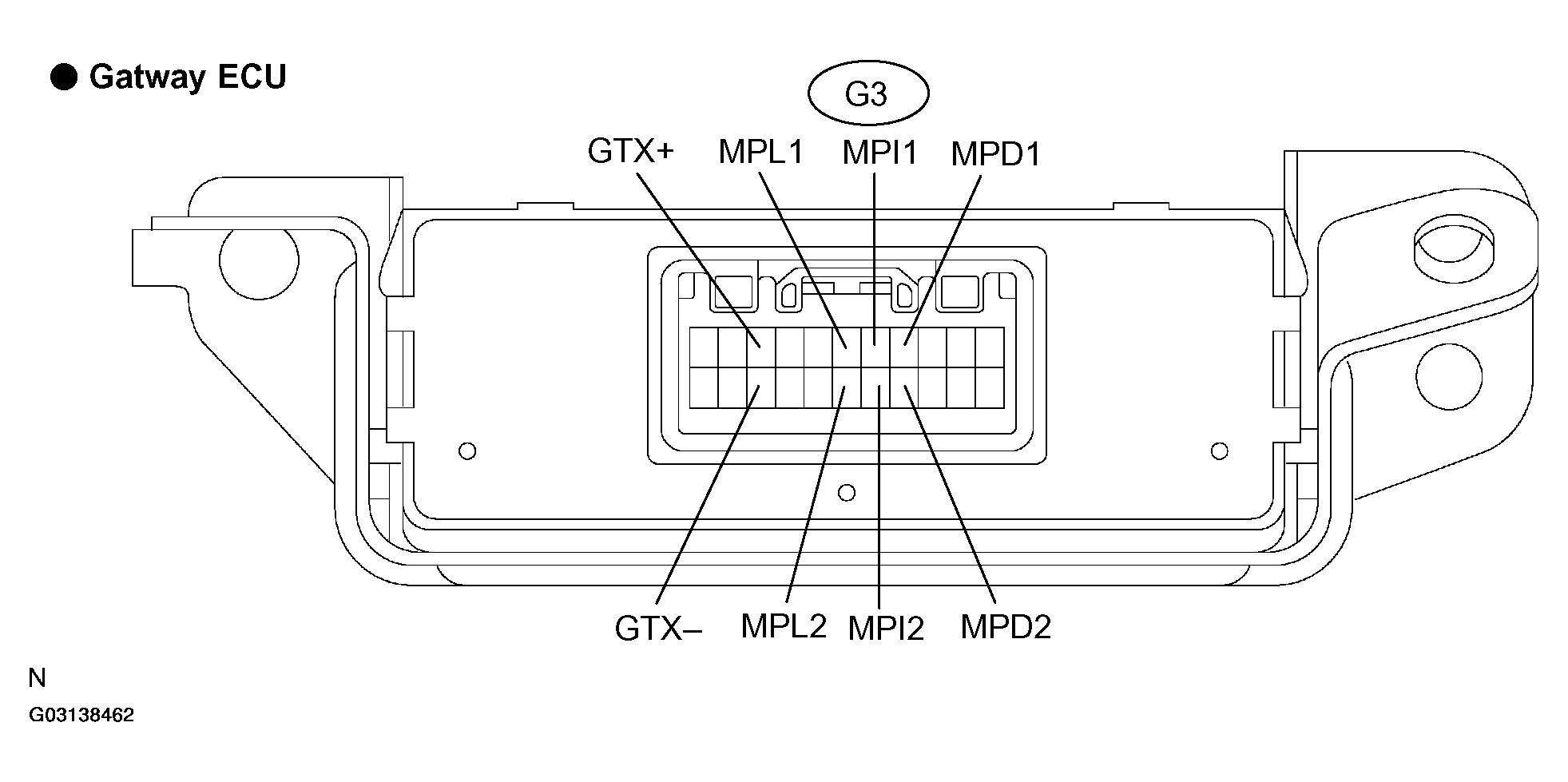

Fig 29: Identifying Gatway ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
