How To Proceed With Troubleshooting

Perform troubleshooting in accordance with the procedure on the flow chart.

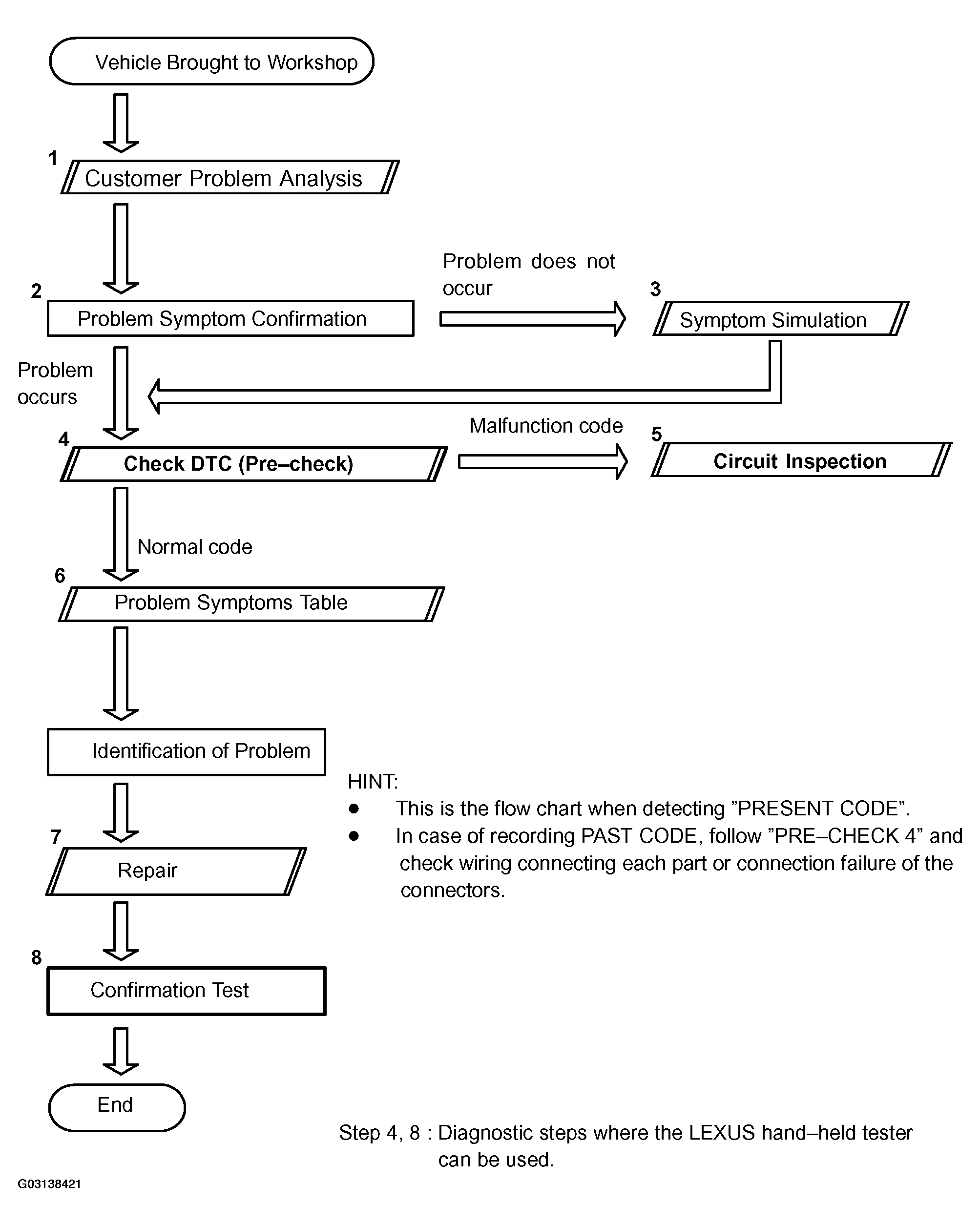

Fig 1: Gateway System Troubleshooting Flow Chart
G03138421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
