Washer Motor Circuit

CIRCUIT DESCRIPTION

Front Light ECU receives washer switch information from the combination switch, and operates the washer motor.

Wiring Diagram:

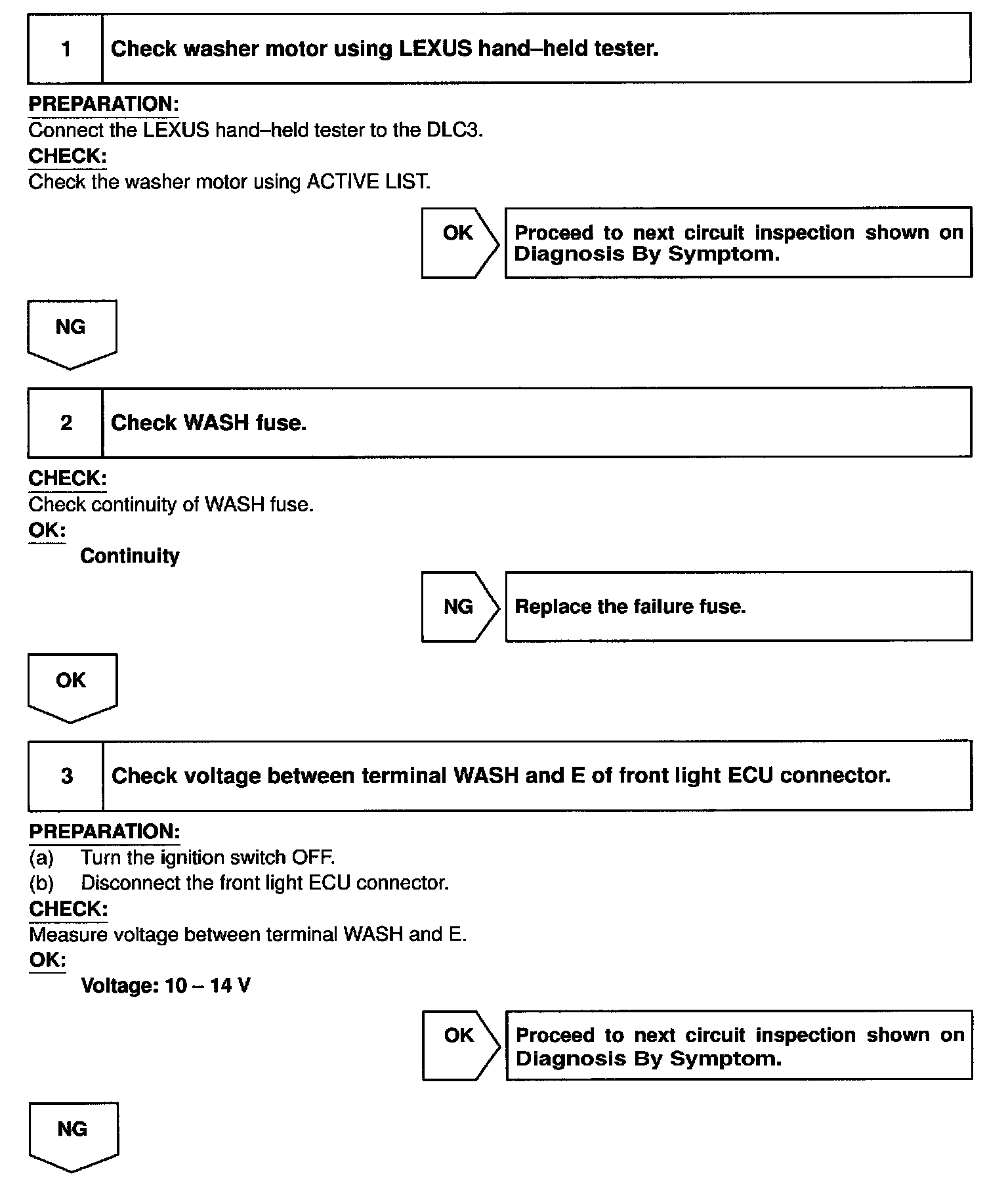

Steps 1 - 3:




Steps 4 - 5:




INSPECTION PROCEDURE
