Engine Compartment

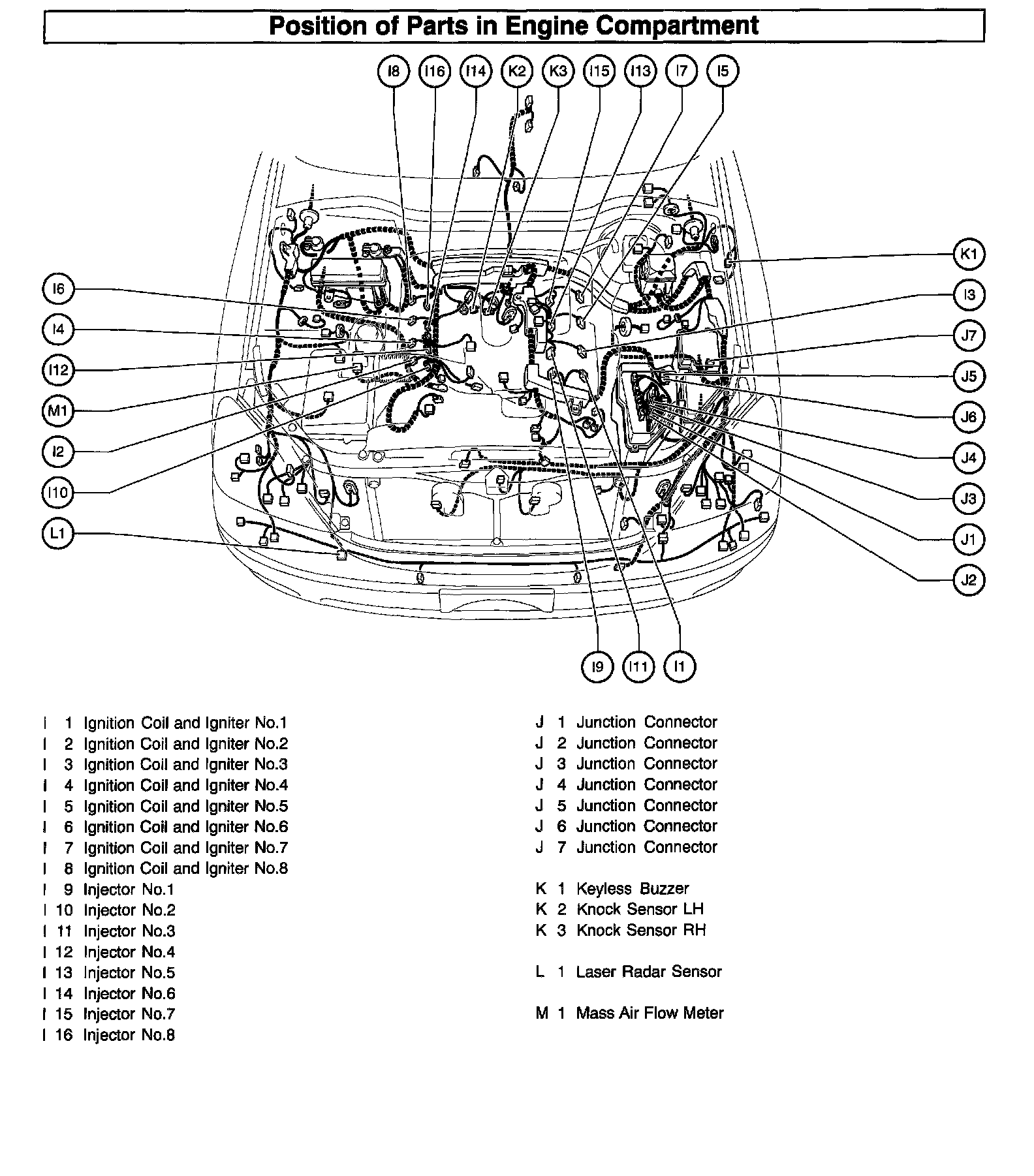

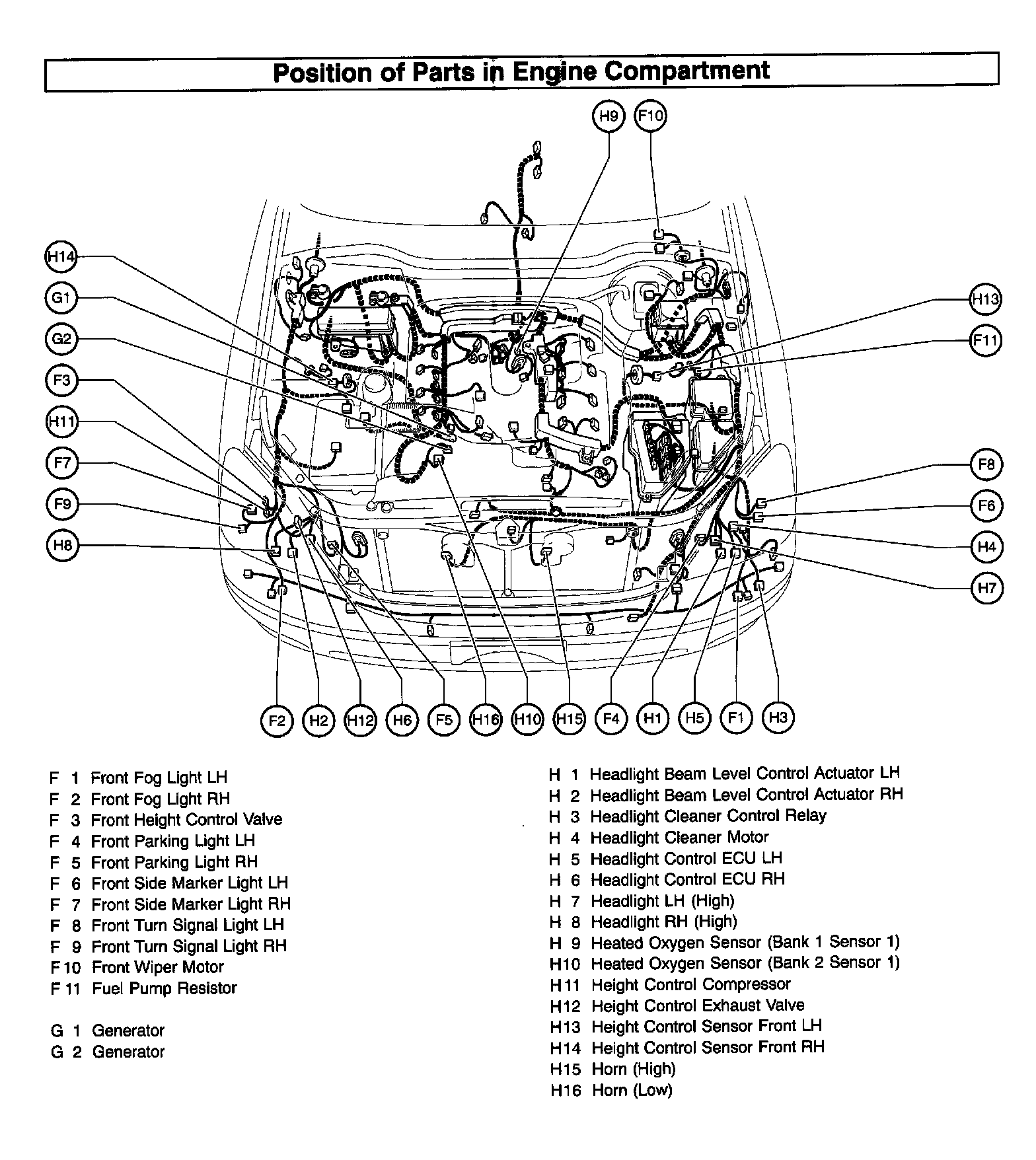

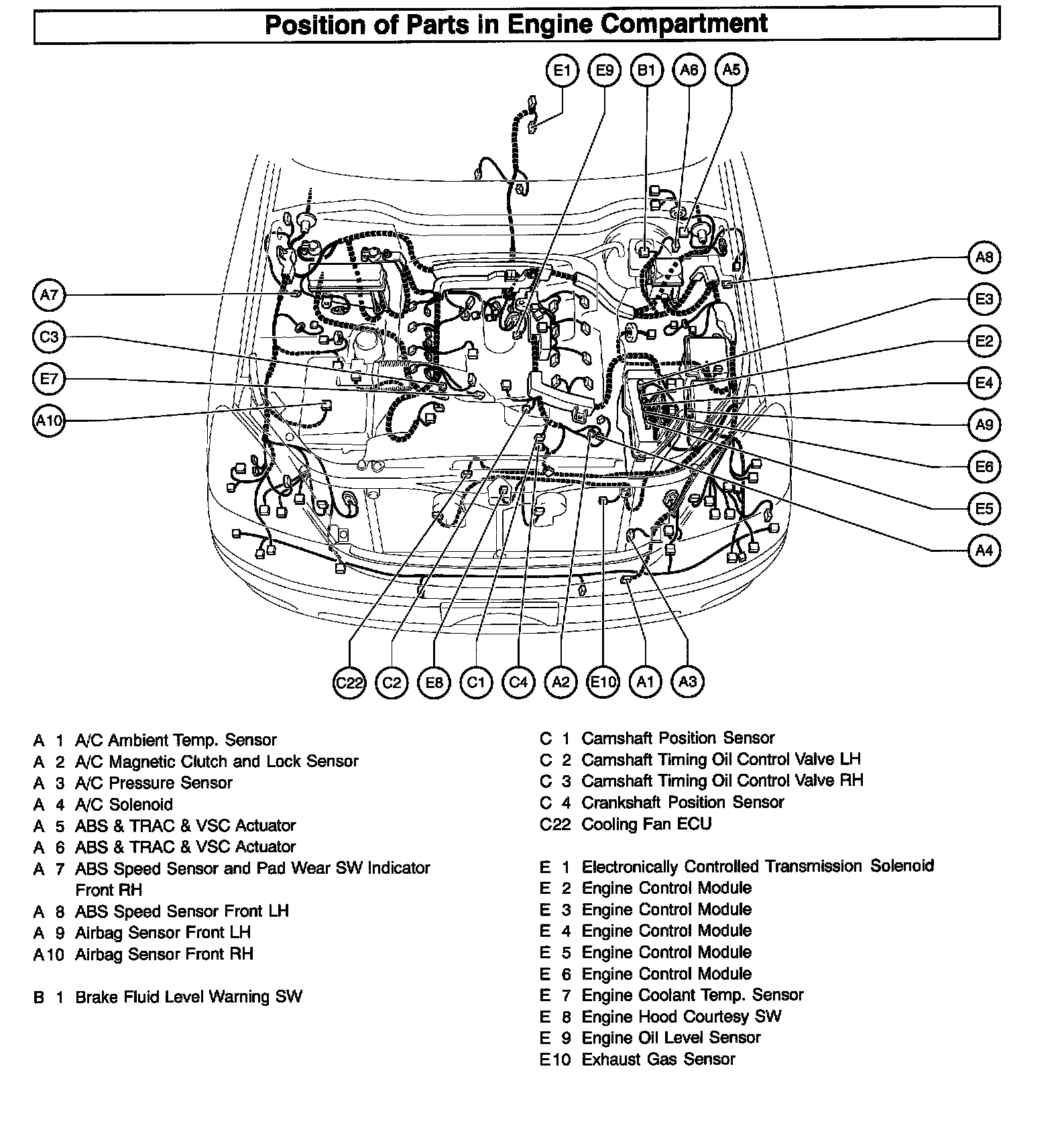

Position Of Parts In Engine Compartment (Part 1):

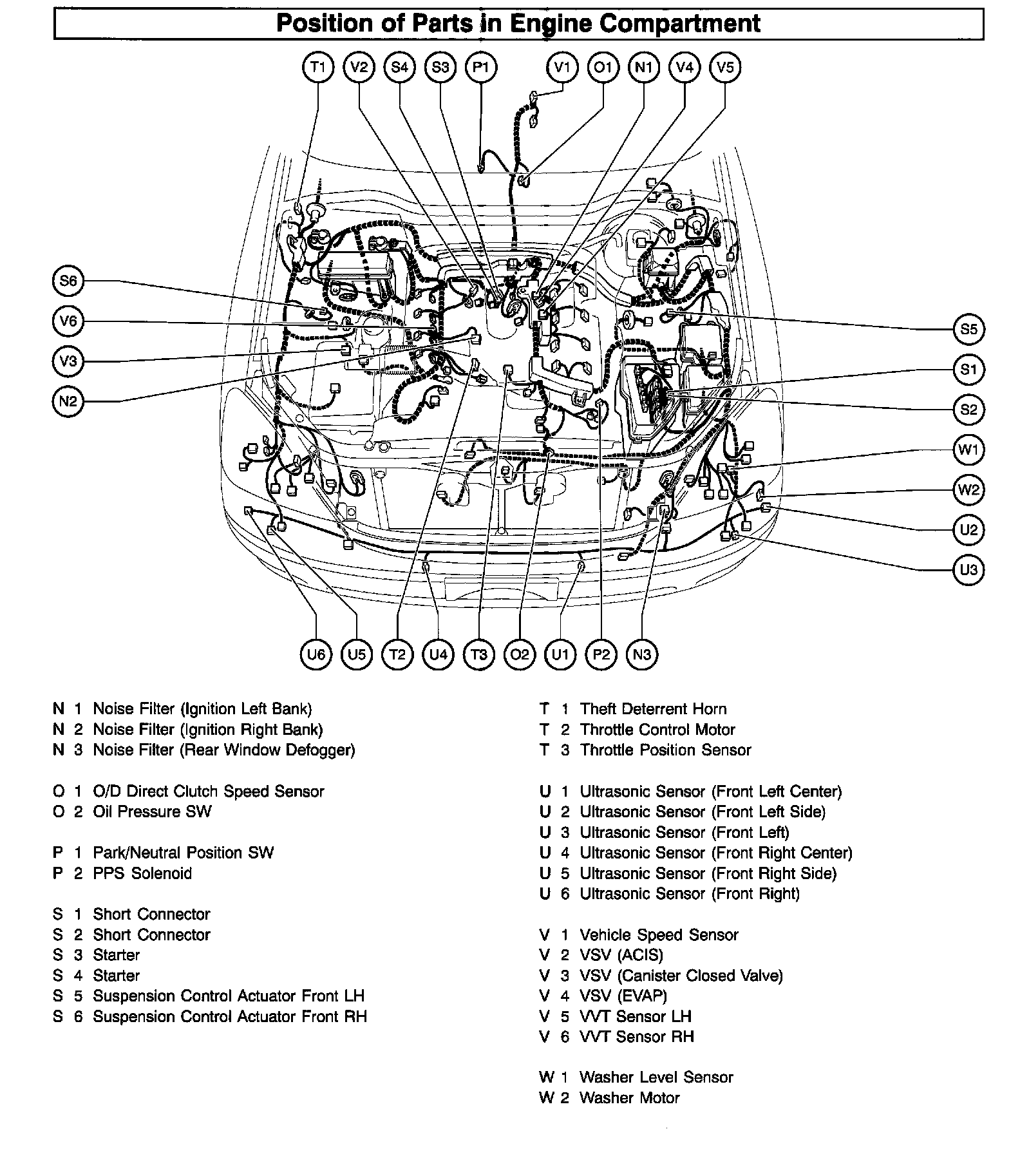

Position Of Parts In Engine Compartment (Part 2):

Position Of Parts In Engine Compartment (Part 3):

Position Of Parts In Engine Compartment (Part 4):

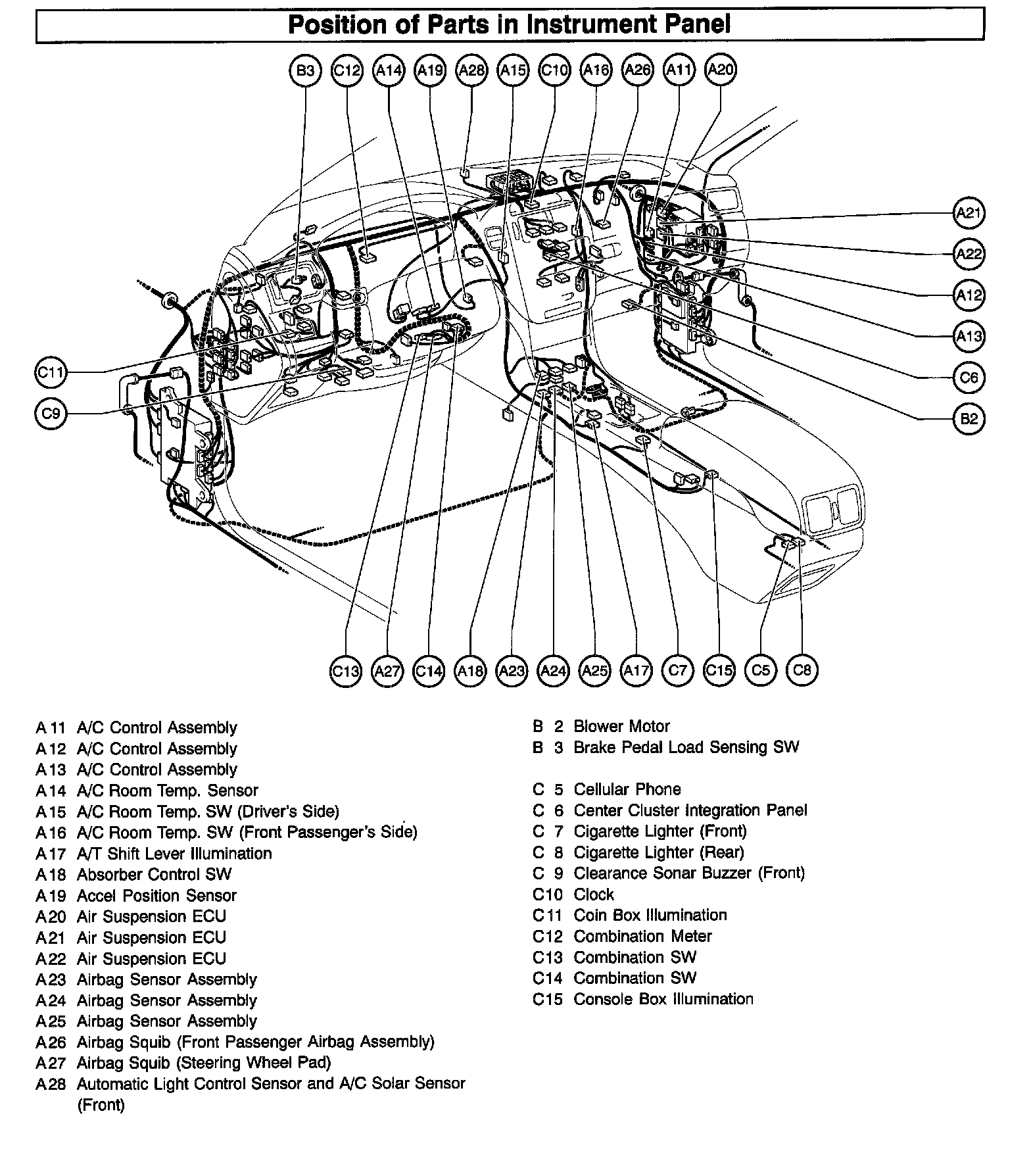

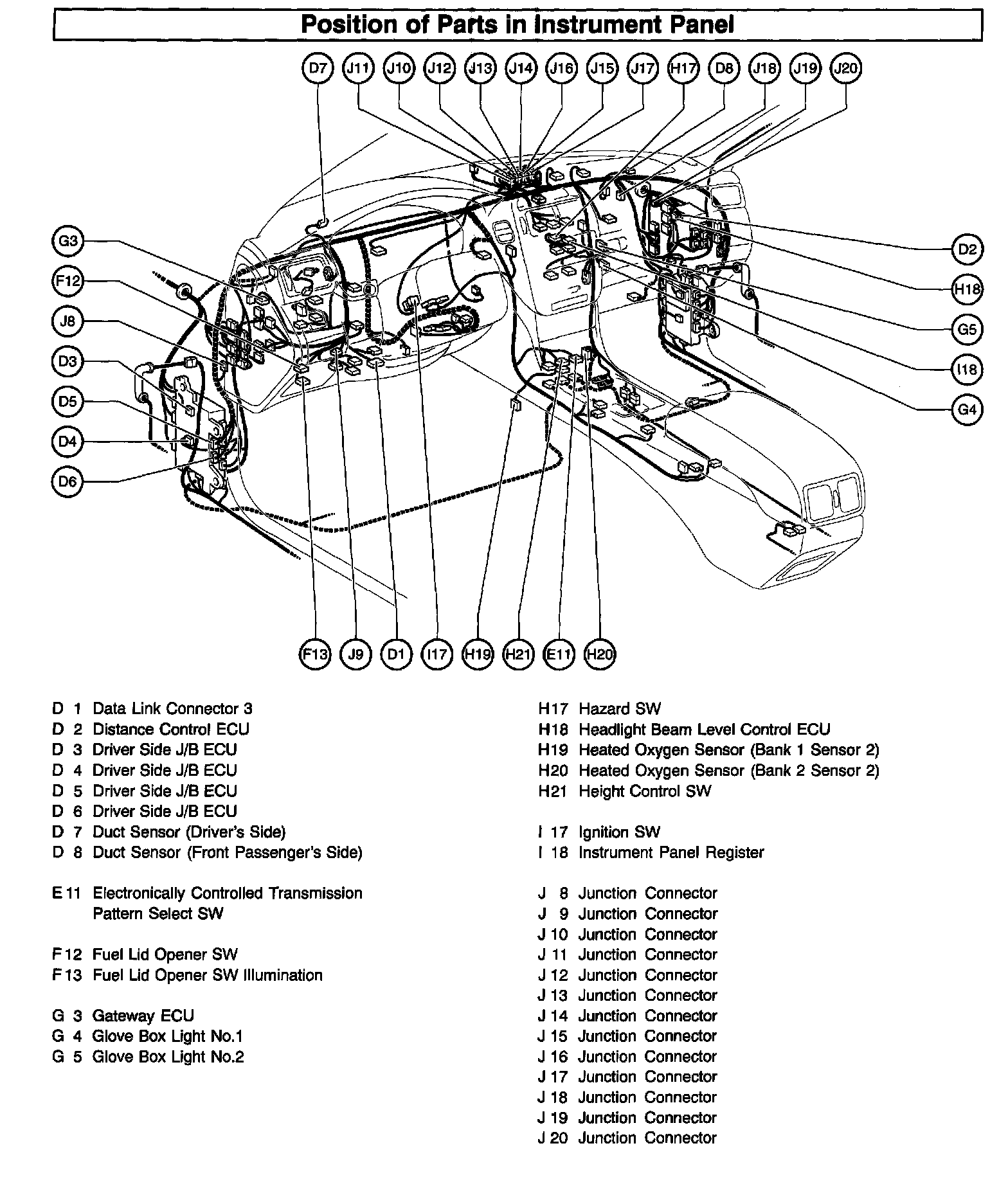

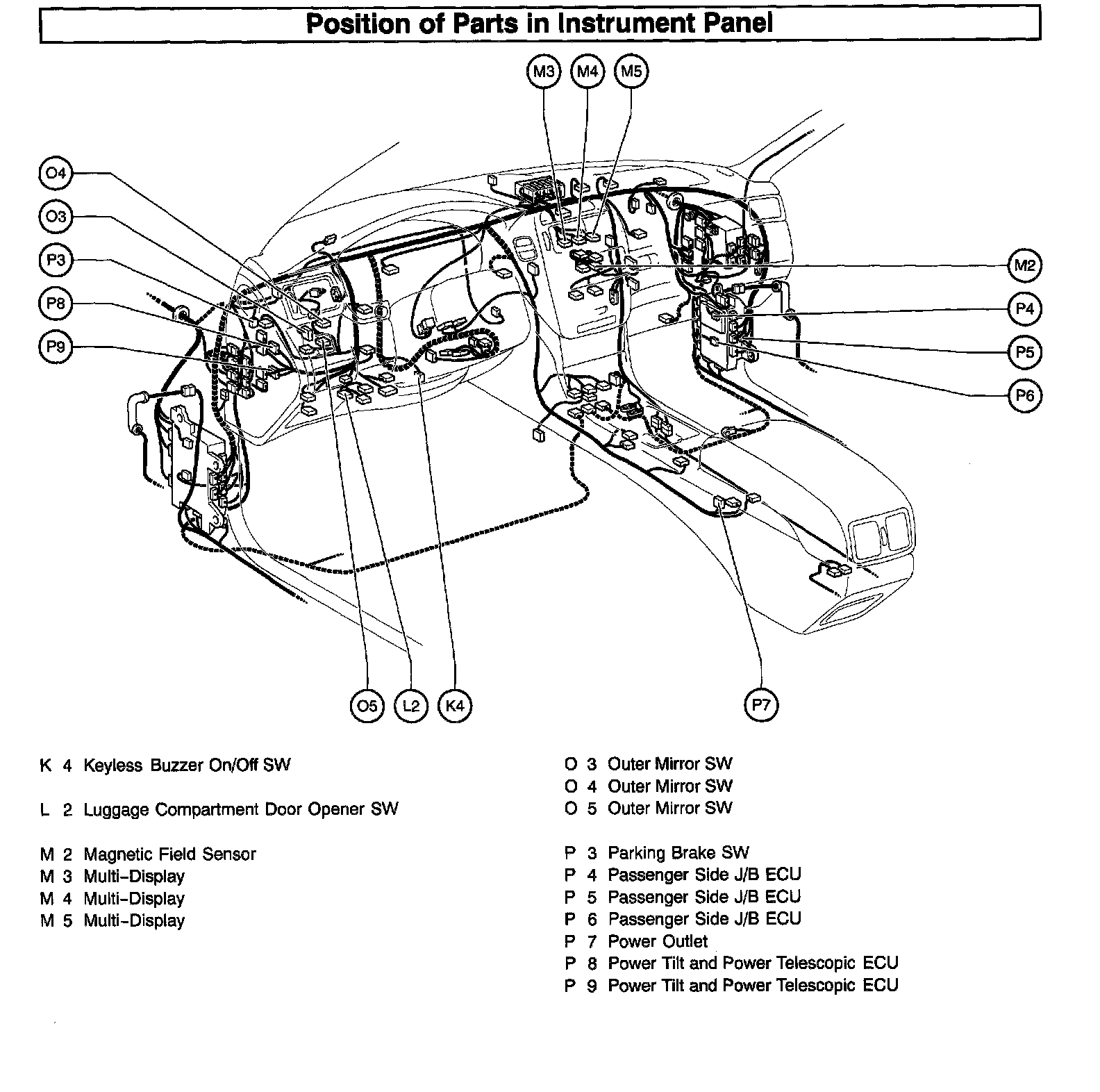

Position Of Parts In Instrument Panel (Part 1):

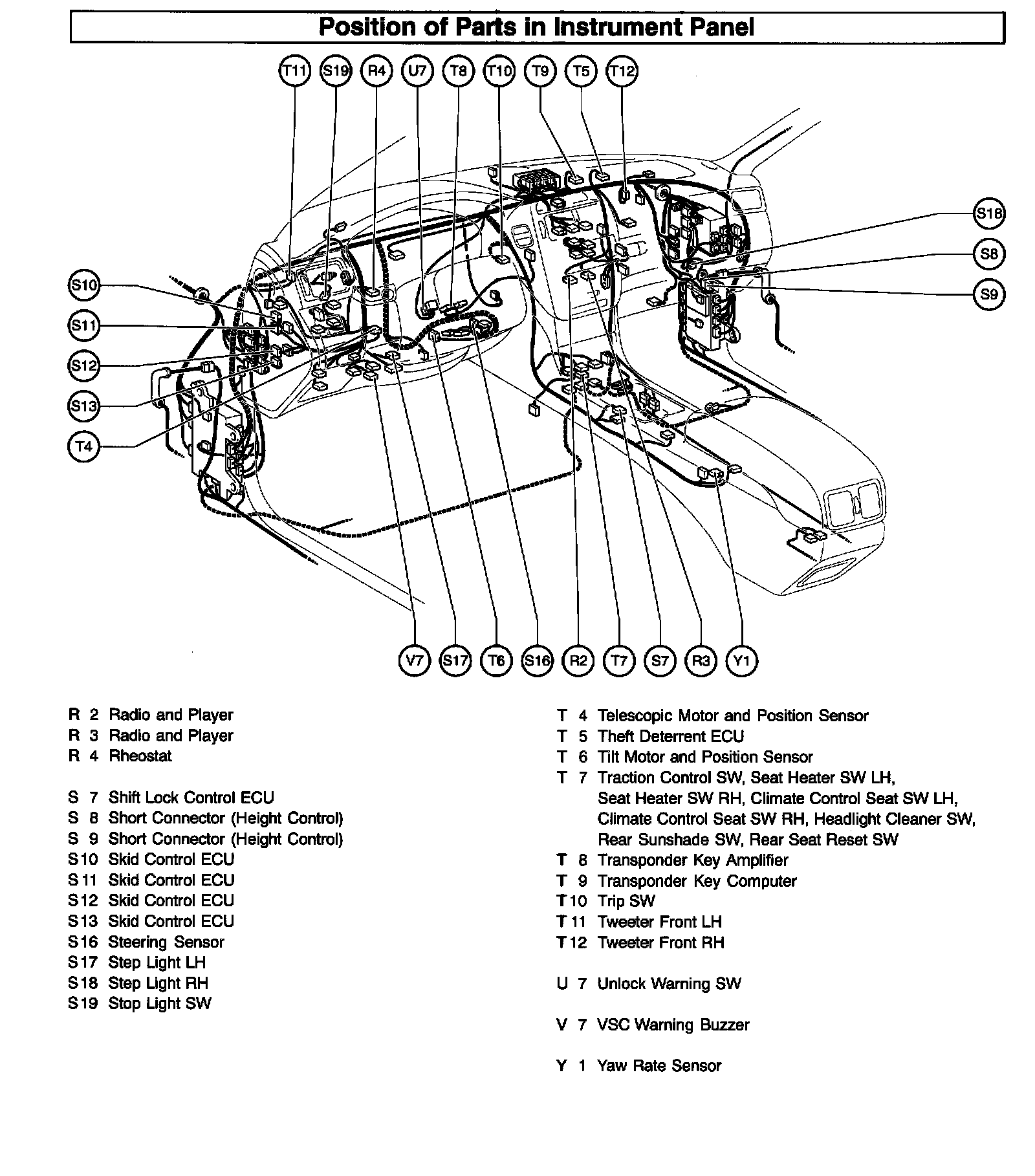

Position Of Parts In Instrument Panel (Part 2):

Position Of Parts In Instrument Panel (Part 3):

Position Of Parts In Instrument Panel (Part 4):

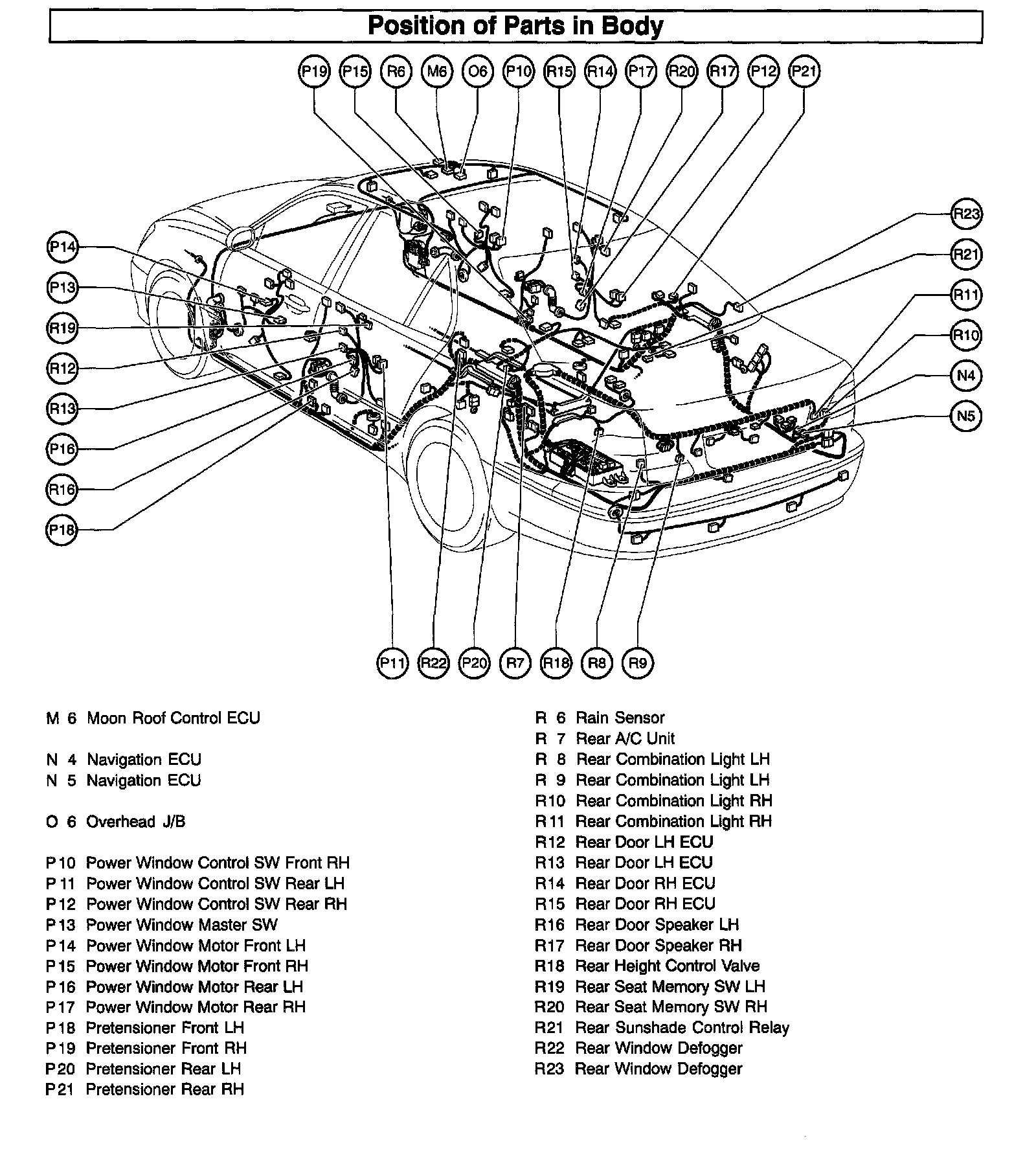

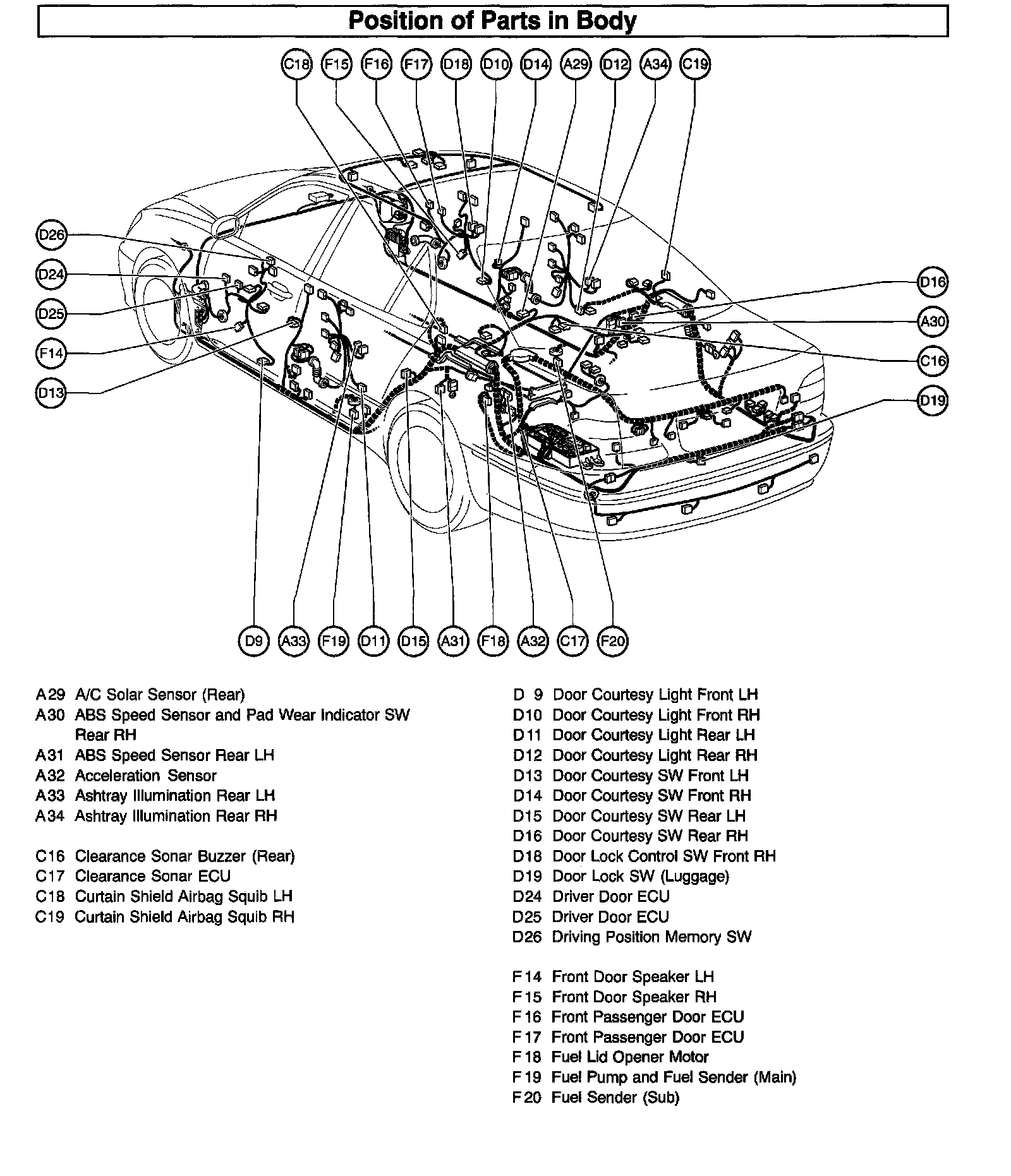

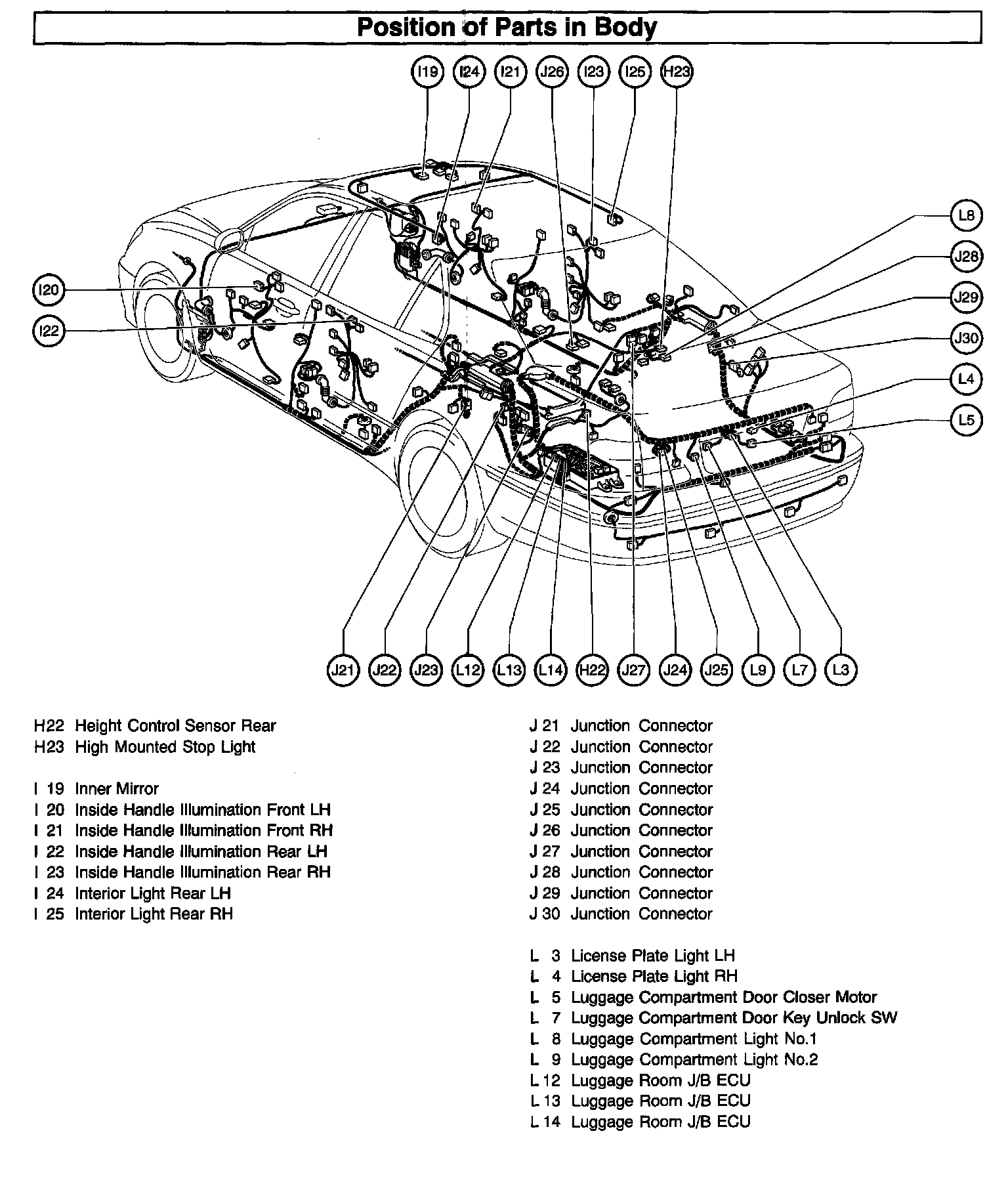

Position Of Parts In Body (Part 1):

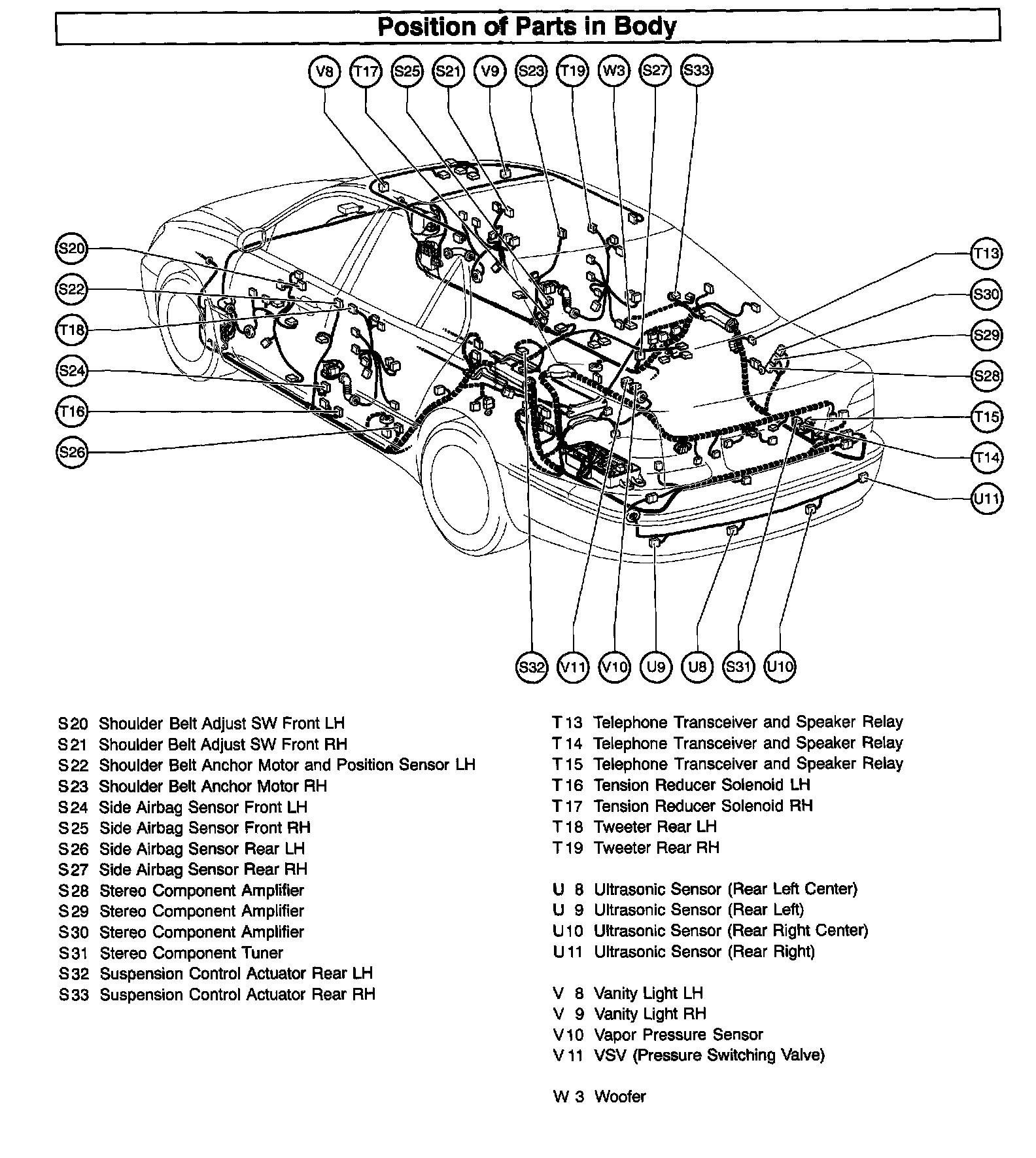

Position Of Parts In Body (Part 2):

Position Of Parts In Body (Part 3):

Position Of Parts In Body (Part 4):

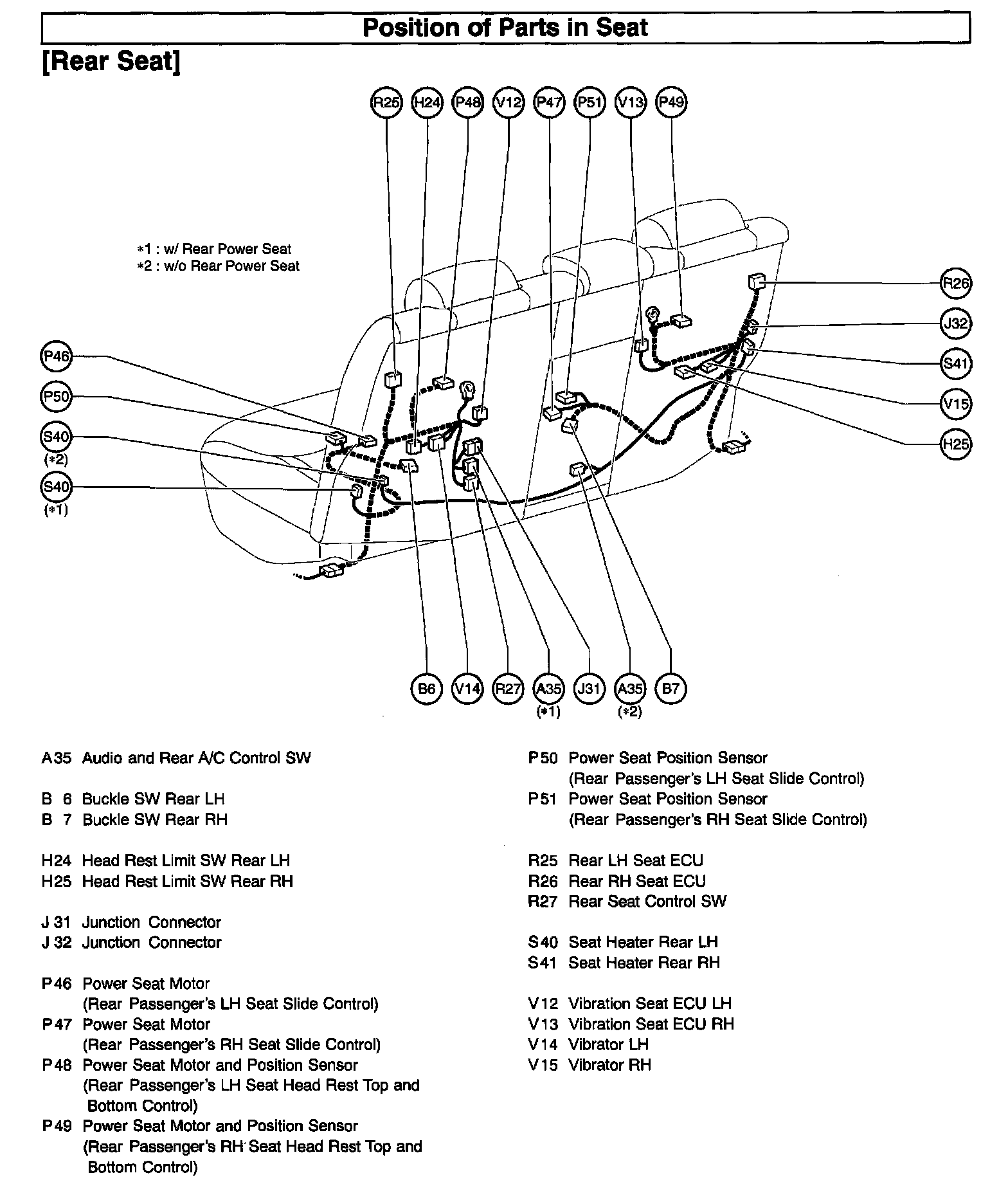

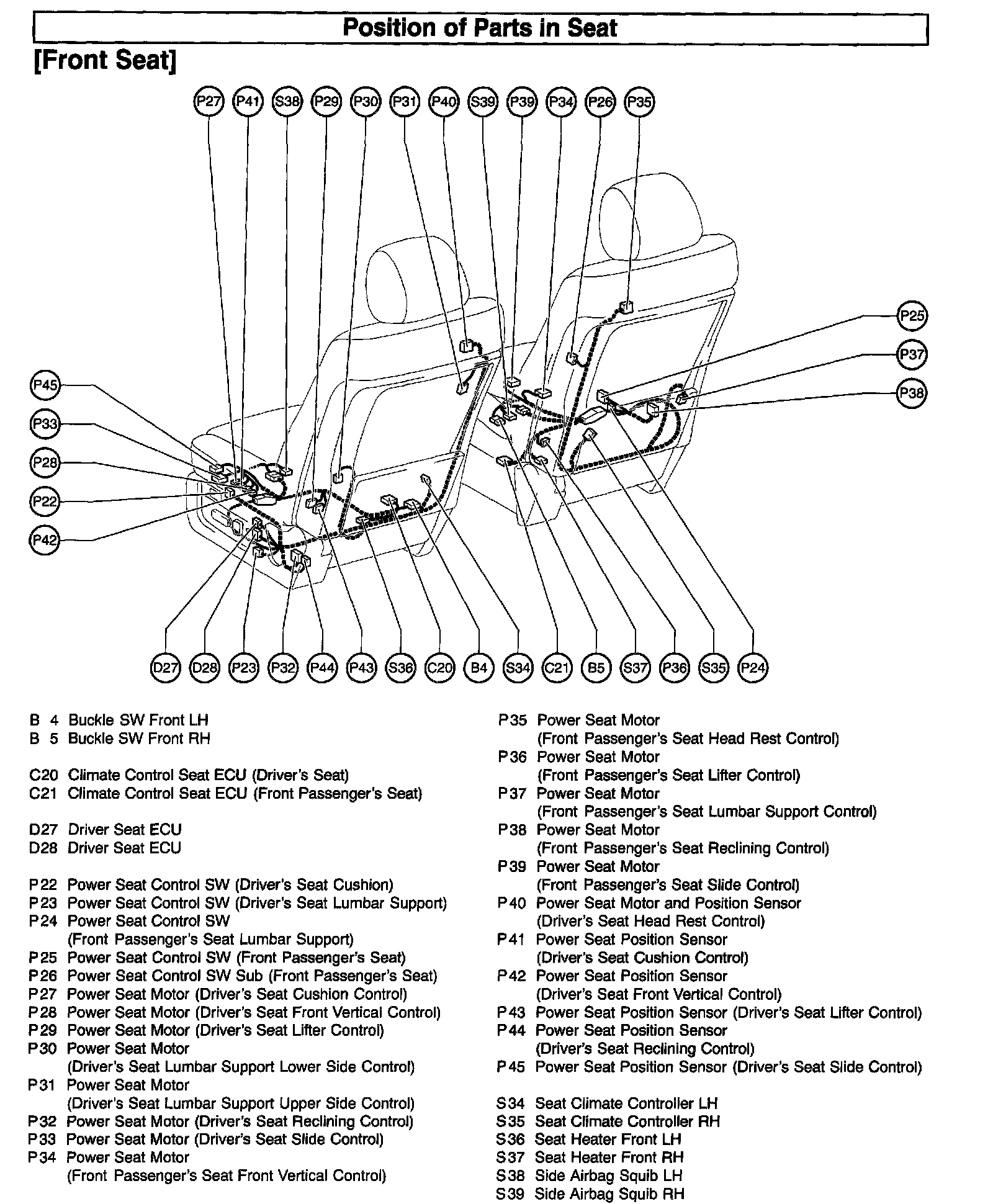

Position Of Parts In Seat (Part 1):

Position Of Parts In Seat (Part 2):
