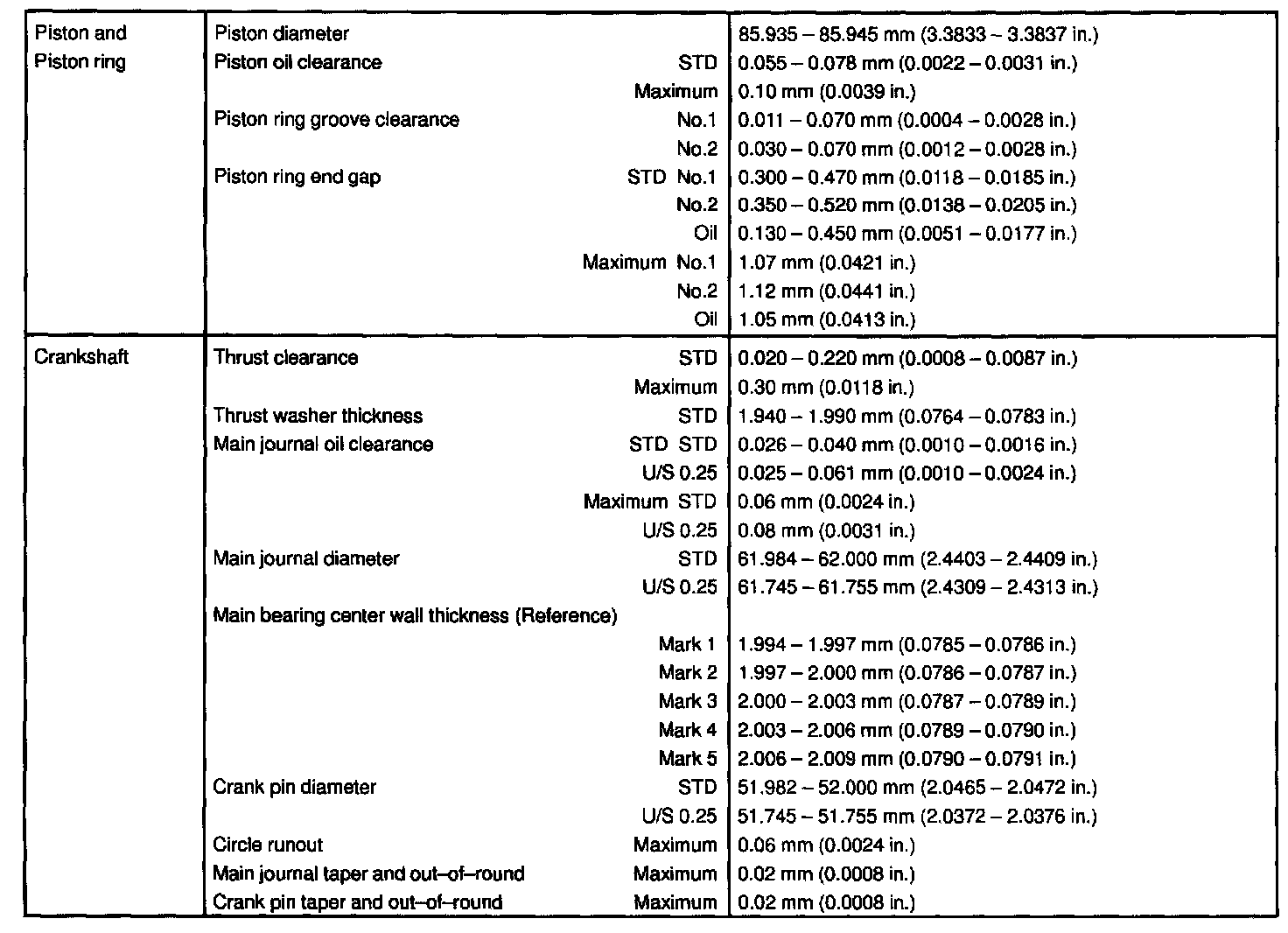

Engine Technical and Torque Data

1 Of 3:





2 Of 3:





3 Of 3:

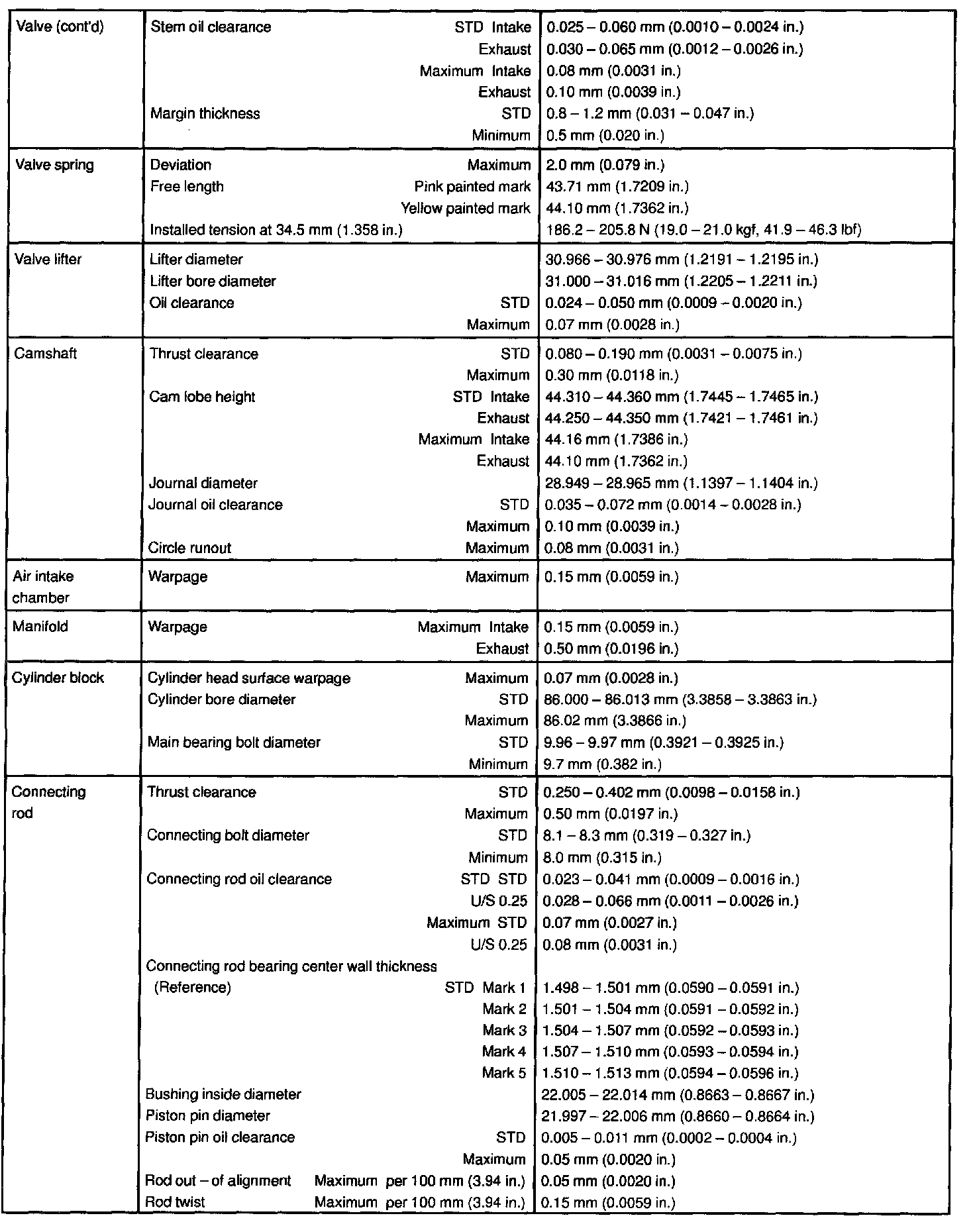

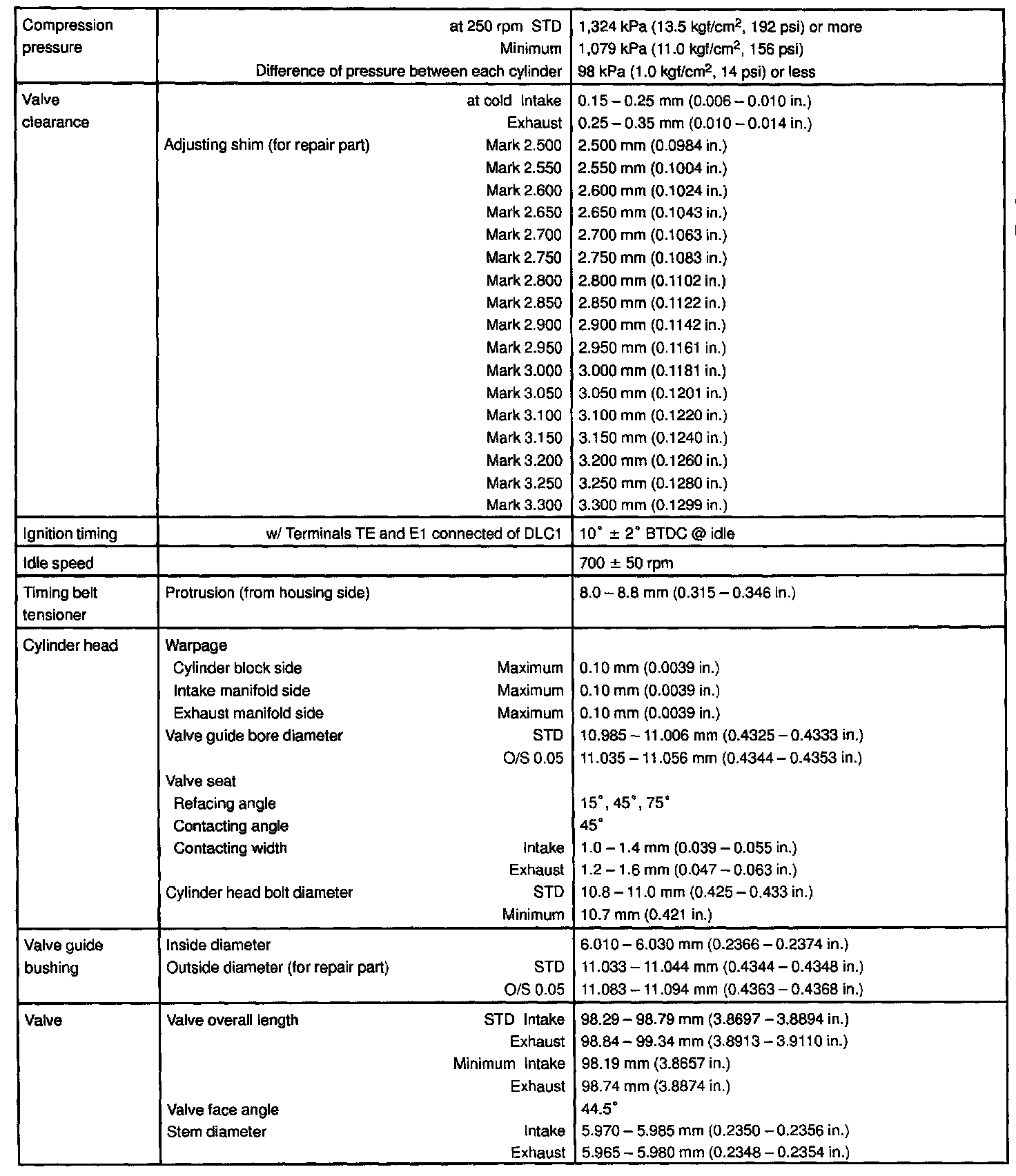

Service Specifications


1 Of 2:





2 Of 2:

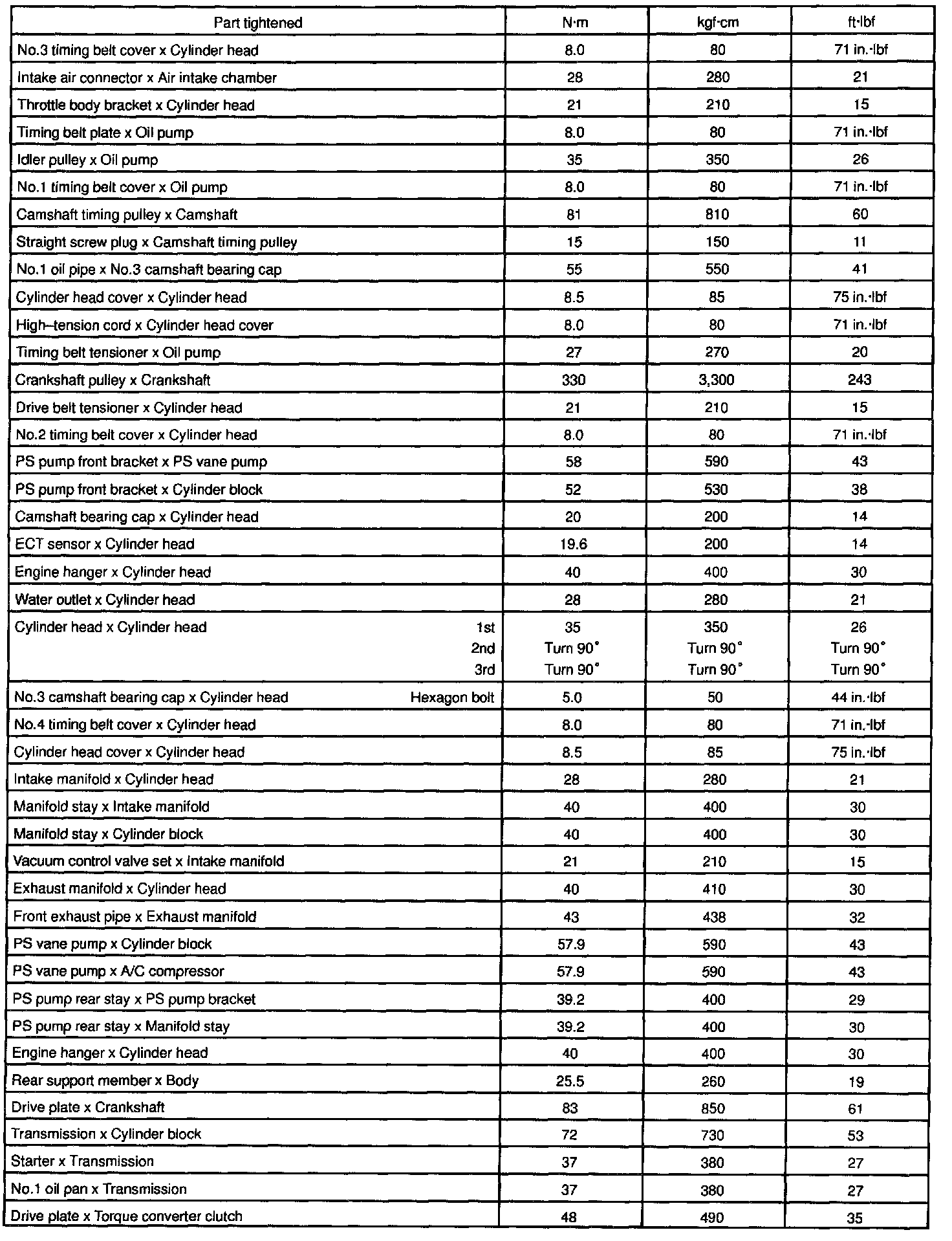

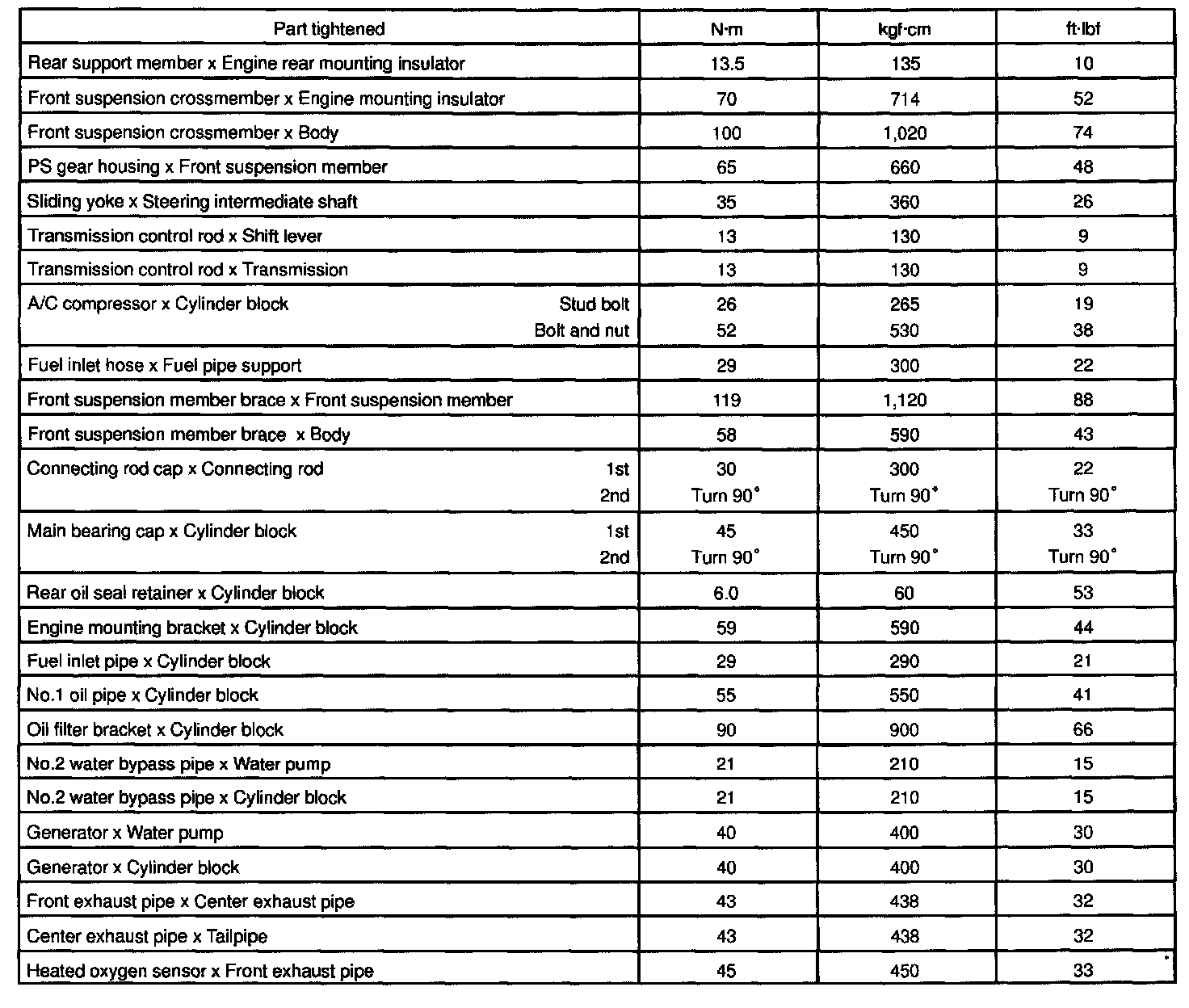

Tightening Specifications
