Connector Code Lists

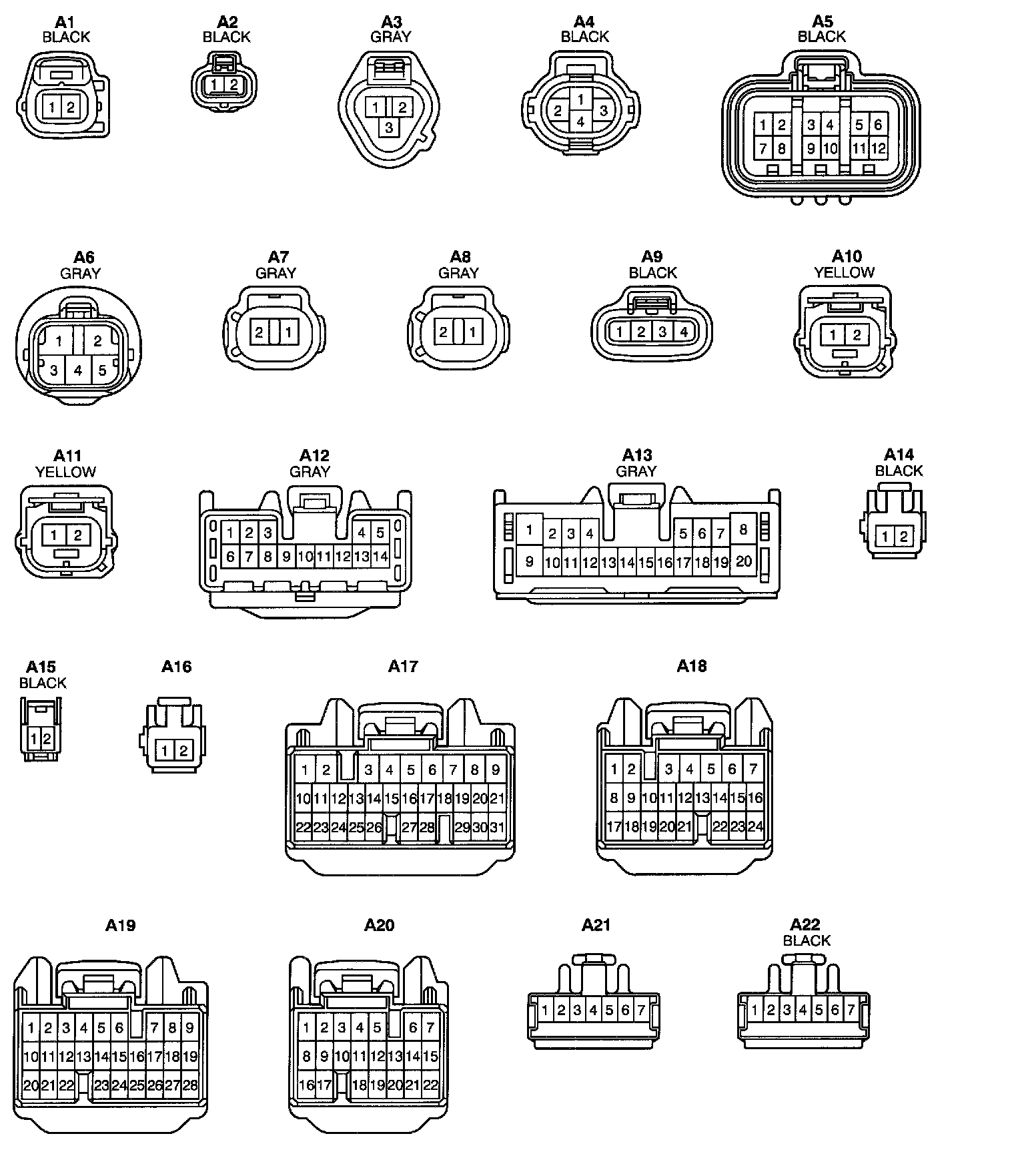

Connector Views (A1 - A22):

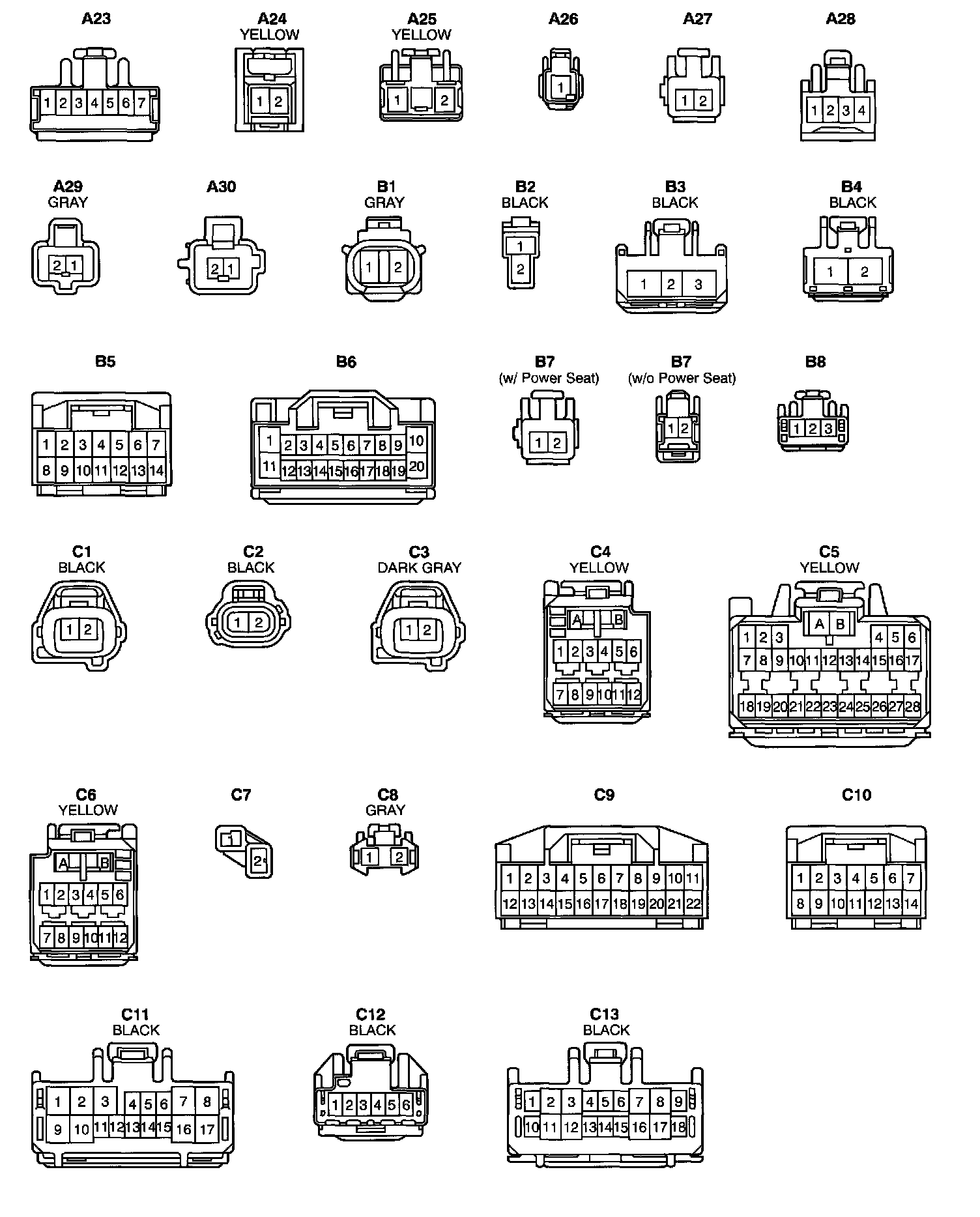

Connector Views (A23 - C13):

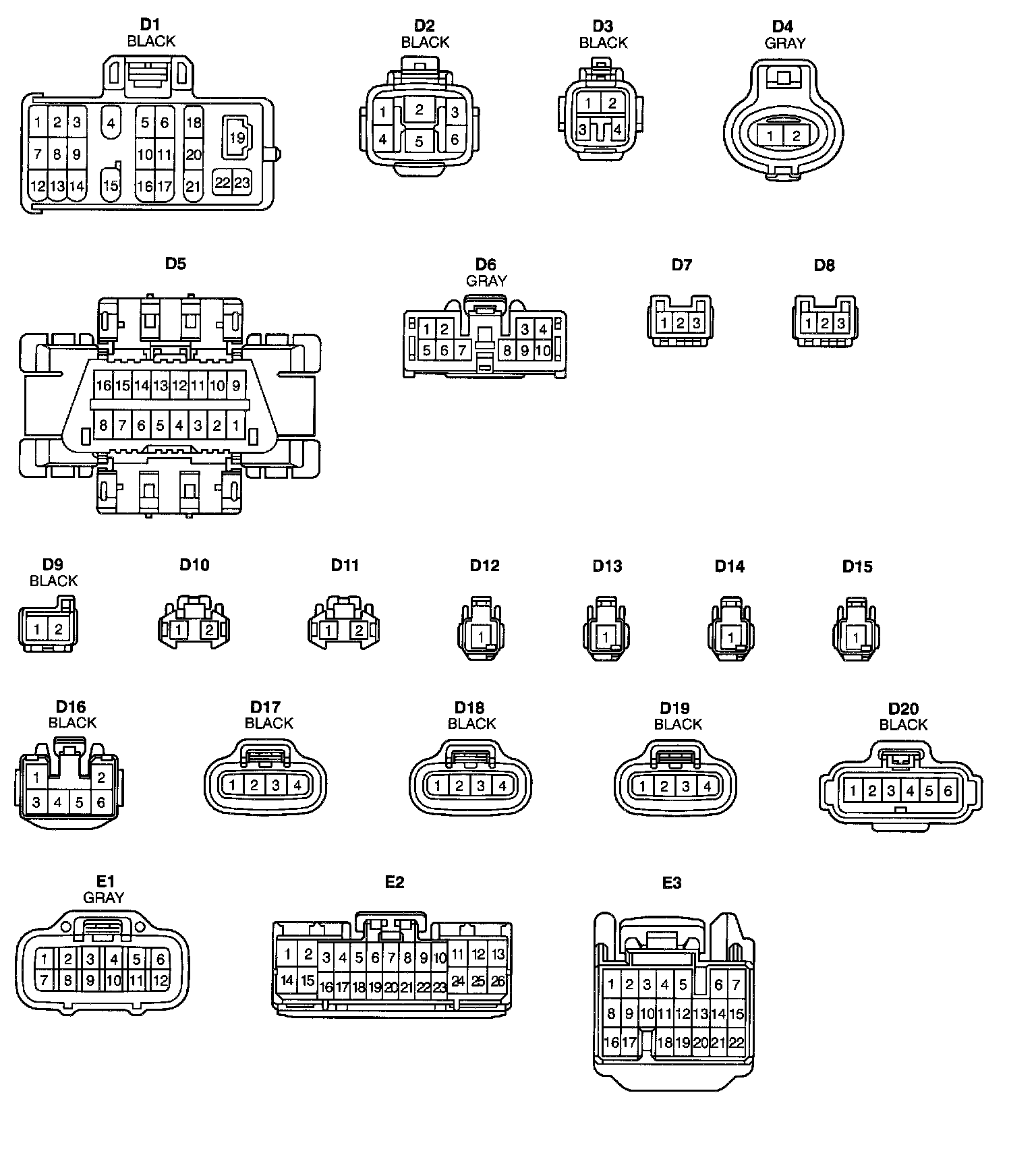

Connector Views (D1 - E3):

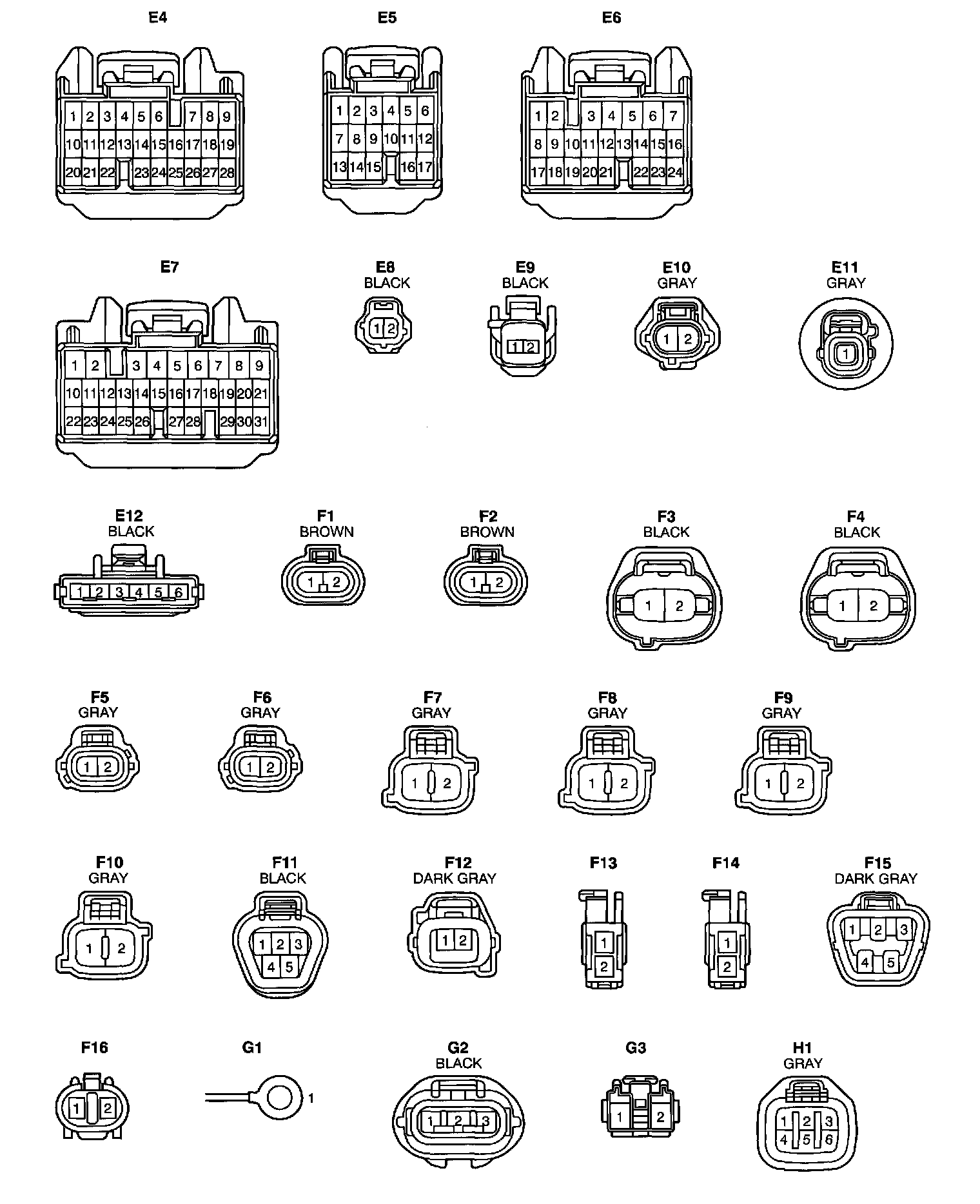

Connector Views (E4 - H1):

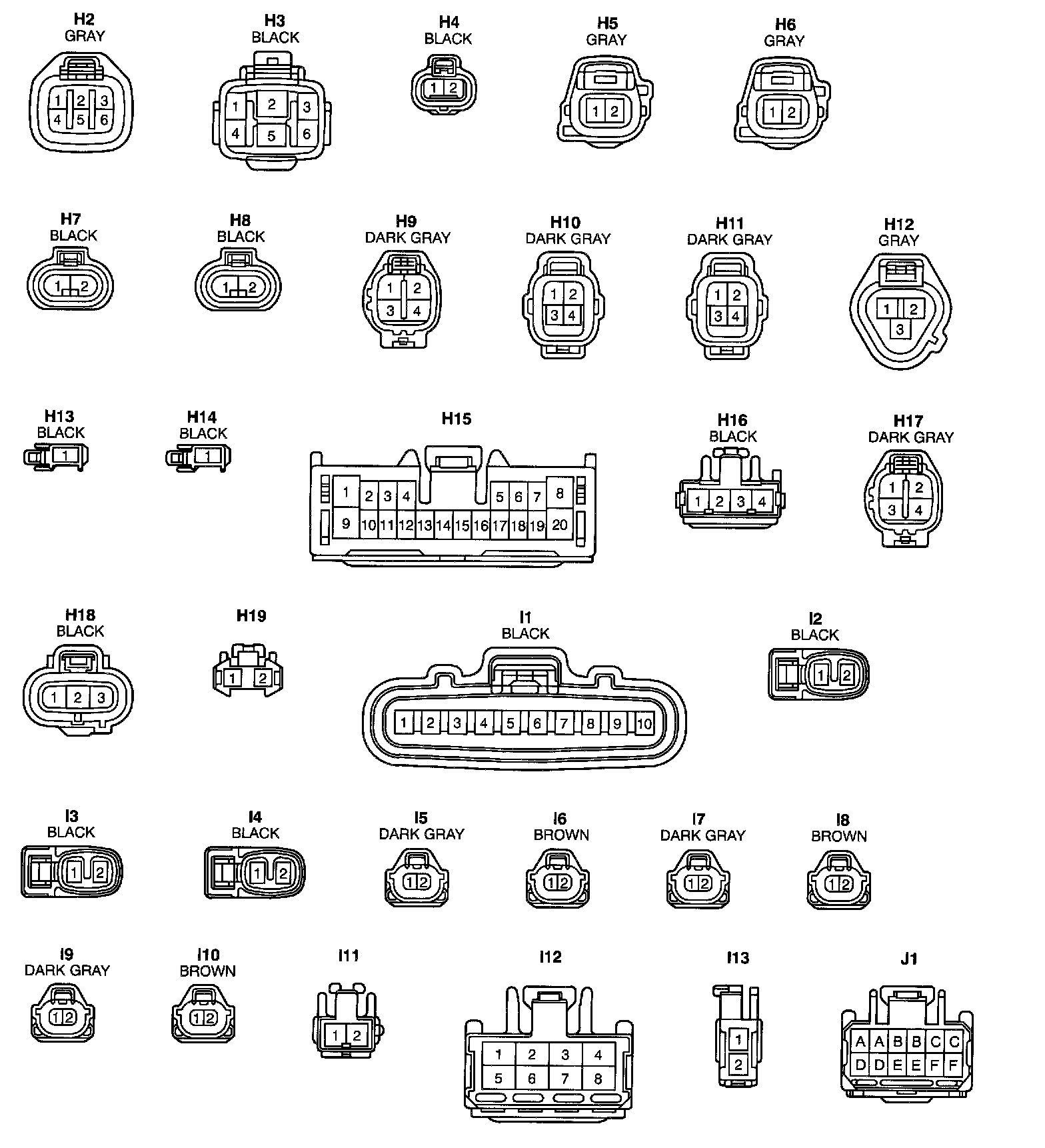

Connector Views (H2 - J1):

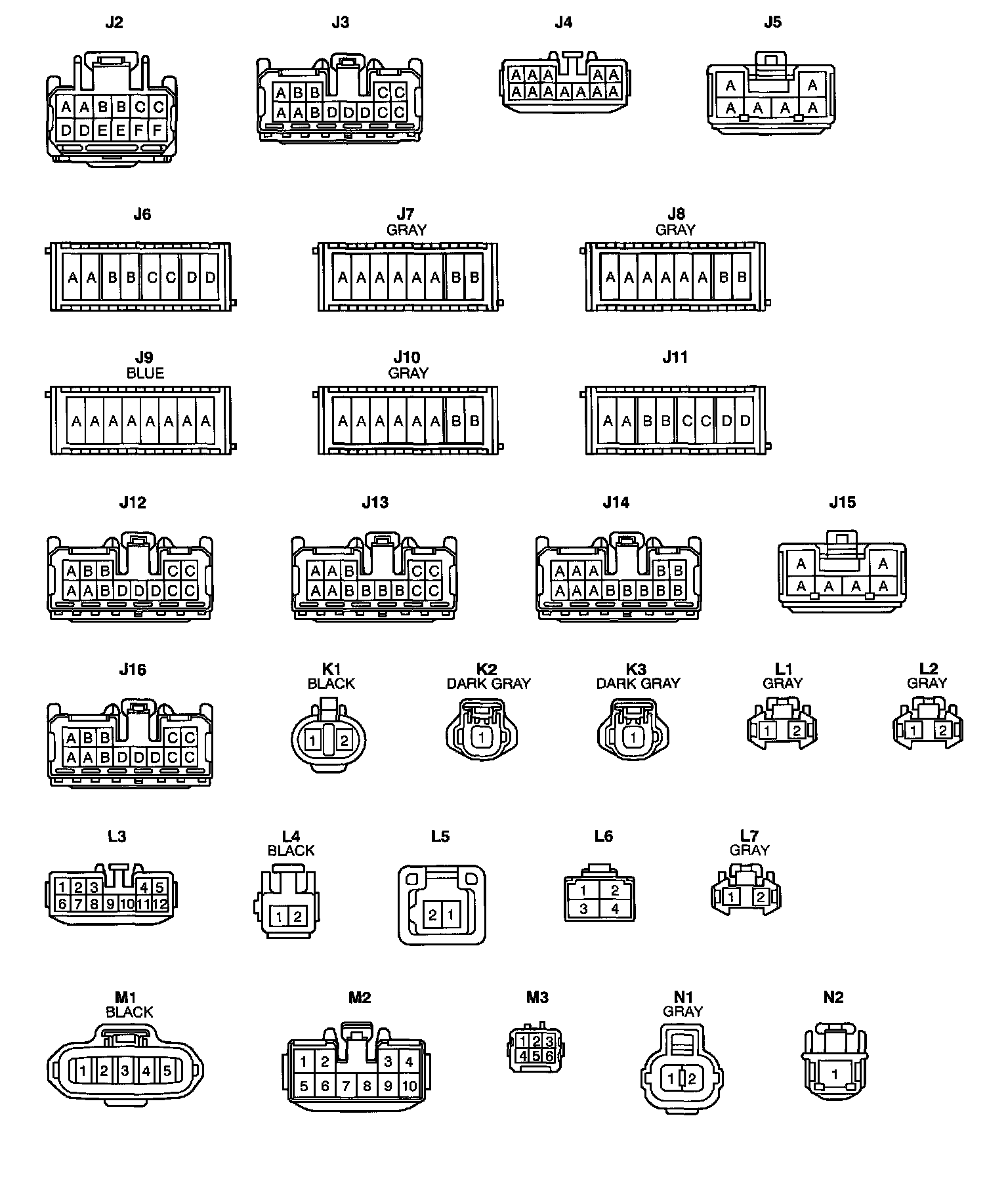

Connector Views (J2 - N2):

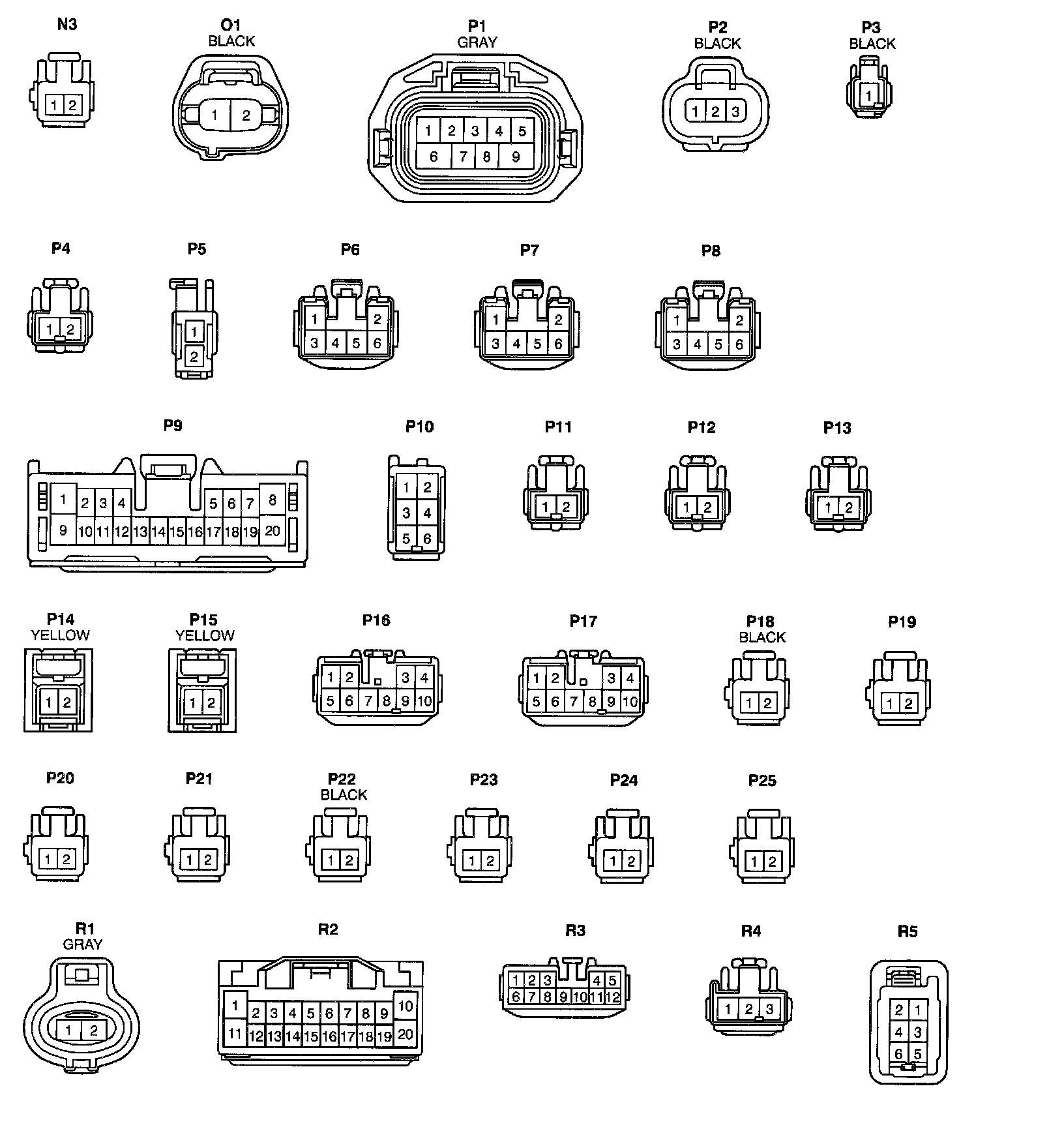

Connector Views (N3 - R5):

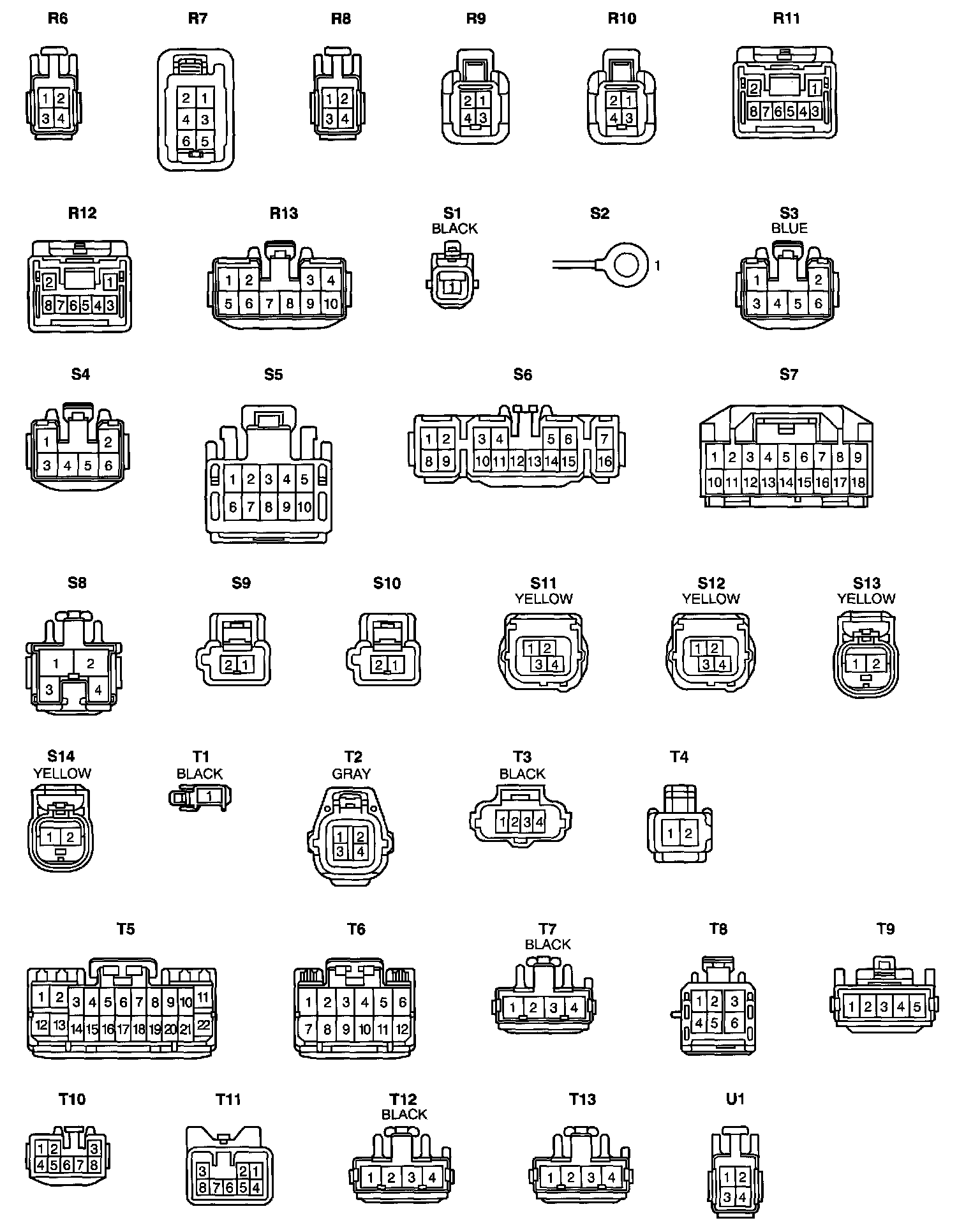

Connector Views (R6 - U1):

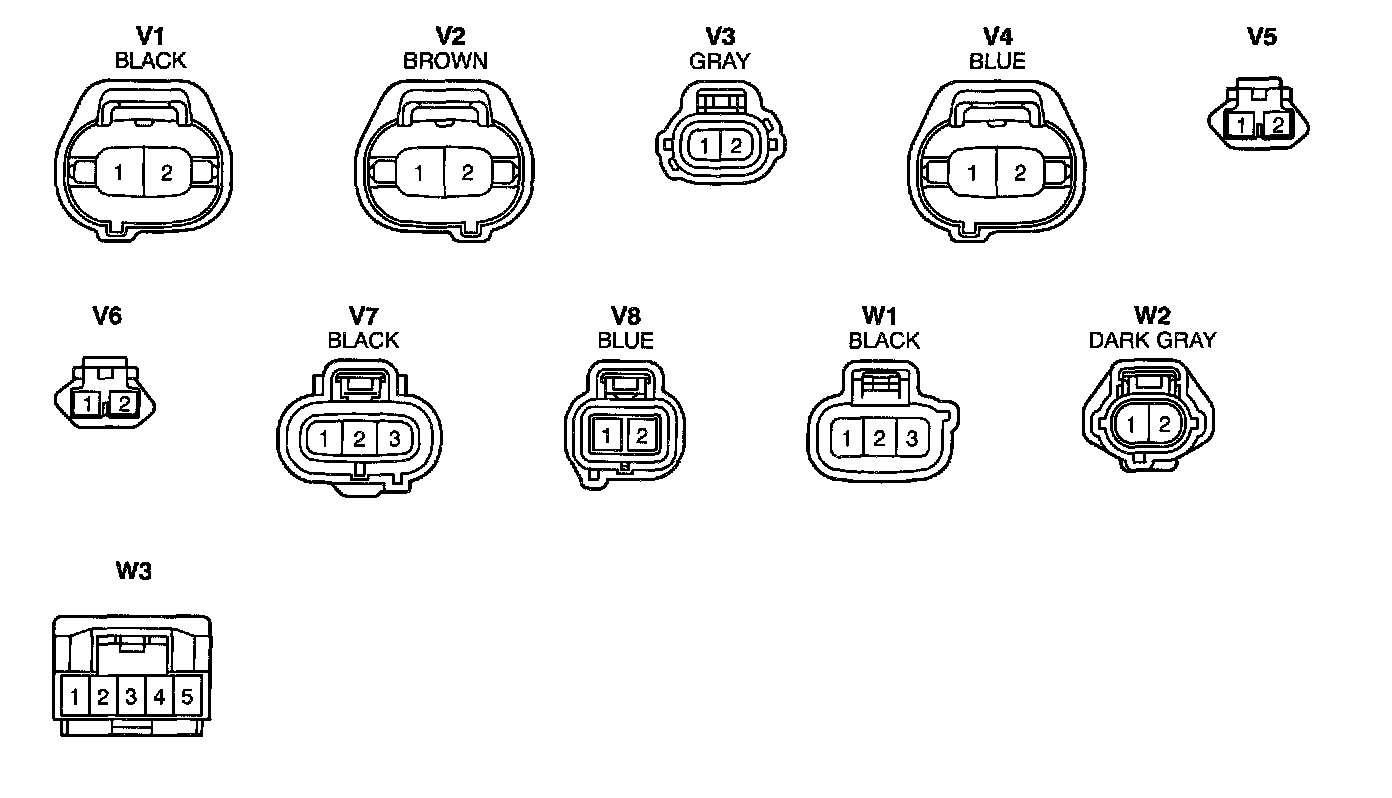

Connector Views (V1 - W3):
