Cooling System (Mechanical): Radiator: Components

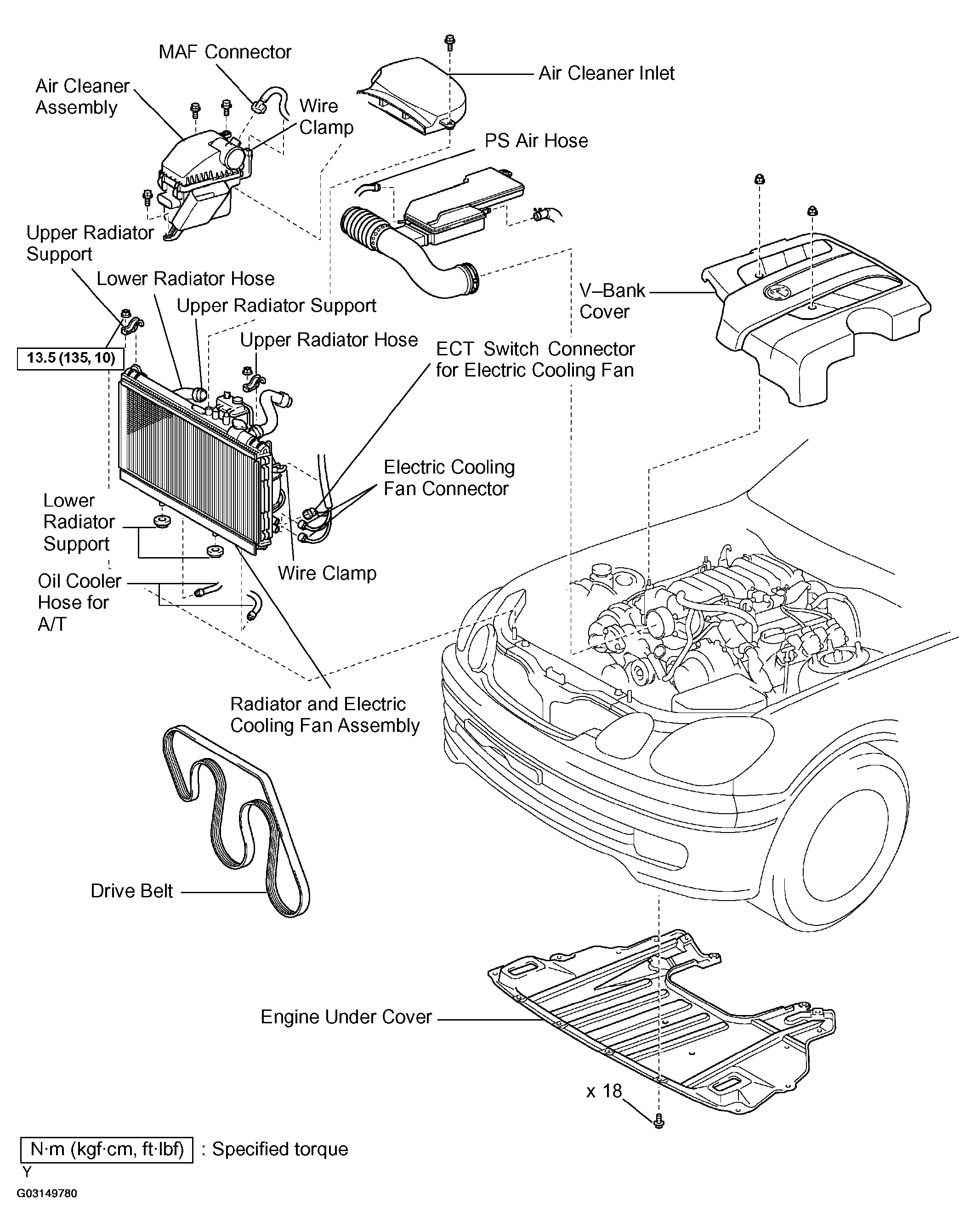

Fig 1: Exploded View Of Radiator Removal & Installation
G03149780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

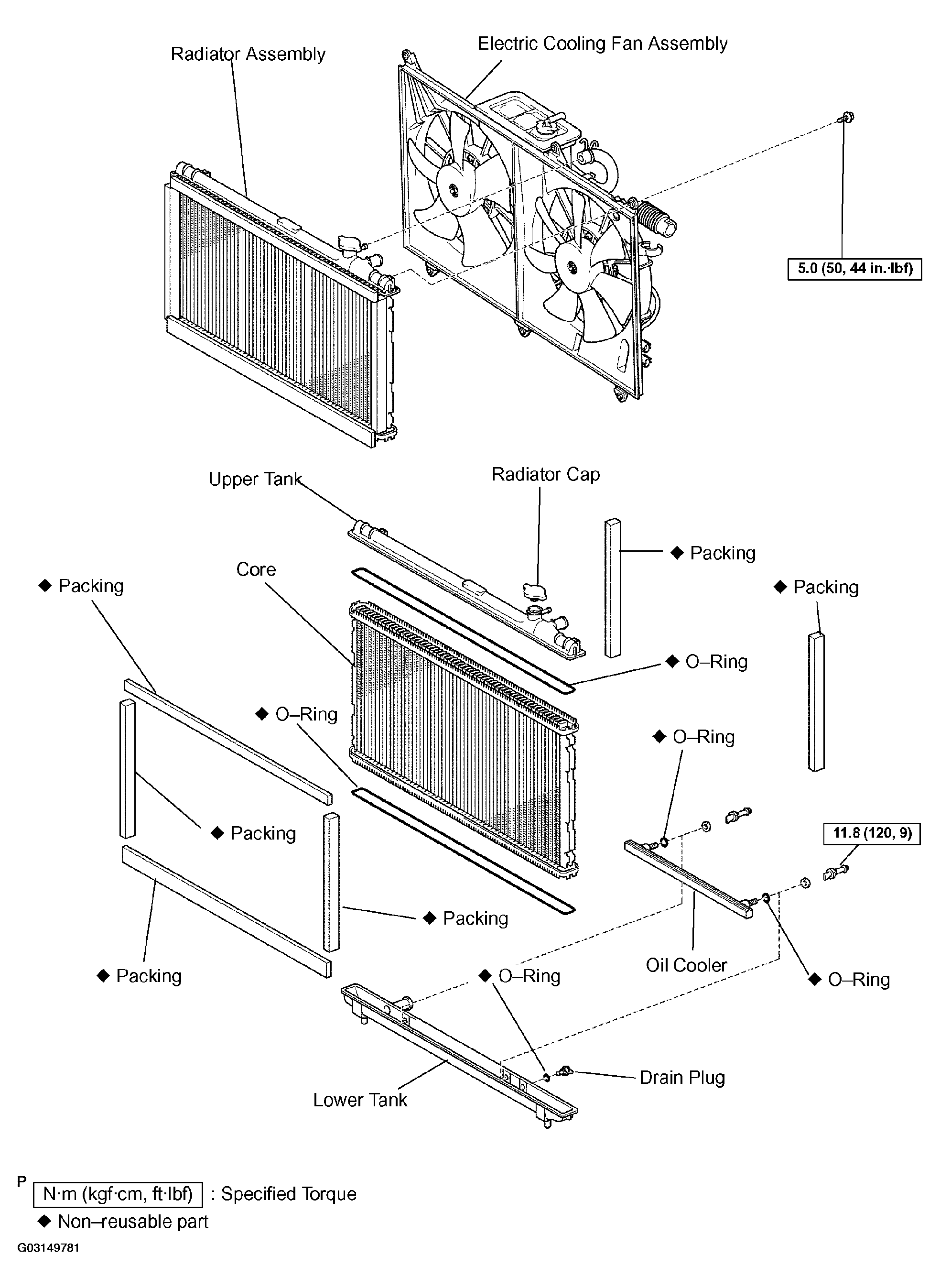

Fig 2: Exploded View Of Radiator Assembly
G03149781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
