Variable Valve Timing Actuator Position Sensor: Testing and Inspection
VVT SENSORINSPECTION
1. REMOVE V-BANK COVER
2. VVT Sensor (Bank 2): REMOVE INTAKE AIR CONNECTOR PIPE
3. VVT Sensor (Bank 1): DISCONNECT ENGINE WIRE PROTECTOR FROM UPPER INTAKE MANIFOLD AND BEARING CAP
a. Remove the No.3 V-bank cover bracket.
b. Disconnect the EVAP hose from VSV for EVAP.
c. Remove the VSV for EVAP from upper intake manifold.
d. Remove the No.2 V-bank cover bracket from upper intake manifold.
e. Disconnect the PCV hose from upper intake manifold.
f. Remove the 4 bolts, and disconnect the engine wire protector from the upper intake manifold and camshaft bearing cap.

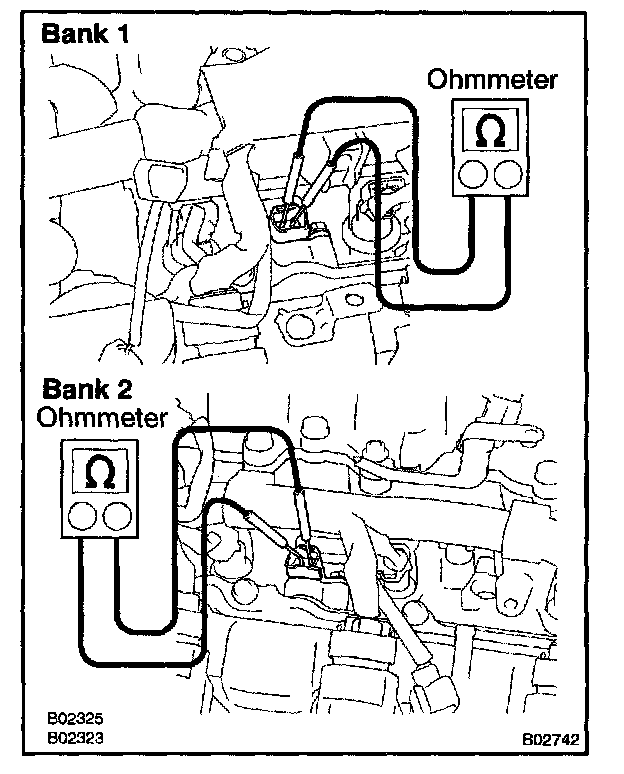

4. INSPECT VVT SENSOR RESISTANCE
NOTE: "Cold" and "Hot in these sentences express the temperature of the sensors themselves. "Cold" is from -10 °C (14 °F) to 50 °C (122 °F) and "Hot" is from 50 °C (122 °F) to 100 °C (212 °F).
a. Disconnect the VVT sensor connectors.
Resistance:
b. Using a ohmmeter, measure the resistance between terminals.
If the resistance is not as specified, replace the sensor.
c. Reconnect the VVT sensor connectors.
5. VVT Sensor (Bank 1): REINSTALL ENGINE WIRE PROTECTOR TO UPPER INTAKE MANIFOLD AND BEARING CAP
6. VVT Sensor (Bank 2): REINSTALL INTAKE AIR CONNECTOR PIPE
7. REINSTALL V-BANK COVER
