Compressor Circuit

Compressor Circuit

CIRCUIT DESCRIPTION
The A/C control assembly outputs the magnetic clutch ON signal from terminal MGC to the ECM. When the ECM receives this signal, it sends a signal from terminal ACMG and switches the A/C magnetic clutch relay ON, thus turning the A/C compressor magnetic clutch ON.

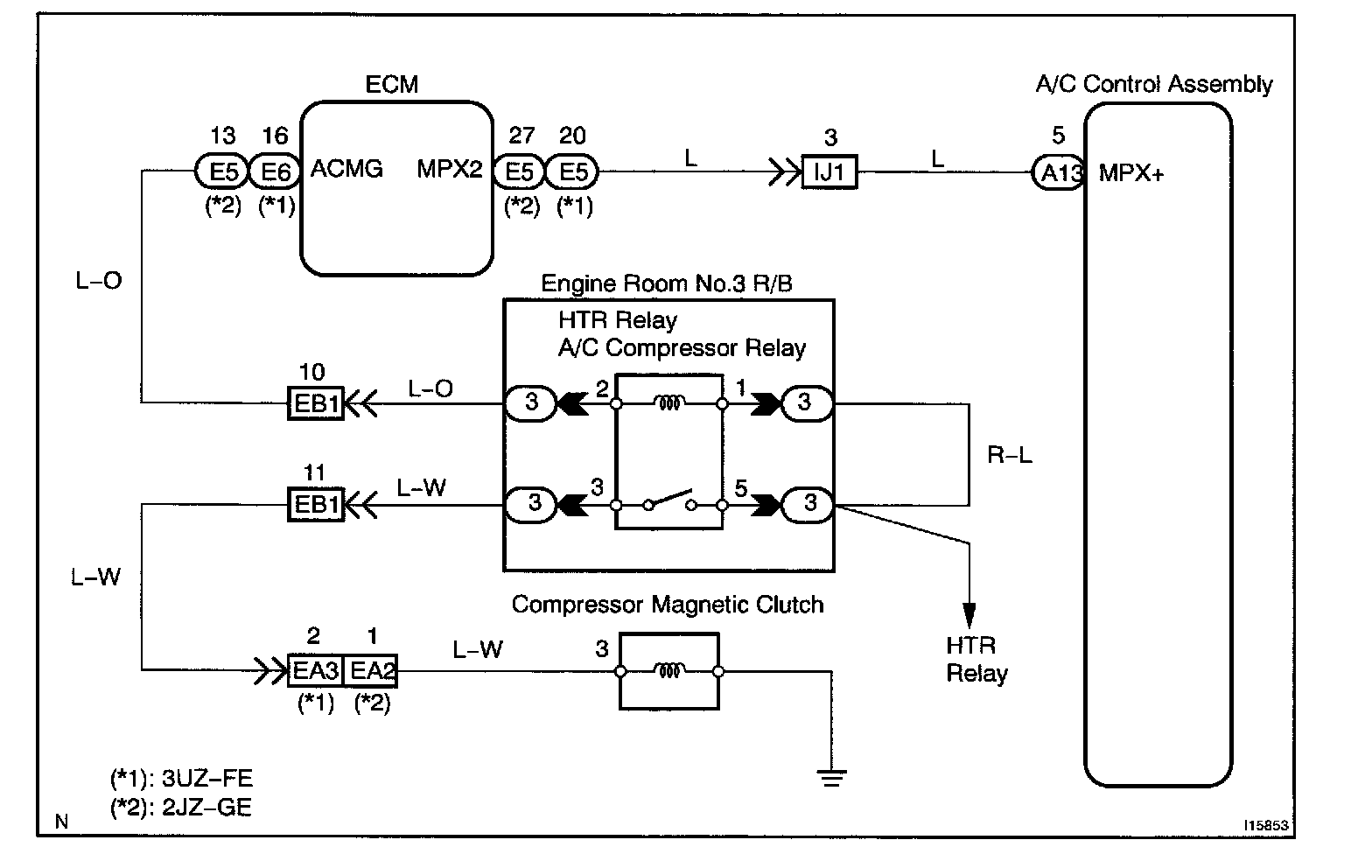

Wiring Diagram:

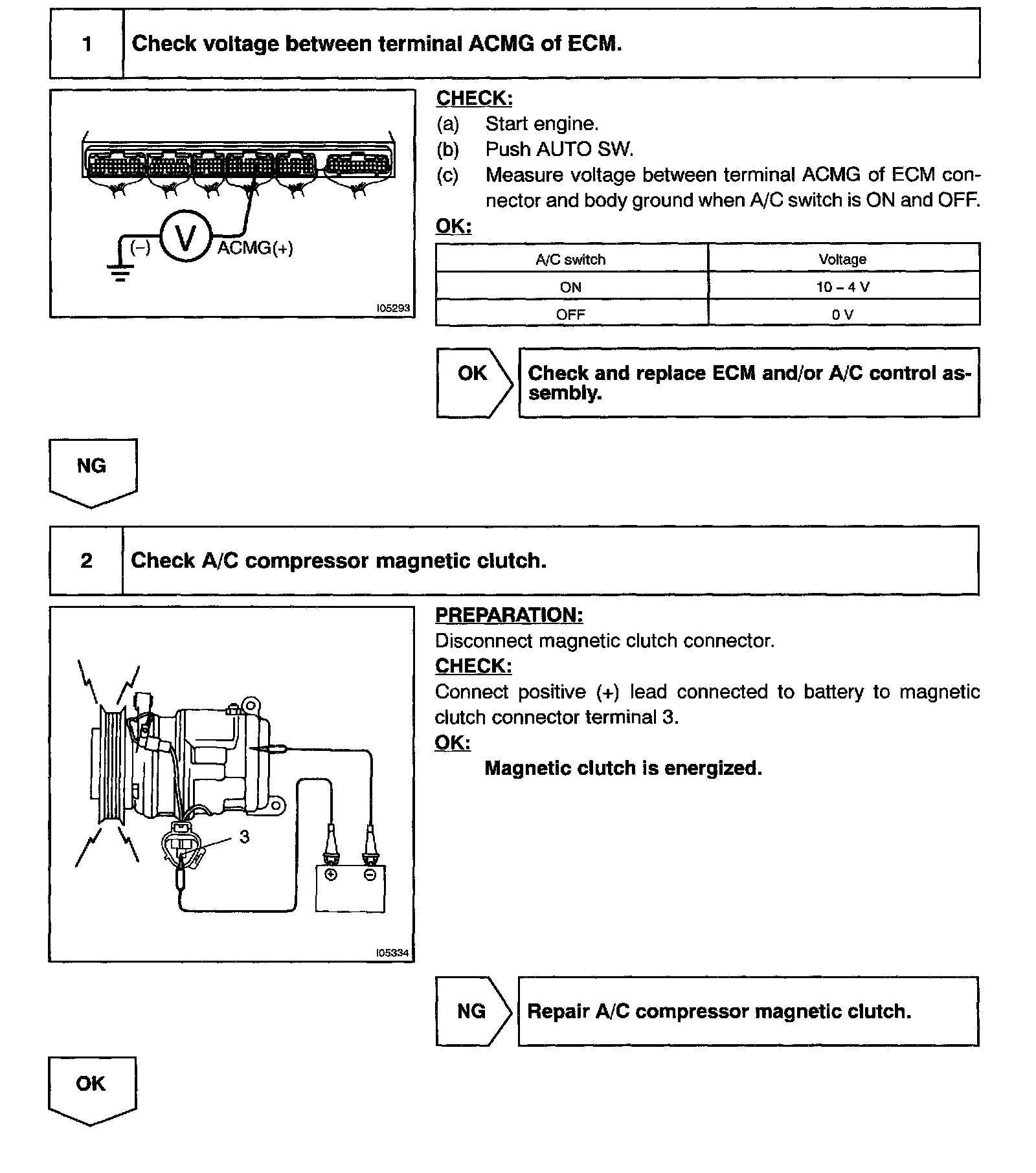

Steps 1 - 2:

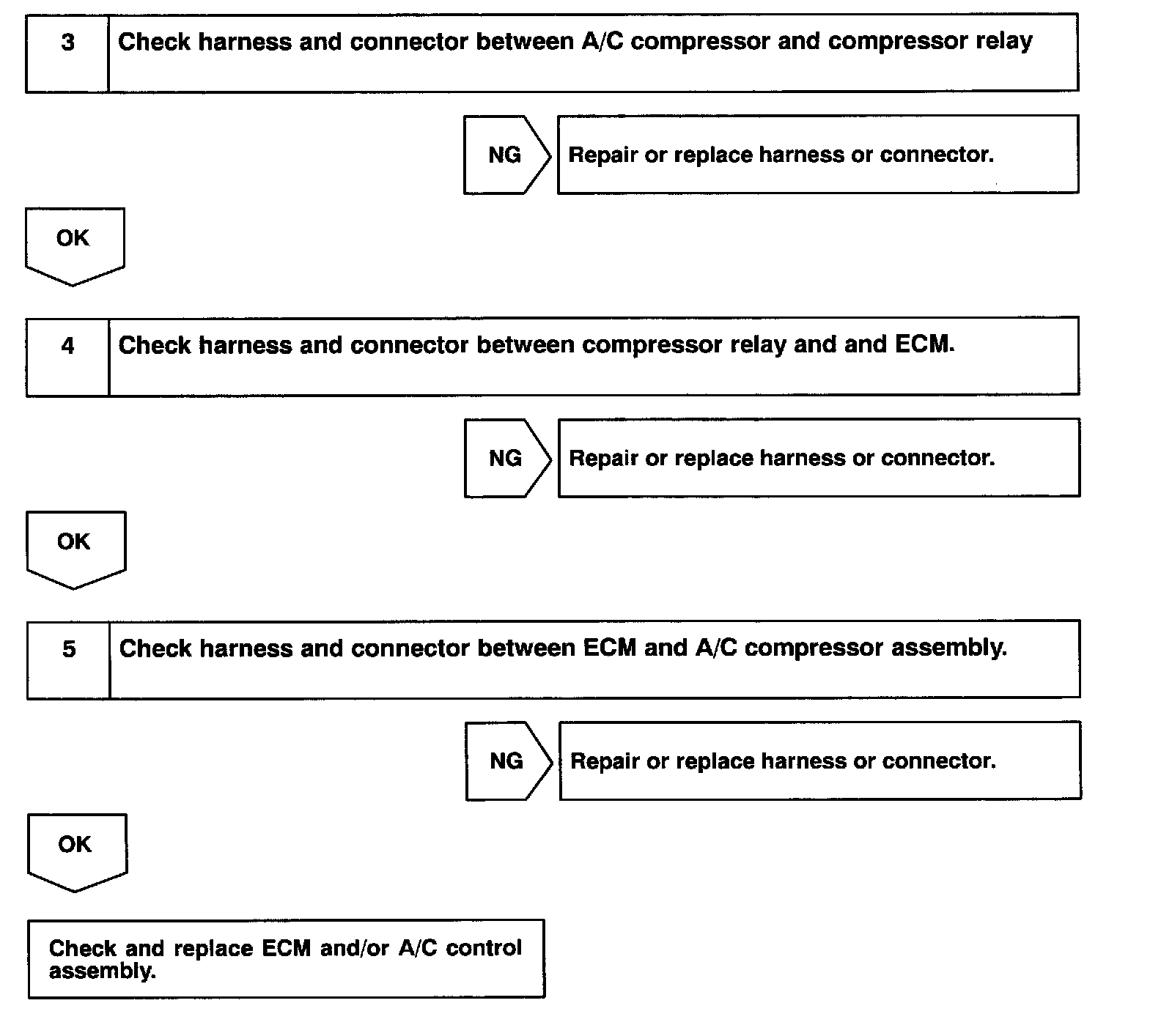

Steps 3 - 5:




INSPECTION PROCEDURE
