Charging Systems: Components

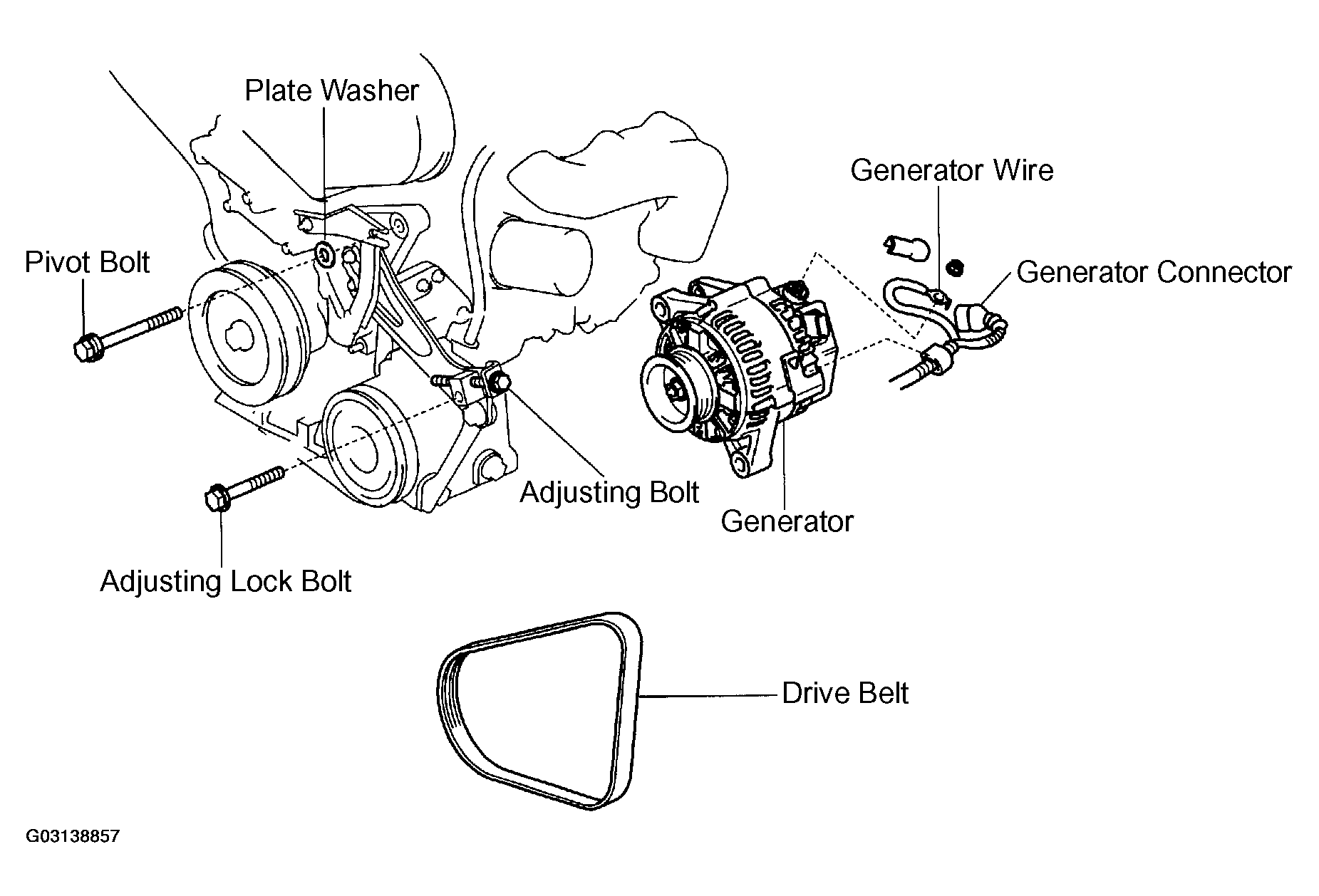

Fig 1: Exploded View Of Generator Removal & Installation
G03138857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

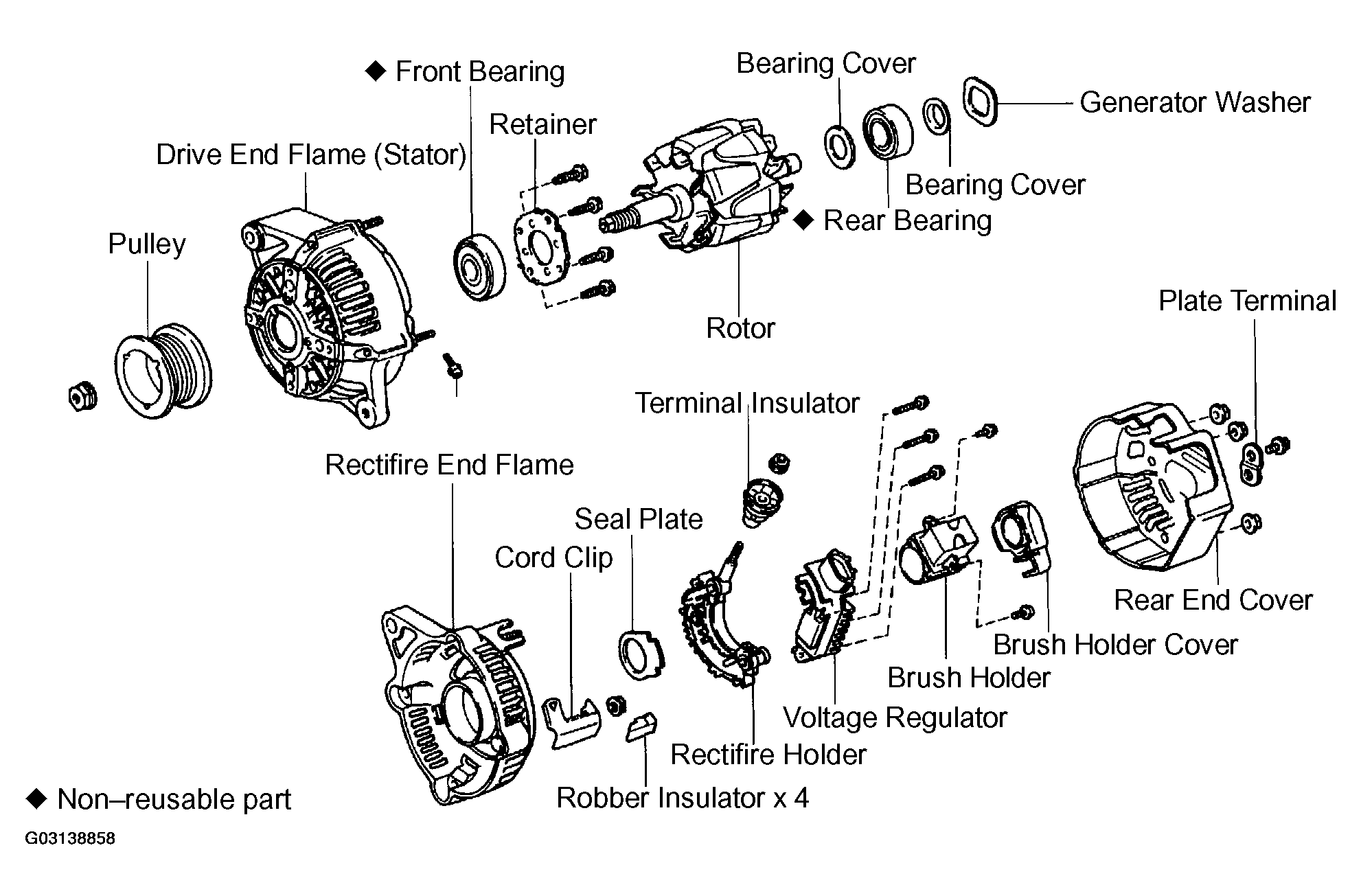

Fig 2: Exploded View Of Generator Assembly
G03138858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
