Slide Motor Power Source Circuit

Passenger's Side

CIRCUIT DESCRIPTION
This is the power source for slide motor

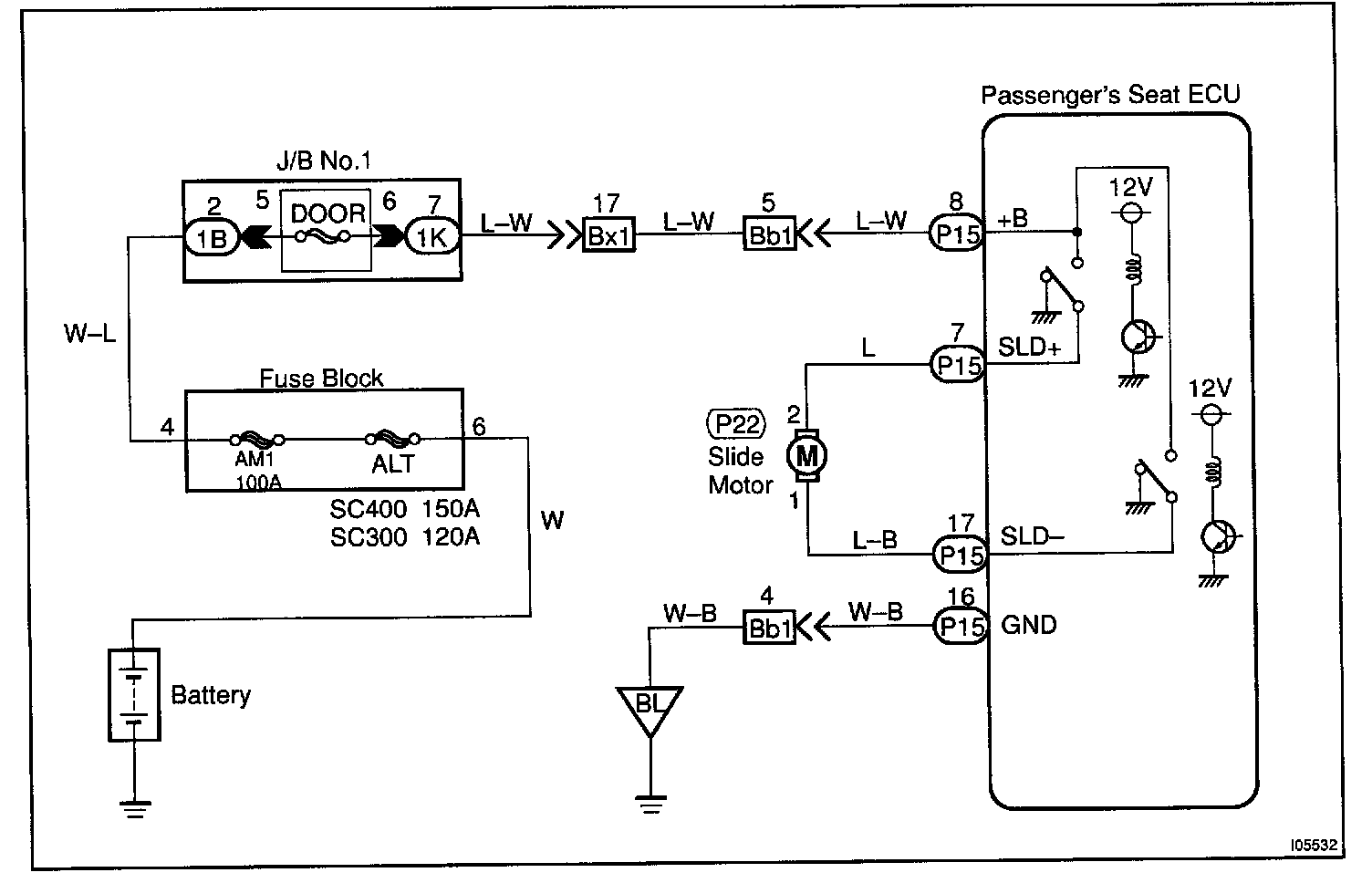

Wiring Diagram:






Step 1:

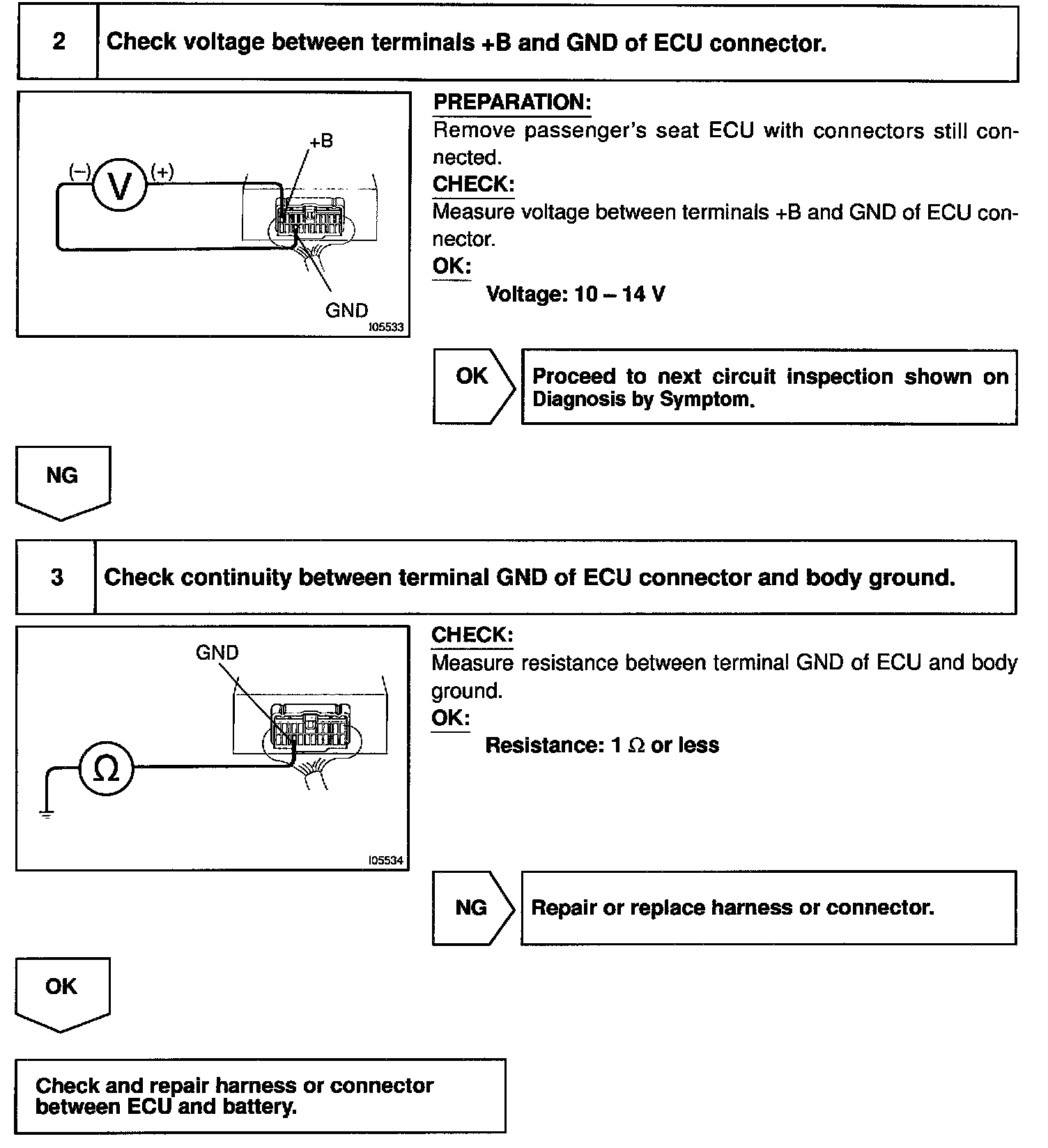

Step 2 - 3:




INSPECTION PROCEDURE
