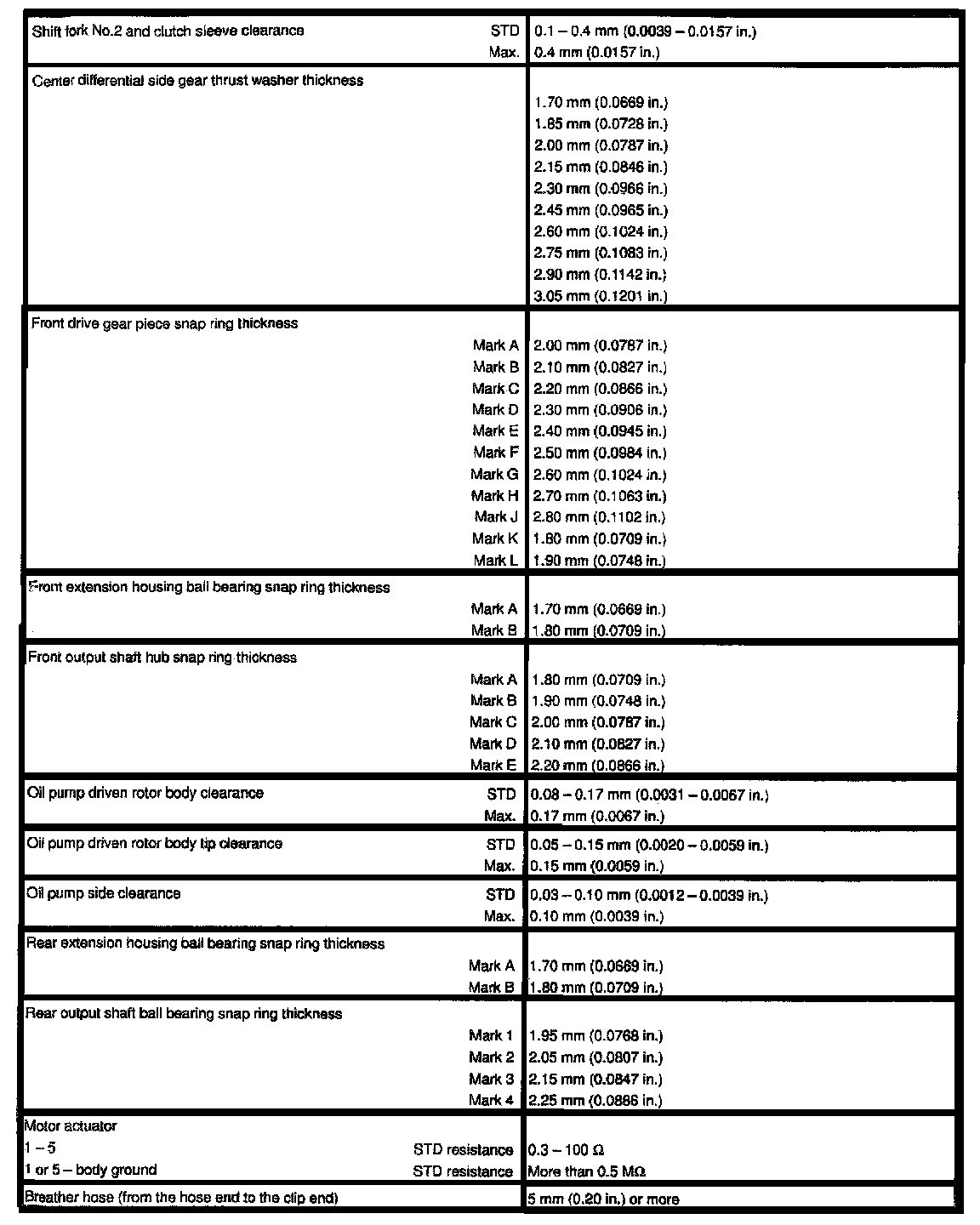

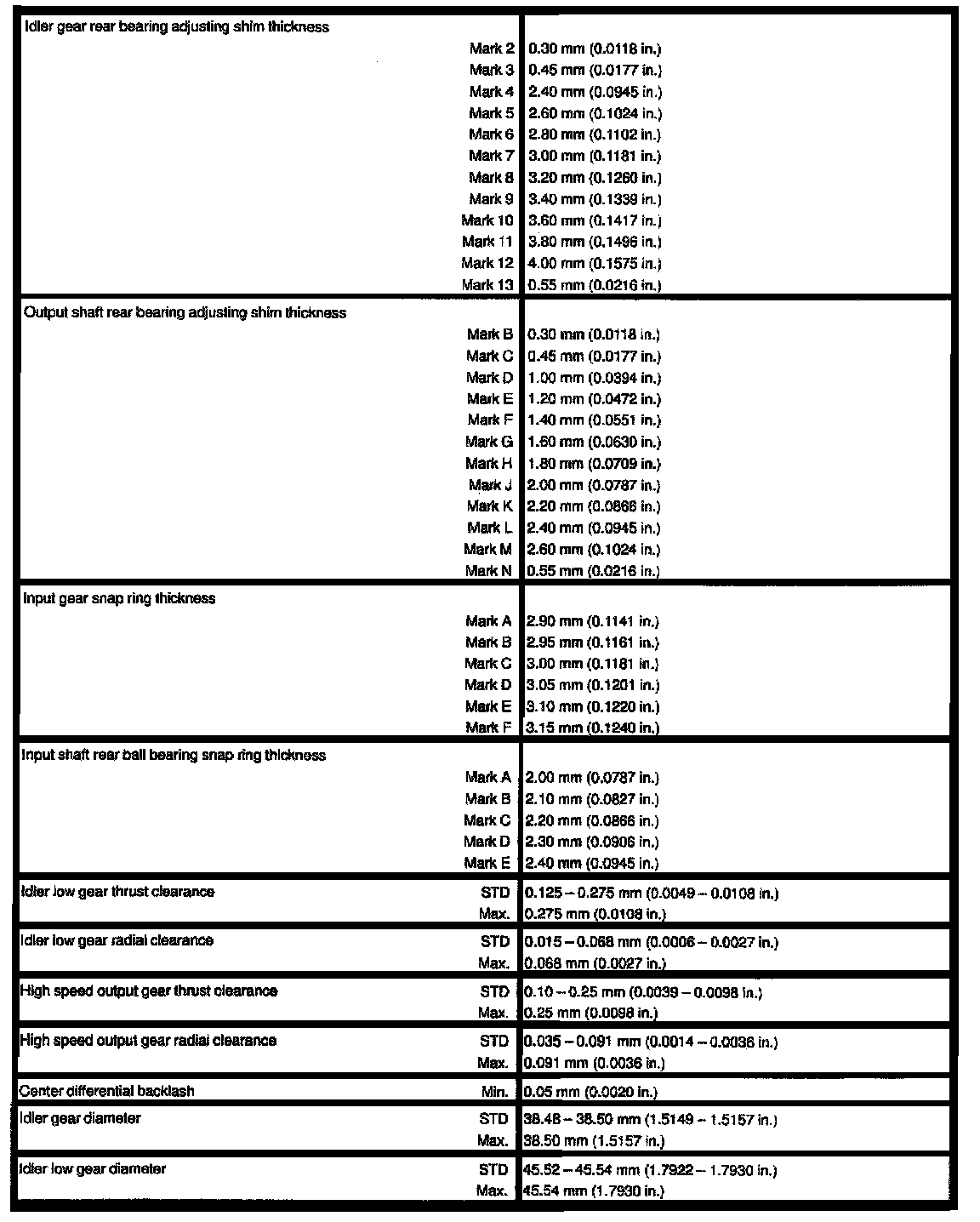

Transfer Case Technical Data

Four Wheel Drive, Transfer Case Clearance / Tolerance:





Four Wheel Drive, Transfer Case Clearance / Thickness:
