Catalytic Converter: Service and Repair

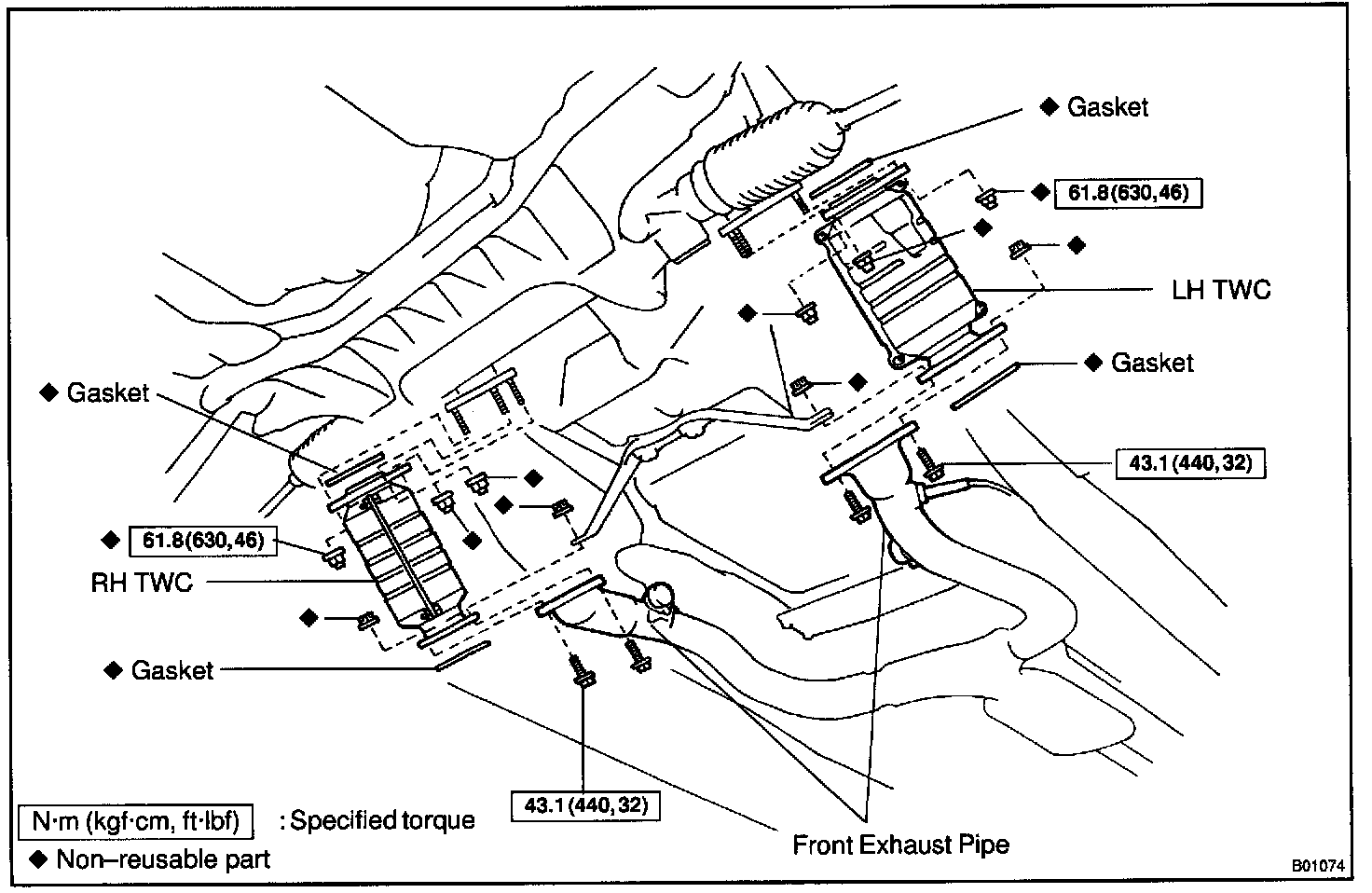

COMPONENTS

CONNECT FRONT AND CENTER EXHAUST PIPES





HINT:
- Install a new gasket to the exhaust pipe in the correct direction.
- Fit together the clamp protrusion and pipe hollow, and tighten the clamp bolt until A and B of the clamp are just touching.
