Mirror Position Sensor Circuit (W/ Memory)

CIRCUIT DESCRIPTION
This position detected by the mirror position detection sensor will be memorized in the seat ECU. This sensor is equipped in the mirror in spite of the existence of the memory function.

Wiring Diagram:

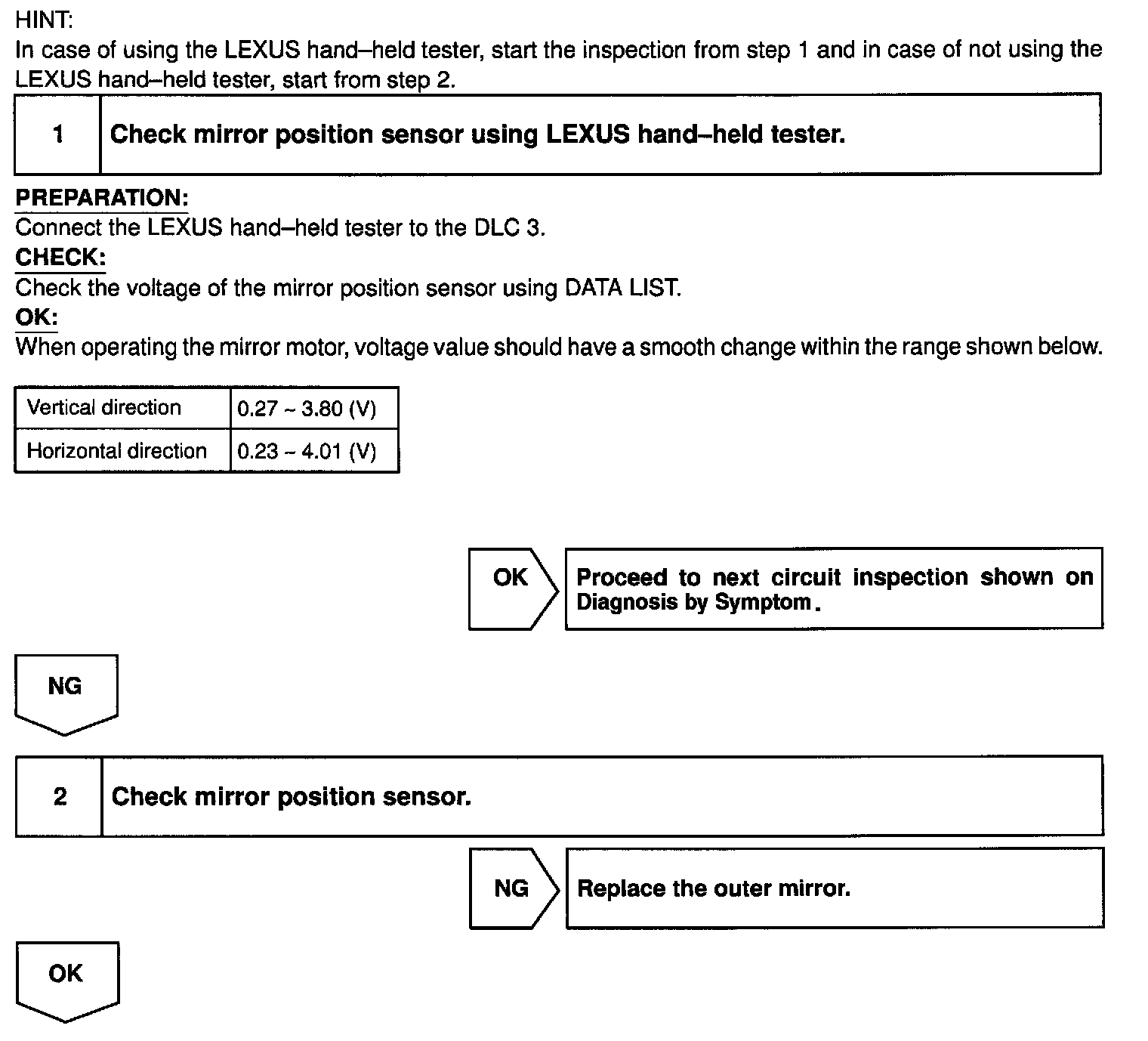

Steps 1 - 2:

Step 3:

INSPECTION PROCEDURE
