Mechanical Specifications

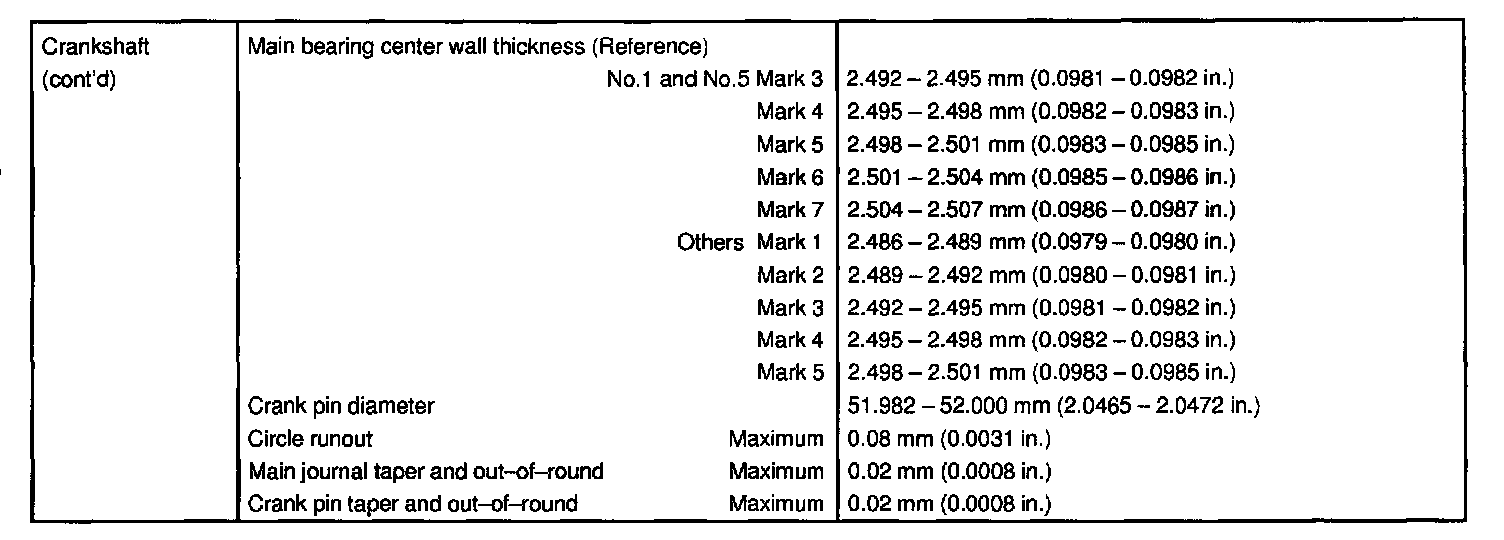

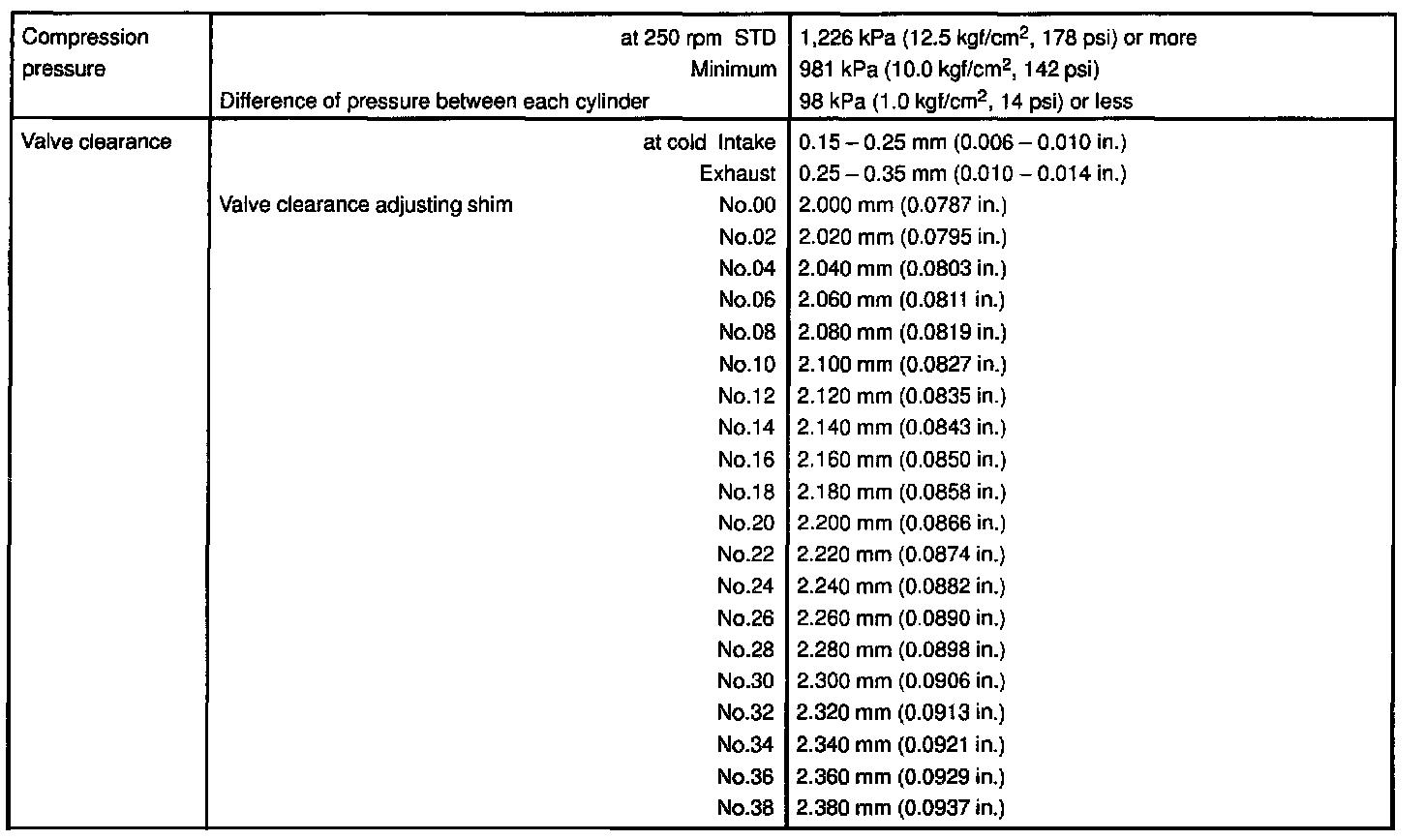

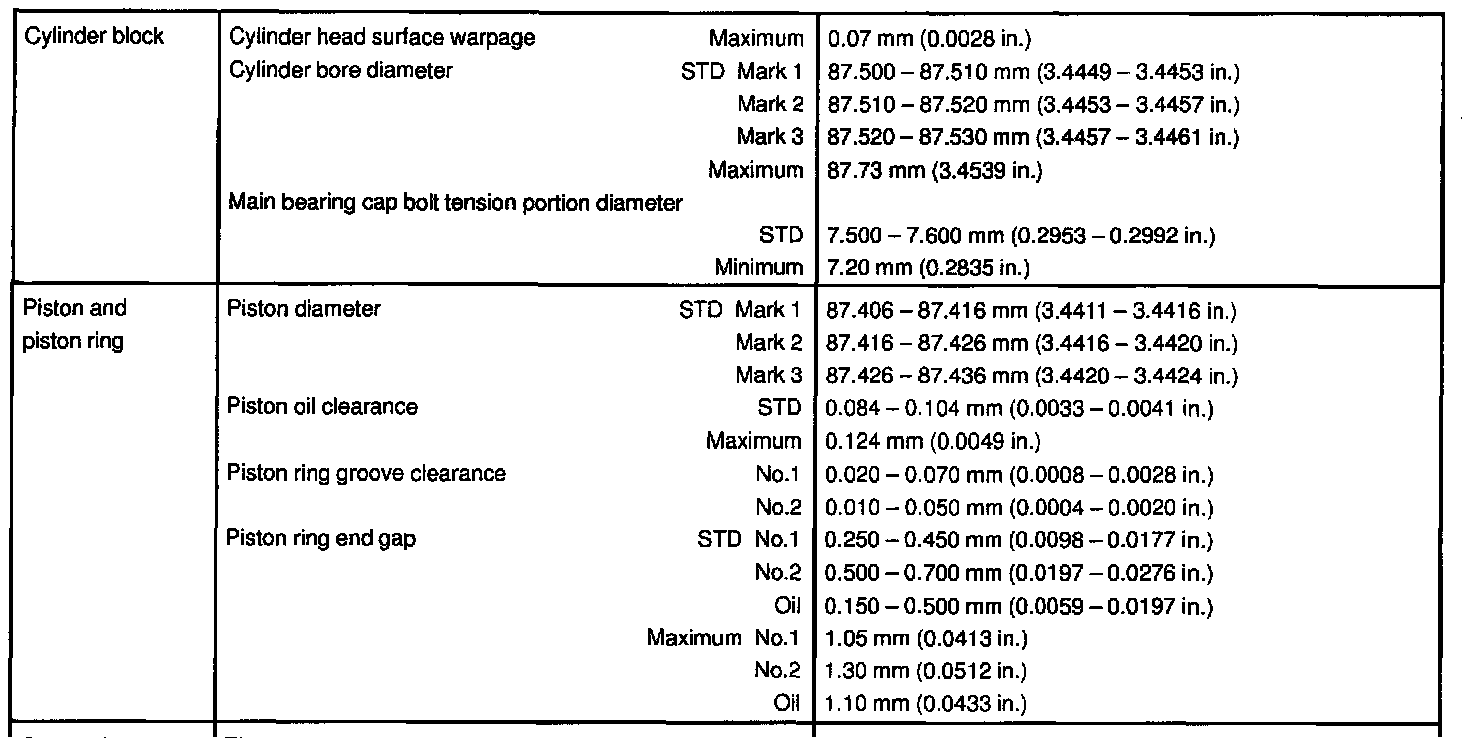

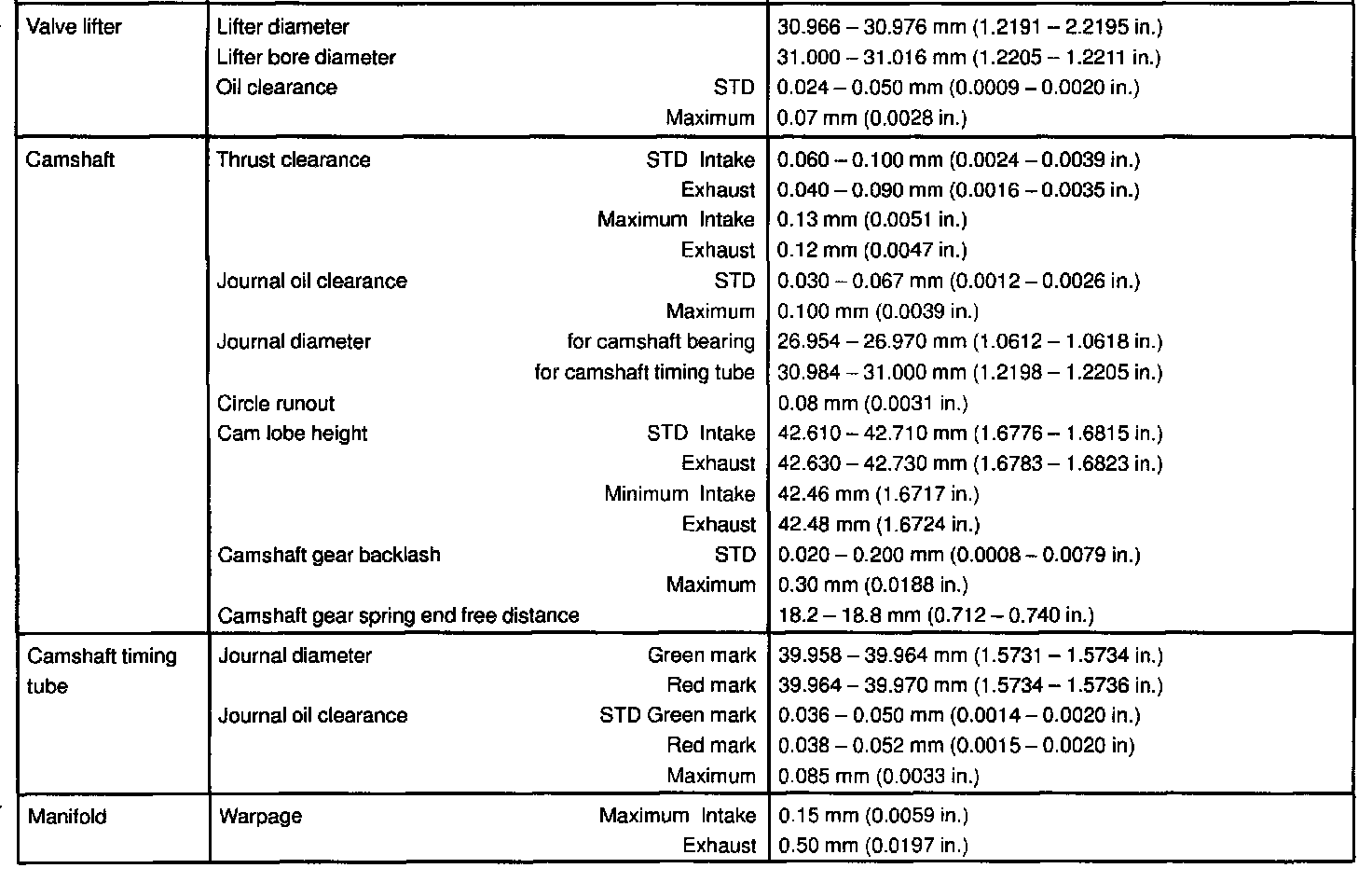

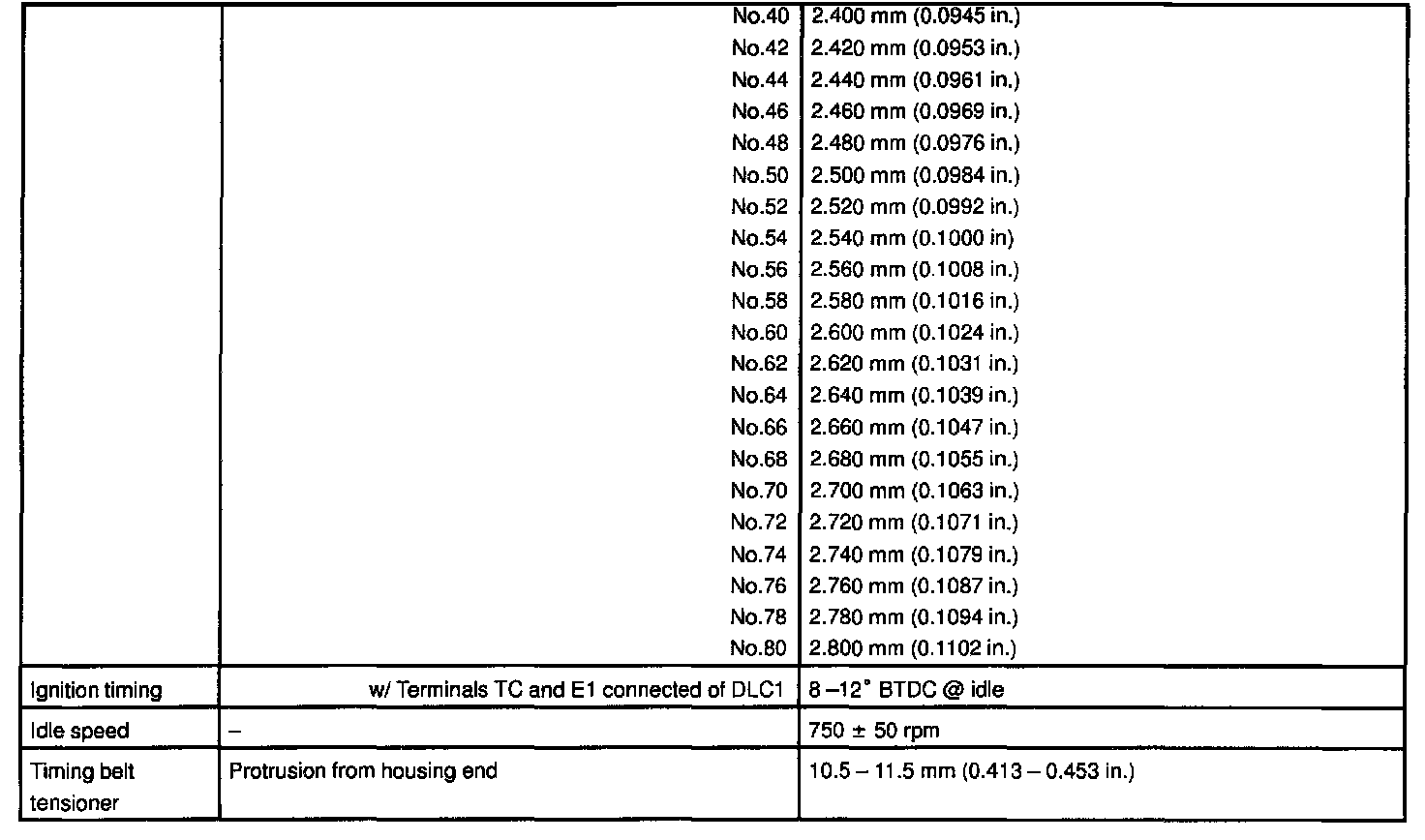

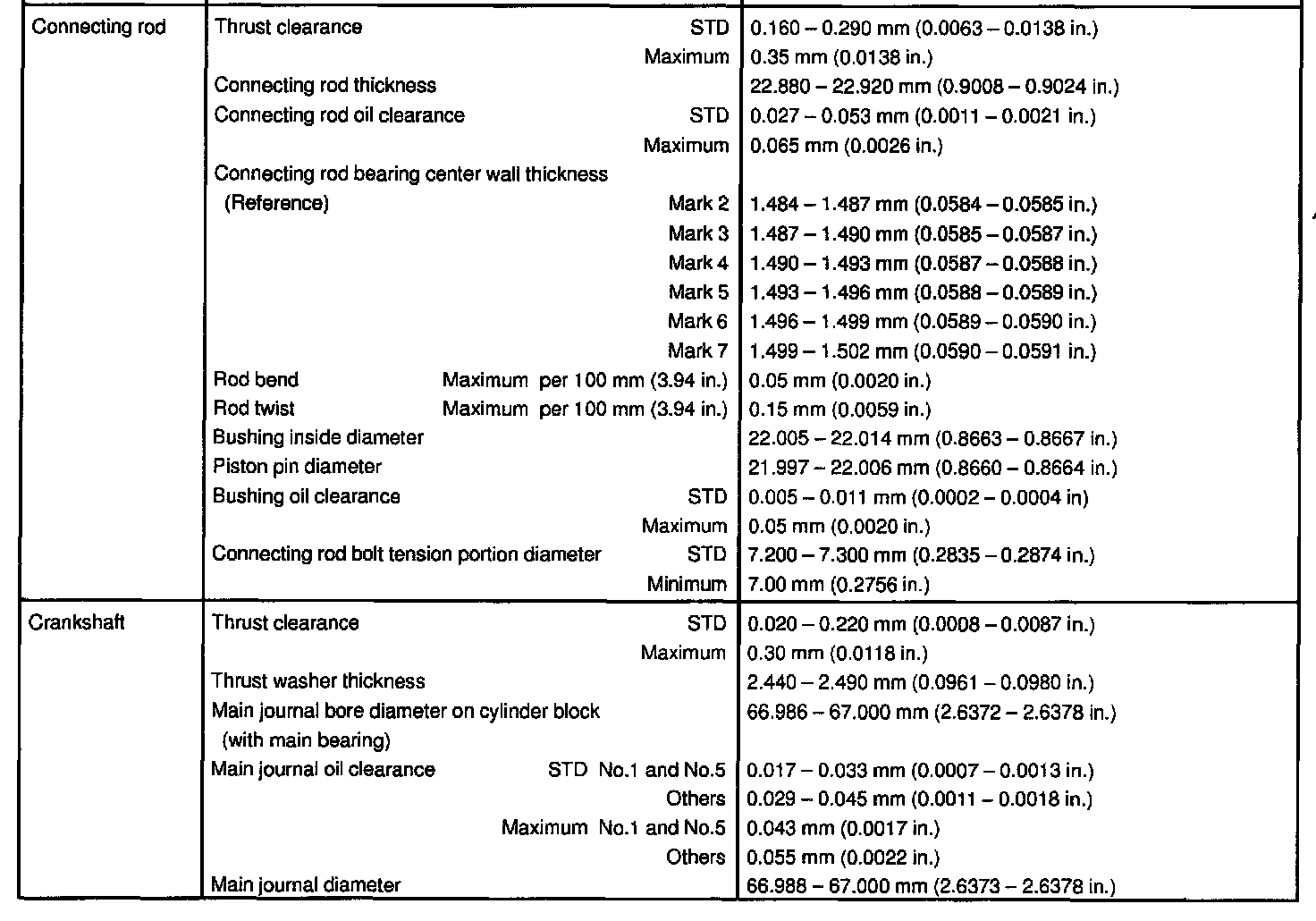

1UZ-FE Engine Mechanical Specifications





Part 1 of 7





Part 1 of 7





Part 3 of 7





Part 4 of 7





Part 5 of 7





Part 6 of 7





Part 7 of 7
