Radiator

RADIATOR REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

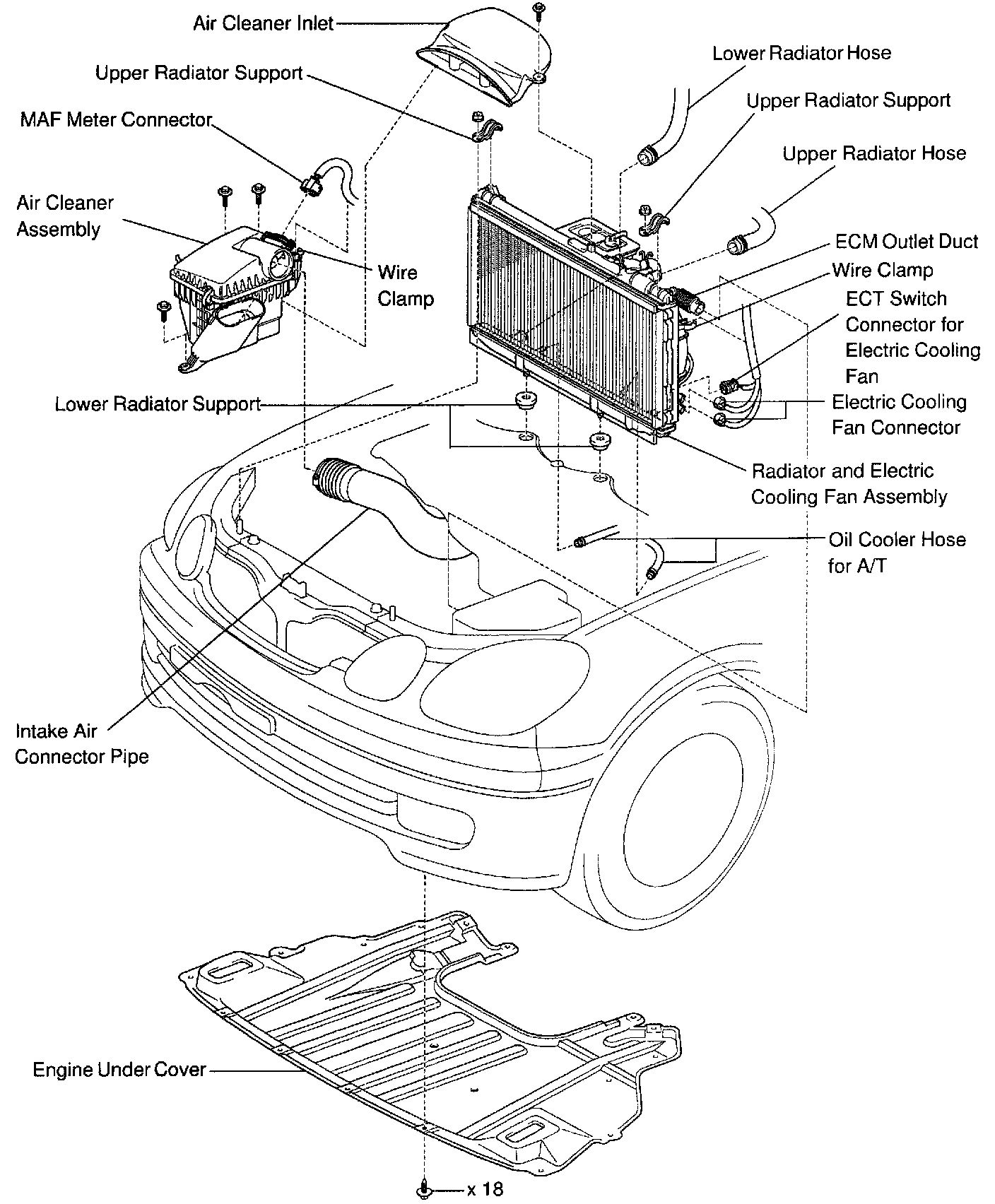

Radiator, And Related Hoses And Electrical Connectors:





Part 1 of 3

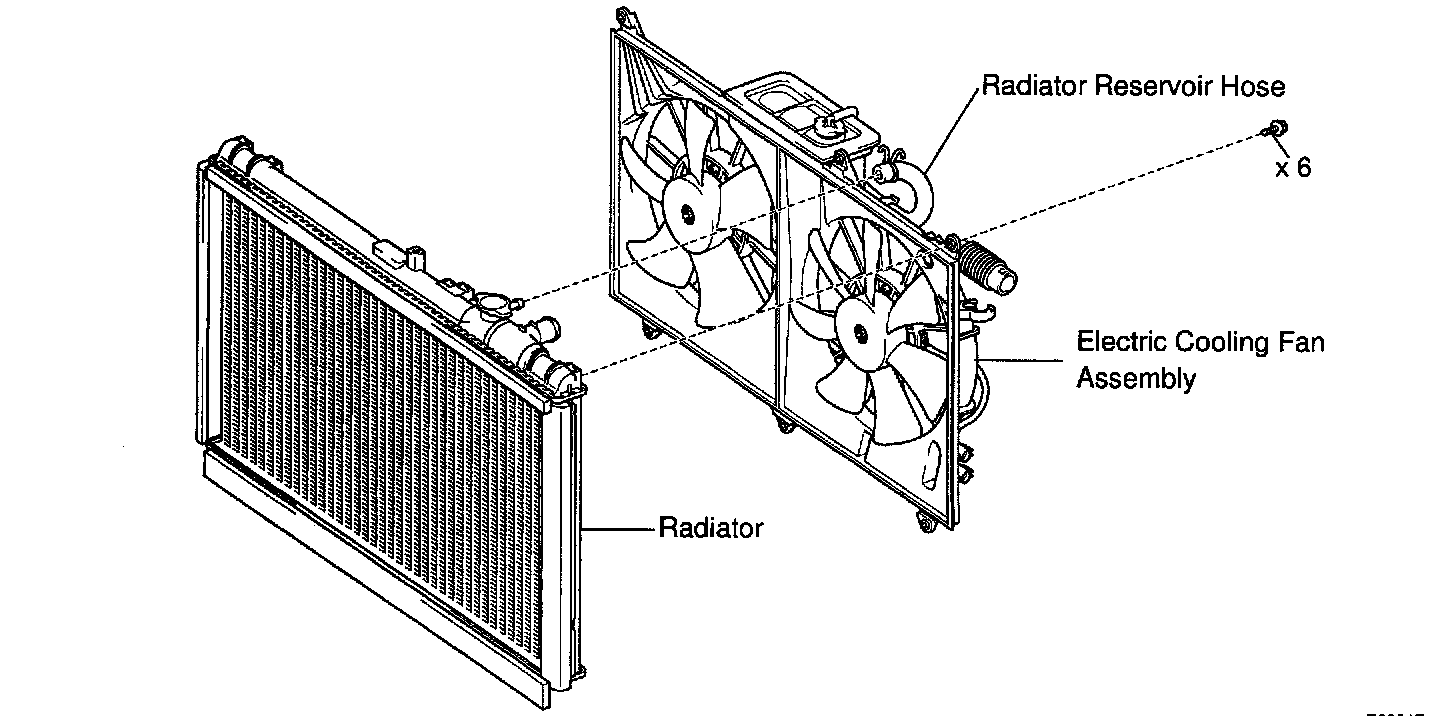

Radiator, Cooling Fans Assb, Reservoir Hose:





Part 2 of 3

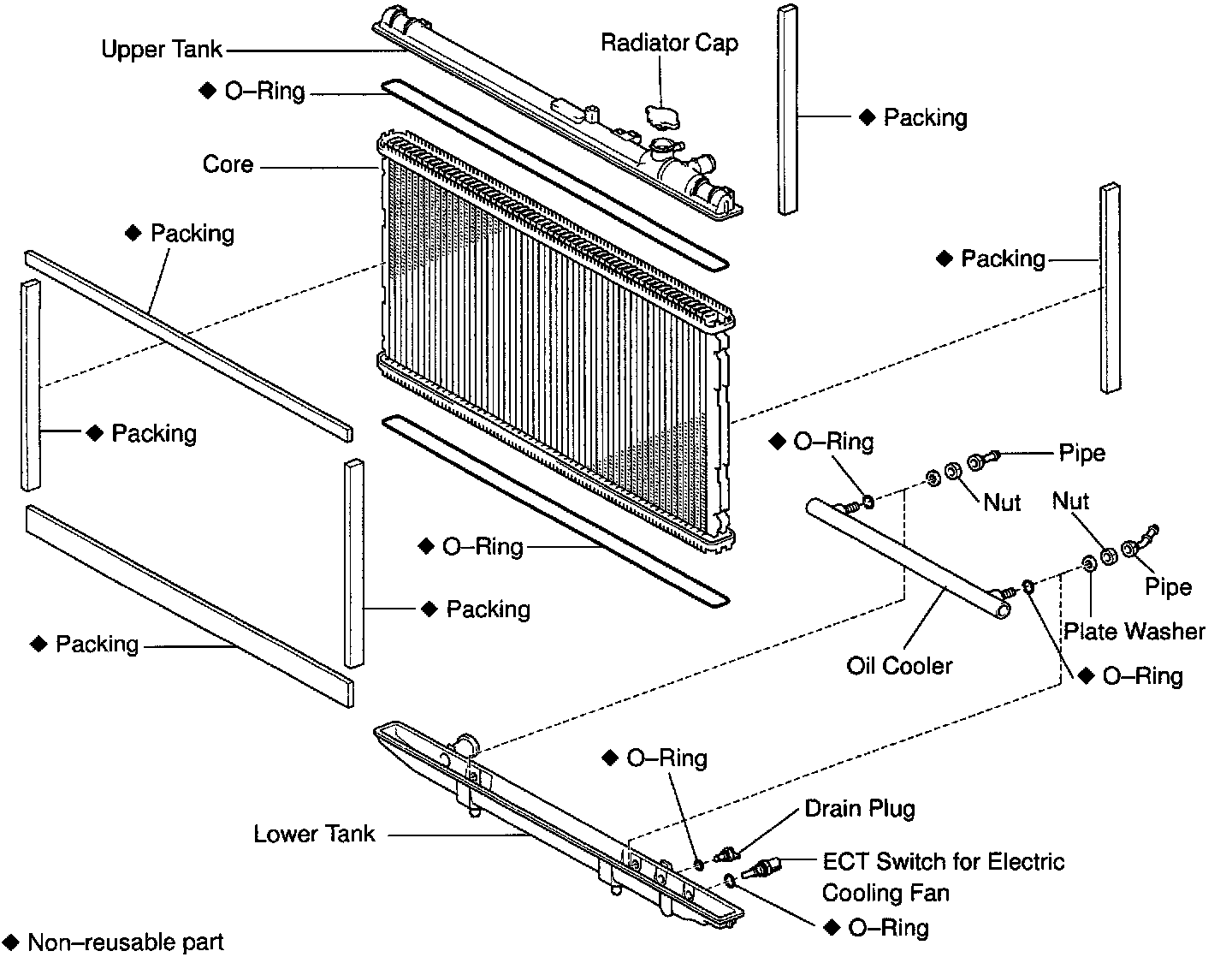

Radiator, Core, And Tanks:





Part 3 of 3
