Torque Specifications

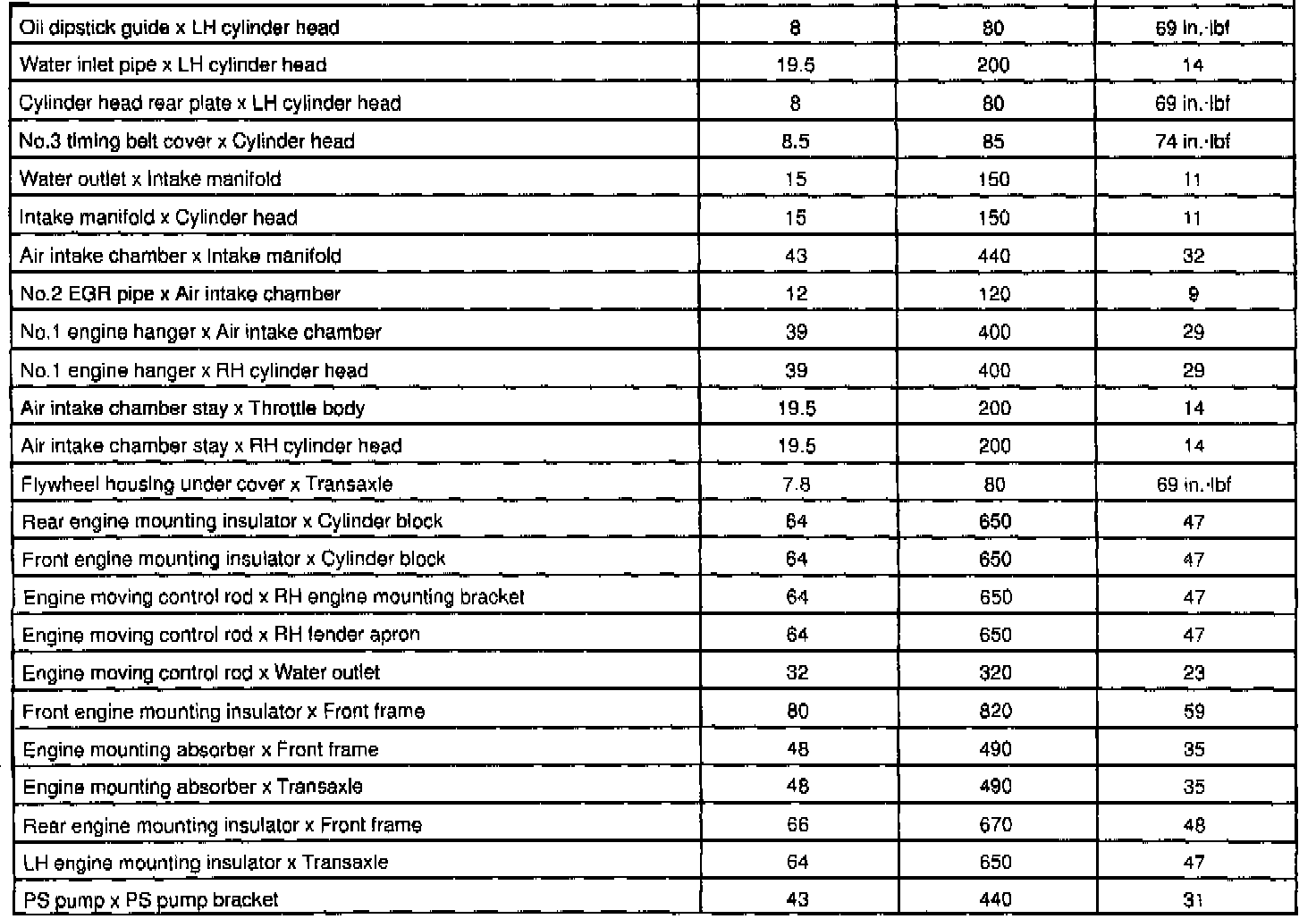

3.0L Engine Mechanical Torque:

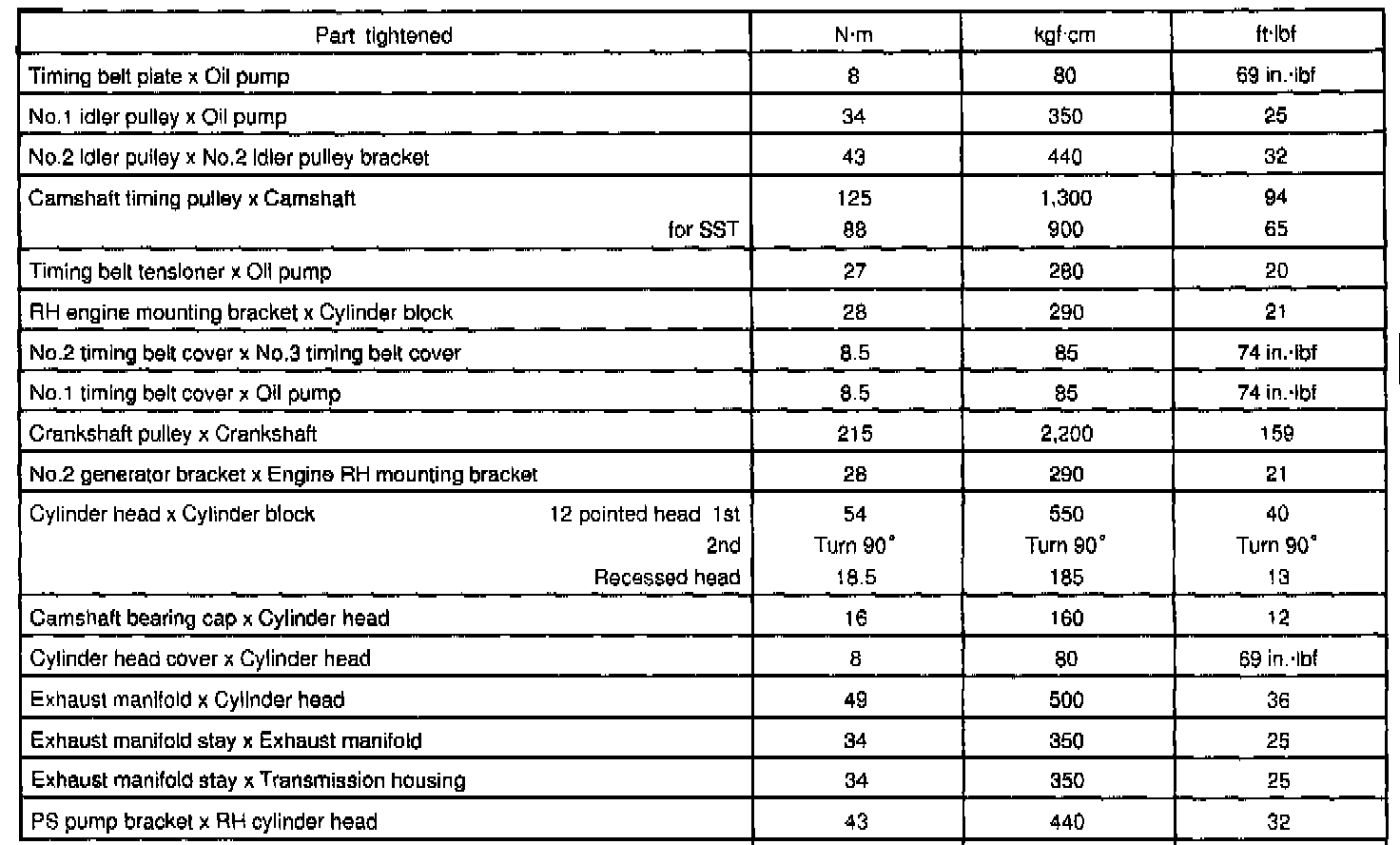

3.0L Engine Torque Cont.:

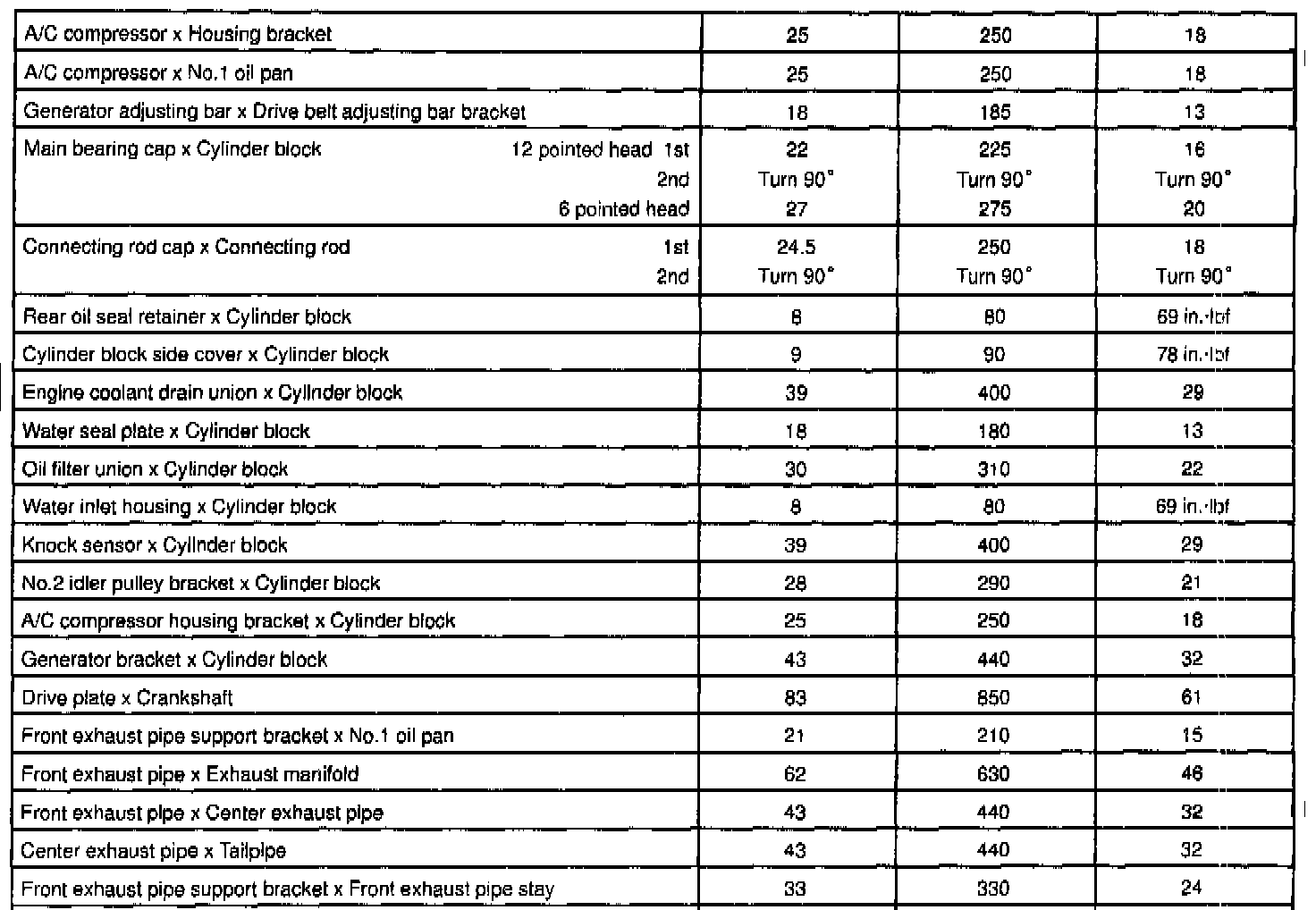

3.0L Engine Torque Cont.:

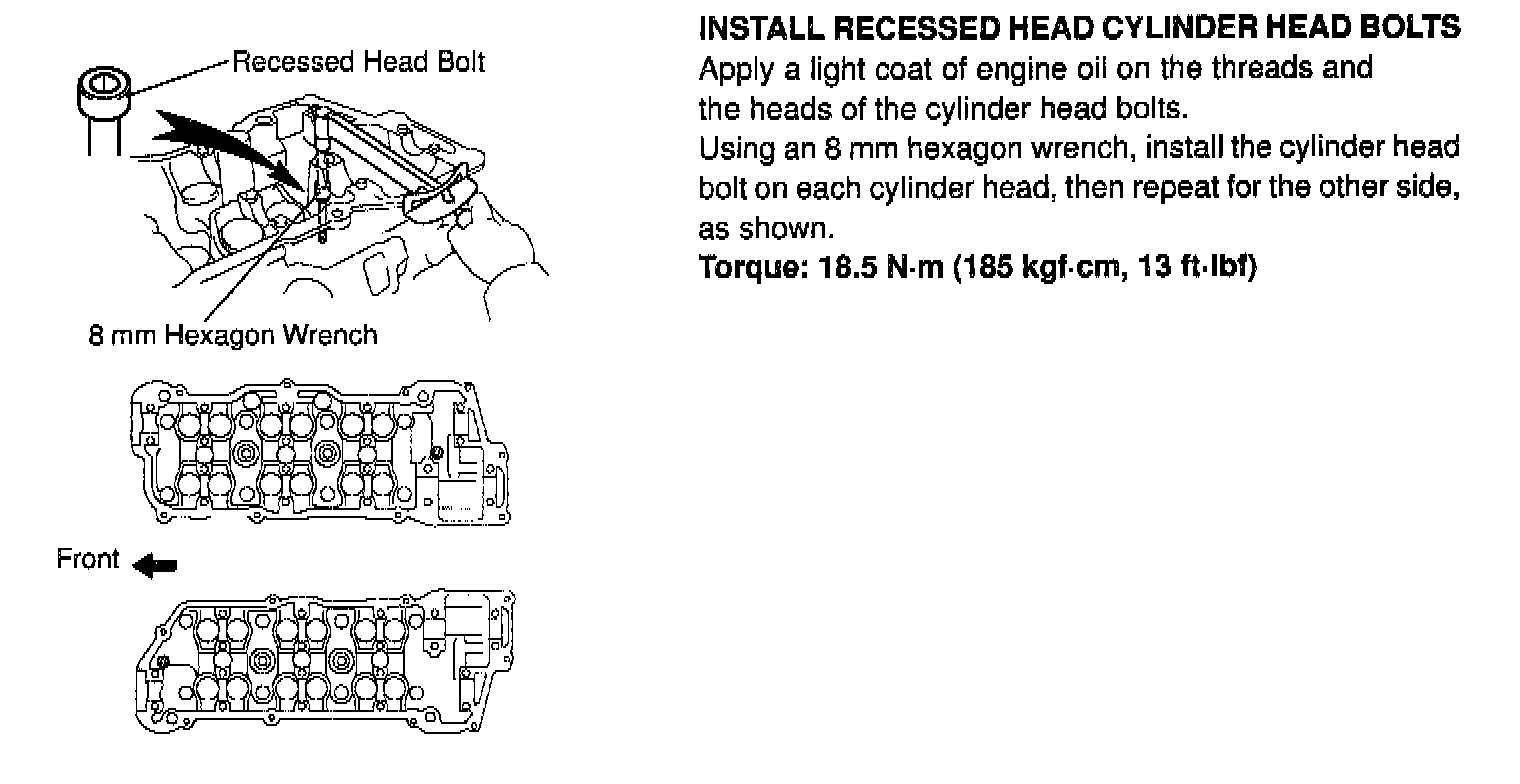

3.0L Cylinder Head Torque & Sequence:

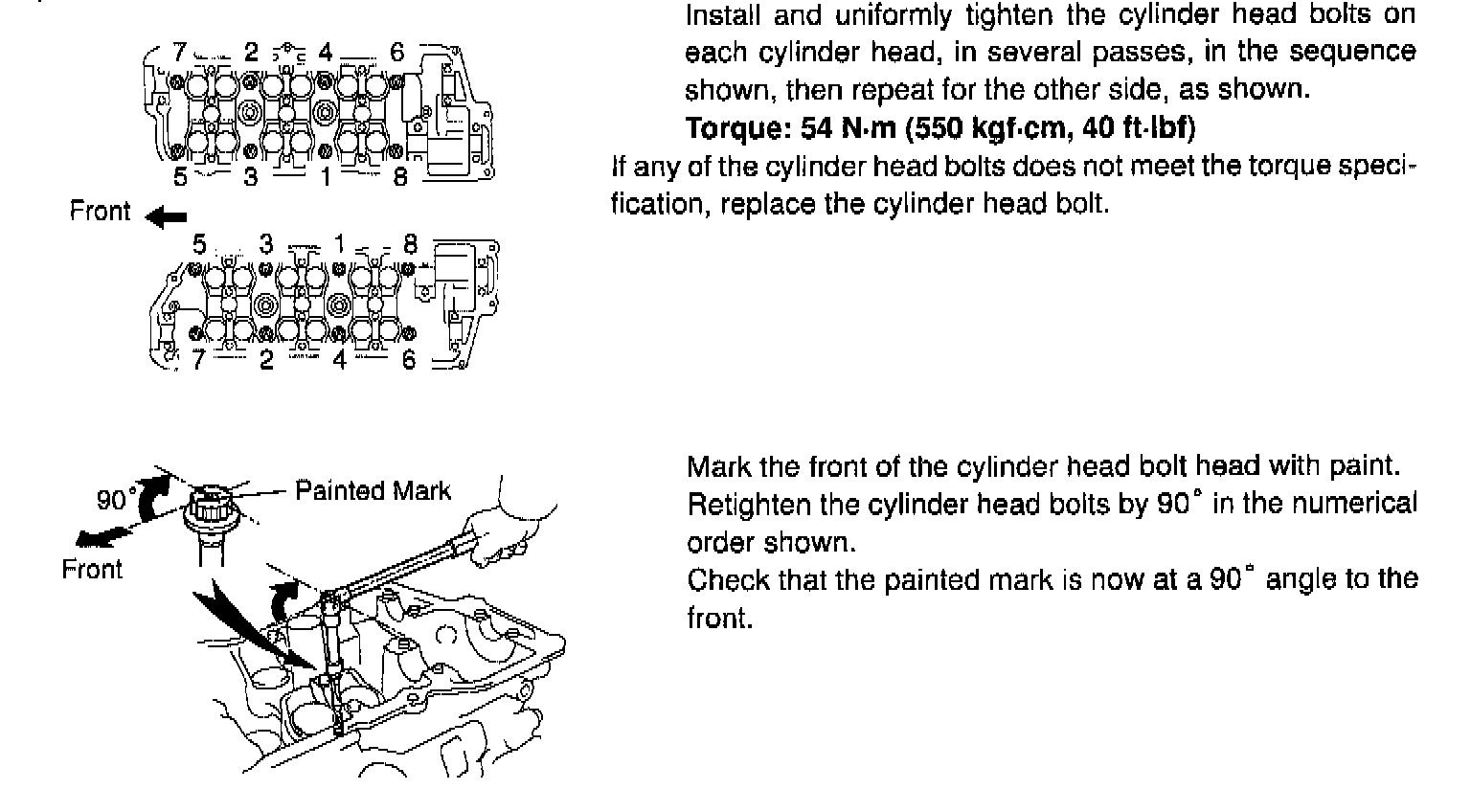

3.0L Cylinder Head Torque & Sequence Cont.:
