Ignition Coil: Service and Repair

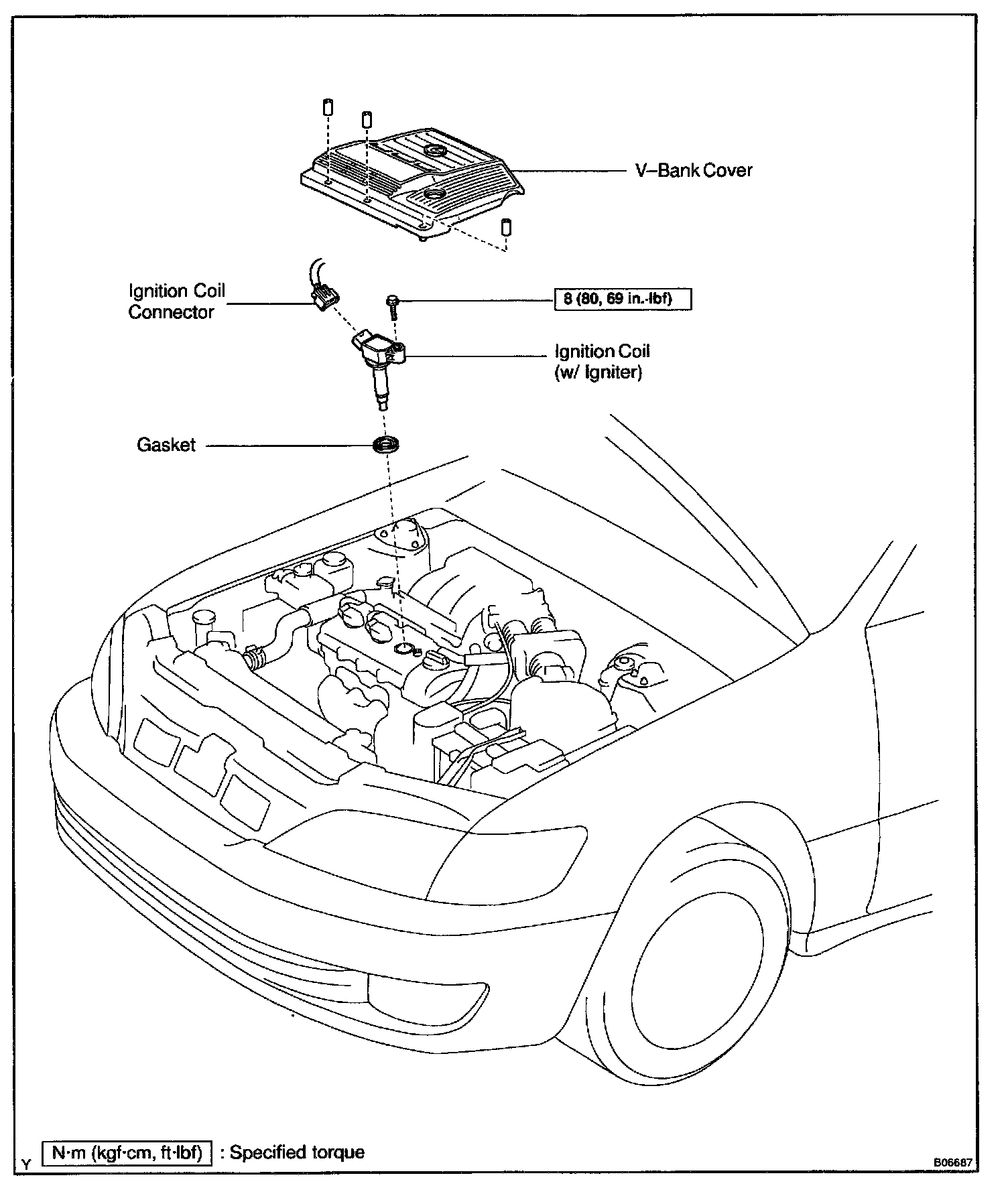

COMPONENTS

1. REMOVE V-BANK COVER




a. Using a 5 mm hexagon wrench, remove the 3 cap nuts.
b. Loosen the V-bank cover fastener counterclockwise.
c. Remove the V-bank cover.

2. REMOVE IGNITION COILS
a. Disconnect the 6 ignition coil connectors.




b. Remove the bolt, and pull out the ignition coil. Remove the 6 ignition coils.

3. REINSTALL NEW IGNITION COILS
a. Connect a new ignition coil to the spark plug, and attach the ignition coil to the cylinder head cover, and install the bolt. Install the 6 ignition coils.

Torque: 8 Nm (80 kg.cm, 69 in.lb)

b. Connect the 6 ignition coil connectors.

4. REINSTALL V-BANK COVER
a. Using 5 mm hexagon wrench, install the V-bank cover with the 3 cap nuts.
b. Press down the V-bank cover fastener.
