Brake Master Cylinder

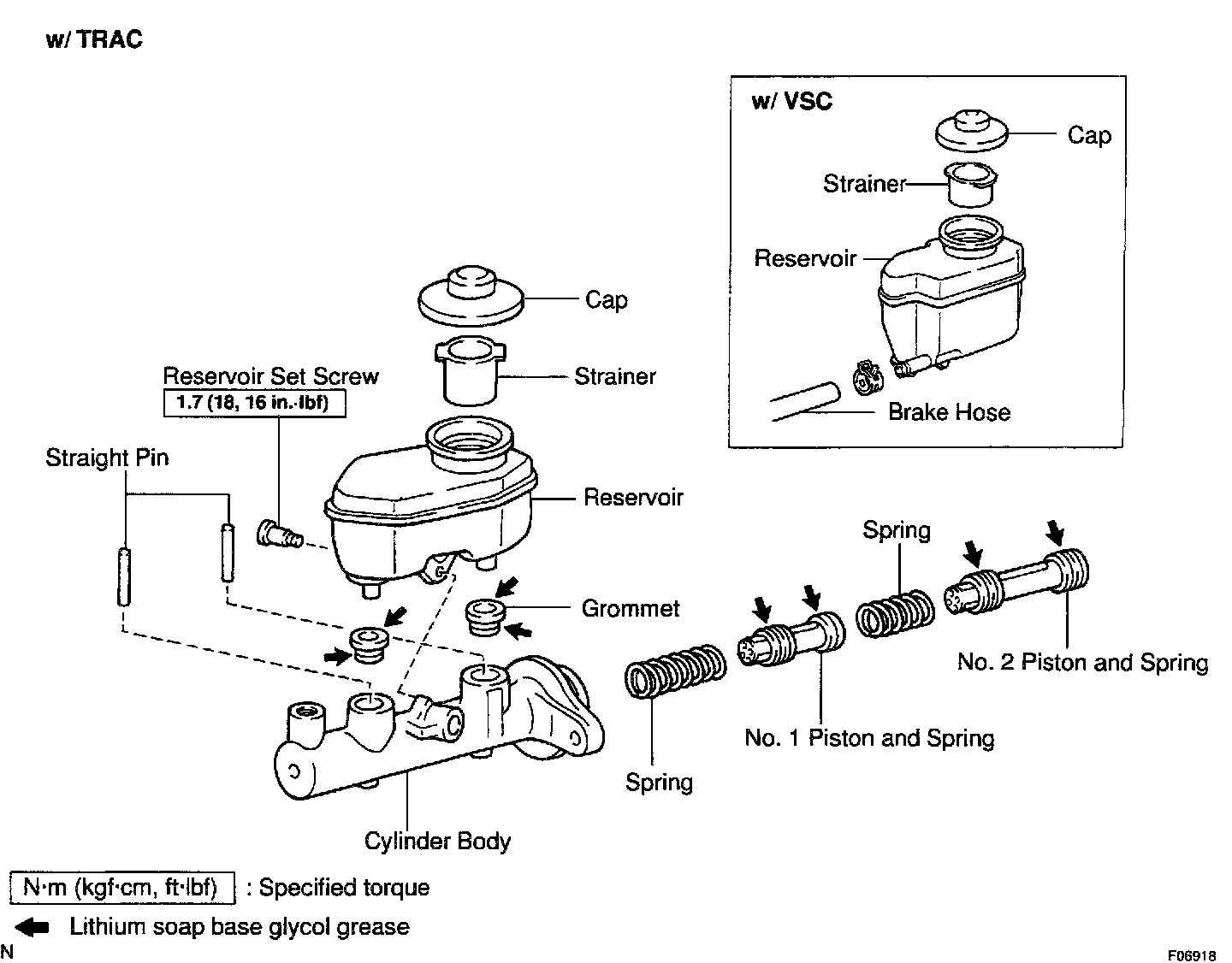

Part 1 Of 2:

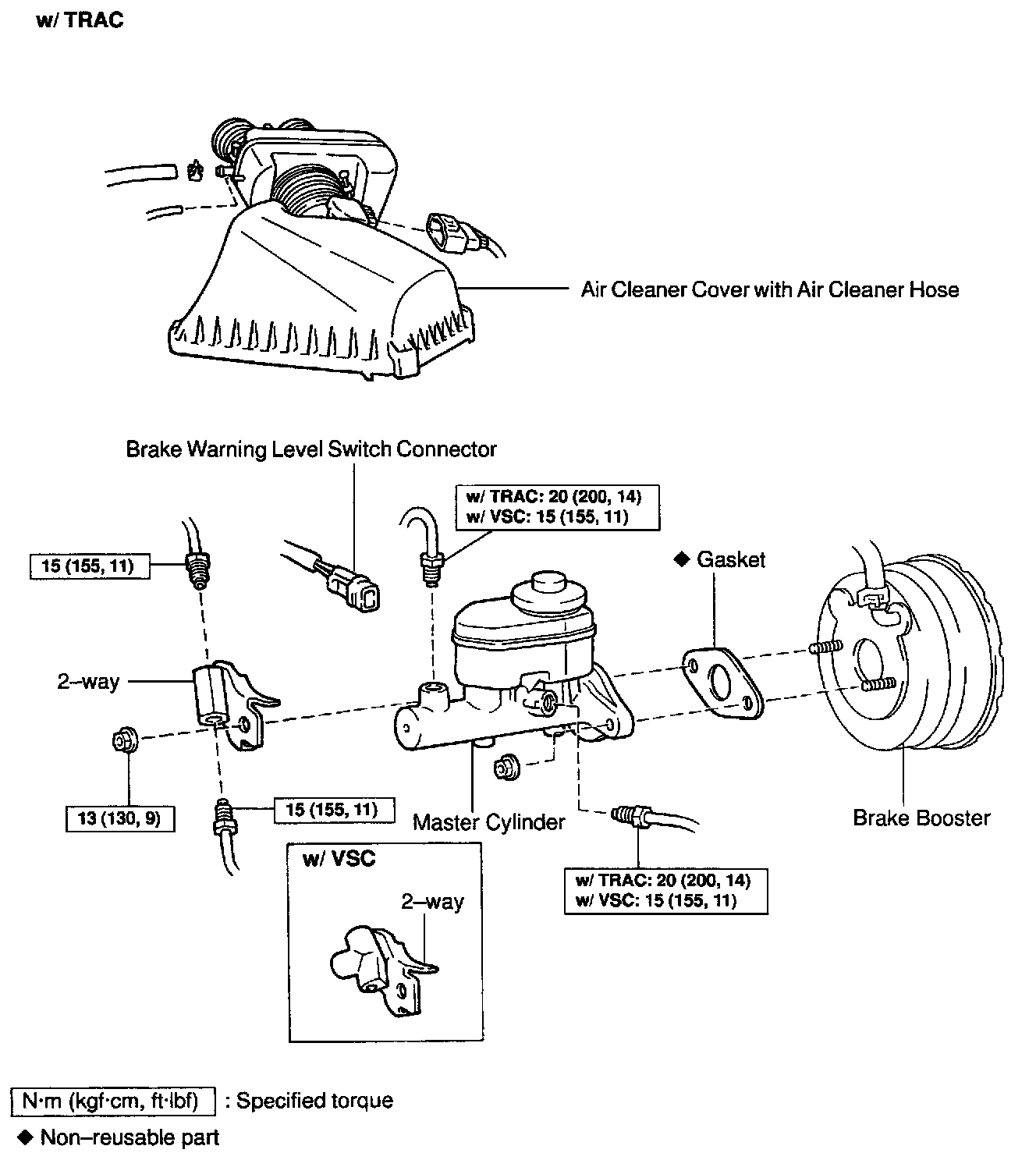

Part 2 Of 2:





MASTER CYLINDER REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
