Cylinder Head Assembly

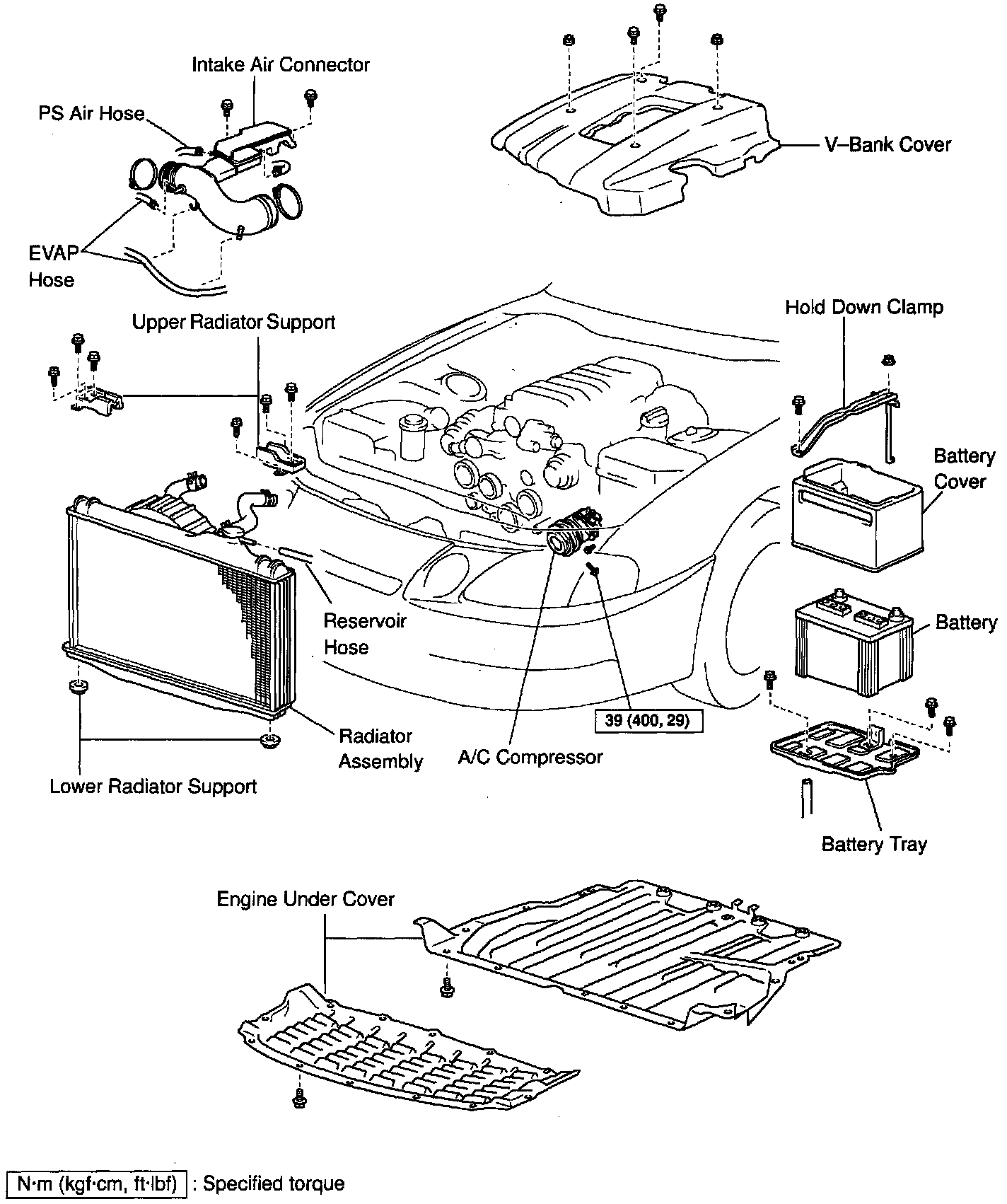

UNDERHOOD VIEW

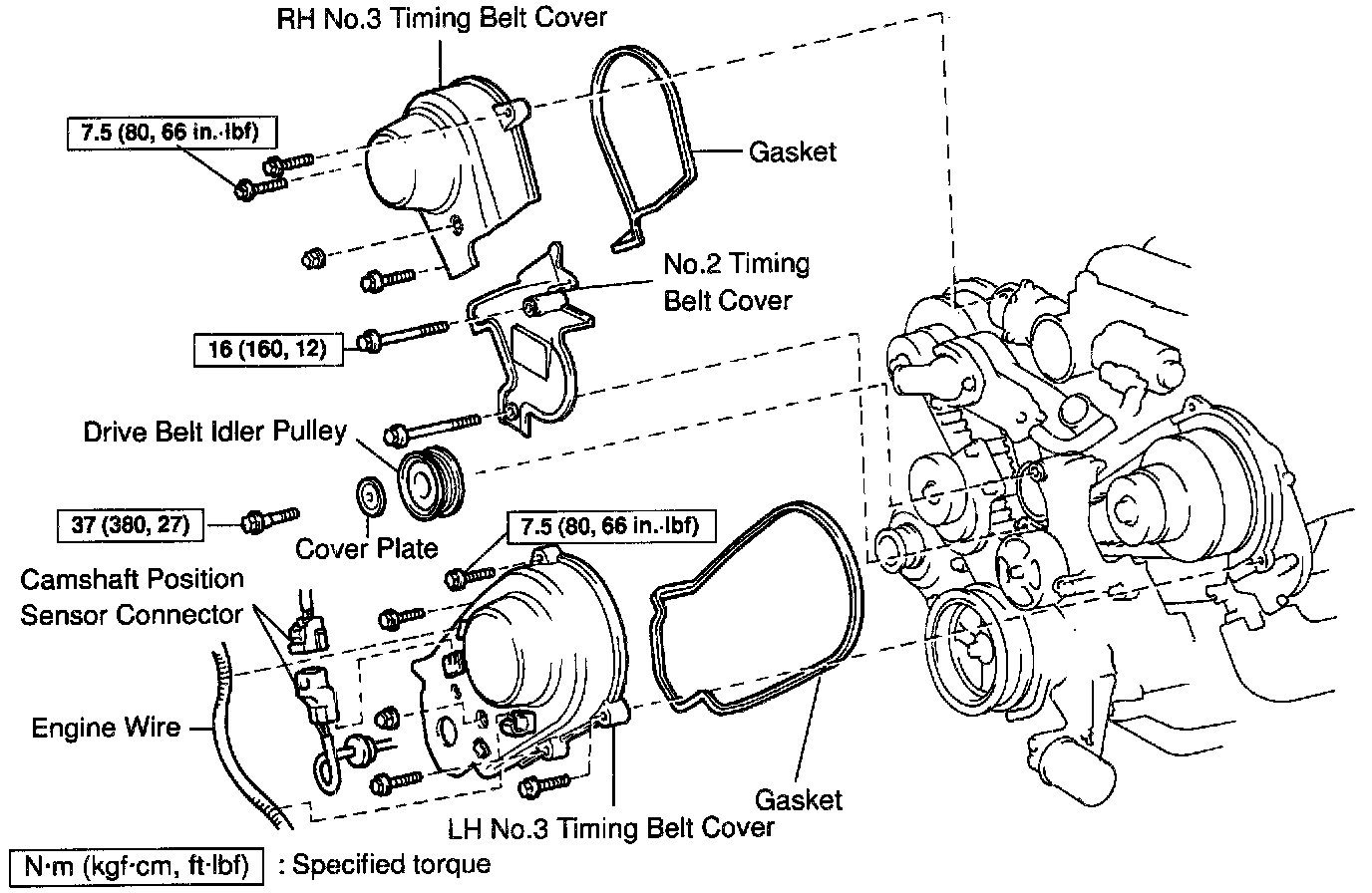

NO.3 TIMING BELT

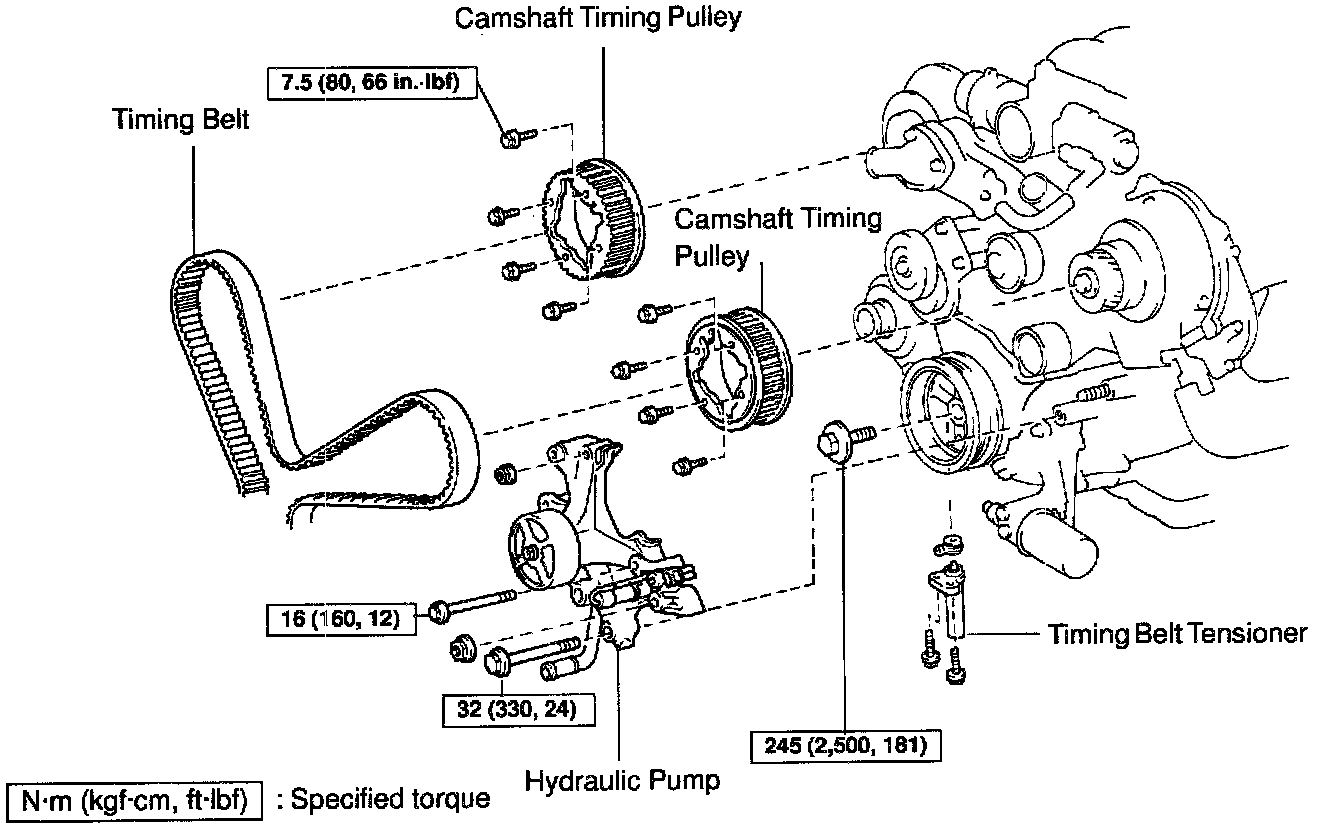

CAMSHAFT TIMING PULLEYS

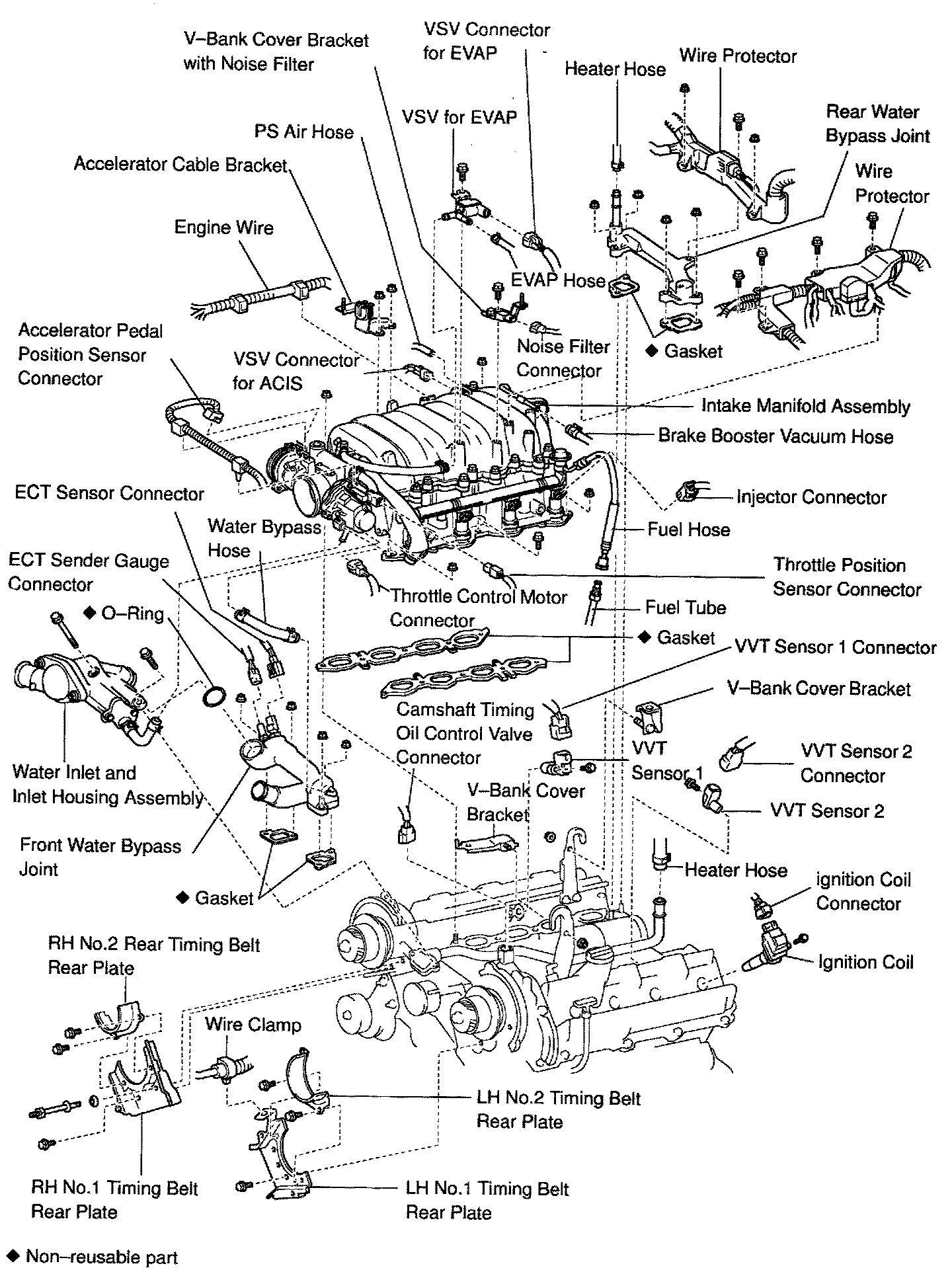

INTAKE MANIFOLD AND RELATED COMPONENTS

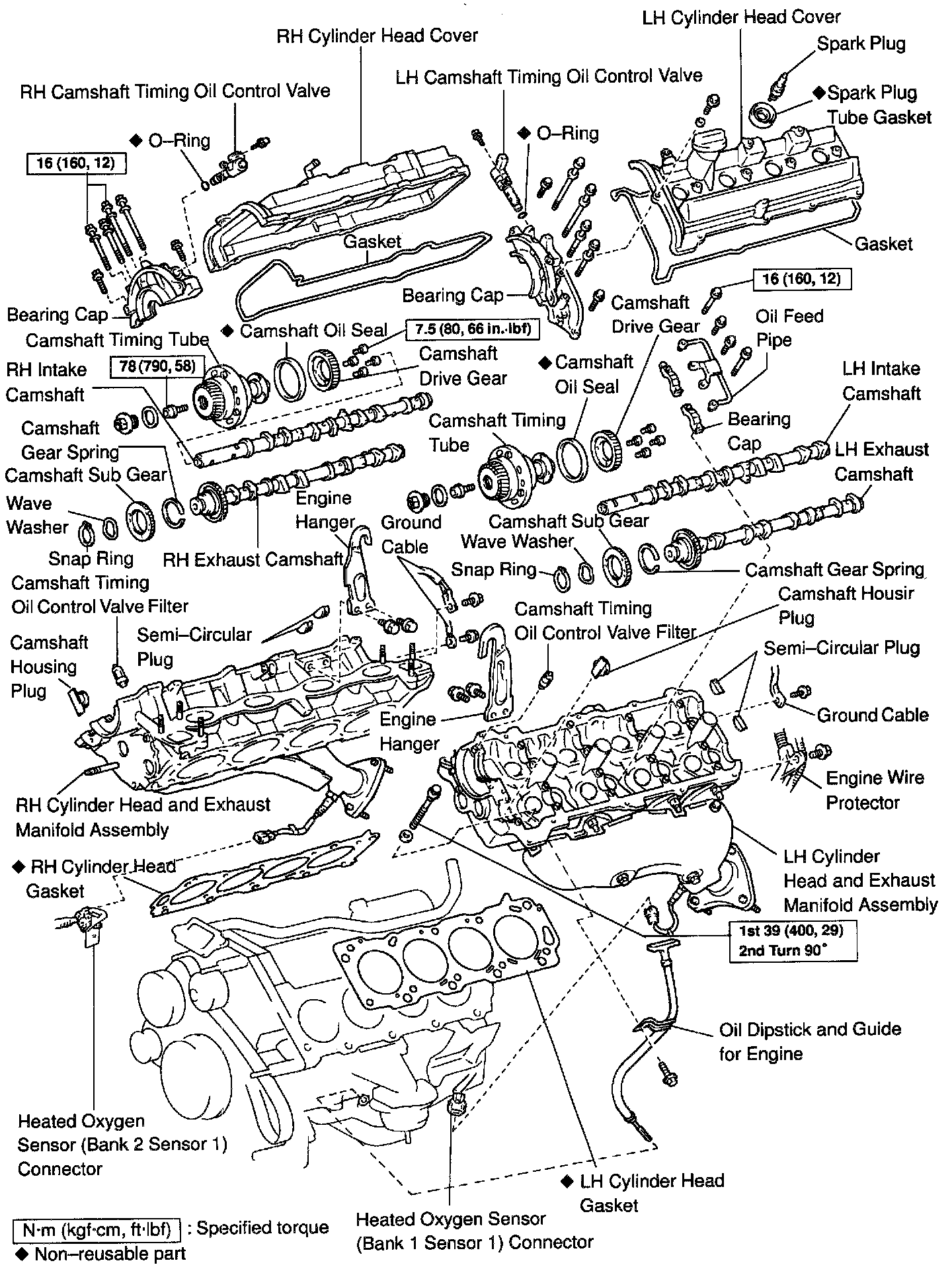

CAMSHAFTS AND RELATED COMPONENTS

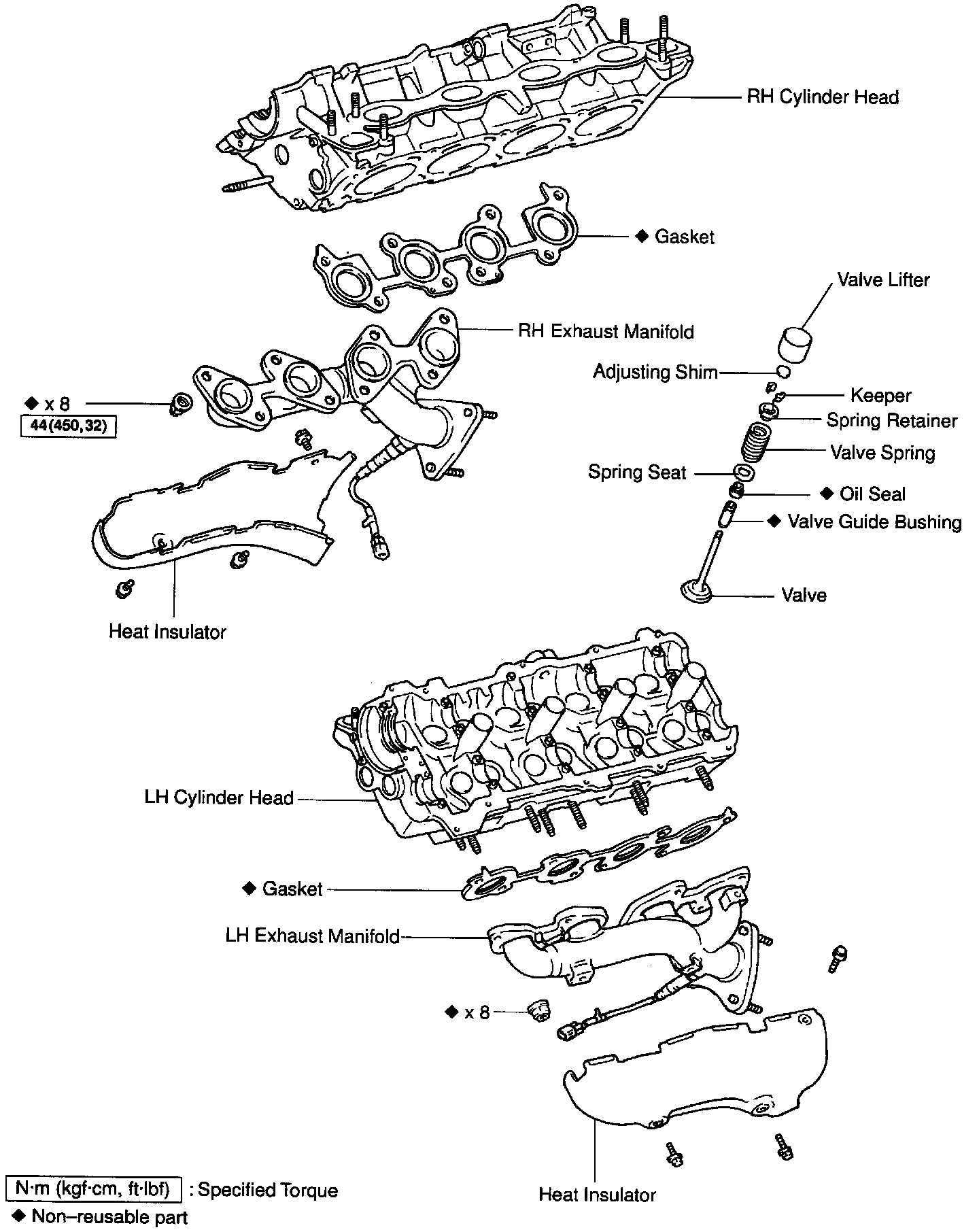

CYLINDER HEAD
