Ground Locations

Ground Points:

GROUND POINTS

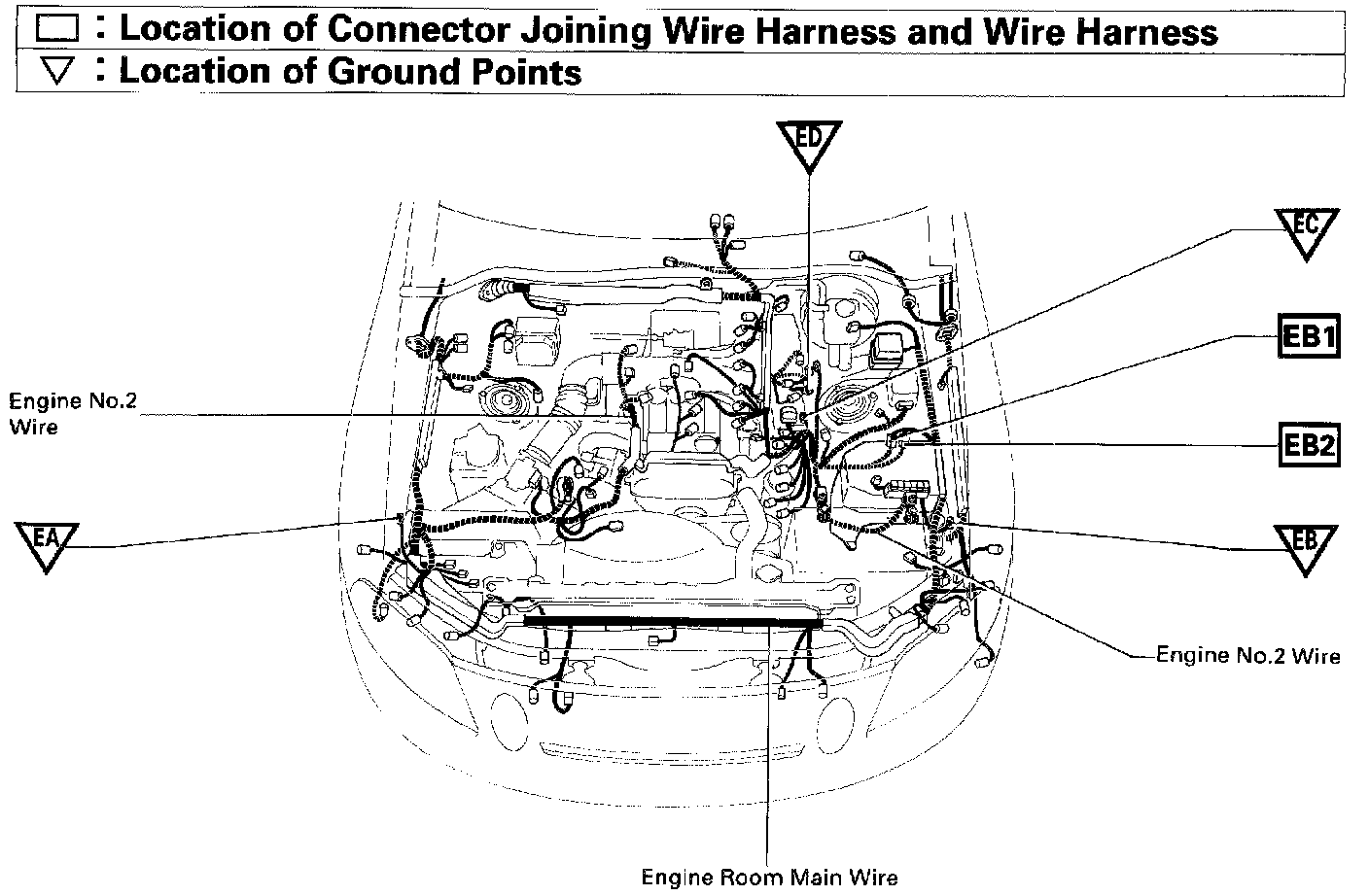

Location Of Connector Joining Wire Harness And Wire Harness Ground Points (Fig 38):

FIG 38

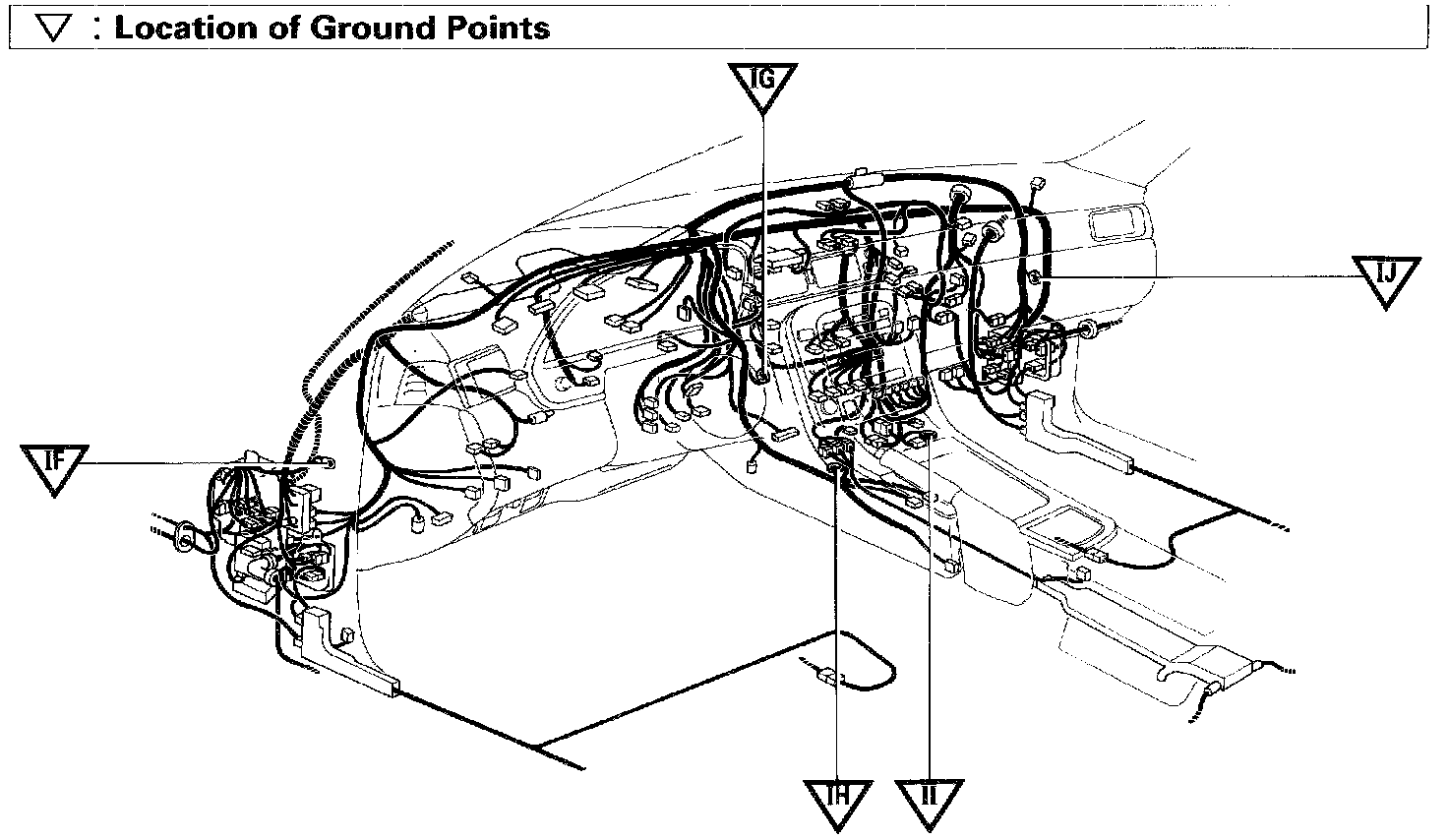

Location Of Ground Points (Fig 40):

FIG 40

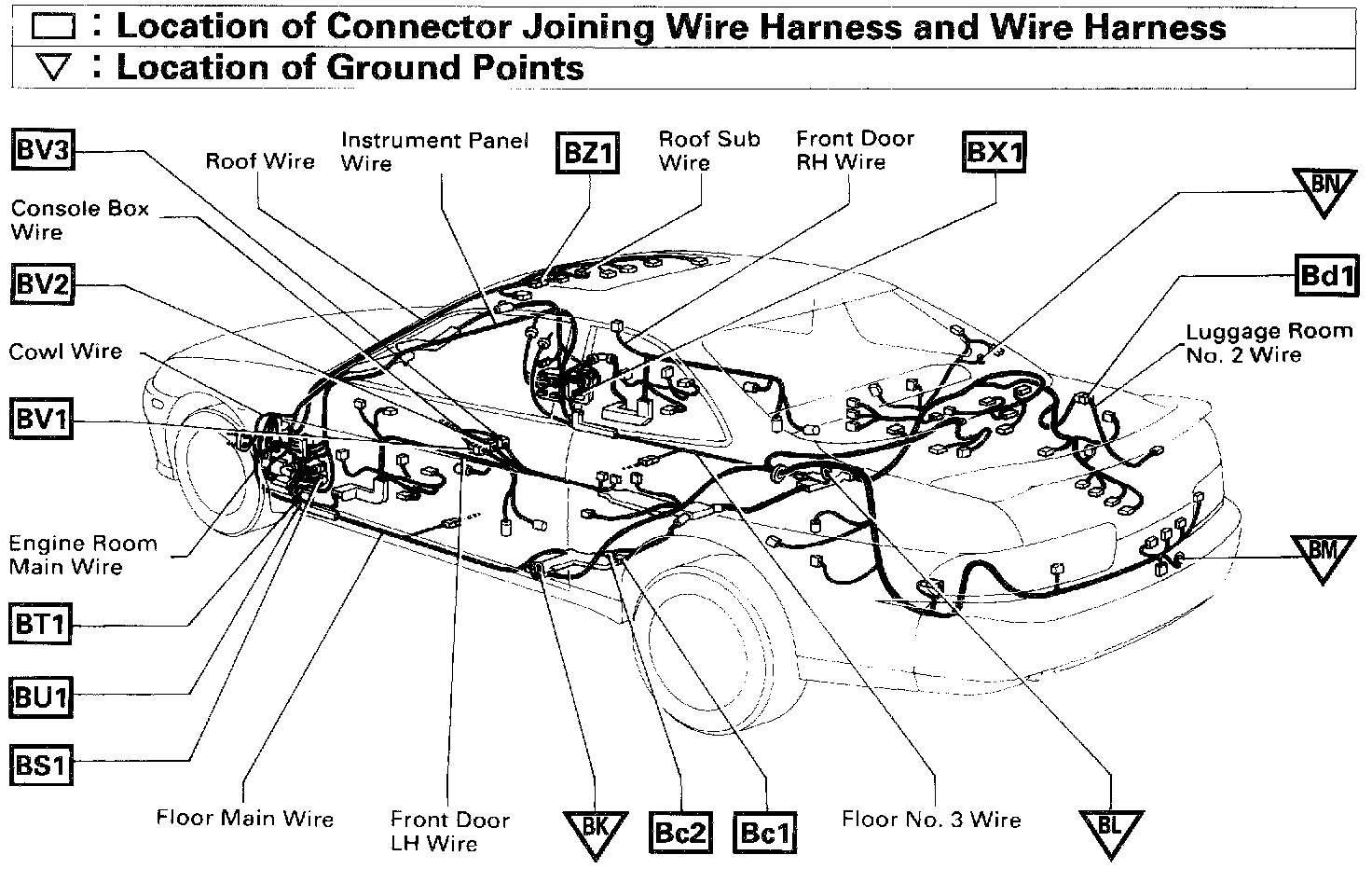

Location Of Connector Joining Wire Harness And Wire Harness, Ground Points (Fig 44):

FIG 44
